A canonical data model is used in integration projects to provide a standard way of representing data across different systems and applications. The two main reasons for using a canonical data model are:

A. To have a consistent data structure aligned in processes: By using a canonical data model, you ensure that data is represented uniformly across all processes and systems. This consistency simplifies data integration, reduces transformation logic, and minimizes errors.

E. Because the model isolates the back-end systems and supports Mule applications from change: A canonical data model abstracts the underlying data structures of the back-end systems. This isolation means that changes in the back-end systems do not directly affect the Mule applications. The applications interact with the canonical model, and any required transformations are handled centrally, making the system more adaptable to changes.

Implementation Steps:

Design the Canonical Data Model:

Identify the common data elements and structures used across different systems.

Define a unified schema that represents these elements in a consistent manner.

Implement Data Transformation Logic:

Use MuleSoft DataWeave to transform data between the canonical model and the specific formats required by each system.

Centralize the transformation logic to simplify maintenance and updates.

Integrate with Mule Applications:

Ensure all Mule applications use the canonical data model for data exchange.

Modify existing applications to transform data to and from the canonical model.

Using a canonical data model improves data consistency and system flexibility, making it a valuable approach in integration projects.

References:

MuleSoft Documentation: DataWeave

MuleSoft Documentation: Integration Best Practices

Explanation

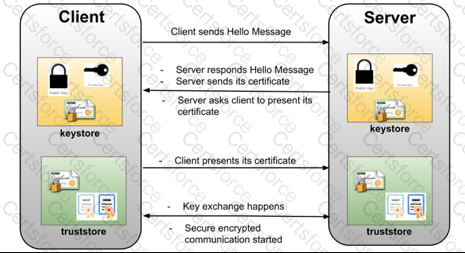

1 way SSL : The server presents its certificate to the client and the client adds it to its list of trusted certificate. And so, the client can talk to the server.

2-way SSL:  The same principle but both ways. i.e. both the client and the server has to establish trust between themselves using a trusted certificate. In this way of a digital handshake, the server needs to present a certificate to authenticate itself to client and client has to present its certificate to server.

* TLS is a cryptographic protocol that provides communications security for your Mule app.

* TLS offers many different ways of exchanging keys for authentication, encrypting data, and guaranteeing message integrity Keystores and Truststores Truststore and keystore contents differ depending on whether they are used for clients or servers:

For servers: the truststore contains certificates of the trusted clients, the keystore contains the private and public key of the server. For clients: the truststore contains certificates of the trusted servers, the keystore contains the private and public key of the client.

Adding both a keystore and a truststore to the configuration implements two-way TLS authentication also known as mutual authentication.

* in this case, correct answer is Support for TLS mutual (two-way) authentication with HTTP clients.

SLAs and non-functional requirements to access the backend systems. Only this option actually speaks to design parameters and reqs. * Below two are technical implementations and not the part of design: - Snapshots of the Mule application’s flows, including their error handling - The credentials to access the backend systems and contact details for the administrator of each system * List of consumers is not relevant to the design

Explanation

Correct answer is VM VM support Transactional Type. When an exception occur, The transaction rolls back to its original state for reprocessing. This feature is not supported by other connectors.

Here is additional information about Transaction management:

Table Description automatically generated

MUnit and Test Recorder:

MUnit is MuleSoft's testing framework designed to create automated tests for Mule applications.

Test Recorder in Anypoint Studio allows capturing live processing flows and events to automatically generate test cases.

Core Consideration:

While using Test Recorder, it is essential to consider how errors within the flows are handled.

If Mule errors are raised within the flows, Test Recorder will not be able to create tests for these flows, even if the errors are managed by On-Error Continue error handlers.

This limitation requires careful design and error handling strategies to ensure test cases can be recorded and executed effectively.

Error Handling in MUnit:

MUnit allows simulating error scenarios using mocks and spies.

Proper error handling within the application flow ensures robustness and reliable test creation.

However, the inability to create tests when errors are raised during recording indicates a need for alternative approaches to manage errors during test case generation.

References:

MuleSoft Documentation on MUnit: MUnit Documentation

MuleSoft Blog on MUnit Test Recorder: MUnit Test Recorder

After completing the build and test activities for a Mule application that implements a System API, the team should use Runtime Manager to both deploy and monitor the System API implementation. Runtime Manager is a component of Anypoint Platform that provides capabilities for deploying, managing, and monitoring Mule applications and APIs. It allows teams to manage applications and APIs across various environments, ensuring they operate correctly and efficiently.

References:

Anypoint Runtime Manager

Deploying and Managing Applications with Runtime Manager

To efficiently handle the invocation of vendor applications and retry requests that generate timeout errors, the most performant way is:

Scatter-Gather Scope: Use a Scatter-Gather scope to invoke each vendor application in parallel. This approach allows the API to send requests to both vendors simultaneously, reducing overall processing time.

Until-Successful Scope: Inside each route of the Scatter-Gather scope, use an Until-Successful scope to handle retries. The Until-Successful scope will retry the request in case of timeout errors until the request succeeds or the maximum retry limit is reached.

This combination ensures that the API can handle intermittent network issues efficiently while minimizing redundant transactions and maximizing performance.

References

MuleSoft Documentation on Scatter-Gather Scope

MuleSoft Documentation on Until-Successful Scope and Error Handling

When deploying to Runtime Fabric, there are several tools available within the Anypoint Platform ecosystem that facilitate the deployment process. These include:

AnypointCLI: This command-line interface tool provides comprehensive capabilities for deploying applications to Runtime Fabric. Using AnypointCLI, you can script and automate deployments, which is useful for integrating into CI/CD pipelines.

Anypoint Platform REST APIs: These APIs allow for programmatic deployment and management of applications on Runtime Fabric. They provide flexibility for integrating deployment processes with other systems and tools.

Mule Maven Plugin: This plugin can be used within a Maven project to package and deploy Mule applications to Runtime Fabric as part of a build process.

However, directly uploading a JAR file from the Runtime Manager is not a supported method for deploying to Runtime Fabric.

References:

Anypoint CLI Documentation

Mule Maven Plugin Documentation

Explanation

* An object store is a facility for storing objects in or across Mule applications. Mule uses object stores to persist data for eventual retrieval.

* Mule provides two types of object stores:

1) In-memory store – stores objects in local Mule runtime memory. Objects are lost on shutdown of the Mule runtime.

2) Persistent store – Mule persists data when an object store is explicitly configured to be persistent.

In a standalone Mule runtime, Mule creates a default persistent store in the file system. If you do not specify an object store, the default persistent object store is used.

MuleSoft Reference: https://docs.mulesoft.com/mule-runtime/3.9/mule-object-stores

Explanation

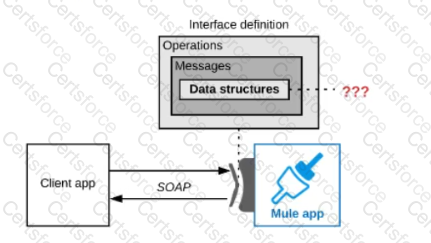

Correct Answer: XSD In this approach to developing a web service, you begin with an XML schema (XSD file) that defines XML data structures to be used as parameters and return types in the web service operations.

----------------------------------------------------------------------------------------------------------------- Reference: https://www.w3schools.com/xml/schema_intro.asp
