Explanation:

In this scenario, we need to configure the SRX Series device so that devices in the Local zone (VLAN 10, 10.1.1.0/24 network) can communicate with each other but not with other networks or the SRX itself. Additionally, you must be able to apply security policies to traffic flows between the devices in the Local zone.

Explanation of Answer A (Assigning Interface to Security Zone):

You need to assign the interface ge-0/0/1.0 to the Local security zone. This is crucial because the SRX only applies security policies to interfaces assigned to security zones. Without this, traffic between devices in the Local zone won't be processed by security policies.

Configuration:

set security zones security-zone Local interfaces ge-0/0/1.0

Explanation of Answer B (Configuring Ethernet-Switching for VLAN 10):

Since we are using Layer 2 switching between devices in VLAN 10, we need to configure the interface to operate in Ethernet switching mode and assign it to VLAN 10.

Configuration:

set interfaces ge-0/0/1 unit 0 family ethernet-switching vlan-members 10

Explanation of Answer D (Transparent Bridging Mode for Layer 2):

The global mode for Layer 2 switching on the SRX device must be set to transparent-bridge. This ensures that the SRX operates in Layer 2 mode and can switch traffic between devices without routing.

Configuration:

set protocols l2-learning global-mode transparent-bridge

Summary:

Interface Assignment: Interface ge-0/0/1.0 is assigned to the Local zone to allow policy enforcement.

Ethernet-Switching: The interface is configured for Layer 2 Ethernet switching in VLAN 10.

Transparent Bridging: The SRX is configured in Layer 2 transparent-bridge mode for switching between devices.

Juniper Security Reference:

Layer 2 Bridging and Switching Overview: This mode allows the SRX to act as a Layer 2 switch for forwarding traffic between VLAN members without routing. Reference: Juniper Transparent Bridging Documentation.

==========

A. Install the Junos IKE package on both nodes. While I previously stated that IKE is usually included in the base Junos OS image, it's essential to ensure that the necessary IKE package is indeed installed and enabled on both SRX nodes to support ICL encryption.

C. Configure a VPN profile for the HA traffic and apply it to both nodes. This dedicated VPN profile defines the security parameters (encryption algorithms, authentication, etc.) specifically for the ICL traffic.

D. Enable HA link encryption in the IPsec profile on both nodes. Within the IPsec profile, you must explicitly enable ICL encryption to ensure that all traffic traversing the interchassis link is protected.

Why E is incorrect:

E. Enable HA link encryption in the IKE profile on both nodes. While securing IKE negotiations is important, it's typically handled within the IPsec profile itself when configuring ICL encryption on SRX devices.

For threat remediation in a third-party network, the RADIUS protocol is necessary to communicate with the RADIUS server for details about infected hosts. CoA enables security measures to be enforced based on endpoint information provided by the RADIUS server. Details on this setup can be found in Juniper RADIUS and AAA Documentation.

When deploying threat remediation to endpoints connected through third-party devices, such as switches, the following conditions must be met for proper integration and functioning:

Explanation of Answer A (Support for AAA/RADIUS and Dynamic Authorization Extensions):

Third-party switches must support AAA (Authentication, Authorization, and Accounting) and RADIUS with Dynamic Authorization Extensions. These extensions allow dynamic updates to be made to a session's authorization parameters, which are essential for enforcing access control based on threat detection.

Explanation of Answer B (Connector Gathers MAC Information via API):

The connector uses an API to gather MAC address information from the RADIUS server. This MAC address data is necessary to identify and take action on infected hosts or endpoints.

Explanation of Answer D (Connector Initiates CoA):

The connector queries the RADIUS server for infected host details and triggers a Change of Authorization (CoA) for the infected host. The CoA allows the connector to dynamically alter the host's access permissions or isolate the infected host based on its threat status.

Juniper Security Reference:

Threat Remediation via RADIUS: Dynamic remediation actions, such as CoA, can be taken based on information received from the RADIUS server regarding infected hosts. Reference: Juniper RADIUS and CoA Documentation.

==========

In this configuration, User1 is logged into logical system LSYS-1, which restricts access and visibility to that particular system. This ensures isolation between logical systems on the same physical device. Only a system administrator can assign additional permissions. For more details, see Juniper Logical Systems Guide.

From the exhibit, we see that User1 is logged into logical system LSYS-1:

Access to Assigned Logical System (Answer A): User1, being logged into the logical system LSYS-1, only has access to the configuration and interfaces within that logical system. This is a key feature of logical systems in Junos, ensuring users are restricted to their respective environments.

Logged into LSYS-1 (Answer B): The prompt shows that User1 is currently operating in LSYS-1, as indicated by the User1@SRX:LSYS-1> command line.

For ADVPN with OSPF, using a point-to-multipoint (p2mp) interface type and enabling dynamic-neighbors are crucial. This configuration allows dynamic discovery of neighbors and the establishment of tunnels. For more information, refer to Juniper ADVPN Configuration Guide.

In the ADVPN configuration, OSPF isn't functioning as expected due to the interface configuration on st0.0. Here are the adjustments needed:

Interface Type p2mp (Answer A): OSPF requires that the tunnel interface be set to p2mp (point-to-multipoint) to allow OSPF to communicate with multiple dynamic neighbors over the ADVPN tunnels.

Command Example:

bash

set interfaces st0.0 family inet ospf interface-type p2mp

Dynamic Neighbors (Answer B): The dynamic neighbors statement allows OSPF to discover and communicate with dynamically established spokes in an ADVPN environment. This is essential for ADVPN to function properly since the tunnel endpoints are not static.

Command Example:

bash

set protocols ospf area 0.0.0.0 interface st0.0 dynamic-neighbors

These settings ensure OSPF properly functions over dynamically created ADVPN tunnels.

==========

Comprehensive Detailed Step-by-Step Explanation with All Juniper Security References

Understanding the Problem:

The goal is to bypass IDP for traffic destined to social media sites using Application-Based Policy Routing (APBR).

Despite the configuration, IDP is still dropping the sessions.

Need to identify two reasons why this is happening.

Key Concepts:

Application-Based Policy Routing (APBR): Allows routing decisions based on the application identified in the traffic.

IDP (Intrusion Detection and Prevention): Monitors network traffic for malicious activity and can drop suspicious packets.

Bypassing IDP: To bypass IDP for certain traffic, specific configurations are required within the APBR rule.

Option A: IDP disable is not configured on the APBR rule.

Explanation:

To bypass IDP for specific traffic using APBR, you must explicitly configure the idp-disable option within the APBR rule.

Without this configuration, even if APBR redirects the traffic, IDP will still inspect and potentially drop the traffic.

Comprehensive Detailed Step-by-Step Explanation with All Juniper Security References

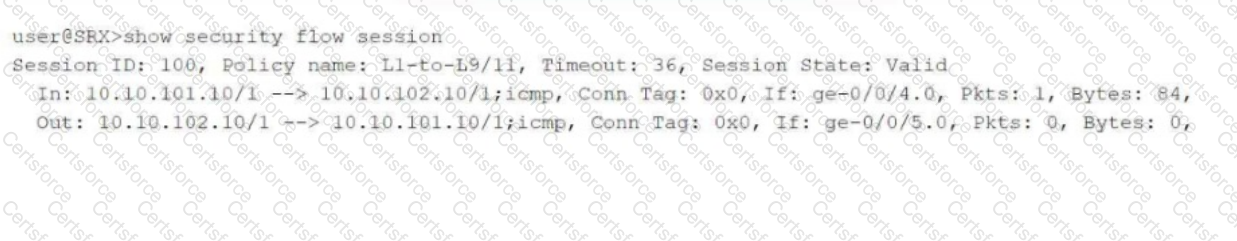

Understanding the Session Output:

Session State: Valid

Indicates that the session is active and permitted by security policies.

Policy Name: L1-to-L9/11

Shows the policy that allowed the session.

In Direction:

Source: 10.10.101.10

Destination: 10.10.102.10

Packets: 1

Bytes: 84

Out Direction:

Packets: 0

Bytes: 0

Indicates no return traffic.

Option A: The traffic is permitted.

Explanation:

The session state is Valid, and a policy name is specified.

This means the SRX device allowed the traffic.

Comprehensive Detailed Step-by-Step Explanation with All Juniper Security References

Understanding the Scenario:

Multinode HA Default Mode Deployment:

In a chassis cluster, two SRX devices operate together to provide high availability.

ICL (Inter-Cluster Link) is Down:

The control and fabric links between the nodes are not operational.

Objective:

Determine how the SRX devices verify each other's activeness without the ICL.

Option A: Custom IP addresses may be configured for the activeness probe.

Explanation:

When the control link is down, SRX devices use an ICMP ping-based activeness probe to check the peer's status.

Custom IP addresses can be configured as probe targets to verify the peer's activeness.
