The purpose of the Switch Microservice of Policy Enforcer is to isolate infected hosts. The Switch Microservice is a component of Policy Enforcer that runs on EX Series and QFX Series switches. It communicates with Policy Enforcer and Juniper ATP Cloud to receive threat intelligence and quarantine commands. When an infected host is detected by Juniper ATP Cloud, Policy Enforcer sends a command to the Switch Microservice to isolate the host by applying an access control list (ACL) on the switch port where the host is connected. The ACL blocks all traffic from or to the host except for the traffic that is required for remediation. The Switch Microservice also tracks the MAC address of the infected host and updates Policy Enforcer if the host moves to a different switch port or a different switch. This way, the Switch Microservice ensures that the infected host is isolated until it is remediated and no longer poses a threat to the network. References: Juniper Security, Professional (JNCIP-SEC) Reference Materials source and documents: https://www.juniper.net/documentation/en_US/junos/topics/concept/security-policy-enforcer-switch-microservice-overview.html

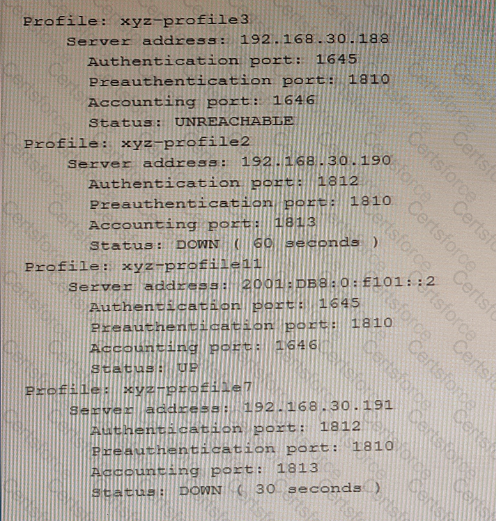

The SRX Series device will continue to send requests to authentication servers 192.168.30.190 and 192.168.30.191. This is because the exhibit shows the output of the show network-access aaa radius-servers command. This command displays the status of the RADIUS servers configured on the device. In the output, we can see that there are three RADIUS servers configured - 192.168.30.190, 192.168.30.191, and 2001:DB8:0:f101::2. However, the status of the third server is shown as “DOWN”. This means that the device is not able to communicate with this server. Therefore, the device will continue to send requests to the other two servers - 192.168.30.190 and 192.168.30.191. References: Juniper Security, Professional (JNCIP-SEC) Reference Materials source and documents: https://www.juniper.net/documentation/en_US/junos/topics/reference/command-summary/show-network-access-aaa-radius-servers.html

https://www.juniper.net/documentation/en_US/release-independent/jatp/topics/task/configuration/jatp-traffic-collectorsetting-ssh-honeypot-detection.html

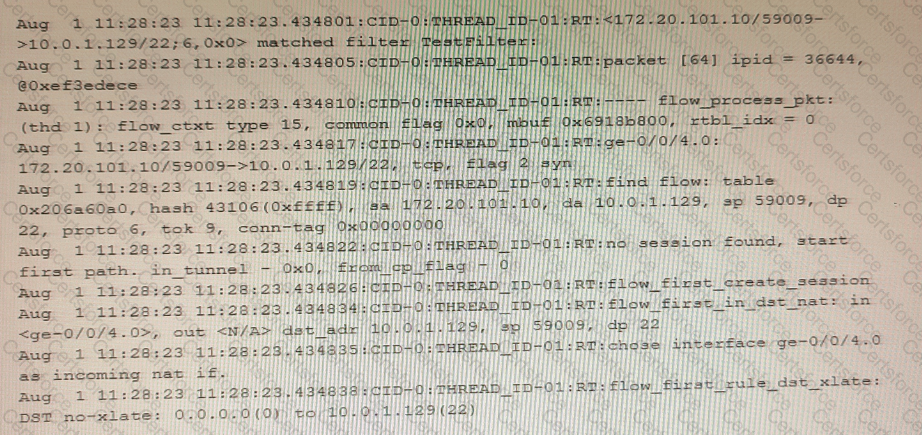

According to the security flow trace shown in the exhibit, which is a snippet of a packet capture on an SRX Series device, the two statements that are correct are:

This packet arrived on interface ge-0/0/4.0. This is indicated by the line In: 10.0.1.129/22 -> 10.0.1.129/3382;1,0x0, which shows that the ingress interface of the packet is ge-0/0/4.0, as the interface name is prefixed to the source and destination IP addresses and ports of the packet1.

An existing session is found in the table. This is indicated by the line Found: session id 0x12. sess tok 28685, which shows that the packet matches an existing session in the session table with the session ID 0x12 and the session token 286852.

The following statements are incorrect or not supported by the output:

Destination NAT occurs. This is not supported by the output, as there is no indication of destination NAT being applied to the packet. The destination IP address of the packet is 10.0.1.129, which is the same as the destination IP address of the original packet. If destination NAT was applied, the destination IP address of the packet would be different from the destination IP address of the original packet.

The capture is a packet from the source address 172.20.101.10 destined to 10.0.1.129. This is false, as the output shows that the source address of the packet is 10.0.1.129, not 172.20.101.10. The source IP address of the packet is prefixed to the ingress interface name ge-0/0/4.0.

References: 1: Understanding Security Flow Trace 2: show security flow session - Technical Documentation - Support - Juniper Networks
