The routers that are directly connected to the Dallas and Denver subnets are not advertising the connected subnets. This can be resolved by redistributing the connected subnets into OSPF1.

Option C suggests to configure and apply a routing policy that redistributes the connected Dallas and Denver subnets. This is correct because redistribution allows routes from one routing protocol to be communicated to another, and in this case, it allows the connected subnets to be advertised through OSPF1.

Option D suggests enabling the passive option on the OSPF interfaces that are connected to the Dallas and Denver subnets. This is also correct because in OSPF, a passive interface is an interface that belongs to the OSPF router, but does not send OSPF Hello packets1. It’s typically used on an interface that you don’t want to use for OSPF adjacencies, but you still want to advertise its IP address1. Therefore, enabling passive interface can help in advertising the Dallas and Denver subnets.

The default keepalive time for BGP is 60 seconds1. The keepalive time is the interval at which BGP sends keepalive messages to maintain the connection with its peer1. If the keepalive message is not received within the hold time, the connection is considered lost1. By default, the hold time is three times the keepalive time, which is 180 seconds1.

The default MAC age-out timer on an EX Series switch is 300 seconds12. The MAC age-out timer is the maximum time that an entry can remain in the MAC table before it “ages out,” or is removed31. This configuration can influence efficiency of network resource use by affecting the amount of traffic that is flooded to all interfaces1. When traffic is received for MAC addresses no longer in the Ethernet routing table, the router floods the traffic to all interfaces1.

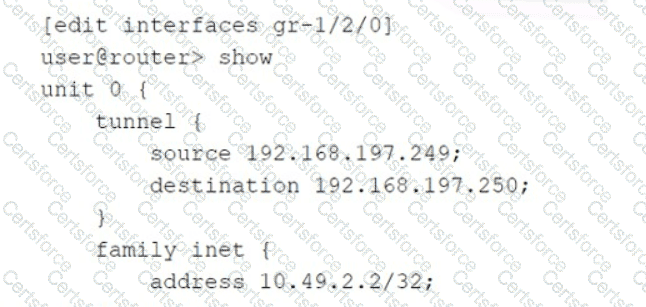

Option A is correct. For traffic to be sent through a GRE tunnel, there must be a route that directs the traffic into the tunnel. This is typically accomplished through the use of a static route or a dynamic routing protocol.

Option B is correct. All intermediary devices must have a route to the tunnel endpoints34. In real-world scenarios, the tunnel endpoints for a tunnel going over the Internet must have globally reachable internet addresses. Otherwise, intermediate routers in the Internet cannot forward the tunneled packets.

A keepalive OAM probe is a mechanism that can be used to monitor the state of a GRE tunnel and detect any failures in the tunnel path. A keepalive OAM probe consists of sending periodic packets from one end of the tunnel to the other and expecting a reply. If no reply is received within a specified time, the tunnel is considered down and the line protocol of the tunnel interface is changed to down1.

To configure a keepalive OAM probe for a GRE tunnel, you need to specify two parameters: the keepalive-time and the hold-time. The keepalive-time is the interval between each keepalive packet sent by the local router. The hold-time is the maximum time that the local router waits for a reply from the remote router before declaring the tunnel down2.

According to the Juniper Networks documentation, the hold-time value must be two times the keepalive-time value for a GRE tunnel2. This is because the hold-time value must account for both the round-trip time of the keepalive packet and the processing time of the remote router. If the hold-time value is too small, it may cause false positives and unnecessary tunnel flaps.

In the exhibit, the configuration shows that the keepalive-time is set to 10 seconds and the hold-time is set to 15 seconds for the gr-1/1/10.1 interface. This means that the local router will send a keepalive packet every 10 seconds and will wait for 15 seconds for a reply from the remote router. However, this hold-time value is not two times the keepalive-time value, which violates the recommended configuration. This may cause traffic drops if the remote router takes longer than 15 seconds to reply.

Therefore, option D is correct, because the hold-time value must be two times the keepalive-time value for a GRE tunnel. Option A is incorrect, because BFD is not required for GRE tunnels; BFD is another protocol that can be used to monitor tunnels, but it is not compatible with GRE keepalives3. Option B is incorrect, because the “event link-adjacency-loss” option is not related to GRE tunnels; it is an option that can be used to trigger an action when a link goes down4. Option C is incorrect, because LLDP does not need to be removed from the gr-1/1/10.1 interface; LLDP is a protocol that can be used to discover neighboring devices and their capabilities, but it does not interfere with GRE tunnels5.

References:

1: Configuring Keepalive Time and Hold time for a GRE Tunnel Interface 2: keepalive | Junos OS | Juniper Networks 3: Configuring Bidirectional Forwarding Detection 4: event link-adjacency-loss | Junos OS | Juniper Networks 5: Understanding Link Layer Discovery Protocol

In Rapid Spanning Tree Protocol (RSTP), there are several port roles that determine the behavior of the port in the spanning tree123. The roles include root, designated, alternate, backup, and disabled123.

The discarding state is associated with the backup, alternate, and disabled roles123. In a stable topology with consistent port roles throughout the network, RSTP ensures that every root port and designated port immediately transition to the forwarding state while all alternate and backup ports are always in the discarding state2. Disabled ports are also in the discarding state3.

Therefore, options B, C, and D are correct.

The management IP address of a device is the IP address that is used to access the device for configuration and monitoring purposes. It is usually assigned to a dedicatedmanagement interface that is separate from the data interfaces. The management interface can be accessed via SSH, Telnet, HTTP, or other protocols.

In the exhibit, the list of interfaces and their statuses shows that the management interface isme0. This interface has an admin status ofup, a protocol status ofinet, a local address of172.23.12.100/24, and a remote address ofunspecified. This means that the me0 interface is active, has an IPv4 address assigned, and is not connected to another device.

Therefore, the management IP address of the device shown in the exhibit is172.23.12.100.

References:

[Management Interfaces Overview] : [Displaying Interface Status Information]

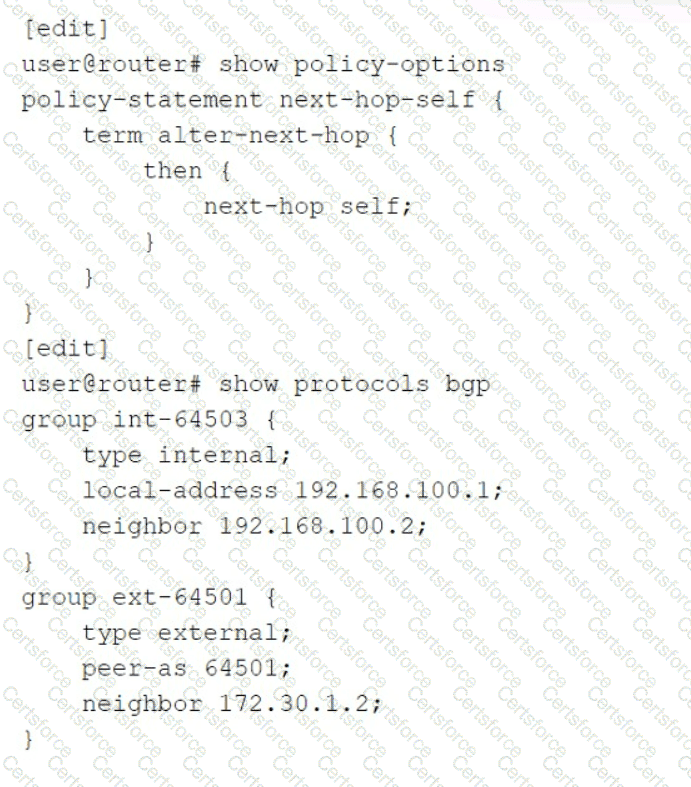

The exhibit shows the output of the command show ip bgp, which displays information about the BGP routes in the routing table1. The output shows two routes for the destination 192.168.10.0/24, one from R1 and one from R2.

The route from R1 has a local preference of 200, while the route from R2 has a local preference of 100. Local preference is a BGP attribute that indicates the degree of preference for a route within an autonomous system (AS)2. A higher local preference means a more preferred route2.

BGP uses a best path selection algorithm to choose the best route for each destination among multiple paths. The algorithm compares different attributes of the routes in a specific order of precedence3. The first attribute that is compared is weight, which is a Cisco-specific attribute that is local to the router3. If the weight is equal or not set, the next attribute that is compared is local preference3.

In this case, both routes have the same weight of 0, which means that they are learned from external BGP (eBGP) peers3. Therefore, the next attribute that is compared is local preference. Since R1’s route has a higher local preference than R2’s route, it is chosen as the best path and installed in the routing table3. The other attributes, such as origin code and AS path, are not considered in this case.

In OSPF, the state of the neighbor relationship is determined by the exchange of OSPF packets between routers1. The state “2Way” as shown in the exhibit indicates that bi-directional communication has been established between the two OSPF routers1. This is the normal state for a neighbor that is not the Designated Router (DR) or Backup Designated Router (BDR) on a broadcast, non-broadcast multi-access (NBMA), or point-to-multipoint network1. These neighbors are often referred to as "DRothers"1. Therefore, option B is correct.

A is correct because you need to configure BGP multihop to enable redundancy for the EBGP peering between the two routers. BGP multihop is a feature that allows BGP peers to establish a session over multiple hops, instead of requiring them to be directly connected1. By default, EBGP peers use a time-to-live (TTL) value of 1 for their packets, which means that they can only reach adjacent neighbors1. However, if you configure BGP multihop with a higher TTL value, you can allow EBGP peers to communicate over multiple routers in between1. This can provide redundancy in case of a link failure or a router failure between the EBGP peers.

B is correct because you need to configure loopback interface peering to enable redundancy for the EBGP peering between the two routers. Loopback interface peering is a technique that uses loopback interfaces as the source and destination addresses for BGP sessions, instead of physical interfaces2. Loopback interfaces are virtual interfaces that are always up andreachable as long as the router is operational2. By using loopback interface peering, you can avoid the dependency on a single physical interface or link for the BGP session, and use multiple paths to reach the loopback address of the peer2. This can provide redundancy and load balancing for the EBGP peering.

C is correct because you need to configure routes for the peer loopback interface IP addresses to enable redundancy for the EBGP peering between the two routers. Routes for the peer loopback interface IP addresses are necessary to ensure that the routers can reach each other’s loopback addresses over multiple hops2. You can use static routes or dynamic routing protocols to advertise and learn the routes for the peer loopback interface IP addresses2. Without these routes, the routers will not be able to establish or maintain the BGP session using their loopback interfaces.
