Junos OS utilizes a Role-Based Access Control (RBAC) model through the use of login classes, which define the specific permissions and restrictions for different user levels. To simplify administration, Juniper provides several predefined classes that cater to common organizational roles. The requirement here is for an account that can perform basic network diagnostics (operational mode) but lacks the authority to modify the system state (configuration mode).

The operator class is specifically engineered for this purpose. It grants permissions such as clear, network, reset, trace, and view. These permissions allow the user to execute monitoring commands like show, use diagnostic tools like ping and traceroute, and clear statistics. Crucially, the operator class does not include the configure or commit permissions, preventing the user from entering configuration mode or making any permanent changes to the device.

Comparing this to other options: the read-only class is more restrictive, generally allowing only the viewing of configuration and some state data, but often restricting active diagnostic tools like ping. The super-user class provides unrestricted access, while maintenance is not a standard predefined class for general operational roles. Assigning the operator class ensures that junior staff or automated monitoring systems have the visibility they need to troubleshoot connectivity without risking the integrity of the device configuration.

The Routing Engine (RE) in a Junos device serves as the centralized intelligence and management hub, primarily responsible for the control and management planes of the system. In this capacity, the RE is tasked with processing routing updates, such as OSPF Link State Advertisements (LSAs) or BGP Update messages. These updates are vital for the RE to maintain the Routing Information Base (RIB), calculate the shortest paths, and subsequently populate the Forwarding Information Base (FIB) which is then pushed to the Packet Forwarding Engine (PFE).

Furthermore, the Routing Engine handles all local management traffic. This category encompasses administrative access through the Command Line Interface (CLI) via SSH or Telnet, SNMP queries from network management systems, and system logging processes. Because the RE runs the Junos OS kernel, it must directly interpret and respond to these management-level requests to ensure the device remains configurable and observable. Conversely, transit traffic—the data passing through the device from one ingress port to an egress port—is offloaded to the PFE to be handled at wire speed. While the PFE manages the heavy lifting of data forwarding and Class of Service (CoS) application, the RE remains focused on high-level protocol maintenance and system administration, ensuring that control plane stability is maintained even under heavy traffic loads. Reference: Junos OS Fundamentals, Control Plane Functions, Routing Engine Traffic.

==========

Junos OS routing policies are evaluated using a sequential, " first-match " logic. When a route is compared against a policy, the system evaluates the terms in the order they are defined. Once a route meets all the match criteria (the from statement) in a term, the router executes the associated action (the then statement).

If the action is a terminating action —such as accept or reject—the evaluation of that specific route for that specific policy ends immediately. In this scenario, since the route matched the first term and the action was accept, the route is successfully processed and the policy evaluation is complete. The system will not proceed to evaluate the second or third terms. This behavior is critical for network architects to understand when ordering terms; more specific " exceptions " must be placed at the top of the policy, while broader " catch-all " terms must be placed at the bottom. If the administrator wanted the evaluation to continue to the next term despite a match, they would need to explicitly include the next term action, which is a non-terminating action. Without it, a match on an accept action signifies the final decision for that route within that policy context.

In Junos OS configuration management, the rename and replace pattern commands serve distinct roles for modifying the candidate configuration. The rename command is used when an administrator needs to change the identifier of a specific, single configuration object—such as changing an interface name or a policy-term name—while keeping the underlying properties of that object intact. In contrast, the replace pattern command is a powerful utility designed for bulk modifications across the configuration hierarchy. It utilizes string matching or regular expressions to find every occurrence of a specific text string and substitute it with another.

This is particularly useful in scenarios involving mass updates, such as migrating an entire subnet across multiple interface descriptions, firewall filters, and routing policy terms simultaneously. While rename acts locally on a specific path, replace pattern can be applied globally from the root of the configuration or constrained to a specific sub-hierarchy. As a Senior Architect, it is critical to understand that replace pattern does not just change names; it can modify any part of the statement text, making it an essential tool for efficient large-scale configuration refactoring without the need for manual, line-by-line edits. Reference: Configuration Basics, Modifying Configuration, Command Line Editing.

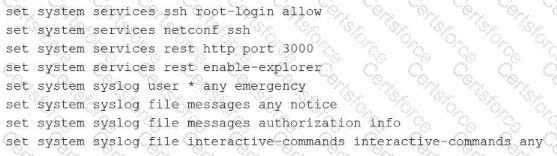

The exhibit illustrates a Junos configuration rendered as a sequence of flat, executable lines that each begin with the set keyword. This is commonly referred to as the " set format. " By default, Junos OS displays the configuration in a hierarchical, brace-delimited format (often called " staza " or " curly brace " format). While the default format is excellent for visualizing the structural relationship between different configuration objects, the set format is often preferred for documentation, scripting, or copying specific configuration snippets between different devices.

To produce the output seen in the exhibit, an administrator must append the pipe filter | display set to the show configuration command. This filter instructs the CLI parser to flatten the hierarchical structure and prepend the necessary context to every individual leaf statement. These lines are highly functional because they can be pasted directly into the CLI of another device while in configuration mode to recreate the exact settings. In contrast, display inheritance is used to reveal hidden settings applied via configuration groups, and display detail provides additional technical metadata about the objects. Neither of those options would transform the output into the discrete set command lines shown in the exhibit. Understanding how to toggle between these display formats is a fundamental skill for any architect managing Junos infrastructures through the Command Line Interface.

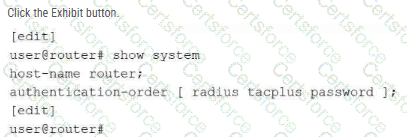

In the Junos OS architecture, the authentication-order statement within the [edit system] hierarchy defines the sequence in which the device attempts to validate user credentials against external and internal databases. The order specified in the exhibit is [ radius tacplus password ] , meaning the device first queries the RADIUS server, followed by the TACACS+ server, and finally the local password database.

A critical distinction in Junos authentication logic is the difference between a server being " unavailable " and a server " rejecting " a user. If an authentication server responds with an explicit access-reject (meaning it received the request but the credentials were invalid), the authentication process terminates immediately to maintain security integrity. However, if the server is unreachable or fails to respond within the configured timeout period (unavailable), the Junos Control Plane automatically falls back to the next method in the defined sequence. In this specific scenario, since the RADIUS server is unavailable, the device will proceed to attempt authentication using the TACACS+ server. If that were also unavailable, it would finally check the local password database. This fallback mechanism ensures that administrators can still access the device even during external server outages, provided they have a local account configured as the final method in the list.

Comprehensive and Detailed 150 to 250 words of Explanation From: In a routed environment like the one shown in the exhibit, traffic forwarding involves a constant interaction between Layer 3 (Network) and Layer 2 (Data Link) addressing. When User A generates a packet destined for User B, the source and destination IP addresses remain static throughout the entire journey across the network (assuming no Network Address Translation is performed). However, the Layer 2 Ethernet headers must be rewritten at every hop because MAC addresses have only local significance on a physical segment.

As Router R1 receives the packet from User A, it performs a lookup in its Forwarding Information Base (FIB) and identifies that the path to User B requires forwarding the packet to Router R2. R1 decapsulates the incoming frame, stripping away the original Ethernet header that contained User A ' s source MAC and R1 ' s own destination MAC. To forward the packet to the next hop, R1 creates a new Ethernet header. The source MAC address becomes the MAC address of R1’s egress interface, and the destination MAC address is replaced with the MAC address of Router R2 . R1 cannot use User B ' s MAC address at this point because User B is not on a directly connected segment. This hop-by-hop MAC address replacement is essential for the Packet Forwarding Engine to successfully deliver the frame to the next Layer 3 device in the path. Reference: Networking Fundamentals, Packet Forwarding, Layer 2 and Layer 3 Addressing.

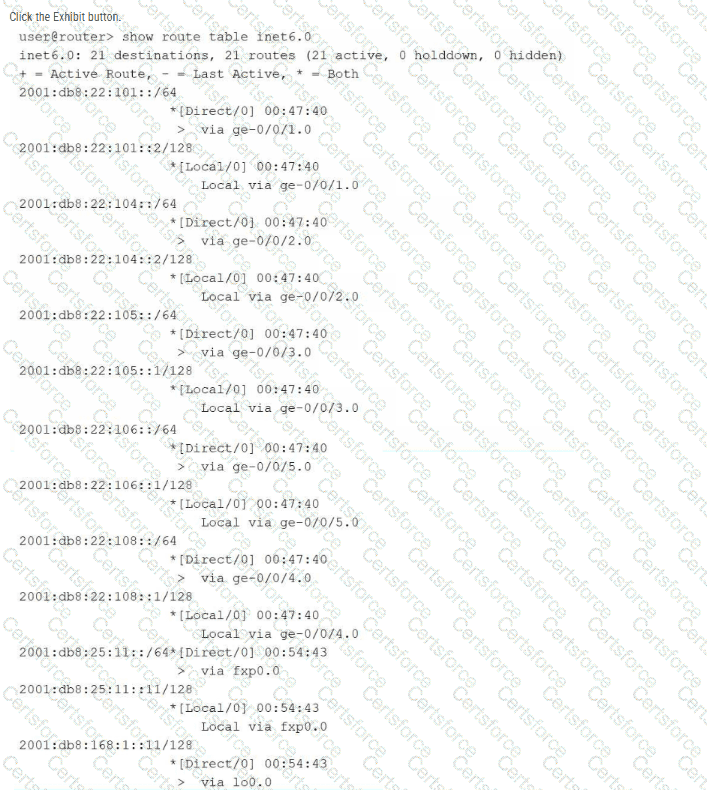

The provided exhibit displays the output of the show route table inet6.0 command, which represents the master routing table for IPv6 unicast traffic in Junos OS. Analysis of the specific route entries reveals that all listed destinations are categorized as either [Direct/0] or [Local/0] . These route types indicate that the table only contains networks physically connected to the router ' s interfaces and the specific IP addresses assigned to those interfaces.

Because there are no routes identified by dynamic protocols (such as OSPFv3, IS-IS, or BGP) or static entries, it is verified that the router is not learning IPv6 routes from any neighbors or peers. Consequently, the routing table lacks reachability information for any non-local or remote IPv6 segments. Without these routes or a configured default gateway (::/0), the router is unable to forward traffic to remote IPv6 networks. Statements C and D are factually incorrect based on the exhibit: the 2001:db8:22:108::/64 network is associated with interface ge-0/0/4.0 (not ge-0/0/5.0), and the 2001:db8:22:107::/64 network is entirely absent from the displayed routing table.

The relationship between the routing table (Routing Information Base or RIB) and the forwarding table (Forwarding Information Base or FIB) is the cornerstone of the Junos OS architectural separation between the control and data planes. The routing table resides in the control plane on the Routing Engine (RE). Its primary role is to aggregate all reachability information from every configured protocol and select the best route for each destination prefix based on criteria like preference and metrics.

Once the Routing Engine has identified the single " active " best path for a destination, it distills this complex routing data into a simplified, streamlined version called the forwarding table . The forwarding table contains only the essential information needed to move a packet: the destination prefix, the egress interface, and the Layer 2 next-hop MAC address. The RE then " pushes " this forwarding table to the Packet Forwarding Engine (PFE) in the data plane. By having the PFE use a table built from the routing table , Junos ensures that transit traffic can be processed at wire speed without the overhead of complex routing logic. This one-way flow—from the comprehensive RIB on the RE to the optimized FIB on the PFE—allows the device to maintain high performance even while routing protocols are recalculating or the management plane is under heavy load.
