Pass the Huawei HCIP-Datacom H12-831_V1.0 Questions and answers with CertsForce

Comprehensive and Detailed In-Depth Explanation:

Understanding Intra-Area-Prefix-LSA (Type 9) in OSPFv3

OSPFv3 uses the Intra-Area-Prefix-LSA (Type 9) to advertise IPv6 prefixes associated with either:

A Router-LSA (Type 1) → Describes links and interfaces.

A Network-LSA (Type 2) → Advertises multi-access networks (if a Designated Router exists).

Each router generates one Intra-Area-Prefix-LSA to advertise its own IPv6 prefixes.

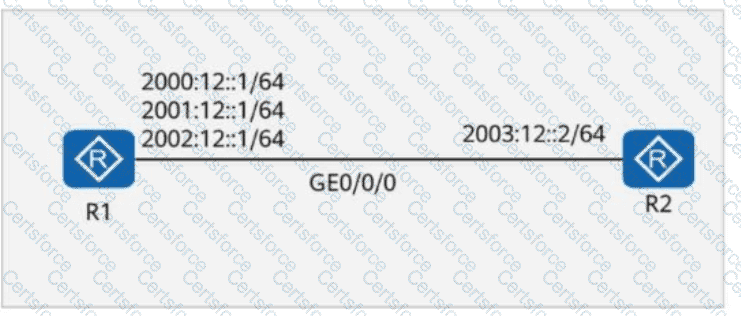

Prefix Analysis for Each Router

R1 ' s IPv6 Prefixes:

2000:12::1/64

2001:12::1/64

2002:12::1/64

2003:12::/64 (Shared link with R2)

Total Prefixes in R1’s Intra-Area-Prefix-LSA = 4

✅ R1 advertises four prefixes in its Intra-Area-Prefix-LSA.

R2 ' s IPv6 Prefixes:

2003:12::2/64 (Shared link with R1)

Total Prefixes in R2’s Intra-Area-Prefix-LSA = 1

✅ R2 advertises only one prefix in its Intra-Area-Prefix-LSA.

Checking Each Option:

✅ A. The Intra-Area-Prefix-LSA generated by R2 describes three prefixes. (❌ False, R2 only has one prefix).

✅ B. The Intra-Area-Prefix-LSA generated by R1 describes four prefixes. (✔ True, R1 has four prefixes).

✅ C. The Intra-Area-Prefix-LSA generated by R2 describes four prefixes. (❌ False, R2 only has one prefix).

✅ D. The Intra-Area-Prefix-LSA generated by R1 describes three prefixes. (❌ False, R1 has four prefixes).

Final Conclusion:

✅ B. The Intra-Area-Prefix-LSA generated by R1 describes four prefixes.

Thus, the correct answer is: B. The Intra-Area-Prefix-LSA generated by R1 describes four prefixes.

Comprehensive and Detailed In-Depth Explanation:

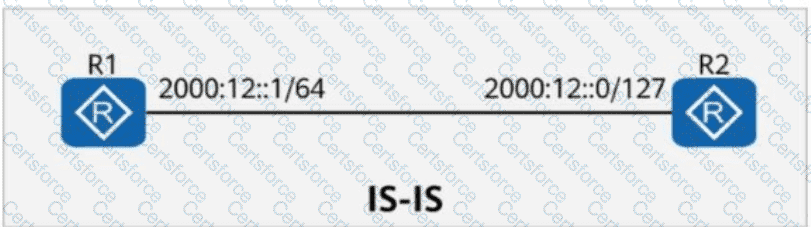

Understanding the IPv6 Addressing and IS-IS Network

IPv6 Addressing in the Figure:

R1 has the address: 2000:12::1/64

R2 has the address: 2000:12::0/127

The link between them is using a /127 subnet (2000:12::0/127).

Behavior of IPv6 /127 Subnet Mask

In IPv6, a /127 prefix is commonly used on point-to-point links to avoid the issue of subnet-router anycast (::0).

RFC 6164 recommends using /127 instead of /64 for point-to-point links to reduce unnecessary anycast behavior.

2000:12::0 is the network address (first address in the subnet) and is not assigned to an interface.

Analyzing the Two Statements in the Question

Statement 1: " R1 can ping 2000:12::0 " ❌ (Incorrect)

In IPv6, the first address (::0) in a /127 subnet is typically reserved as a network address and not assigned to any router.

R1 cannot ping 2000:12::0 because it is not assigned to R2 as an active IP.

Correct ping targets would be:

R1 pinging R2’s actual address (2000:12::1 or 2000:12::2 depending on numbering).

Statement 2: " display ipv6 neighbors command can be used to display the MAC address corresponding to 2000:12::0 " ❌ (Incorrect)

The display ipv6 neighbors command is used to show the MAC address of an active neighbor (i.e., a reachable device).

Since 2000:12::0 is not assigned to a specific router, it will not have a MAC address in the neighbor table.

Final Conclusion:

❌ R1 cannot ping 2000:12::0 because it is the network address in a /127 subnet.

❌ The display ipv6 neighbors command cannot show a MAC address for 2000:12::0 because it is not assigned to a router.

Thus, the correct answer is: B. FALSE.

Comprehensive and Detailed In-Depth Explanation:

OSPFv3 (for IPv6) packets are directly encapsulated in IPv6 without using UDP or TCP.

The Next Header field in IPv6 is similar to the Protocol field in IPv4, indicating the protocol type of the payload.

IANA (Internet Assigned Numbers Authority) has assigned protocol number 89 to OSPF.

OSPFv3 packets always use Next Header value = 89 inside IPv6 headers.

???? Reference: HCIP-Datacom Advanced Routing & Switching Technology – OSPFv3 Packet Encapsulation

Comprehensive and Detailed In-Depth Explanation:

To verify the correct answer, we need to analyze Bidirectional Forwarding Detection (BFD) behavior and the provided configuration.

1. Understanding BFD Configuration Parameters

BFD (Bidirectional Forwarding Detection) is a protocol used for fast failure detection between directly connected devices.

Key Configuration Parameters in BFD:

Peer IP (bind peer-ip)

This specifies the destination router’s IP address for the BFD session.

✅ Correctly configured on both R1 and R2.

Discriminator Local/Remote (discriminator local X / remote Y)

These values must match between the two routers.

✅ Correctly configured (R1: local 1, remote 2; R2: local 2, remote 1).

Min-TX Interval (min-tx-interval)

Defines the minimum transmit interval for BFD packets.

❌ Missing from R2’s configuration (could be a cause for mismatch).

Min-RX Interval (min-rx-interval)

Defines the minimum receive interval for BFD packets.

❌ Missing from R2’s configuration (could be a cause for mismatch).

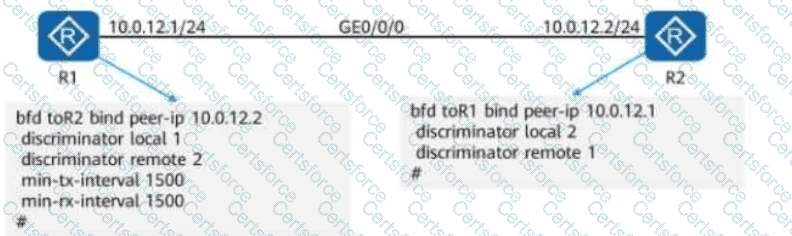

2. Analyzing the Configuration on R1 and R2

✅ Configuration on R1 (Correct)

shell

CopyEdit

bfd tor2 bind peer-ip 10.0.12.2

discriminator local 1

discriminator remote 2

min-tx-interval 1500

min-rx-interval 1500

This configuration is correct.

❌ Configuration on R2 (Incomplete)

shell

CopyEdit

bfd tor1 bind peer-ip 10.0.12.1

discriminator local 2

discriminator remote 1

Missing min-tx-interval and min-rx-interval.

3. Why the Answer is FALSE?

A BFD session does NOT go down due to mismatched timing parameters.

BFD dynamically negotiates timing values, meaning even if R2 is missing min-tx/min-rx values, the session should still establish.

However, the session will fail if the peer IP or discriminator values are incorrect (which they are NOT in this case).

The actual cause of failure in this case is likely the missing min-tx and min-rx settings on R2, NOT a mismatch between R1 and R2.

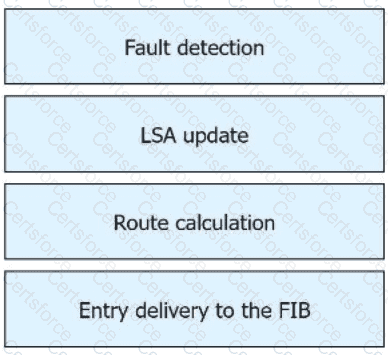

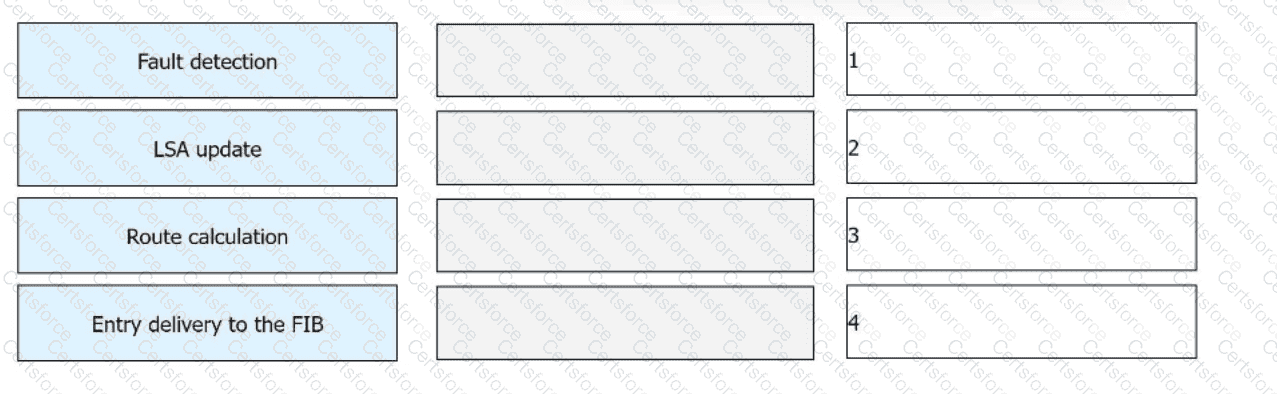

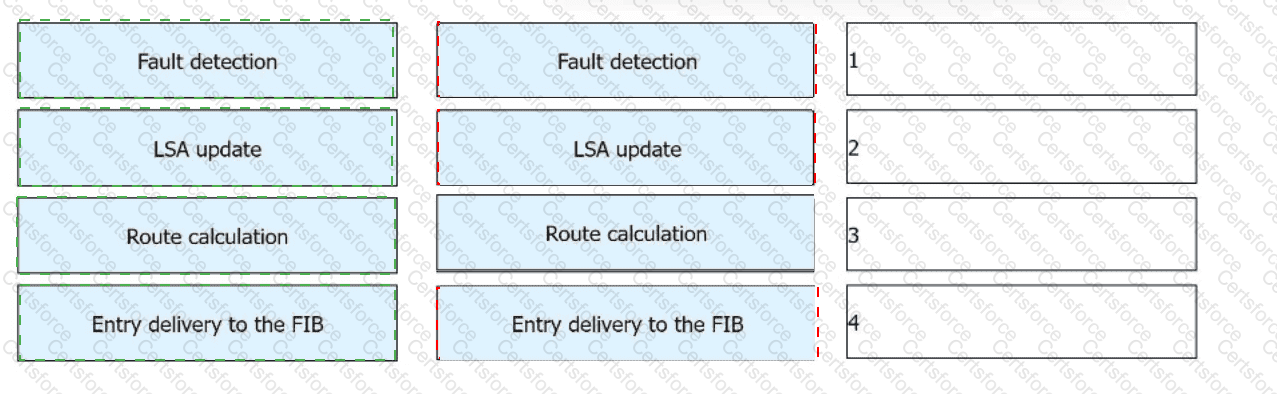

When OSPF detects a failure in the network, it performs a series of actions to ensure traffic is rerouted to a valid path. The phases occur in this strict order:

✅ Fault Detection (A)

OSPF routers use Hello packets to maintain neighbor relationships.

If a Hello timeout or link down is detected, the fault is immediately recognized.

✅ LSA Update (B)

Upon detecting a failure, the router generates a new LSA (e.g., a Router-LSA or Network-LSA) and floods it to all other routers in the same area.

This LSA communicates the change in network topology.

✅ Route Calculation (C)

Each router that receives the updated LSAs runs the SPF algorithm to recompute the best path to every destination.

✅ Entry Delivery to the FIB (D)

After recalculating the routes, the router installs the new forwarding entries into the FIB (Forwarding Information Base), allowing data to be forwarded along the new optimal path.

✅ Official Huawei Reference:

" OSPF convergence after a network failure consists of fault detection, LSA flooding, SPF calculation, and updating the FIB. Each step must be completed for traffic to resume correctly on alternate paths. "

— [Huawei HCIA-Datacom Certification Guide – Chapter: OSPF Convergence and SPF Algorithm]

Comprehensive and Detailed In-Depth Explanation:

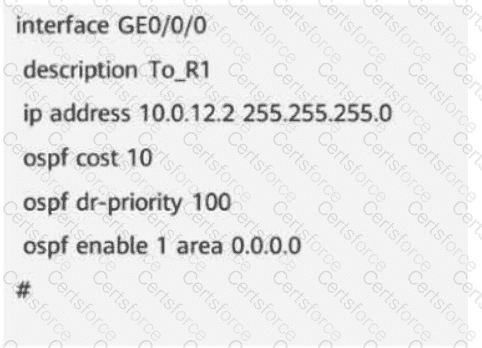

To determine the correct answer, we need to analyze how each command impacts OSPF neighbor relationships.

1. Understanding OSPF Neighbor Formation

OSPF routers form neighbor relationships when they meet the following conditions:

They are in the same subnet (IP addresses and subnet masks must match).

They are in the same OSPF area.

They use the same network type (e.g., Broadcast, Point-to-Point).

Authentication (if configured) must match.

Hello and Dead timers must match.

2. Analyzing Each Answer Option

❌ A. " undo ip address 10.0.12.2 24 " → Affects OSPF Neighbor Status

Removing the IP address will prevent the interface from sending and receiving OSPF Hello packets.

Without an IP address, OSPF cannot establish neighbor relationships.

Effect: Breaks OSPF neighbor status.

✅ B. " undo description " → Does NOT Affect OSPF Neighbor Status

The interface description is just a label for administrators and has no impact on OSPF functionality.

It does not affect neighbor relationships, routing, or communication.

Effect: No impact on OSPF neighbors.

❌ C. " undo ospf cost " → Affects OSPF Neighbor Status Indirectly

OSPF cost determines the path selection but does NOT break the neighbor relationship.

However, if the cost change leads to routing table recalculations, it might cause temporary convergence issues.

Effect: Does not directly break neighbor status, but affects route selection.

❌ D. " undo ospf dr-priority " → Affects OSPF Neighbor Status (Possibly Causes DR Re-Election)

OSPF DR/BDR election uses priority values.

If changed, a new election might occur, leading to a temporary loss of neighbor relationships.

Effect: Might cause OSPF neighbor reset (temporary impact on adjacency).

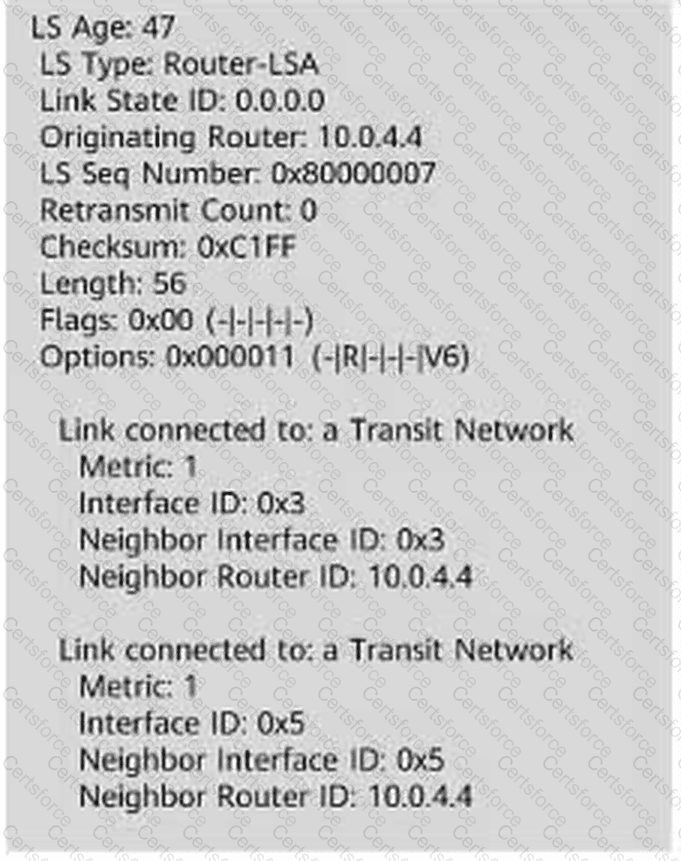

OSPFv3 Router-LSAs describe router capabilities, connected links, interface identifiers, neighboring router identifiers, and routing metrics.

The displayed LSA has an originating router ID of 10.0.4.4, while R1 ' s router ID is 10.0.1.1. Therefore, the LSA was not generated by R1.

The Router-LSA contains two transit-network link descriptions, indicating at least two OSPFv3-enabled interfaces.

Its flags show that the originating router is not currently identified as an ASBR.

However, the Router-LSA does not establish that the originating router never generates Network-LSAs. Network-LSAs are originated by Designated Routers (DRs) on applicable multiaccess networks.

Determining whether this router originates a Network-LSA requires additional information about DR election and the relevant network interfaces.

Therefore, statement D is false because the Router-LSA alone does not justify that conclusion.

HCIP-Datacom-Advanced Routing & Switching Technology V1.0 Training Material.pdf

================

Comprehensive and Detailed In-Depth Explanation:

The Link Layer Discovery Protocol (LLDP) is used for discovering neighboring devices. The given LLDP output contains key details about the neighboring device (R2), including its system name, interface, and management IP address. Let ' s analyze each option carefully:

Option A: " The sysname of the peer device is R2. " ✅ Correct

The output clearly shows System name: R2, which confirms that the neighbor ' s system name is indeed R2.

Option B: " The interface number of the peer device is GE0/0/0. " ✅ Correct

The Port ID in the LLDP output is GE0/0/0, which matches the statement in Option B.

Option C: " The VLAN ID of the peer device is 1. " ❌ Incorrect

The given LLDP output does not mention any VLAN ID information. Therefore, this option is false.

Option D: " The management IP address of the peer device is 192.168.1.1. " ✅ Correct

The Management address field in the LLDP output confirms the IP address as 192.168.1.1, making this statement true.

HCIP-Datacom-Advanced Routing & Switching Technology References:

Huawei HCIP-Datacom Official Certification Guide, Chapter on LLDP and Network Device Discovery.

HCIA/HCIP Datacom Training Materials – LLDP Neighbor Discovery Commands.

Huawei Datacom Configuration Guide – Section on display lldp neighbor interface.
