The Zerto architecture for disaster recovery is designed as a scale-out solution that integrates directly into the hypervisor layer. The primary management component is the Zerto Virtual Manager (ZVM), which must be installed at each site (production and recovery) to manage the local resources and coordinate with its peer across the network. Data movement is handled by the Virtual Replication Appliance (VRA), a lightweight virtual machine installed on every hypervisor host where protected VMs reside.

When implementing Extended Journal Copy (formerly known as Long-Term Retention), Zerto leverages its unique Continuous Data Protection (CDP) stream. In a typical disaster recovery scenario, writes are captured at the production site and replicated asynchronously to the DR site. These writes are stored in the DR site journal, which provides a rolling history for short-term recovery. The Extended Journal Copy feature builds upon this by taking data directly from the DR site storage and moving it into a long-term repository. Because the "copies" are derived from the data already present at the recovery location, there is no impact on the production site performance and no requirement for additional storage space at the primary site for backup retention. This "off-host" backup approach eliminates the traditional backup window and ensures that the production environment remains lean while the DR site handles both short-term recovery (seconds to days) and long-term compliance (months to years).

The HPE Alletra 5000 is a hybrid storage array family built on the legacy of the HPE Nimble Storage Adaptive Flash architecture. Its hardware design is optimized for a mixture of high-capacity Hard Disk Drives (HDDs) and high-performance Solid State Drives (SSDs) used for caching (CASL architecture).

The chassis is a 4U enclosure featuring 24 drive slots. To maintain consistent performance and thermal profiles, the architecture designates specific slots for different media types. According to the HPE Alletra 5000 Installation and Service Guide, the SSDs used for cache are housed in Dual Flash Carriers (DFC). Each DFC can hold either one or two SSDs, allowing for a total of 3 or 6 cache drives per shelf. These DFCs are specifically required to be installed in the last three slots of the array, which are slots 22, 23, and 24. The remaining 21 slots (slots 1 through 21) are populated with Large Form Factor (LFF) HDDs for the primary capacity tier.

Option B is incorrect because the system is flexible; it can be configured with a minimum of 3 SSDs (one in each DFC) and does not require the maximum of 6. Option C is incorrect because expansion shelves (like the HPE Alletra 2120) also support their own cache SSDs, meaning the "entire system" capacity for SSDs scales as shelves are added. Option D is incorrect because the Alletra 5000 is a SAS/SATA-based hybrid platform; it does not support NVMe SSDs in its drive slots. NVMe support is reserved for the all-flash Alletra 6000 and 9000 models. Understanding this physical slotting is crucial for site planning and field service operations to ensure the array initializes correctly.

In modern versions of Zerto (specifically starting with Zerto 9.0 and 9.5), the security model for site pairing was significantly enhanced to move away from legacy credential sharing. To establish a secure relationship between two Zerto Virtual Managers (ZVMs), the administrator must utilize a Pairing Token.

Architecturally, the pairing process works as a "push-pull" handshake. The administrator first logs into the Target (Remote) ZVM—the site that will receive the replication—and navigates to the "Sites" tab. There, they select the option to "Generate Pairing Token." This token is a unique, time-sensitive alphanumeric string that acts as a one-time password for the pairing attempt. Once generated, the administrator copies this token and logs into the Source (Local) ZVM. During the "Pair" wizard, they specify the IP address or FQDN of the remote ZVM and paste the pairing token.

According to the HPE Advanced Storage Solutions implementation guides, this token replaces the need for the source site to know the administrative credentials of the remote vCenter or ZVM, thereby adhering to the principle of least privilege. The token typically has a default expiration (e.g., 48 hours) or expires immediately after a successful pairing session. This ensures that even if a token is intercepted, its window of utility is minimal. Options A and B are incorrect as they represent legacy or non-standard methods; while vCenter credentials are required for the initial installation and registration of the ZVM, they are not the mechanism used for the pairing handshake itself. Option D is incorrect as Zerto manages the underlying encryption keys automatically once the pairing is authenticated via the Pairing Token.

The deployment of the HPE CSI (Container Storage Interface) Driver involves several sequential steps to enable dynamic provisioning of storage on HPE Alletra 9000 arrays. Once the Helm repository has been added, the administrator must provide the driver with the necessary authentication and connectivity details for the storage backend.

According to the HPE Storage Container Orchestration Documentation (SCOD), the definitive next step to enable communication between the Kubernetes cluster and the Alletra 9000 is to create a Kubernetes Secret. This Secret contains critical parameters such as the storage array's IP address or FQDN, and the management credentials (username and password). Without this Secret, the CSI driver cannot authenticate against the Alletra 9000 REST API to perform volume creation, mounting, or snapshot operations.

While creating a StorageClass (Option C) is a required step, it follows the creation of the Secret. The StorageClass definition must specifically reference the name of the Secret to identify which storage backend should be used for a particular tier of service. Option A (creating a namespace) is often done as part of the helm install command itself (using the --create-namespace flag) and is a general administrative task rather than a storage-specific configuration step. Option D is incorrect as the Alletra 9000 does not pull credentials from the Kubernetes conductor; rather, the Kubernetes driver pushes requests to the array using the credentials stored in the Kubernetes Secret. Establishing this secure handshake via the Secret is the foundational step for all subsequent persistent volume (PV) and persistent volume claim (PVC) activities.

HPE Peer Persistence is a high-availability solution that provides synchronous replication with transparent failover between two storage arrays. When integrating Veeam Backup & Replication with an HPE Alletra MP B10000 (Block) environment using Peer Persistence, the software must account for the synchronous nature of the volumes.

To maintain the integrity of the synchronous replication state and ensure that a crash-consistent or application-consistent recovery point exists at both locations, Veeam utilizes the HPE Storage Snapshot Provider. When a backup job or a snapshot-only job is triggered for a volume in a Peer Persistence relationship, the orchestration logic ensures that the snapshot is created on both the primary and the secondary array. This "dual-snapshot" approach is critical; if a site failover occurs shortly after the snapshot is taken, the backup software can still perform a recovery from the secondary array because the corresponding snapshot exists there.

Furthermore, this integration allows for Backup from Storage Snapshots (BfSS), which reduces the impact on the production virtual environment by offloading the I/O processing to the storage layer. While Option A suggests the primary array is always the source, Veeam can actually be configured to back up from the secondary array to save primary site bandwidth (though the snapshot itself must exist on both). Option B is incorrect as snapshot retention is defined by the Veeam backup policy, not a hardcoded 30-minute limit. Option D is incorrect because the synchronous link handles the data flow naturally; the snapshot is a pointer-based operation within each array's metadata layer once the synchronous write is acknowledged.

In the context of HPE StoreOnce Catalyst and NAS replication, security is governed by a bi-directional trust or permission-based handshake. When configuring replication between two StoreOnce appliances, the "Target" (Secondary) system acts as the gatekeeper. The error described occurs because the primary system is attempting to push data or create a mapping to a destination that has not authorized it.

According to the HPE StoreOnce documentation regarding Replication Permissions, the secondary appliance must explicitly grant permission to the source appliance before any mapping or data transfer can occur. This is a security measure designed to prevent unauthorized data ingestion or "rogue" replication tasks from consuming storage resources on the target system. To resolve the permission error, the administrator must log into the Secondary StoreOnce appliance (the target) and navigate to the replication settings. There, they must add the Primary StoreOnce appliance as an authorized "source" by specifying its network address (FQDN or IP) and providing the necessary credentials (username and password) that the primary system will use to authenticate.

Unlike simpler protocols where a "Public Access" setting (Option B) might exist, HPE StoreOnce requires a defined relationship for NAS and Catalyst replication to ensure data integrity and multi-tenancy security. Option A refers to token-based authentication, which is more common in modern cloud-native Alletra environments via DSCC, but not the standard for legacy StoreOnce NAS replication. Options D is incorrect because the permission must be granted at the receiving end, not the sending end. Once the secondary system has the primary's details stored in its Replication Permissions list, the primary appliance will be able to successfully "discover" the target libraries and establish the mapping without further permission errors.

To provide automated orchestration and business continuity for VMware virtual machines in a disaster recovery scenario, the industry-standard solution integrated with HPE storage is VMware Live Site Recovery (formerly known as VMware Site Recovery Manager or SRM).

When a customer utilizes Asynchronous Remote Copy on HPE Alletra 9000 arrays, the storage layer handles the data replication between the production and recovery sites. However, the storage array alone cannot automate the re-registration of virtual machines, the mapping of network port groups, or the specific power-on sequencing required for complex applications at the secondary site. VMware Live Site Recovery serves as the orchestration engine that bridges this gap. It works in conjunction with a Storage Replication Adapter (SRA) provided by HPE. The HPE SRA allows the VMware software to communicate directly with the Alletra 9000 arrays to initiate tasks such as promoting recovery volumes to a read-write state, taking temporary snapshots for DR testing, and automating the "failover" and "failback" workflows.

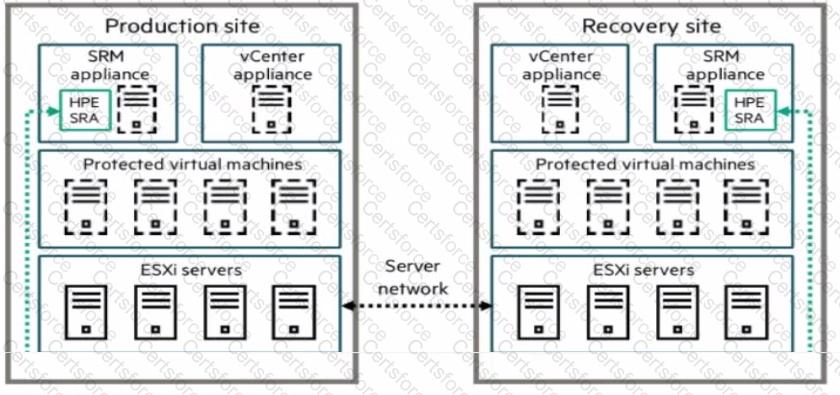

As shown in the exhibit (image_6601ef.jpg), a complete solution requires an SRM appliance and a vCenter appliance at both the production and recovery sites. This architecture ensures that even if the primary site is completely lost, the recovery site has all the necessary metadata and orchestration instructions to bring the business-critical VMs online with minimal manual intervention. Option A (Lifecycle Management) is for patching and updates, Option D (Storage DRS) is for load balancing within a cluster, and Option C refers to operational monitoring rather than disaster recovery orchestration. For a customer already invested in Alletra 9000 Remote Copy, VMware Live Site Recovery is the "Better Together" choice for achieving low Recovery Time Objectives (RTO).

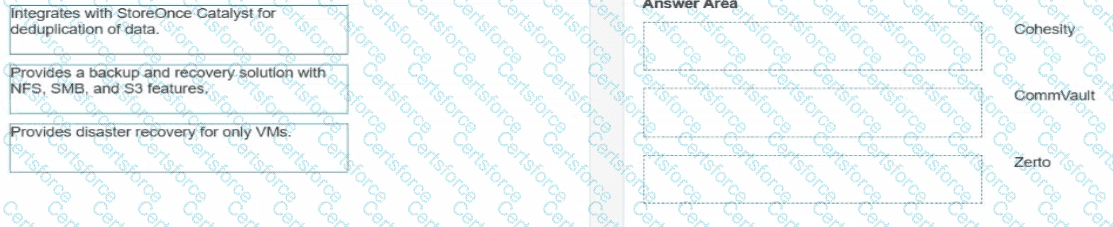

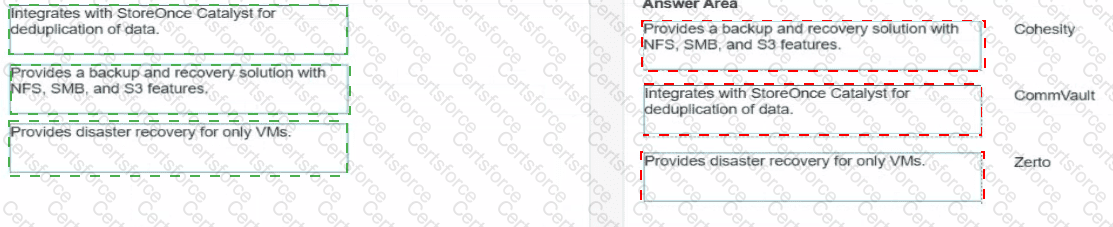

Cohesity: Provides a backup and recovery solution with NFS, SMB, and S3 features.

Commvault: Integrates with StoreOnce Catalyst for deduplication of data.

Zerto: Provides disaster recovery for only VMs.

Enterprise data protection requires selecting the right software partner to align with specific infrastructure needs, whether protecting bare-metal servers, virtualized workloads, or modern unstructured data.

Cohesity: This solution is defined by its "multicloud data platform" approach. It is often used to consolidate secondary storage silos by providing a single platform that handles not only backup and recovery but also serves as a scale-out NAS. It natively provides NFS, SMB, and S3 features, allowing it to act as a target for unstructured data while simultaneously protecting applications and VMs.

Commvault: As a long-standing leader in enterprise backup, Commvault features deep, verified integration with HPE hardware. A key differentiator for HPE customers is how Commvault integrates with StoreOnce Catalyst. This integration allows Commvault to manage the movement of deduplicated data directly to StoreOnce appliances without needing to rehydrate the data, significantly reducing network traffic and storage costs across the enterprise.

Zerto: Unlike traditional backup products that rely on snapshots, Zerto utilizes continuous data protection (CDP) through the hypervisor layer. While it is a powerhouse for replication and orchestration, it is architecturally focused on virtualized environments. Within the context of this comparison, it is the solution that provides disaster recovery for only VMs, as its Virtual Replication Appliances (VRAs) are purpose-built to intercept I/O within VMware or Hyper-V environments.

The HPE Alletra MP X10000 is an object and file storage solution utilizing a Disaggregated Shared-Everything (DASE) architecture. A key differentiator of this disaggregated design is the stateless nature of the controller nodes and the centralized management of the data plane.

When a cluster expansion occurs—such as adding a new controller node or an additional JBOF (Just a Bunch of Flash) storage shelf—the system is designed to automatically optimize the workload distribution. According to the HPE Alletra MP Architectural Guide, adding an additional JBOF or drives triggers an automatic rebalancing of the data stripes. Unlike older architectures where manual rebalancing services were required (such as in the 3PAR/B10000 block lineage), the X10000 uses a sophisticated hashing mechanism.

Specifically, data is distributed across DSPs (Data Storage Processors) which are virtualized management units. Upon the addition of hardware, these DSPs are rebalanced across the available compute and storage resources in a matter of seconds. Because the nodes are stateless and state is persisted only within the JBOFs, this rebalancing happens with minimal performance impact and no need for the massive "data movement" traditionally associated with expanding a RAID group. This ensures that as a customer scales from the minimum of 3 nodes up to 8 or more, the system always maintains an optimal load balance and utilizes all available flash bandwidth and compute cycles in parallel.

HPE Morpheus Enterprise is a comprehensive multi-cloud management and orchestration platform that enables self-service provisioning and lifecycle management across private and public clouds. To accurately size and quote a Morpheus solution in tools like HPE Online Config Advanced (OCA), the primary licensing metric is the Workload Element (WLE), also frequently referred to as a Workload Element (WE) in some documentation.

A Workload Element is defined as a granular unit of compute directly associated with an application service that is being managed or inventoried by Morpheus. This includes:

Virtual Machines (VMs) on-premises (e.g., VMware vCenter, Hyper-V).

Instances in the public cloud (e.g., AWS EC2, Azure VMs, Google Cloud instances).

Bare metal servers if they are provisioned to run application services.

Container deployments (such as Kubernetes pods).

Importantly, Morpheus does not count supporting infrastructure like storage arrays, load balancers, or physical hypervisor hosts (e.g., the physical server running ESXi) as Workload Elements. Licensing is typically based on a concurrent model, meaning the customer must license the total number of WLEs under management at any given time, regardless of whether they are located on-prem or in a public cloud. Therefore, the partner must calculate the aggregate sum of all VMs and cloud instances the customer intends to manage to ensure the license quantity in OCA is correct.
