LACP (Link Aggregation Control Protocol) modes can be active or passive. When two switches are both configured in passive mode, no LACP packets are initiated, causing the link aggregation to fail or go into a block state.

Changing one side from passive to active causes that switch to initiate LACP negotiation, resolving the block state.

Changing to static mode disables LACP negotiation, which is not recommended unless both sides are static.

Changing timeout does not solve LACP block issues caused by mode mismatches.

Therefore, changing one switch’s LACP mode from passive to active is necessary to resolve the block.

In the study of BGP (Border Gateway Protocol) for AOS-CX, understanding the differences between Internal BGP (iBGP) and External BGP (eBGP) is fundamental to the ACP-S certification.

eBGP Peering Definition: eBGP occurs when two BGP neighbors reside in different Autonomous Systems. In this scenario, the local switch is in AS 65010 and the neighbor is in AS 65100 .

The " Directly Connected " Requirement: By default, BGP assumes that eBGP neighbors are directly connected (physically connected or on the same subnet). This is because eBGP packets are sent with a Time-to-Live (TTL) of 1 . If the neighbor is more than one hop away (for example, peering via loopback interfaces without additional configuration), the packet will expire before reaching the neighbor, and the session will not establish.

Terminology Note: The term " directory connected " in the question is a common typographical error in exam materials for " directly connected. " In the context of eBGP peering, being directly connected is the default requirement to ensure the TTL 1 packet reaches the peer. If you were peering with a non-directly connected device, you would need to manually configure ebgp-multihop.

Analysis of Other Options:

Option A: This is incorrect as it uses a random AS number (65001) that does not match the local or neighbor AS provided in the prompt.

Option B: Route Reflectors are a solution used exclusively in iBGP to solve the split-horizon rule (which dictates that a prefix learned from an iBGP peer cannot be advertised to another iBGP peer). Route reflectors are never used for standard eBGP sessions.

Option D: While AOS-CX requires you to enter the address-family ipv4 unicast context to activate a neighbor, the keyword " internal " is not a valid address-family type in the AOS-CX BGP syntax for this purpose.

Key Practice Tip: When configuring BGP on AOS-CX, always remember that after defining the neighbor x.x.x.x remote-as, you must enter the address-family context and use the neighbor x.x.x.x activate command for the session to transition to the " Established " state.

The troubleshooting methodology exemplified by comparing outputs or configurations to find discrepancies is called Spot the difference. It involves checking variations between working and non-working states or devices.

Follow the path: tracing packet flow step-by-step.

Top-down/Bottom-up: analyzing layers systematically.

Replace configuration: swapping configurations to isolate issues.

Here, comparing command outputs aligns with spot-the-difference.

In the world of IP Multicast, the address range is strictly categorized by the IANA. Understanding these boundaries is a core requirement for the ACP-S switching exam.

Link-Local Multicast (224.0.0.0/24): The address used in the scenario, 224.0.0.100 , falls within the " Local Network Control Block " (224.0.0.0 to 224.0.0.255). These addresses are reserved for protocol traffic that is intended to stay within a single broadcast domain (Layer 2). Examples include OSPF (224.0.0.5) and RIPv2 (224.0.0.9).

The Routing Restriction: By design and industry standard, Layer 3 switches and routers do not forward traffic addressed to the 224.0.0.0/24 range. This is a hard-coded behavior to prevent control plane protocols from leaking into other parts of the network. Even if you enable PIM (Protocol Independent Multicast) and IGMP on all SVIs, the switch will drop these packets at the Layer 3 boundary.

The Solution: To route multicast traffic between VLAN 100 and VLANs 200/300, the application must use a group address from the administratively scoped or globally scoped ranges (e.g., 239.0.0.0/8 or 224.0.1.0 and above).

Why Option D is insufficient: While enabling IGMP and PIM on the SVIs is a necessary step for routable multicast, it will not overcome the fundamental architectural block placed on the 224.0.0.0/24 link-local range.

The error message " Invalid input: interface " typically appears if the switch is managed by HPE Aruba Central, which restricts CLI interface configuration to prevent configuration drift. When managed externally, certain commands are disabled or locked.

Password recovery mode or authorization enabled would not cause this error.

Manager context is not a concept in Aruba CX CLI.

AOS-CX is a modern, database-driven operating system, but it is built with extensive backward compatibility to ensure it fits into established enterprise ecosystems.

CLI (Command Line Interface) (Option A): This is the most traditional form of switch management. AOS-CX provides a robust CLI accessible via Console, Telnet, or SSH. While the syntax is " industry-standard " (similar to Cisco or older ArubaOS-Switch), it remains a " legacy " pillar that almost all existing management systems (like Rancid, SolarWinds, or custom scripts) use for configuration and state collection.

SNMP (Simple Network Management Protocol) (Option E): SNMP is the universal " legacy " language for network monitoring. AOS-CX supports SNMP v1, v2c, and v3. Legacy Management Systems (NMS) rely on SNMP MIBs (Management Information Bases) to pull statistics about port utilization, temperature, and errors.

Modern vs. Legacy:

REST API (Option B): This is a modern, programmable interface where every command in the switch can be executed via a JSON-based web call. Legacy systems typically do not support this.

NAE (Option C): The Network Analytics Engine is unique to AOS-CX and uses Python scripts for local monitoring. This is a " Next-Gen " feature.

HTTPS (Option D): While web interfaces have been around a while, the modern AOS-CX Web UI is a sophisticated tool built on top of the REST API, and it is generally considered a primary management method for the " Modern " era rather than a " Legacy Management System " integration point like SNMP.

To determine which sites would benefit most from upgrading from 6200 to more powerful 6300 switches in Aruba Central, the best report to run is the Switch Capacity Planning report. It analyzes resource utilization and capacity to identify bottlenecks and potential upgrade candidates.

Infra Inventory lists devices but not capacity usage.

Resource Utilization gives raw usage but not in planning context.

Network report focuses on topology and status.

Hence, Switch Capacity Planning is the most relevant report for upgrade planning.

The term " Active " in BGP is one of the most misunderstood states. It sounds positive, but it actually indicates that the switch is " actively " trying to establish a TCP connection and failing.

eBGP Default Behavior: By default, External BGP (eBGP) expects neighbors to be directly connected. Because of this, eBGP packets are sent with a Time to Live (TTL) of 1 .

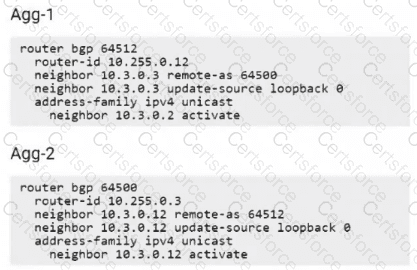

The Loopback Problem: In the exhibit, the switches are peering using their Loopback 0 addresses (update-source loopback 0). Even if the switches are physically connected, the Loopback interface is considered a " hop " away from the physical interface.

TTL Expiry: When Agg-1 sends a BGP packet to Agg-2 ' s loopback, the TTL of 1 expires before the packet can reach the logical loopback interface. This causes the TCP connection to fail, keeping the session in the Active state.

The Solution (eBGP Multihop): To fix this, you must configure ebgp-multihop (usually with a value of 2 or more). This increases the TTL, allowing the BGP packets to reach the loopback address.

Side Note on the Exhibit: If you look closely at Agg-1 ' s configuration, there is a typo: the neighbor is defined as 10.3.0.3 but the address-family activation is for 10.3.0.2. While this would also cause a failure, the core architectural concept being tested here regarding " Active " state and loopbacks is the TTL/Multihop requirement.

To implement Dynamic User Roles (DUR) with Aruba ClearPass, an HTTPS certificate must be configured. This certificate enables secure communication between ClearPass and the Aruba CX switches for role downloading and authentication.

RadSec service enables secure RADIUS but is unrelated to DUR certificates.

Admin user roles and RADIUS dictionary attributes are necessary but secondary to certificate requirements.

Capacity management in a high-density wireless environment (especially with Wi-Fi 6E APs like the AP-615 ) focuses on two finite resources: Bandwidth and Power .

Switch PoE Utilization (Option D): AP-615s are high-performance devices that typically require PoE+ (802.3at) power. As more APs are added to a switch, the total power draw approaches the switch ' s PoE Budget . Enabling this alert ensures that Central notifies the administrator when the total power consumed by the APs reaches a critical threshold, preventing a scenario where new APs fail to power up or existing APs reboot due to power starvation.

Switch Uplink Port Usage (Option A): This alert monitors the aggregate traffic flowing through the switch ' s uplinks to the core or distribution layer. Since multiple APs share these uplinks, high wireless client activity can saturate the backhaul. Monitoring the " Uplink Port Usage " (measured in GB over a duration) allows the customer to identify when they need to upgrade to higher-speed transceivers (e.g., from 10G to 25G) or add more links to the LAG.

Why other options are incorrect:

Options C and E: Port Tx/Rx rates are useful for monitoring individual ports, but " Capacity Issues " for a group of APs is better represented by the aggregate Uplink usage.

Option B: Link Status Change notifies you of a down/up event, which is a connectivity/fault issue rather than a capacity/utilization issue.
