For HA on FortiAnalyzer, Log Data Sync ensures real-time log synchronization among all cluster members, including backup devices. This feature is enabled by default. The Initial Logs Sync state is triggered when a new unit is added to an HA cluster, where the primary unit synchronizes its logs with the newly added unit. After the initial synchronization, the secondary unit reboots and rebuilds its log database with the synchronized logs.References:FortiAnalyzer 7.2 Administrator Guide, "Log synchronization" section.

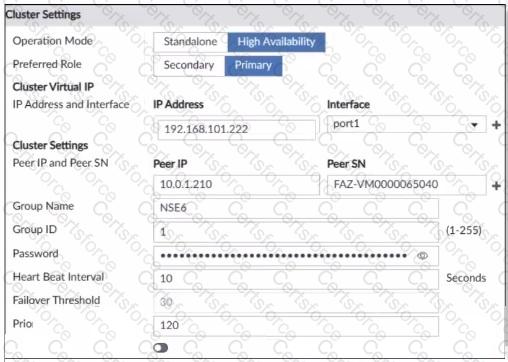

The configuration displayed in the exhibit indicates that the FortiAnalyzer is set up with a cluster virtual IP address of 192.168.101.222 assigned to interface port1. This setup is typically used for the FortiAnalyzer to receive logs on that interface when operating in a High Availability (HA) configuration. The exhibit does not provide enough information to conclude whether this FortiAnalyzer will be the primary unit in the HA cluster or the duration for the failover trigger; it only confirms the interface configuration for log reception.References:Based on the FortiAnalyzer 7.4.1 Administration Guide, the similar configurations for HA and log reception are discussed, which would be relevant for understanding the settings in FortiAnalyzer 7.2.

On FortiAnalyzer, analytics logs refer to the logs that have been processed, indexed, and then stored in the SQL database. This process allows for efficient data retrieval and analytics. Unlike basic log storage, which might involve simple compression and storage in a file system, analytics logs in FortiAnalyzer undergo an indexing process. This enables advanced features such as quick search, report generation, and detailed analysis, making it easier for administrators to gain insights into network activities and security incidents.References:FortiAnalyzer 7.2 Administrator Guide - "Log Management" and "Data Analytics" sections.

To restrict administrative access on FortiAnalyzer, two effective methods are using administrator profiles and configuring trusted hosts. Administrator profiles allow for defining the level of access and permissions for different administrators, controlling what each administrator can seeand do within the FortiAnalyzer unit. Configuring trusted hosts enhances security by limiting administrative access to specified IP addresses, ensuring that administrators can only connect from approved locations or networks, thus preventing unauthorized access from outside specified subnets or IP addresses.References:FortiAnalyzer 7.4.1 Administration Guide, "Administrators" and "Trusted hosts" sections.

The registration methods that automatically place a device in its assigned ADOM are using the serial number and fabric authorization. When devices are added to FortiAnalyzer using these methods, they are automatically placed in the appropriate ADOM, which could be a defaultADOM based on the device type or a predefined ADOM based on the serial number or fabric authorization. This simplifies the management of devices and their logs by organizing them into their respective ADOMs from the moment they are registered.References:FortiAnalyzer 7.4.1 Administration Guide, "Default device type ADOMs" and "Assigning devices to an ADOM" sections.

The amount of reserved disk space required by FortiAnalyzer is influenced by the disk size and the RAID level. The system reserves a portion of the disk space for system use and unexpected quota overflow, with the rest available for device allocation. The RAID level determines the disk size and the reserved disk quota level, with different RAID configurations leading to variations in the reserved space.References:FortiAnalyzer 7.2 Administrator Guide, "Disk Space Allocation" and "RAID Level Impact" sections.

If the administrator "fortinet" can view logs and perform device management tasks but cannot create a mail server for alert emails, it is likely due to the administrative profile assigned to them. The Standard_User administrative profile may restrict certain administrative functions, such as creating mail servers. To perform all administrative tasks, including creating mail servers, a higher privilege profile, such as Super_Admin, might be required.References:FortiAnalyzer 7.2 Administrator Guide, "Mail Server" section.

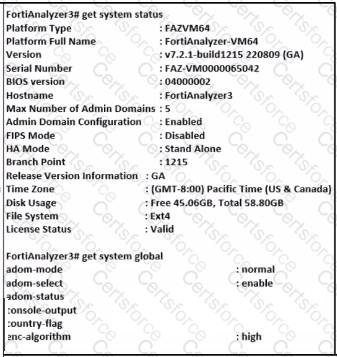

Based on the provided exhibit, which shows partial outputs of the system status and global settings for FortiAnalyzer devices, the devices cannot be configured as peers in an HA (High Availability) cluster. This is indicated by the HA Mode status being set to 'Stand Alone' for the displayed FortiAnalyzer device. For devices to be part of an HA cluster, they would need to havecompatible HA configurations, and usually, they should not be in 'Stand Alone' mode. Additionally, the exhibit only shows information for one FortiAnalyzer, so it cannot be determined if there is another device ready to form an HA cluster with it.

In systems that support hardware RAID, hot swapping allows for the replacement of a failed disk without shutting down the system. This capability is crucial for maintaining uptime and ensuring data redundancy and availability, especially in critical environments. The RAID controller rebuilds the data on the new disk using redundancy data from the other disks in the array, ensuring no data loss and minimal impact on system performance.

In the context of a FortiAnalyzer unit equipped with hardware RAID support, the optimal approach to addressing a hard disk failure is to perform a hot swap of the disk. Hardware RAID configurations are designed to provide redundancy and fault tolerance, allowing for the replacement of a failed disk without the need to shut down the system. Hot swapping enables the administrator to replace the faulty disk with a new one while the system is still running, and the RAID controller will rebuild the data on the new disk, restoring the RAID array to its fully operational state.References:FortiAnalyzer 7.2 Administrator Guide - "Hardware Maintenance" and "RAID Management" sections.
