In the exhibit, the IPsec tunnel statistics event log entries include the field advpnsc.

Fortinet documents that advpnsc identifies whether the VPN event is based on an ADVPN shortcut:

advpnsc=1 → the tunnel is an ADVPN shortcut

advpnsc=0 → not an ADVPN shortcut (Fortinet Documentation Library)

In the shown logs, the tunnel vpntunnel="HUB1-VPN1_0" has advpnsc=1, which means HUB1-VPN1_0 is an ADVPN shortcut tunnel. (Fortinet Documentation Library)

The other tunnels shown (for example VPN4_0 and HUB2-VPN3) have advpnsc=0, which only indicates no shortcut is identified for those log entries—it does not prove they “cannot accept” shortcuts, only that the specific event is not a shortcut. (Fortinet Documentation Library)

Rules template → Defines the SD-WAN rules for traffic steering.

BGP template → Configures dynamic routing for overlay tunnels.

IPsec tunnel template → Builds the IPsec VPN tunnels from the spoke to the hubs.

For a large-scale SD-WAN deployment (such as 1000 spokes) where ADVPN shortcut routing is required and some remote sites connect via FortiSASE, the recommended overlay routing configuration is BGP running on loopback interfaces, combined with dynamic BGP for ADVPN shortcut routing. This design leverages the scalability and resilience of BGP, allowing dynamic discovery and route exchange necessary for shortcut tunnels between spokes in ADVPN environments. Using loopback interfaces for BGP peering is considered best practice because it decouples routing protocol stability from physical link status, ensuring that if a physical underlay interface fails, the BGP session remains up as long as there’s an alternate path. With dynamic BGP, each spoke can efficiently learn the routes to other spokes and dynamically establish shortcuts, which is critical at this scale. This method also integrates smoothly with FortiSASE for remote connectivity to the SD-WAN hub, providing flexibility and centralized management.

Within ADVPN topologies, shortcut requests and responses traverse spokes and hubs. Fortinet documentation states:

"When a spoke receives a shortcut query from another spoke, it may forward the response to its hub for validation or to facilitate dynamic shortcut tunnel setup. This mechanism allows direct spoke-to-spoke communication for optimized routing and performance, reducing latency and offloading the hub after initial control-plane mediation."

This is a core benefit of ADVPN’s dynamic shortcut feature.

This configuration demonstrates a typical IPsec setup for SD-WAN overlays where the hub side requires a manually defined tunnel IP address, and the spoke can be flexibly configured, including interoperability with third-party IPsec devices. As described in the Fortinet SD-WAN Architect Guide: “For some overlays, the tunnel interface IP is configured statically on the hub side, which allows more control over overlay subnetting and facilitates the use of user-defined overlay IP addresses. This approach is also a requirement for compatibility with non-FortiGate endpoints, such as third-party IPsec devices that may not support dynamic address assignment via IKE or proprietary mechanisms.” This enables hybrid SD-WAN environments and advanced designs involving external partners or cloud services. Overlay IP flexibility is critical for route control and segmentation.

In Fortinet SD-WAN architecture, underlay and overlay have distinct meanings:

Underlay links are the physical or logical transport networks that provide basic IP connectivity (for example, broadband, MPLS, LTE/5G).

Overlay links are virtual tunnels (such as IPsec VPNs) built on top of the underlay, providing abstraction, routing control, and segmentation.

Option B is correct.

Overlay links (for example, IPsec tunnels used in SD-WAN and ADVPN) decouple routing from the physical transport. This allows dynamic path selection, segmentation, and flexible routing policies independent of the underlay. Providing routing flexibility is a core purpose of overlays in SD-WAN.

Option D is correct.

Wireless connections such as LTE or 5G can be used as underlay transports, and overlay tunnels can be built over them. Fortinet SD-WAN fully supports building IPsec overlays on wireless underlays, making wireless links valid for overlay construction.

Why the other options are incorrect:

Option A is incorrect because a VLAN is a Layer 2 segmentation mechanism, not an SD-WAN overlay link.

Option C is incorrect because FortiLink is used for internal management and switch/AP connectivity, not as a WAN underlay for SD-WAN.

Option E is incorrect because underlay links can be wired or wireless; they are not limited to wired connections.

Therefore, the two correct statements are B and D.

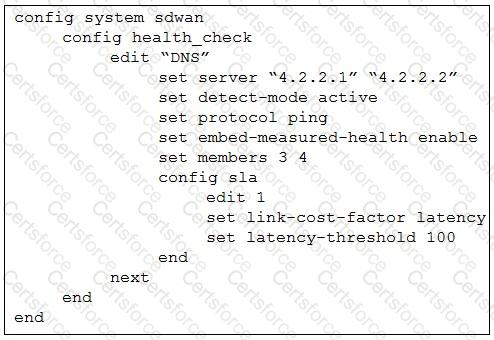

The hub must use a performance SLA with the same criteria as the spoke's health check. The spoke's health check is using ping (protocol ping) and measuring latency (link-cost-factor latency). For the hub to use the data sent by the spoke, its performance SLA must be configured to measure the same metrics. If the hub is looking for jitter or packet loss, it will not use the latency data sent by the spoke.

When a spoke sends embedded health data, the hub FortiGate must be configured to receive and use it. This is done by setting set embedded-measure accept within the performance SLA configuration on the hub. This setting explicitly tells the hub to trust and use the performance metrics received from the remote FortiGate (the spoke). Without this setting, the hub will likely ignore the embedded health data and rely on its own health checks, which could lead to incorrect traffic prioritization.

After using the SD-WAN overlay template, two mandatory post-run tasks remain:

"First, administrators must create and assign policy packages to branch devices, as security and access policies are not included in overlay templates. Second, SD-WAN rules must be configured so that traffic can be matched and steered appropriately through the established overlays. Neglecting either task results in ungoverned traffic or inefficient routing, undermining the benefits of SD-WAN."

Templates automate topology, but policy and rule definition are critical for operational effectiveness.
