From the Deployment and System Settings lesson, the Study Guide states:

" Other ports, with the exception of port3, can also be configured as management ports from CLI. "

" You can set additional ports as management port using the CLI command shown on this slide. "

From the Lab Guide (Exercise 4 - Using Inline Scanning) :

" FortiGate and FortiSandbox communicate through port 4443. Management or API ports grant access through port 4443. "

" Enter the following command to enable API access on port2: set api-port port2 "

Ports that are designated as either administration interfaces or API interfaces cannot be selected for 802.3ad aggregate bonding because:

Option A — Port 4 configured as an administration interface is reserved for management traffic and cannot be repurposed for link aggregation

Option C — Port 4 configured as an API interface is dedicated for API communication (port 4443) and is similarly restricted from being used in aggregate bonding configurations

Port 4 in the Lab Guide is specifically referenced as the HA communication and management port, confirming these restrictions apply when special roles are assigned to interfaces.

The Study Guide explains the default behavior first: “You must authorize FortiClient EMS on FortiSandbox. FortiSandbox automatically authorizes all FortiClient endpoints managed by an authorized FortiClient EMS.” It then adds the key point for this question: “To change the default FortiClient authorization behavior, use the command shown on this slide to authorize FortiClient endpoints using FortiSandbox CLI. By default, FortiClient inherits its authorization status from the managing EMS or FortiGate.”

Because the question specifically shows the CLI command set device-authorization -a , it is asking about the behavior after changing the default . The default inheritance model described in option A applies before the override. After this command, FortiSandbox is set to authorize FortiClient endpoints directly and automatically , which makes C the correct answer. Option B is incorrect because the command is specifically about FortiClient endpoints , not other devices in general. Option D is too broad and does not match the Study Guide’s explanation, which is limited to FortiClient authorization behavior.

From the Scanning and Rating Components lesson, the Study Guide explicitly states:

" The second section of the Scan Profile, VM Association, allows you to define file extensions and VM image associations. This means that specific files are sandboxed by the associated VM image. To assign a file to a VM image, the following conditions must be true:

The file type must be configured to enter the job queue (first section of the scan profile).

The VM image clone value cannot be a non-zero number. "

This directly confirms:

Option B — The VM image clone value must be a non-zero number (clones must be allocated)

Option C — The file type must be configured to enter the job queue via the scan profile Pre-Filter section

Options A and D, while potentially relevant in practice, are not listed as the two required conditions in the Study Guide.

From the High Availability and Management lesson, the Study Guide states:

" You must configure the HA group name, password, and the virtual IP only on the primary node. After you configure those, you can add the secondary node to the group using the commands shown on this slide. "

The hc-slave command (shown as hc-worker for secondary) requires pointing to the Primary Node ' s HA interface IP , not the cluster virtual IP or the primary node ' s port1.

From the exhibit:

Primary Node port4 (HA interface) = 10.50.1.30

Secondary Node port4 = 10.50.1.40

Primary Node port1 = 10.25.1.30

Cluster Virtual IP = 10.25.1.50

The secondary node must connect to the Primary Node ' s dedicated HA communication port (port4 = 10.50.1.30) to join the cluster, making Option B the correct answer.

From the FortiGate Integration lesson, the Study Guide explicitly states:

" The quarantine daemon is involved in submitting files to FortiSandbox. "

" The quarantine daemon also receives the verdicts returned by FortiSandbox. "

" The quarantine daemon is responsible for sending requests for the dynamic lists generated by FortiSandbox. This includes the malware package, URL package, and the extension lists. "

From the Lab Guide (Exercise 3 - Using FortiGate Diagnostics):

" Enter the following commands to enable debugging for the quarantine daemon: diagnose debug application quarantine -1 "

The quarantined daemon (Option B) handles both file submissions to FortiSandbox AND receives verdicts back from FortiSandbox in real time, making it the correct daemon to monitor for verdict reception verification.

From the Results Analysis lesson, the Study Guide confirms:

" The Basic information section shows that, in this case, the file type is WEBLink and the file was submitted by FortiMail. "

From the Scanning and Rating Components lesson:

" The only exception to this is URL inputs. These inputs are submitted directly to the VM scan engine for sandboxing. "

When URLs are submitted to FortiSandbox (from FortiMail or other sources), they are classified as WEBLink file type — which is distinct from the standard .url file extension shown in the VM Association Web types (htm, js, lnk, url).

Looking at the exhibits:

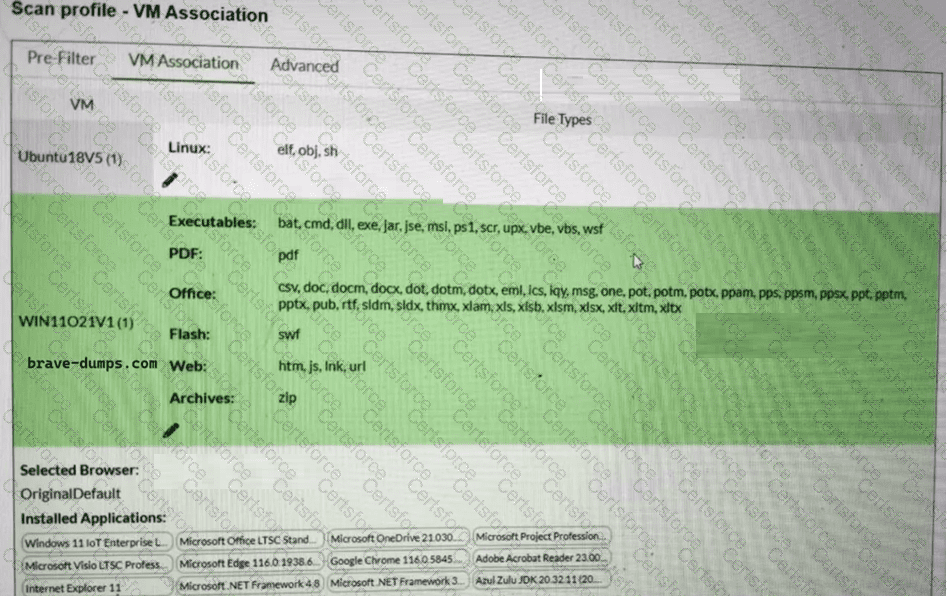

The VM Association shows Web: htm, js, lnk, url — but WEBLink is NOT listed

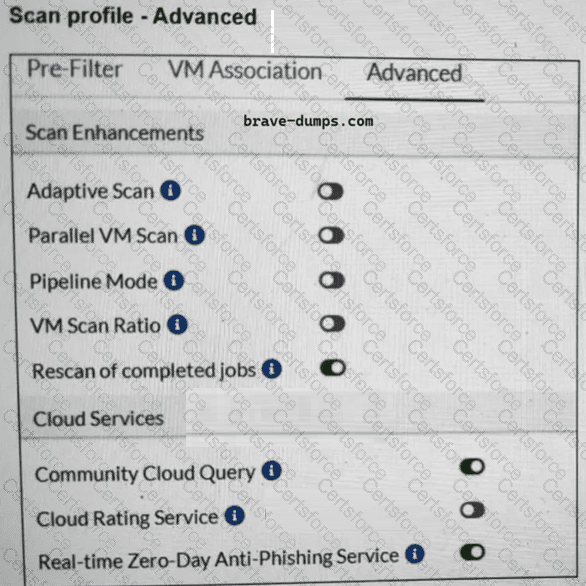

The Advanced tab shows Real-time Zero-Day Anti-Phishing Service is enabled (green)

Despite RTAP being enabled, URLs cannot reach the VM scan stage without WEBLink being explicitly included in the scan profile ' s VM Association

Since RTAP operates during VM scanning, if WEBLink is not assigned to a VM in the scan profile, URLs submitted for inspection will never reach the VM, and therefore will never be evaluated by the RTAP service — regardless of RTAP being enabled.

From the FortiClient EMS Integration lesson, the Study Guide explicitly states:

" It is always a good idea to place the files that are submitted by FortiClient, high on the Job Queue Priority since these are files that end users need immediate access to. In most cases, end users might not be willing to wait for a long time to access these files and placing the FortiClient submitted files high on the Job Queue Priority ensures that these files receive high priority for scanning from FortiSandbox. "

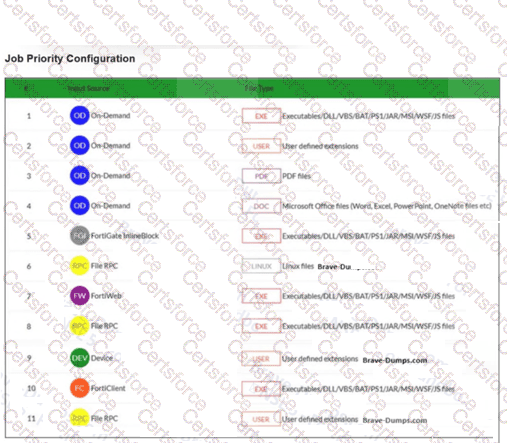

Looking at the exhibit, the Job Priority Configuration shows:

Positions 1-4: On-Demand inputs (highest priority)

Position 5: FortiGate InlineBlock

Positions 6-11: Other sources including FortiWeb, File RPC, Device, FortiClient

As a best practice, FortiClient should rank after On-Demand (positions 1-4) but before FortiGate inputs — since end users need immediate file access, FortiClient submissions should be near the top but On-Demand scanning takes highest precedence.

From the Scanning and Rating Components lesson, the Study Guide explicitly states:

" VM images are downloaded from FortiGuard, using port1. So, you must ensure FortiSandbox has a default route and internet connectivity for port1. "

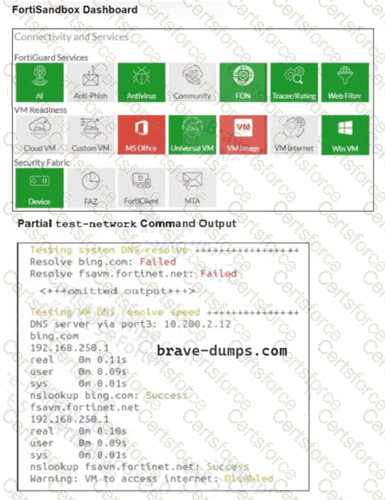

The exhibit confirms this — the test-network output shows:

System DNS resolve: Failed for both bing.com and fsavm.fortinet.net

fsavm.fortinet.net is the FortiGuard VM image download server

This DNS failure on the system side (port1) confirms there is no internet connectivity on port1 , preventing VM image downloads. Note that port3 internet shows " Warning: VM to access internet: Disabled " — but port3 is only for VM sandboxing traffic, not for downloading VM images.

From the Deployment and System Settings lesson, the Study Guide states:

" The test-network command checks FortiGuard services as its last set of validation tests. These include the FortiGuard distribution network (FDN) accessibility, FDN contract expiration, web filtering service, and the community cloud service. All these FortiGuard services should be reachable and valid for FortiSandbox to be effective. "

" The diagnose-debug fdn command provides details around FortiSandbox and the FortiGuard Distribution Network (FDN) communication and updates. "

FortiGuard Distribution Network (FDN) communication requires TCP/443 for HTTPS-based update and licensing communication. The current firewall rules allow TCP/4443 (API/management), UDP/8888 (FortiGuard queries), and UDP/53 (DNS), but TCP/443 is missing — which is the standard port required for FortiGuard FDN connectivity and license validation.

From the FortiMail Integration lesson, the Study Guide explicitly states:

" The Scan timeout value determines how long FortiMail will wait for a response from FortiSandbox. The default is 30 minutes. So, if after 30 minutes FortiSandbox is unable to generate a verdict, FortiMail will release the email to the end user. "

" SMTP is a store-and-forward protocol. This allows FortiMail to queue the email while FortiSandbox inspects all submitted samples. FortiMail will release the email only if there is a scan timeout event, or FortiSandbox returns a clean verdict. "

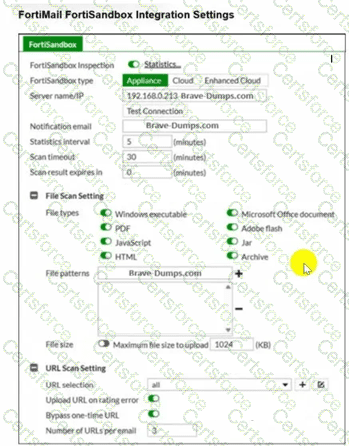

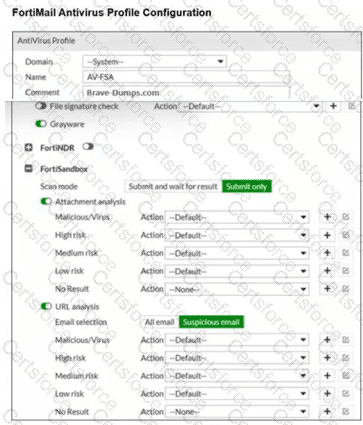

The Integration Settings exhibit clearly confirms Scan timeout = 30 minutes , and the AV Profile shows both Attachment analysis and URL analysis are enabled — meaning FortiMail will hold/queue emails for up to 30 minutes while FortiSandbox completes inspection of all attachments and URLs before taking action.
