Comprehensive and Detailed Explan13ation From BIG-IP Administration Control Plane Administration documents: Monitoring the physical status of the device is critical for reporting device health. In F5 nomenclature, "1.0", "1.1", etc., represent physical hardware interfaces. To verify if a physical link is up or down as reported by the Control Plane's SNMP agent, the administrator must check the Interface List located under Network > Interfaces

The audit log (/var/log/audit) records configuration changes made on the BIG-IP system, including:

Who made the change (user account)

What was changed (for example, a virtual server modification)

When the change occurred

How it was performed (GUI, TMSH, or API)

Why the other options are incorrect:

/var/log/secure logs authentication events such as login successes and failures, not configuration changes.

/var/log/ltm logs traffic-management and runtime LTM events, not administrative configuration modifications.

Therefore, the correct log file for tracking who changed a virtual server is /var/log/audit.

On BIG-IP systems, Local Traffic Manager (LTM) is responsible for:

Pool and pool member management

Health monitor execution

Marking pool members UP or DOWN based on monitor results

Events related to health monitor status changes, including when pool members transition between UP and DOWN, are logged in /var/log/ltm.

Why the other options are incorrect:

/var/log/audit records administrative configuration changes, not runtime health status.

/var/log/secure logs authentication and authorization events.

/var/log/monitors is not a standard BIG-IP log file.

Therefore, the correct log file for pool member health monitor status events is /var/log/ltm.

===========

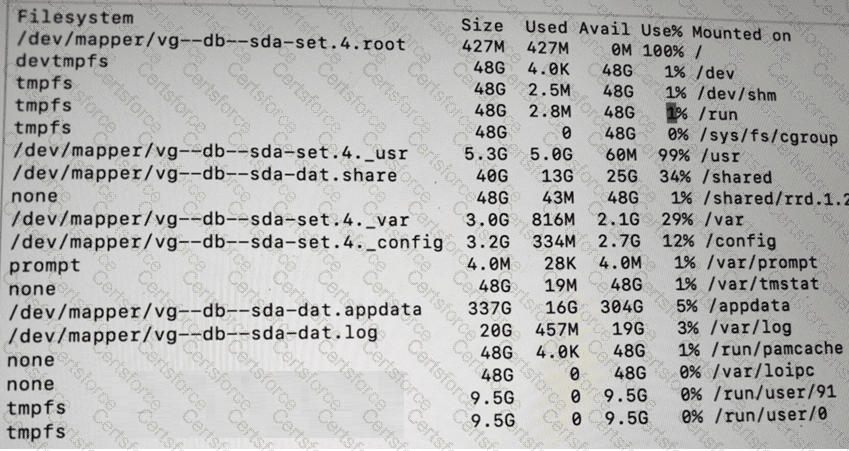

When troubleshooting a BIG-IP system where a partition is reported as full (100% utilization), identifying and removing large or unnecessary files is the immediate next step for restoration of system stability.

Symptoms of Full Partitions: If a file system (such as the root / or /var) becomes full, it can result in unpredictable system behavior, failure to save configurations, and the inability to log in to the Web UI.

The Root (/) Partition: This partition is intentionally kept small on F5 systems. It is highly sensitive to the storage of third-party software or diagnostic files that should ideally be stored in the /shared or /var directories.

Procedural Resolution: To resolve 100% disk usage, administrators should check for large files on the affected partition using CLI commands like du -ah or find / -xdev -type f -exec du {} \; | sort -rn | head -20.

Common Culprits: Large files typically causing these issues include old core files, tech support bundles, large diagnostic logs (packet diags), or temporary files created during administrative tasks.

Diagnostics vs. Remediation: While tests like the EUD (End User Diagnostics) or platform diagnostics are useful for hardware verification, they do not resolve file system exhaustion issues that have already reached a critical 100% state.

Although /var/log/ltm is primarily associated with Local Traffic Manager events, it is also the primary destination for system-level alerts generated by the Control Plane's chmand (Chassis Manager Daemon). Hardware status changes, including power supply failures, fan speeds, and temperature warnings, are logged as "notice" or "critical" events within the LTM log file.

Comprehensive and Detailed Explanation From BIG-IP Administration Control Plane Admi13nistration documents:

To accurately report the current status of specific web applications hosted on the same server (node), the Control Plane must use a monitor that operates at the application layer.

Application-Specific Monitoring: While a node (the IP address) might be up and responding to ICMP (ping) or TCP handshakes, a specific web service or path on that server could be failing.

Custom Send Strings: An HTTP monitor allows the administrator to define a "Send String" to request a specific page or URI related to the application in that pool .

Receive Strings: The "Receive String" identifies a unique value that the application must return to be considered "Available" .

Granular Status Reporting: By deploying these monitors at the pool level, the Control Plane can mark a pool member "Offline" for one application pool if the receive string is missing, while keeping it "Available" in another pool where the service is still healthy.

Restoring system states from backups is a fundamental Control Plane administrative task2. When a User Configuration Set (UCS) archive is created with encryption, it requires the correct passphrase to be decrypted and loaded during the restoration process.

UCS Command Structure: The tmsh load /sys ucs command is the specific utility for restoring these comprehensive configuration archives.

Encrypted Restores: If the archive was encrypted during creation, the passphrase argument must be appended to the command followed by the actual password used to encrypt the file.

Comparison with Other Options:

load /sys config file is used for loading text-based configuration files (like bigip.conf), not full UCS archives6.

The no-license flag is used when you want to restore a configuration without overwriting the existing license (common during RMA replacements), but it does not provide the mechanism for entering an encryption passphrase.

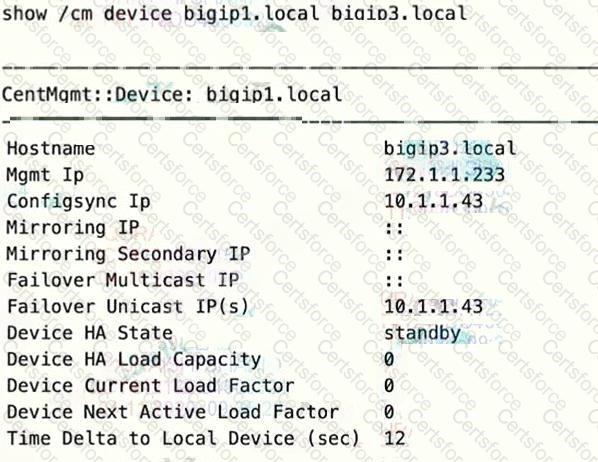

Traffic Groups are the mechanism BIG-IP uses to control which device owns specific application traffic in a high-availability (HA) configuration. When maintenance is required on a device that is currently active for a traffic group, the correct and recommended action is to fail over that traffic group to another device in the device group.

Failing over the traffic group moves ownership of that traffic group (and the virtual servers associated with it) to another available device without forcing the entire device into standby.

This allows targeted maintenance while minimizing impact to other traffic groups that may still be active on the device.

Why the other options are incorrect:

A is unnecessary and incorrect; traffic groups are not recreated for routine maintenance.

C forces the entire device to standby, which may move more traffic than intended.

D (Demote) affects device trust/priority behavior and is not the standard or recommended method for moving traffic group ownership.

Therefore, selecting the Traffic Group and choosing Failover is the correct solution.

On BIG-IP systems, authentication and authorization events are logged in /var/log/secure. This includes:

Successful and failed SSH login attempts

Invalid user authentication attempts

PAM (Pluggable Authentication Module) authentication failures

Access denials related to secure services

Why the other options are incorrect:

/var/log/messages contains general system messages and service events, not detailed authentication failures.

/var/log/audit records administrative configuration changes (who changed what and when), not login attempts.

/var/log/ltm logs traffic-management (TMM) and application-related events.

Therefore, the correct log file for investigating unauthorized SSH login attempts is /var/log/secure.

===========

The EUD is a 33hardware-level diagnostic tool that runs outside of the TMOS operating system. Because it is used when the system cannot boot or is in a pre-boot state, it cannot be accessed via the GUI or management network. The administrator must connect physically via the serial Console Port to interact with the boot menu and initiate the hardware tests.
