Connectivity management requires a proper logical-to-physical mapping within the BIG-IP Control Plane.

VLAN Association : In TMOS, a Self IP address is not assigned directly to a physical interface. Instead, it is assigned to a VLAN (Virtual Local Area Network) object.

Procedural Troubleshooting : If a Self IP is unreachable, the primary failure point is often that the IP was associated with the wrong VLAN, or the VLAN itself is not correctly associated with the intended physical interface or trunk.

Layer 2 Mapping : The Control Plane requires the VLAN to be " up " and " untagged " or " tagged " on a valid interface for traffic to flow. If the administrator selects the incorrect VLAN, the Self IP will exist in the configuration but will be logically isolated from the physical network wire.

Comprehensive and Detailed Explanation From BIG-IP Administration Control Plane Administration do38cuments: While HA state is managed under " Device Management, " the specific failover behavior of a traffic object is linked to its configuration. A Virtual Address must be associated with a " Traffic Group " (usually traffic-group-1) to fail over. This association and the resulting floating status can be verified by viewing the Virtual Server or Virtual Address list under Local Traffic > Virtual Servers.

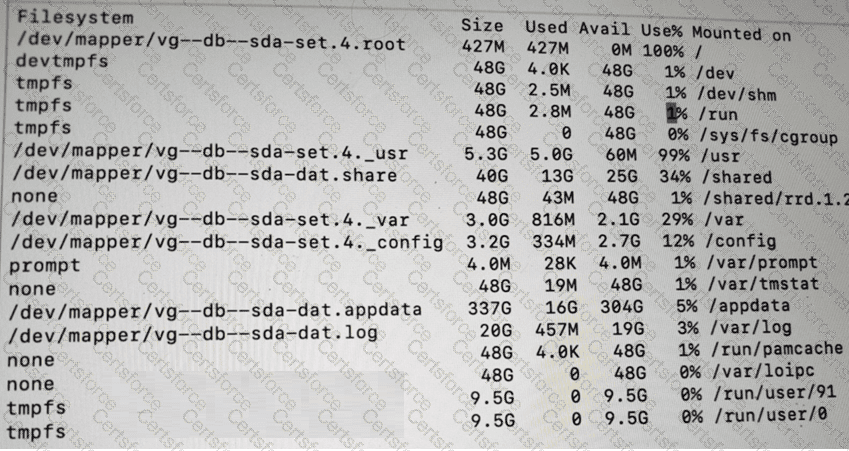

When troubleshooting a BIG-IP system where a partition is reported as full (100% utilization), identifying and removing large or unnecessary files is the immediate next step for restoration of system stability.

Symptoms of Full Partitions : If a file system (such as the root / or /var) becomes full, it can result in unpredictable system behavior, failure to save configurations, and the inability to log in to the Web UI.

The Root (/) Partition : This partition is intentionally kept small on F5 systems. It is highly sensitive to the storage of third-party software or diagnostic files that should ideally be stored in the /shared or /var directories.

Procedural Resolution : To resolve 100% disk usage, administrators should check for large files on the affected partition using CLI commands like du -ah or find / -xdev -type f -exec du {} \; | sort -rn | head -20.

Common Culprits : Large files typically causing these issues include old core files, tech support bundles, large diagnostic logs (packet diags), or temporary files created during administrative tasks.

Diagnostics vs. Remediation : While tests like the EUD (End User Diagnostics) or platform diagnostics are useful for hardware verification, they do not resolve file system exhaustion issues that have already reached a critical 100% state.

In the BIG-IP Configuration Utility, status icons provide immediate health information. A red diamond specifically indicates that the object itself is administratively disabled . When a virtual server is disabled, BIG-IP will not accept or process traffic for that virtual server, regardless of pool or node state.

If all pool members were down , the virtual server would typically show a yellow triangle (available but no resources).

If all pool members were disabled , the virtual server would usually still be enabled but unavailable due to pool status, not shown as a red diamond.

Protocol mismatch (HTTPS sent to HTTP) does not change the administrative status icon of the virtual server.

Therefore, the red diamond clearly indicates the virtual server is disabled , making D the correct answer.

Managing the state of a device often involves restoring configuration backups known as User Configuration Set (UCS) files These archives contain the full system configuration, including licenses and SSL certificates. The Control Plane provides a dedicated management area for these files under System > Archives, where administrators can upload, create, and restore configuration snapshots

In a High Availability pair, the " Force to Standby " action is a Control Plane command used to trigger a manual failover. This option is only logical and available on the device that is currently in the Active state. If the button is greyed out, it indicates that the administrator is already logged into the Standby unit, which has no active traffic groups to relinquish.

BIG-IP provides two supported and documented methods to manually force a device into standby state in a high-availability (HA) configuration:

CLI method (A) :

tmsh run /sys failover device standby

This is the correct and supported TMSH command to force the local device to transition from active to standby .

Configuration Utility method (B) : Navigating to Device Management > Devices > Local Device (Self) and selecting Force to Standby performs the same operation through the GUI and is fully supported.

Why the other options are incorrect:

C is incorrect : Traffic Groups do not provide a “Force to Standby” option for the local device; traffic groups are used to manage which device owns specific traffic, not to force device-level failover.

D is incorrect : tmsh run /sys failover standby is not a valid TMSH command . The correct syntax requires device standby.

Thus, the correct answers are A and B .

Comprehensive and Detailed Explanation From BIG-IP Administration Control Plane Admi 13 nistration documents:

To accurately report the current status of specific web applications hosted on the same server (node), the Control Plane must use a monitor that operates at the application layer.

Application-Specific Monitoring : While a node (the IP address) might be up and responding to ICMP (ping) or TCP handshakes, a specific web service or path on that server could be failing.

Custom Send Strings : An HTTP monitor allows the administrator to define a " Send String " to request a specific page or URI related to the application in that pool .

Receive Strings : The " Receive String " identifies a unique value that the application must return to be considered " Available " .

Granular Status Reporting : By deploying these monitors at the pool level, the Control Plane can mark a pool member " Offline " for one application pool if the receive string is missing, while keeping it " Available " in another pool where the service is still healthy.

In netstat output:

0.0.0.0:443 means the service is bound to all available IPv4 interfaces on the system.

LISTEN indicates the service is actively waiting for incoming connection requests.

Therefore, this output confirms that a service (commonly HTTPS/443, such as the BIG-IP Configuration Utility or an application listener) is actively listening on all interfaces , making B the correct answer.

Why the other options are incorrect:

A would show 127.0.0.1:443 if it were loopback-only.

C is incorrect because LISTEN explicitly indicates readiness to accept connections.

D is unrelated; standby state does not affect socket binding shown by netstat.

Hence, the correct answer is B .

Audit logging is a specialized feature within TMOS designed to track administrative actions. According to F5 documentation, whenever a system object (like a virtual server, pool, or profile) is created, modified, or deleted, the system records the event. These logs are stored specifically in /var/log/audit. This is essential for control plane administration to track " who did what and when " regarding the device configuration.
