The command that shows the overall VPLEX status is cluster status. This command provides a comprehensive view of the health and status of the VPLEX cluster.

Command Usage: The cluster status command is executed in the VPLEX CLI (Command Line Interface). When run, it will display the status of the VPLEX cluster, including the health of the directors, connectivity, and any issues that may be affecting the system1.

Overall Status: The output from the cluster status command includes information about the operational state of the cluster, such as the status of the storage volumes, the inter-cluster communication, and the performance metrics1.

Health Check: This command is often used as a quick health check to ensure that the VPLEX system is functioning correctly and to identify any potential issues that need to be addressed1.

Monitoring and Troubleshooting: The cluster status command is a valuable tool for monitoring the VPLEX system and for troubleshooting any problems that may arise1.

Documentation Reference: For more information on the usage of the cluster status command and other management server commands, administrators should refer to the VPLEX CLI and Administration Guides for the code level the VPLEX is running1.

In summary, the cluster status command is used to display the overall status of the VPLEX system, providing administrators with a quick and effective way to monitor the health and performance of the cluster.

For connecting the MMCS-A to the customer management network in a Dell VPLEX system, it is essential to use the correct port that is designated for management traffic. According to the Dell EMC VPLEX documentation1, each MMCS (Management Module Control Station) has two network connections that connect to the customer’s network. One of these is used for system monitoring and remote connectivity for Dell Technologies Customer Support, and the other is for use by the Network Address Translation (NAT) Gateway.

In the context of the VS6 VPLEX cluster, the management ports are located on MMCS-A and MMCS-B, and both must be configured and connected to the customer network. MMCS-A is the management port that will be accessed for all management and monitoring purposes1. Therefore, the cable that should be connected to the customer management network is the one associated with MMCS-A.

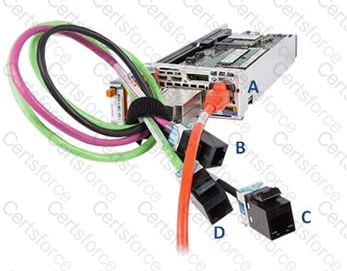

Based on the information provided in the search results and the description of the image, the correct cable to connect to the customer management network for MMCS-A is indicated by the letter B in the exhibit. This connection is crucial for enabling management and monitoring access to the VPLEX system.

When using the EZ Setup wizard for VPLEX, the correct interface and port to SSH into is the Management Server’s eth1 interface. This is typically the interface configured for management access and is used during the initial setup process.

Management Server Access: The Management Server is the primary interface for managing and configuring the VPLEX system. It is through this server that the EZ Setup wizard is accessed1.

eth1 Interface: The eth1 interface on the Management Server is usually dedicated to management traffic. This interface is configured with an IP address that allows SSH access for configuration purposes1.

EZ Setup Wizard: The EZ Setup wizard is a guided setup tool that simplifies the initial configuration of the VPLEX system. It prompts the user for necessary information to configure the system1.

SSH Protocol: Secure Shell (SSH) is a network protocol used to securely access network services over an unsecured network. When configuring VPLEX, SSH is used to connect to the Management Server and run the EZ Setup wizard1.

Configuration Steps: To SSH into the Management Server, the customer engineer would use an SSH client, input the IP address assigned to the eth1 interface, and connect using the appropriate credentials provided during the VPLEX installation1.

In summary, to use the EZ Setup wizard for configuring VPLEX, the customer engineer should SSH into the Management Server using the eth1 interface. This interface is set up during the initial installation and is used for management access to the system.

AppSync is a software that allows for application-consistent snapshots, which are crucial for ensuring that data is in a consistent state when a snapshot is taken. This is particularly important for applications that require a consistent set of data, like databases.

Application-Consistent Snapshots: AppSync enables the creation of application-consistent snapshots on XtremIO storage arrays. This means that the snapshots reflect the exact state of the application at the point in time when the snapshot was taken1.

Integration with VPLEX: When used with VPLEX, AppSync allows for these application-consistent snapshots to be taken even when the storage is virtualized behind VPLEX. This ensures that the benefits of both VPLEX virtualization and XtremIO’s powerful snapshot capabilities can be utilized together1.

Benefits for Application Owners: For application owners, this integration means that they can have confidence in the consistency of their data when using these snapshots for purposes such as development, testing, or backup and recovery1.

Operational Efficiency: The ability to take application-consistent snapshots on XtremIO with VPLEX in the data path simplifies operations. It allows for efficient use of storage resources and reduces the complexity of managing snapshots across different storage systems1.

Use Cases: This capability is particularly beneficial for environments running critical applications such as databases, where having consistent snapshots is essential for tasks like replication, data recovery, and testing1.

In summary, the key benefit of using AppSync with VPLEX and XtremIO is the ability to take application-consistent snapshots on XtremIO while VPLEX is in the data path, providing a reliable and efficient way to manage snapshots for critical applications.

When provisioning LUNs from active/passive arrays to VPLEX, it is essential that each VPLEX director has at least two paths to both the active and passive controllers of each array. This requirement ensures high availability and redundancy for the storage volumes being managed by VPLEX1.

Active/Passive Arrays: Active/passive arrays have one controller actively serving I/O (active) and another on standby (passive). The VPLEX system must have paths to both controllers to maintain access to the LUNs in case the active controller fails1.

Path Redundancy: Having at least two paths to both controllers from each VPLEX director provides redundancy. If one path fails, the other can continue to serve I/O, preventing disruption to the host applications1.

VPLEX Configuration: In the VPLEX configuration, paths are zoned and masked to ensure that the VPLEX directors can access the LUNs on the storage arrays. Proper zoning and masking are critical for the paths to function correctly1.

Failover Capability: The dual-path configuration allows VPLEX to perform an automatic failover to the passive controller if the active controller becomes unavailable, ensuring continuous data availability1.

Best Practices: Following the path requirement as per Dell EMC’s best practices ensures that the VPLEX system can provide the expected level of service and data protection for the provisioned LUNs1.

In summary, the path requirement for each VPLEX director when connecting to active/passive arrays is to have at least two paths to both the active and passive controllers of each array, providing the necessary redundancy and failover capabilities.

When using VPLEX Metro, the supported round trip time (RTT) between clusters is a crucial factor for optimal performance. The RTT is the time it takes for a signal to travel from one cluster to another and back again.

RTT Importance: The RTT affects how quickly data can be synchronized between the two clusters. A lower RTT means faster synchronization, which is essential for maintaining the high availability and data consistency that VPLEX Metro is designed to provide1.

Supported RTT: The supported network round trip latency for VPLEX Metro is up to 5 ms. This is the maximum latency that allows the system to perform optimally without significant performance degradation1.

Performance Considerations: If the inter-cluster FC/IP WAN network experiences congestion, it can result in an increased RTT, which may cause performance issues. Therefore, it’s important to ensure that the network infrastructure supports the required RTT1.

Best Practices: Dell EMC recommends keeping the RTT as low as possible, ideally around 1 ms for a campus-wide network, to provide the best performance. However, VPLEX Metro can support RTTs up to 5 ms under optimal conditions1.

Monitoring and Management: It’s important to monitor the RTT regularly and manage the network to avoid congestion. Tools and techniques should be in place to measure and maintain the RTT within the supported range1.

In summary, the supported round trip time between clusters when using VPLEX Metro is 5 ms. This parameter is critical for ensuring that the VPLEX Metro operates within the designed performance specifications.

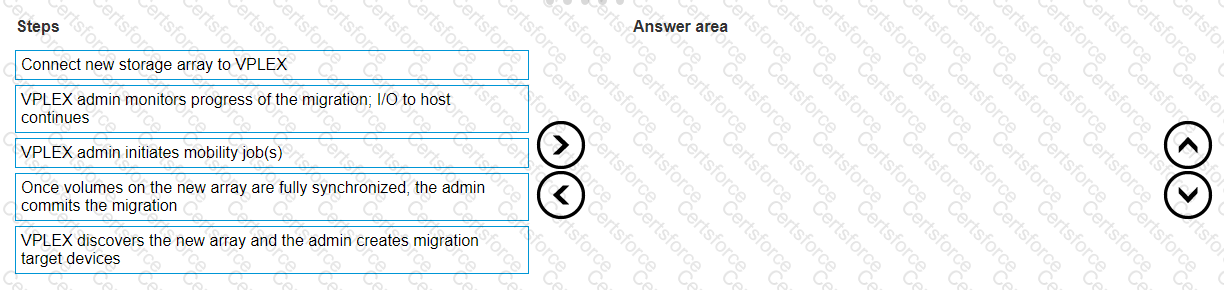

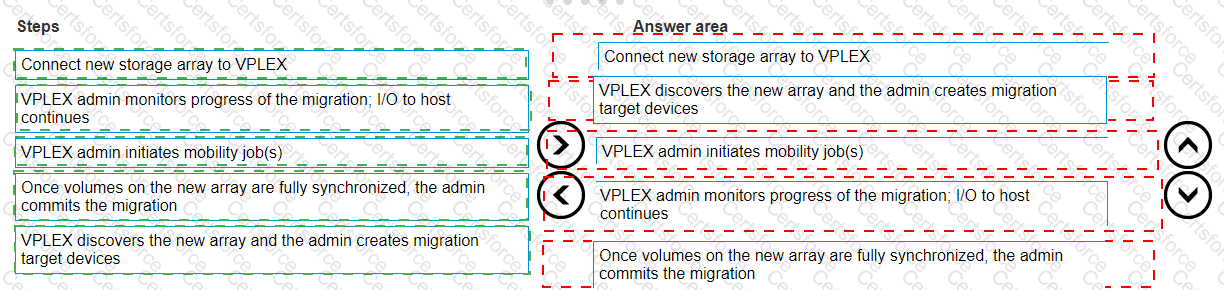

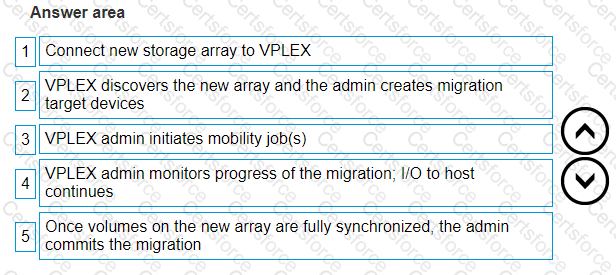

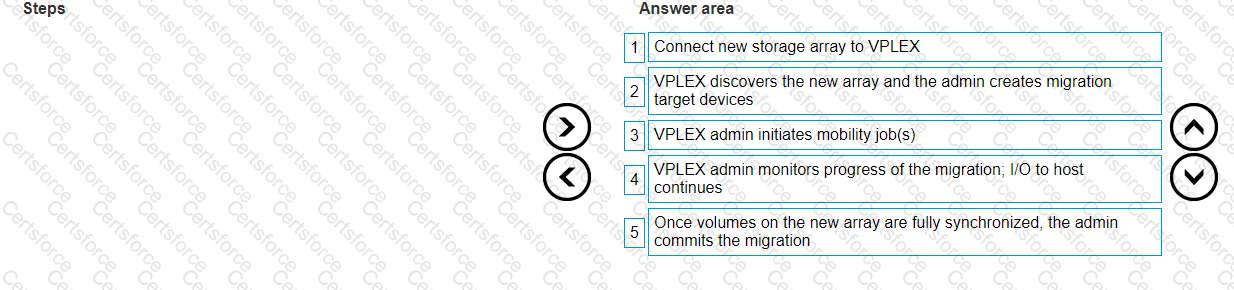

The correct order of steps to migrate from an old array to a new one without disruption using VPLEX is as follows:

Connect the new storage array to VPLEX.

VPLEX discovers the new array, and the admin creates migration target devices.

The VPLEX admin initiates mobility job(s).

VPLEX admin monitors the progress of the migration; I/O to the host continues.

Once volumes on the new array are fully synchronized, the admin commits the migration.

Connect New Storage Array: The first step involves physically connecting the new storage array to the VPLEX system and ensuring proper connectivity1.

Discovery and Device Creation: VPLEX then discovers the new array. The administrator uses the VPLEX management interface to create the target devices that will receive the data from the old array1.

Initiate Mobility Jobs: The administrator initiates mobility jobs using the VPLEX CLI or management interface. These jobs handle the data transfer from the old array’s devices to the new array’s devices1.

Monitor Migration Progress: While the mobility jobs are running, the administrator monitors the progress. During this time, the host continues to perform I/O operations without disruption1.

Commit Migration: After the data has been fully synchronized to the new array, the administrator commits the migration. This finalizes the transfer and allows the host to use the new array’s devices as if they were the original ones1.

This process ensures a smooth and non-disruptive migration from an old storage array to a new one using VPLEX, maintaining continuous availability of applications and data.

When connecting a VPLEX Cluster-1 to VPLEX Cluster-2, the best practice is to ensure that every director port in Cluster-1 is zoned to every director port in Cluster-2 within each fabric. This approach is recommended to maintain a robust and resilient storage network that can handle failover scenarios and provide continuous availability.

Zoning Directors: Zoning is a SAN best practice that isolates traffic within the fabric to specific devices. By zoning every director port from one cluster to every director port in the other cluster, you ensure that there are multiple paths for communication, which enhances redundancy and fault tolerance1.

Fabric Configuration: Each fabric should be configured separately to maintain isolation between the paths. This prevents a single point of failure from affecting all paths and allows for continued operation even if one fabric experiences issues1.

Path Redundancy: With every director port zoned to its counterpart in the other cluster, there are multiple paths for data to travel. This redundancy is crucial for VPLEX Metro’s high availability, as it allows for seamless failover between clusters1.

Continuous Availability: VPLEX is designed for continuous availability, and proper zoning is key to achieving this. The zoning configuration should support VPLEX’s ability to provide uninterrupted access to data, even in the event of hardware failures or maintenance activities1.

Best Practices Documentation: Dell EMC provides detailed documentation on VPLEX implementation and best practices, including zoning recommendations. It is important to consult these documents when planning and implementing zoning for VPLEX clusters1.

In summary, the best practice for connecting VPLEX Cluster-1 to Cluster-2 is to zone every director port to every director port in each fabric, ensuring multiple paths for communication and enhancing the overall resilience of the storage network.

The command used to display available statistics for monitoring VPLEX is monitor stat-list. This command provides a list of all the statistics that can be monitored on the VPLEX system.

Command Usage: The monitor stat-list command is executed in the VPLEX CLI (Command Line Interface). When run, it will display a list of all the statistics that are available for monitoring1.

Monitoring Statistics: The statistics available for monitoring can include various performance metrics such as IOPS (Input/Output Operations Per Second), throughput, and latency. These metrics are crucial for assessing the health and performance of the VPLEX system1.

Custom Monitors: In addition to the default system monitors, custom monitors can be created to track specific data. The monitor stat-list command helps in identifying which statistics can be included in these custom monitors1.

Performance Analysis: By using the monitor stat-list command, administrators can determine which statistics are relevant for their performance analysis and can then create monitors to track those specific metrics1.

Documentation Reference: For more information on the usage of the monitor stat-list command and other monitoring commands, administrators should refer to the VPLEX CLI and Administration Guides for the code level the VPLEX is running1.

In summary, the monitor stat-list command is used to display the available statistics for monitoring VPLEX, providing administrators with the information needed to set up and manage performance monitoring on the system.

Advanced provisioning in Dell VPLEX systems allows for more granular control over storage volumes by enabling the division of storage volumes into multiple extents. This capability is particularly useful for optimizing storage utilization and performance.

Division into Extents: Advanced provisioning allows administrators to divide a larger storage volume into smaller, more manageable extents. This can help in aligning storage allocation with application requirements and improving performance by distributing I/O loads1.

Flexibility: By dividing storage volumes into extents, administrators have the flexibility to manage storage more efficiently, such as allocating different extents to different virtual volumes or applications as needed1.

Efficient Storage Utilization: This approach can lead to more efficient utilization of storage resources, as extents can be allocated and de-allocated dynamically based on changing needs1.

Provisioning Steps: While advanced provisioning offers this flexibility, it does not require each provisioning step to be executed simultaneously. Instead, it allows for a more tailored approach to storage management1.

Third-Party Arrays: Advanced provisioning is not limited to storage volumes from third-party arrays; it can be used with storage volumes from a variety of sources, including those directly managed by VPLEX1.

In summary, the consideration when using Advanced provisioning in Dell VPLEX systems is that it allows the user to divide storage volumes into extents, providing greater flexibility and efficiency in storage management.
