Pass the CompTIA CompTIA Security+ SY0-701 Questions and answers with CertsForce

A Host-based Intrusion Prevention System (HIPS) provides both preventive and detective security controls. Security+ SY0-701 describes HIPS as a host-level security solution that monitors system behavior, blocks malicious activity, and logs suspicious events.

It functions as a preventive control (B) because it can:

Stop malware execution

Block unauthorized changes

Prevent exploit attempts

Enforce endpoint protection policies

It is also a detective control (F) because it can:

Record attempted attacks

Identify suspicious activities

Generate alerts for security teams

Directive controls (A) refer to policies; physical controls (C) refer to locks and barriers; corrective controls (D) restore systems after an incident; compensating controls (E) substitute for missing primary controls.

Therefore, the two correct answers are B (Preventive) and F (Detective).

Change management procedures provide structured steps to approve, test, document, and deploy software changes, ensuring controlled and auditable version releases that minimize risks and disruptions.

Business continuity planning (A) relates to operational continuity, quantified risk analysis (B) assesses risks quantitatively, and static code analysis (C) finds coding defects but does not control release processes.

Change management is fundamental to software lifecycle governance in SY0-701【6:Chapter 16†CompTIA Security+ Study Guide】.

Open service ports directly contribute to an organization’s attack surface because they provide potential entry points that attackers can probe, exploit, or abuse. In the context of the Security+ SY0-701 objectives, the attack surface is defined as the sum of all possible points where an attacker can attempt to enter or extract data from a system. Each open port corresponds to a service or application that is listening for incoming connections, and if that service is unnecessary, misconfigured, unpatched, or weakly protected, it becomes a viable attack vector.

Option D is correct because open ports may expose services that do not need to be accessible, especially if proper access controls, firewall rules, or network segmentation are not in place. For example, leaving management interfaces, legacy services, or test services open can allow attackers to perform reconnaissance, banner grabbing, credential attacks, or exploitation of known vulnerabilities. The SY0-701 study guide emphasizes the principle of minimizing attack surface by disabling unused services, closing unnecessary ports, and applying the principle of least functionality.

Option A is incorrect because endpoint antivirus tools are not responsible for identifying or managing open network ports at an architectural level. Option B is partially true but incomplete; while open ports can allow remote access, not all open ports are remote entry points, and the question asks for the best explanation of how attack surface increases. Option C is incorrect because open ports do not inherently enable updates and, in fact, often increase risk rather than reduce it.

In summary, open service ports increase attack surface by exposing services that attackers can target. Proper port management, firewall enforcement, and regular vulnerability scanning are critical controls emphasized in Security+ SY0-701 to reduce exposure and limit unauthorized access.

Data in transit is data that is moving from one location to another, such as over a network or through the air. Data in transit is vulnerable to interception, modification, or theft by malicious actors. A VPN (virtual private network) is a technology that protects data in transit by creating a secure tunnel between two endpoints and encrypting the data that passes through it2.

The security engineer is likely to deploy a Web Application Firewall (WAF) to protect the new web portal service. A WAF specifically protects web applications by filtering, monitoring, and blocking HTTP requests based on a set of rules. This is crucial for preventing common attacks such as SQL injection, cross-site scripting (XSS), and other web-based attacks that could compromise the web service.

Layer 4 firewall operates primarily at the transport layer, focusing on IP address and port filtering, making it unsuitable for web application-specific threats.

NGFW (Next-Generation Firewall) provides more advanced filtering than traditional firewalls, including layer 7 inspection, but the WAF is tailored specifically for web traffic.

UTM (Unified Threat Management) offers a suite of security tools in one package (like antivirus, firewall, and content filtering), but for web application-specific protection, a WAF is the best fit​​​.

 A user provisioning script is an automation technique that uses a predefined set of instructions or commands to create, modify, or delete user accounts and assign appropriate access or permissions. A user provisioning script can help to streamline account creation by reducing manual errors, ensuring consistency and compliance, and saving time and resources12.

The other options are not automation techniques that can streamline account creation:

Guard rail script: This is a script that monitors and enforces the security policies and rules on a system or a network. A guard rail script can help to prevent unauthorized or malicious actions, such as changing security settings, accessing restricted resources, or installing unwanted software3.

Ticketing workflow: This is a process that tracks and manages the requests, issues, or incidents that are reported by users or customers. A ticketing workflow can help to improve the communication, collaboration, and resolution of problems, but it does not automate the account creation process4.

Escalation script: This is a script that triggers an alert or a notification when a certain condition or threshold is met or exceeded. An escalation script can help to inform the relevant parties or authorities of a critical situation, such as a security breach, a performance degradation, or a service outage.

References = 1: CompTIA Security+ SY0-701 Certification Study Guide, page 1022: User Provisioning – CompTIA Security+ SY0-701 – 5.1, video by Professor Messer3: CompTIA Security+ SY0-701 Certification Study Guide, page 1034: CompTIA Security+ SY0-701 Certification Study Guide, page 104. : CompTIA Security+ SY0-701 Certification Study Guide, page 105.

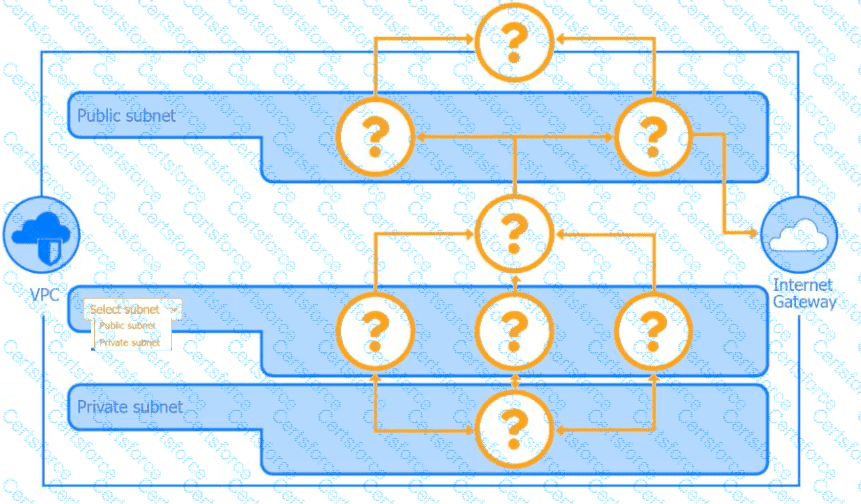

A diagram of a computer AI-generated content may be incorrect.

Step 1: Understand Requirements & Security Principles

Requirements:

Customer-facing payment application (PCI DSS compliance applies)

Hosted on third-party cloud (e.g., AWS)

Must segment public-facing and internal resources

Needs to be scalable and resilient

Must have strong security controls

Step 2: Design the High-Level Network Layout

Core Components:

VPC (Virtual Private Cloud): Isolates your environment from other tenants in the cloud.

Subnets:

Public subnet: For resources that must communicate with the internet.

Private subnet: For internal resources, NOT directly exposed to the internet.

Step 3: Place Resources in Appropriate Subnets

Public Subnet:

Internet-facing Load Balancer (LB): Distributes traffic to application servers.

Web Application Firewall (WAF): Protects against web exploits.

Autoscaling Instances: EC2 (or VM) servers running your web front-end, automatically scaling as traffic grows.

Private Subnet:

Application servers: Back-end logic, not exposed to internet directly.

Database: Sensitive data storage, only accessible by application servers.

Internal Load Balancer: Manages traffic among app servers.

WAF: Can be used internally as well for defense-in-depth.

Step 4: Add Connectivity and Security Controls

Internet Gateway: Allows resources in public subnet to communicate with the internet.

NAT Gateway: Allows outbound internet traffic from private subnet without exposing private IPs.

Security Groups: Firewalls at the instance level; allow only necessary traffic (e.g., LB to web server, web server to DB).

Network ACLs: Subnet-level firewalls for additional control.

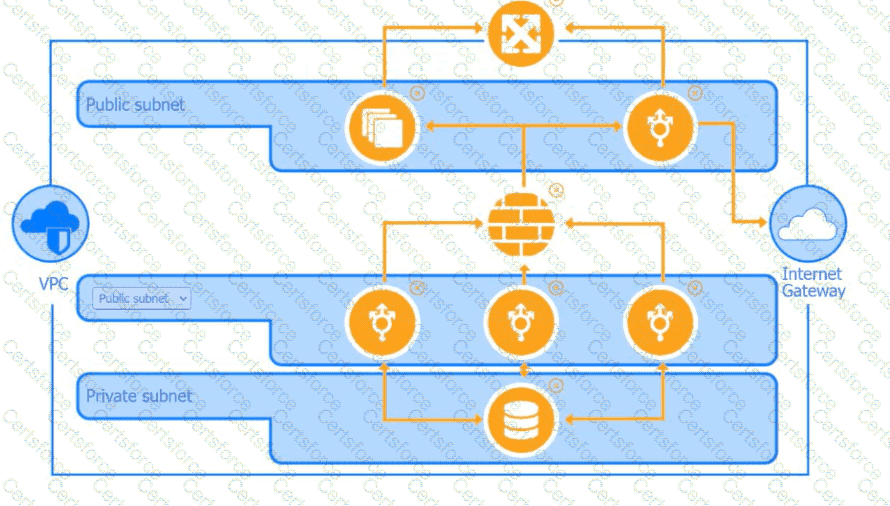

Step 5: Network Diagram Explanation (Based on Your Images)

Public Subnet (Top Layer)

Load Balancer

Accepts HTTPS traffic from customers.

Sends only necessary HTTP/HTTPS to web servers in public subnet.

WAF (Web Application Firewall)

Sits in front of Load Balancer.

Filters malicious requests (SQLi, XSS, etc.).

Autoscaling Group

Multiple web servers for redundancy and scalability.

Placed in public subnet to respond to traffic spikes.

Private Subnet (Bottom Layer)

Application Servers

Receive requests from public subnet’s load balancer.

Not directly exposed to the internet.

Database

Only accessible from application servers, never public.

Security groups restrict all inbound traffic except from app servers.

Internal Load Balancer

Balances requests to application servers.

Step 6: Flow of Data (Step-by-Step)

Client -> Internet Gateway -> WAF -> Load Balancer (Public Subnet):Customers initiate connections to your app over the internet.

Load Balancer -> Autoscaling Web Servers (Public Subnet):Load balancer routes requests to available web servers.

Web Servers -> Application Logic (Private Subnet):Web servers pass necessary requests to the internal application servers.

App Servers -> Database (Private Subnet):Application servers query/update customer payment data in the database.

Outbound (NAT Gateway):App servers may need to access updates or external APIs—use NAT Gateway for secure outbound connections.

Step 7: Security Best Practices

Security Groups: Only allow necessary ports (e.g., 443 for HTTPS to LB, 3306 for MySQL between app server and DB).

Network ACLs: Add another layer of subnet-level restrictions.

Encryption: Use HTTPS for all external connections, encrypt data at rest and in transit (TLS, disk encryption).

IAM Roles/Policies: Principle of least privilege for accessing resources.

Monitoring/Logging: Enable VPC flow logs, cloud service logs, and application logging.

Patch Management: Automate patching for OS and applications.

Backups: Regular, secure backups of critical data.

Step 8: Compliance Considerations

For payment applications (PCI DSS):

Isolate cardholder data environment (CDE).

Strong access controls (multi-factor authentication, role separation).

Regular vulnerability assessments and penetration testing.

Retain logs for auditing.

Step 9: Draw the Architecture (Summary)

Internet Gateway: Allows inbound/outbound internet access.

Public Subnet: WAF, Load Balancer, Autoscaling group.

Private Subnet: App servers, DB, internal LB.

NAT Gateway: Outbound access for private resources.

Security Groups/ACLs: Control all traffic flows.

Monitoring/Logging: Enabled at all levels.

Bonus: Sample Security Group Rules

Web Server (Public Subnet):

Inbound: 443 (HTTPS) from Internet

Outbound: 80/443 to App Servers

App Server (Private Subnet):

Inbound: 80/443 from Web Servers

Outbound: 3306 (MySQL) to Database

Database (Private Subnet):

Inbound: 3306 from App Servers

Outbound: None (unless replication required)

References to Security+ Domains

1.0 General Security Concepts: Principle of least privilege, defense in depth.

2.0 Threats, Vulnerabilities, Mitigations: WAF, segmentation, patching.

3.0 Security Architecture: Network segmentation, secure design.

4.0 Security Operations: Monitoring, logging, response.

5.0 Security Program Management: Compliance, policy.

Segmentation is a technique that divides a network into smaller subnetworks or segments, each with its own security policies and controls. Segmentation can help mitigate network access vulnerabilities in legacy loT devices by isolating them from other devices and systems, reducing their attack surface and limiting the potential impact of a breach. Segmentation can also improve network performance and efficiency by reducing congestion and traffic. Patching, insurance, and replacement are other possible strategies to deal with network access vulnerabilities, but they may not be feasible or effective in the short term. Patching may not be available or compatible for legacy loT devices, insurance may not cover the costs or damages of a cyberattack, and replacement may be expensive and time-consuming. References: CompTIA Security+ Study Guide: Exam SY0-701, 9th Edition, page 142-143

To identify authentication weaknesses in a customer-facing web application, the best method is dynamic analysis, also known as Dynamic Application Security Testing (DAST). Dynamic analysis evaluates an application while it is running, allowing testers to observe real-world interactions, session handling, login mechanisms, credential validation, access control failures, and runtime vulnerabilities such as brute-force weaknesses or authentication bypass conditions.

Security+ SY0-701 outlines DAST as the preferred approach for testing live web applications because it uncovers:

Weak session management

Broken authentication flows

Input validation failures

Misconfigurations in login portals

Runtime vulnerabilities that static code review cannot detect

Static analysis (A) only analyzes source code and may overlook logic flaws in authentication. Packet capture (B) inspects network traffic but cannot evaluate internal authentication logic. Agent-based scanning (C) is used for hosts, not web applications. Network-based scanning (E) finds port-level vulnerabilities but cannot assess application authentication mechanisms.

Therefore, dynamic analysis (D) is the most effective and accurate technique for discovering authentication weaknesses in live web applications.

Hashing is the correct mechanism for ensuring that a software release has not been modified prior to reaching the end user. Hashing provides integrity verification by generating a fixed-length digest (such as SHA-256) from the original software package. When users download the software, they can compute the hash locally and compare it to the hash value published by the vendor. If the values match, the software has not been altered; if they differ, tampering or corruption has occurred.

CompTIA Security+ SY0-701 emphasizes hashing as a core cryptographic control used to verify integrity for files, updates, patches, and software distributions. Hashing is extremely sensitive to change—altering even a single bit in the file results in a completely different hash value.

Encryption (B) protects confidentiality, not integrity. Tokenization (A) replaces sensitive data with tokens and is unrelated to software integrity. Obfuscation (D) makes code harder to read but does not guarantee it has not been modified.

Therefore, hashing is the most appropriate and reliable method to ensure software integrity before release.

A directive managerial control provides guidance and expectations for behavior through policy and governance. An Acceptable Use Policy (AUP) is a classic example, as it defines how users may and may not use organizational systems and data. Security+ SY0-701 categorizes policies as managerial (administrative) controls that direct user behavior and establish accountability.

A login warning banner (B) is typically a deterrent/administrative control but is not managerial in nature. A master service agreement (C) is a contractual/legal document, not a managerial directive for internal users. A “No trespassing” sign (D) is a physical deterrent control.

Because an AUP formally directs behavior and is enforced through management processes, A: Acceptable use policy is correct.

Because the organization plans to deploy high-powered wireless access points, the next critical step is to create a heat map of the building perimeter. CompTIA Security+ SY0-701 highlights wireless heat maps as an essential design tool for identifying signal bleed, coverage overlap, dead zones, and areas where wireless signals extend beyond intended boundaries.

Stronger access points increase the risk of signal leakage outside the building, which could allow unauthorized users to attempt connections from parking lots or nearby buildings. A heat map enables the security team to visualize RF propagation and adjust power levels, antenna placement, and access point locations to minimize external exposure while maintaining internal coverage.

Deploying IPSec tunnels (B) is unnecessary for standard WLAN architectures. Enabling WPA2-PSK (C) weakens security compared to WPA3. Disabling SSH administration (D) is a hardening step but does not address wireless coverage risks.

Therefore, the correct next step in secure Wi-Fi design is A: Create a heat map of the building perimeter.

Detailed Explanation:Access control lists (ACLs) allow administrators to fine-tune file permissions by specifying which users or groups have access to a file and defining the level of access. Reference: CompTIA Security+ SY0-701 Study Guide, Domain 3: Security Architecture, Section: "Access Control Mechanisms"​​.

When hosting an on-premises software application in a cloud-based service, ensuring visualization and isolation of resources is crucial for maintaining security best practices. This involves using virtualization techniques to create isolated environments (e.g., virtual machines or containers) for different applications and services, reducing the risk of cross-tenant attacks or resource leakage.

Network segmentation is important but pertains more to securing network traffic rather than isolating computing resources.

Data encryption is also essential but doesn’t specifically address resource isolation in a cloud environment.

Strong authentication policies are critical for access control but do not address the need for isolating resources within the cloud environment​​.
