When installing a fan module in a Cisco Nexus fixed-configuration switch, it's crucial to ensure that theairflowdirection of the new fan matches the existing airflow configuration. Mismatched airflow directions can lead to inefficient cooling or even overheating of components, potentially affecting the performance or lifespan of the switch.

Cisco offers fan modules infront-to-backorback-to-frontairflow variants, and consistency is required for proper thermal management. These modules are also typically hot-swappable, meaning powering down the switch is not necessary.

In a local area network (LAN), the primary function of aswitch is to operate at Layer 2 (Data Link Layer) of the OSI model. Switches use MAC addresses to forward frames to the appropriate destination ports. This targeted forwarding mechanism divides the network into separate collision domains for each switch port. By isolating collision domains, switches significantly reduce the chance of collisions, enhancing the performance and efficiency of the network.

Unlike hubs, which forward all traffic to all ports (thus creating a single collision domain), switches intelligently forward only the necessary traffic to the correct port. This capability allows multiple simultaneous conversations on different switch ports without interference.

Routers, which operate at Layer 3 (Network Layer), are used to route packets between different networks, not within the same LAN. Wireless connectivity is provided by wireless access points (WAPs), not switches. Encryption is typically handled by security protocols or devices such as firewalls and not by switches directly.

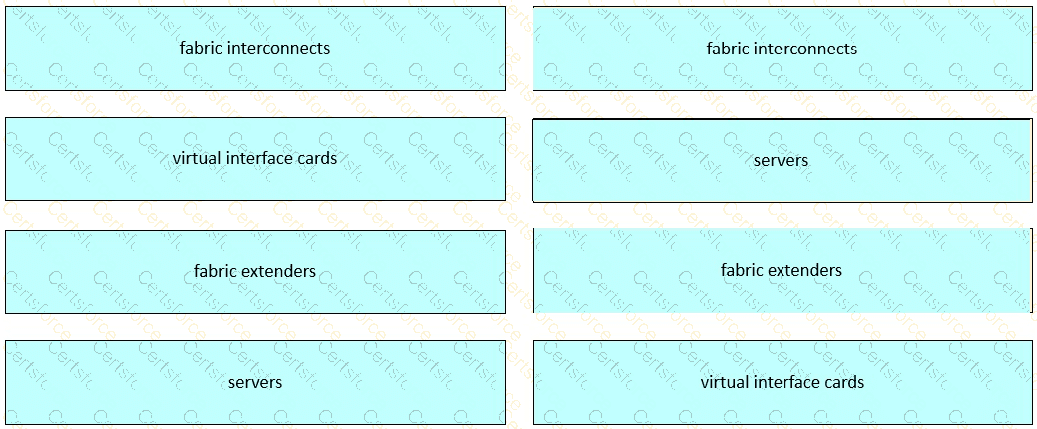

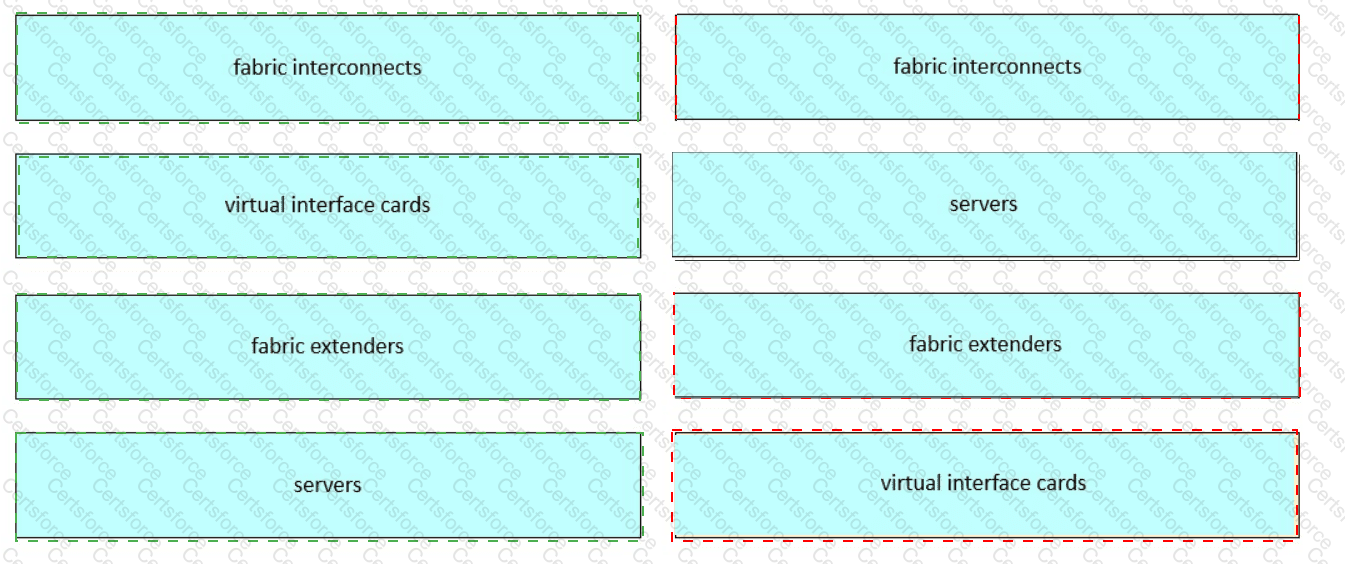

According toFLDTEC documentation and Cisco UCS architecture guides, each of these elements plays a distinct and essential role:

Fabric Interconnects (FI)– Act as the central switching and management point for the UCS domain, connecting servers to LAN and SAN.

Virtual Interface Cards (VICs)– Installed in servers, these adapters supportvirtualization of multiple NICs and HBAs, enabling dynamic profile assignment.

Fabric Extenders (FEXs)– Extend the I/O fabric from the FI to the chassis, reducing complexity and consolidating management.

Servers– Provide the actual compute resources and run workloads. These can bebladeorrack servershoused in the UCS chassis.

This structure is critical to theCisco Unified Fabric approach, which simplifies data center management through integration and automation.

TheUCS Fabric Interconnectis the central management and communication hub of theCisco UCS (Unified Computing System)environment. It integrates compute, network, and storage access into a unified system.

Fabric Interconnects:

Manage all servers and I/O modules connected to the UCS domain

Provide connectivity and are the point of integration with the Cisco UCSManager

Offer high-availability and centralized policy management

Other options like the Nexus or MDS switches do not serve this unified management function in a UCS deployment.

In a Class B network, the default subnet mask is 255.255.0.0, which allocates:​

16 bits for the network portion

16 bits for the host portion​

When the subnet mask is changed to255.255.255.0, it becomes:​

24 bits for the network portion

8 bits for the host portion​

This indicates that8 bitshave been borrowed from the host portion to create additional subnets. Borrowing bits allows for the division of the original network into smaller sub-networks, enhancing organization and security within the network.​

To ensurehigh availability and fault tolerancein Cisco data center designs, two effective strategies include:

Redundant Supervisor Engines and Fabric Modules: These provide failover capabilities, so if one supervisor or fabric module fails, another can take over, maintaining network operations without interruption.

Virtual Port Channels (vPCs): vPCs allow connections to be made to two physical switches while appearing as one logical switch. This prevents loops and adds redundancy and load balancing, which is critical in high-availability environments.

Other options may enhance performance (e.g., high-density Ethernet) or extend functionality (e.g., FCIP), but do not directly contribute to fault tolerance and high availability in the same way.

Step 1 → Performs power-on self-test (POST)

Step 2 → Loads and runs bootstrap code (firmware)

Step 3 → Finds and loads the Cisco IOS software

Step 4 → Finds and loads the configuration

Step 5 → Runs the configured Cisco IOS software

This startup process is thoroughly described in theFLDTECcourse and alignswith Cisco's standard IOS boot process:

POST (Power-On Self-Test):Verifies hardware functionality including memory and interfaces. This occurs immediately upon powering the device.

Bootstrap Code Execution:Bootstrap is a small program in ROM that initiates the boot process.

Cisco IOS Loading:Bootstrap locates and loads the IOS from flash memory or another source (e.g., TFTP).

Configuration Loading:The router then loads the startup-config from NVRAM (if available).

IOS Execution:Once the configuration is loaded, the device enters operational mode and executes the IOS with the loaded config.

This sequence is vital for field technicians to understand for troubleshooting boot failures or performing device recoveries.

In wireless networking, theBasic Service Area (BSA)refers to the physical area of radio frequency coverage provided by an access point (AP) in a Basic Service Set (BSS). The BSA defines the coverage area where wireless clients can connect to the network through the AP. The size and shape of a BSA depend on various factors, including the AP's transmit power, antenna type, and physical environment.​

Option A, the Service Set Identifier (SSID), is the network name broadcast by the AP. Option C, Wireless LAN (WLAN), refers to the overall wireless network. Option D, Wireless LAN Controller (WLC), is a device that manages multiple APs in a network.​

InInstall mode, thepackages.conffile plays a crucial role in the boot process of Cisco IOS XE Software. It specifies the list of software packages to be loaded and the sequence in which they should be initialized during system startup. This file ensures that all necessary components are correctly loaded, providing a modular and flexible approach to software management.​

Contrary to the other options:​

Thepackages.conffile does not extract the bin file; it references already extracted packages.

It does not contain the entire bundled image; that's characteristic of Bundle mode.

While it resides in the flash memory, it is not a subdirectory but a configuration file.​

When replacing afabric interconnectin a Cisco Unified Computing System (UCS), the recommended procedure tominimize traffic disruptionis touse the fabric evacuation procedure on the subordinate fabric interconnect. This ensures that traffic is redirected to the other (active) fabric interconnect, allowing the system to maintain connectivity while one interconnect is replaced.

High availability should remain enabled to preserve redundancy.

Powering down both interconnects would cause a complete outage.

Disconnecting cables without graceful evacuation can result in traffic loss.
