On Cisco Catalyst 8000 Series Edge platforms, removing the chassis cover provides access to internal components such asDIMMs (Dual In-line Memory Modules)andSSDs (Solid-State Drives). These components are located internally and require the removal of the chassis cover for maintenance or replacement.​

DIMMsare used for system memory and are essential for the router's operation.

SSDsprovide storage for system software and configurations.​

Other components likeNetwork Interface Modules (NIMs)andtransceiversare typically accessible externally and do not require chassis cover removal.​

When configuring a terminal emulator (such as PuTTY, Tera Term, or HyperTerminal) to connect to the console port of a Cisco switch, the standard settings are as follows:​

Speed (baud rate): 9600This is the default transmission speed for Cisco console ports, ensuring compatibility across various devices.​

Data bits: 8This setting specifies that each character transmitted consists of 8 data bits, which is standard for most serial communications.​

Parity: NoneNo parity bit is used, meaning there is no additional error-checking bit appended to each character.​

Stop bits: 1One stop bit indicates the end of a character transmission.​

Flow control: NoneNo flow control is employed, allowing continuous data transmission without hardware or software-based pausing.​

Therefore, optionsC (Speed: 9600)andD (Data bits: 8)are correct. Options A (Stop bits: 2), B (Flow control: Hardware), and E (Parity: Even) deviate from the standard settings and may result in communication issues if configured.​

To back up the startup configuration of a Cisco device to a USB drive, the commandcopy startup-config usbflash0:[filename]is used. This command copies the contents of the startup configuration file stored in NVRAM to a specified file on the USB flash drive. This is particularly useful for creating backups before performing upgrades or replacements.​Option A:Copies the startup configuration to a TFTP server, not a USB drive.

Option B:Attempts to copy from the USB drive to the startup configuration, which is the reverse of the desired operation.

Option D:Copies the running configuration, not the startup configuration, to the USB drive.​

These components are part of theCisco Collaboration System Architecture (CSA), and are reviewed in theFLDTEC trainingunderCisco Equipment and Collaboration Basics:

Call Control: Managed by services likeCisco Unified Communications Manager (CUCM), it routes and connects calls.

Collaboration Applications: Provide added value services such asvoicemail (Unity),messaging (IM&P), presence, and more.

Edge Devices: IncludeCisco ExpresswayandCUBE(Cisco Unified Border Element), offering secure access and traversal for mobile/remote endpoints.

Conferencing: Powered by platforms likeCisco Meeting ServerorWebex, enabling multi-party conferencing.

Endpoints: Include bothhardware (IP phones, video units)andsoftware (Webex app)that users interact with directly.

Cisco Unified Communications Manager (CUCM) is typically deployed onCisco UCS C-Series servers. These rack-mount servers provide the necessary computing resources to support CUCM's call control and session management functions in enterprise environments. The UCS C-Series servers offer scalability, reliability, and integration capabilities essential for unified communications deployments.​

Options A (Cisco ASR routers), B (Cisco Catalyst switches), and C (Cisco ISR routers) are networking devices designed for routing and switching functions and are not intended as platforms for deploying CUCM.​

A → Power supply modules

B → Fan tray assembly

C → Line card slots 1 and 2

D → Supervisor modules

E → Line card slots 5, 6, and 7

The power supply units (A) are at the top, the fan tray (B) is a vertical module on the left, line cards (C and E) span multiple slots horizontally, and supervisor modules (D) are typically placed centrally for control functions.

In theFLDTEC courseunderCisco Modular Hardware Overview, the Cisco Catalyst 9400 series is broken down into clearly defined FRU zones:

Power Supply Modules (A):Located at thetop of the chassis, these provide redundant, hot-swappable power to the switch.

Fan Tray Assembly (B):Mounted vertically on the left, this ensures proper cooling and airflow throughout the chassis.

Line Card Slots 1 and 2 (C):Located in the upper section for network expansion.

Supervisor Modules (D):Positioned centrally, they handle control plane operations, management, and switching logic.

Line Card Slots 5, 6, and 7 (E):Lower slots for high-density port expansion.

Correct FRU identification ensures successful maintenance, upgrades, and hardware replacement during field operations.

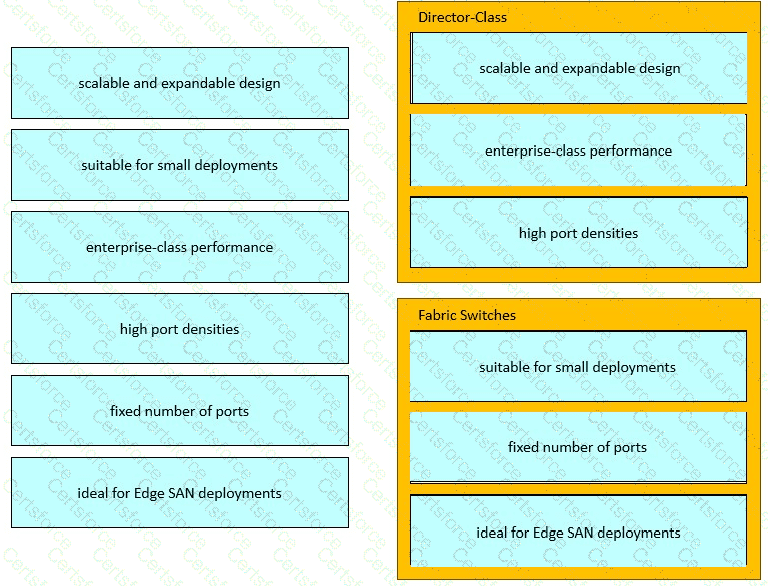

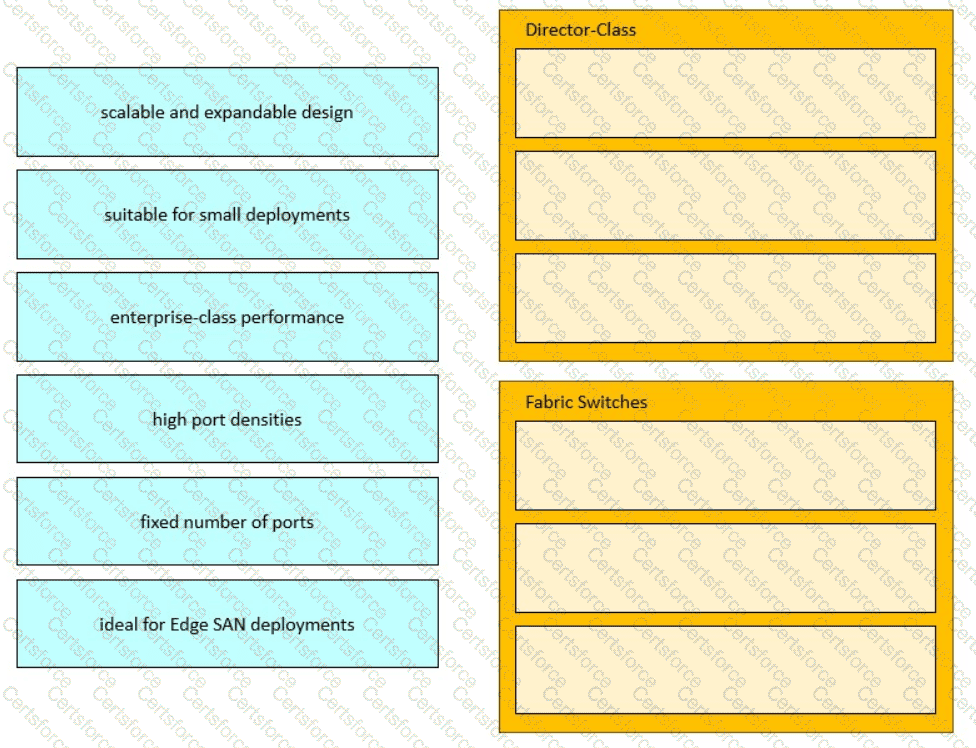

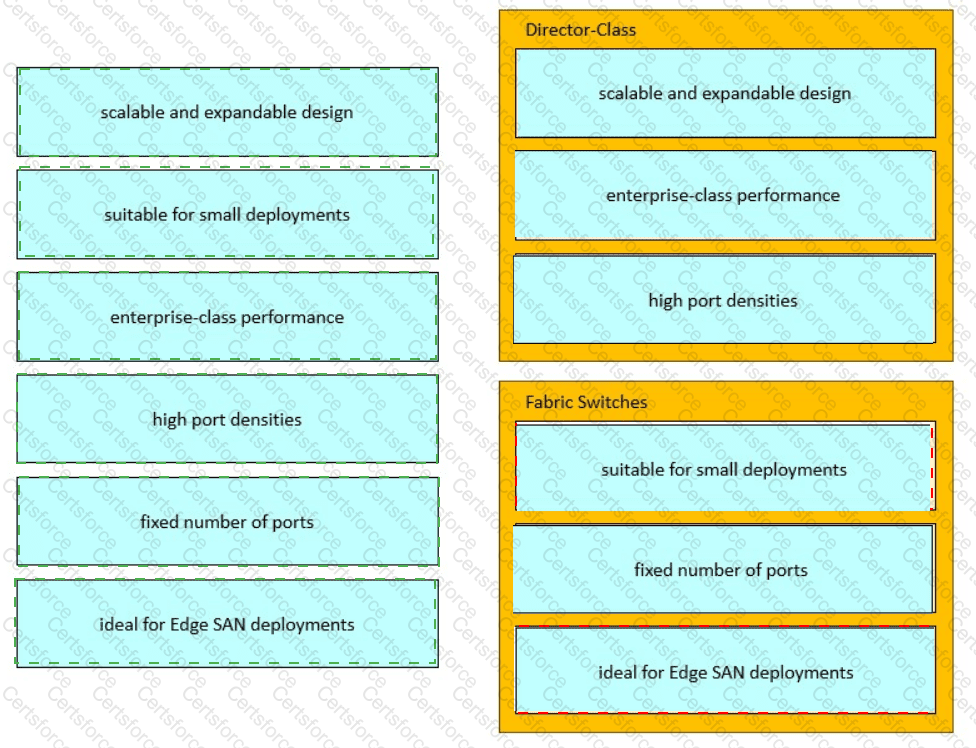

Cisco MDS switches are segmented into two key categories: Director-Class and Fabric Switches, each tailored for different SANenvironments:

Director-Class Switches (e.g., Cisco MDS 9700 Series):

Modular and highly scalable

Support hot-swappable components (line cards, supervisors, fabric modules)

High port density and performance for core SANs in enterprise data centers

Fabric Switches (e.g., Cisco MDS 9148T):

Compact, fixed-form factor

Best suited for smaller SANs or edge locations

Cost-effective and simple to deploy

This distinction is important when selecting hardware for data center core vs access layers in SAN architectures.

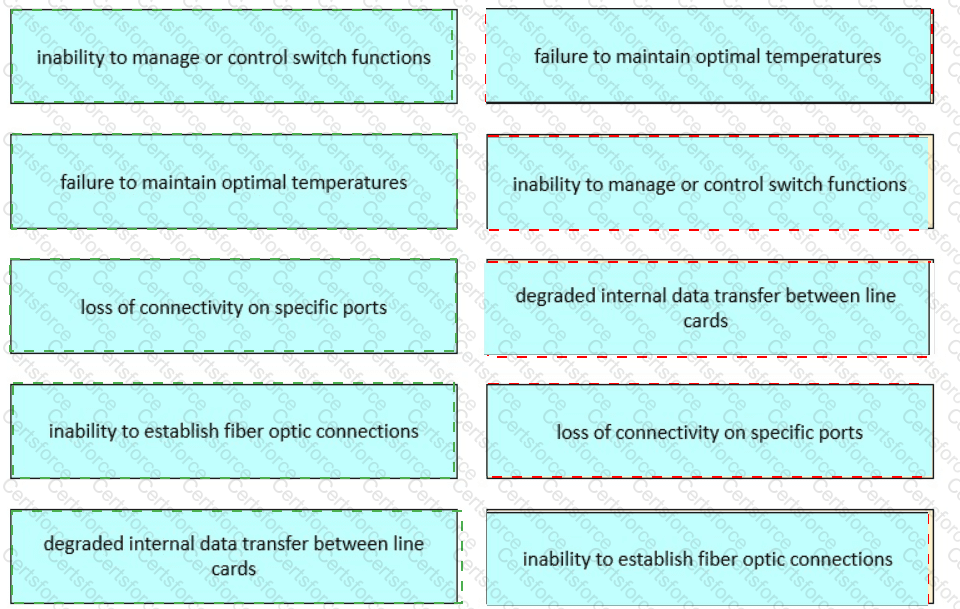

Inability to manage or control switch functions → Supervisor module

Failure to maintain optimal temperatures → Fan module

Loss of connectivity on specific ports → Line card

Inability to establish fiber optic connections → Transceivers

Degraded internal data transfer between line cards → Fabric module

From theFLDTEC training materials, Cisco MDS switches are built for high availability and redundancy, but field technicians must know which component impacts whatfunction:

Supervisor Module: Manages control plane functions — a failure results in loss of system-level management or redundancy.

Fan Module: Essential for cooling — failure here leads to overheating and thermal alarms.

Line Card: Provides connectivity — port failures or loss of interface status originate from faulty line cards.

Transceivers (SFP/QSFP modules): Responsible for optical transmission — failure leads to fiber optic link issues.

Fabric Module: Critical for switching between line cards — its failure leads to degraded or disrupted internal traffic paths.

These mappings help techniciansisolate the source of faultsand proceed with the correctRMA or replacementprocedure.

On aCisco Meraki switch, briefly pressing therestore/reset button(typically less than 5 seconds) triggers:

A reboot of the device(Option A)

Clearing of the local management interface settings(Option D), which may include temporary network information such as DHCP leases or local overrides.

To perform a full factory reset (Option B), the button must be held down for a longer duration, usuallymore than 10seconds. Options C and E do not reflect standard reset behavior.

Theshow flash:command is used todisplay the contents of the device's flash memory, which is where the Cisco IOS image is typically stored. By issuing this command, a technician can verify available space and determine whether there is enough capacity to accommodate a new IOS image before initiating an upgrade or image replacement process.

This command provides a detailed listing of files, their sizes, and the total and available memory space within the flash file system.

show file-systemlists all available file systems but doesn’t detail their content.

show memoryshows runtime memory usage (RAM), not flash memory.

show storageis not a standard IOS command.
