Pass the Cisco CCNP Collaboration 300-815 Questions and answers with CertsForce

 Cisco Exams      Go to Exam Detail      Get Premium Access
Viewing page 1 out of 7 pages
Viewing questions 1-10 out of questions
Questions # 1:

An engineer needs to configure a translation pattern in Cisco UCM to match dialed numbers that start with 9011 so that the calls can be routed with a single route pattern of VH If the engineer uses translation pattern 9011.! which two called party transformation settings must be configured in Cisco UCM? (Choose two.)

Options:
A.

set Prefix Digits (Outgoing Calls) to +

B.

set Called Party Transform Mask to +!

C.

set Discard Digits to Predot

D.

set Called Party Numbering Plan to International

E.

set Called Party Number Type to International

Questions # 2:

When the services key is pressed Cisco Extension Mobility does not show up. What is the cause of the issue?

Options:
A.

The URL configured for Cisco Extension Mobility is not correct.

B.

Cisco Extension Mobility Service is not running.

C.

The phone is not subscribed to Cisco Extension Mobility Service.

D.

Cisco Extension Mobility is not enabled in the Phone Configuration Window (Device > Phone)

Questions # 3:

Signal number reach call phone that not answered are leaving voicemails on the cell phone rather the corporate mailbox. Which two options will resolve this issue? (Choose two.)

Options:
A.

Check the Enable Extend and Connect checkbox

B.

Check the Enable Unified Mobility features checkbox

C.

Decrease the T302 timer

D.

Decrease the T301 timer Decrease the Answer Too Late timer

Questions # 4:

Question # 4

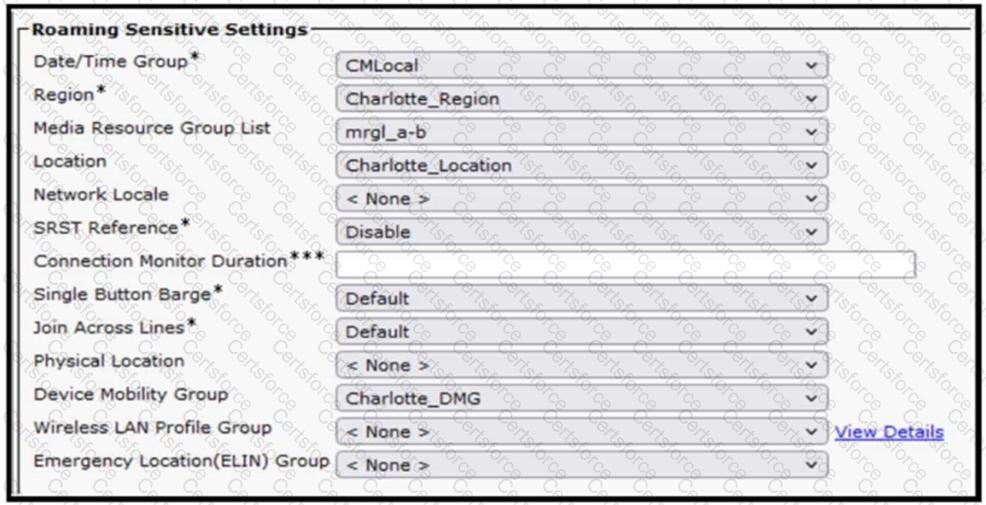

Refer to the exhibit. An administrator configured Device Mobility but is receiving reports that local calls are failing when a user takes their device from the RTP location to the Charlotte location. The administrator confirmed that the correct subnet is configured under the Device Mobility info page. In addition, the roaming device pool has the correct Device Mobility calling search space selected. Which configuration change resolves the issue?

Options:
A.

Join across lines is not supported with Device Mobility and must be disabled.

B.

The network locale must be changed from none to the Charlotte locale.

C.

The physical location must be updated from none to the appropriate location.

D.

The device must be added to the Device Mobility group.

Questions # 5:

A customer reports that outbound calls from Cisco UCM to Cisco Unified Border Element are not getting early media. During troubleshooting, the customer finds that Cisco UCM is sending a delayed offer SIP INVITE. Cisco Unified Border Element responds with a 183 Session Progress with SDP message. However, the customer finds that Cisco UCM does not respond to the 183 messages. Which action must the customer perform to resolve the problem?

Options:
A.

On Cisco Unified Border Element, configure midcall-signaling passthru.

B.

On Cisco UCM, change the "Early Offer support for voice and video calls" field on the SIP profile that is applied to the SIP trunk to Disabled.

C.

On Cisco Unified Border Element, configure early-offer forced.

D.

On Cisco UCM. change the "SIP ReHXX Options" field on the SIP profile that is applied to the SIP trunk to Send PRACK if 1xx Contains SDP.

Questions # 6:

What is a function of the metadata carried in SIP sessions between the recording client and the recording server?

Options:
A.

It forks RTP media to the recorder.

B.

It provides advanced capabilities, such as speech analytics.

C.

It sets up a new SIP session

D.

It identifies the participant change due to transfers during the call.

Questions # 7:

Question # 7

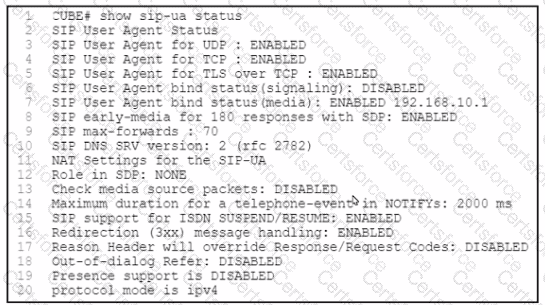

Refer to the exhibit An engineer deploys a Cisco Unified Border Element for SIP trunk interconnection to an ITSP The engineer performs test calls but there is no audio when the called party picks up the phone. What must the engineer do to resolve the issue?

Options:
A.

Disable SIP User Agent bind status (media).

B.

Decrease the SIP max-forwards value to 16.

C.

Disable SIP early-media for 180 responses with SDP

D.

Enable Check media source packets.

Questions # 8:

Which services are needed to successfully implement Cisco Extension Mobility in a standalone Cisco Unified Communications Manager server?

Options:
A.

Cisco Extended Functions, Cisco Extension Mobility, and Cisco AXL Web Service

B.

Cisco CallManager, Cisco TFTP, and Cisco CallManager SNMP Service

C.

Cisco CallManager, Cisco TFTP, and Cisco Extension Mobility

D.

Cisco TAPS Service, Cisco TFTP, and Cisco Extension Mobility

Questions # 9:

Question # 9

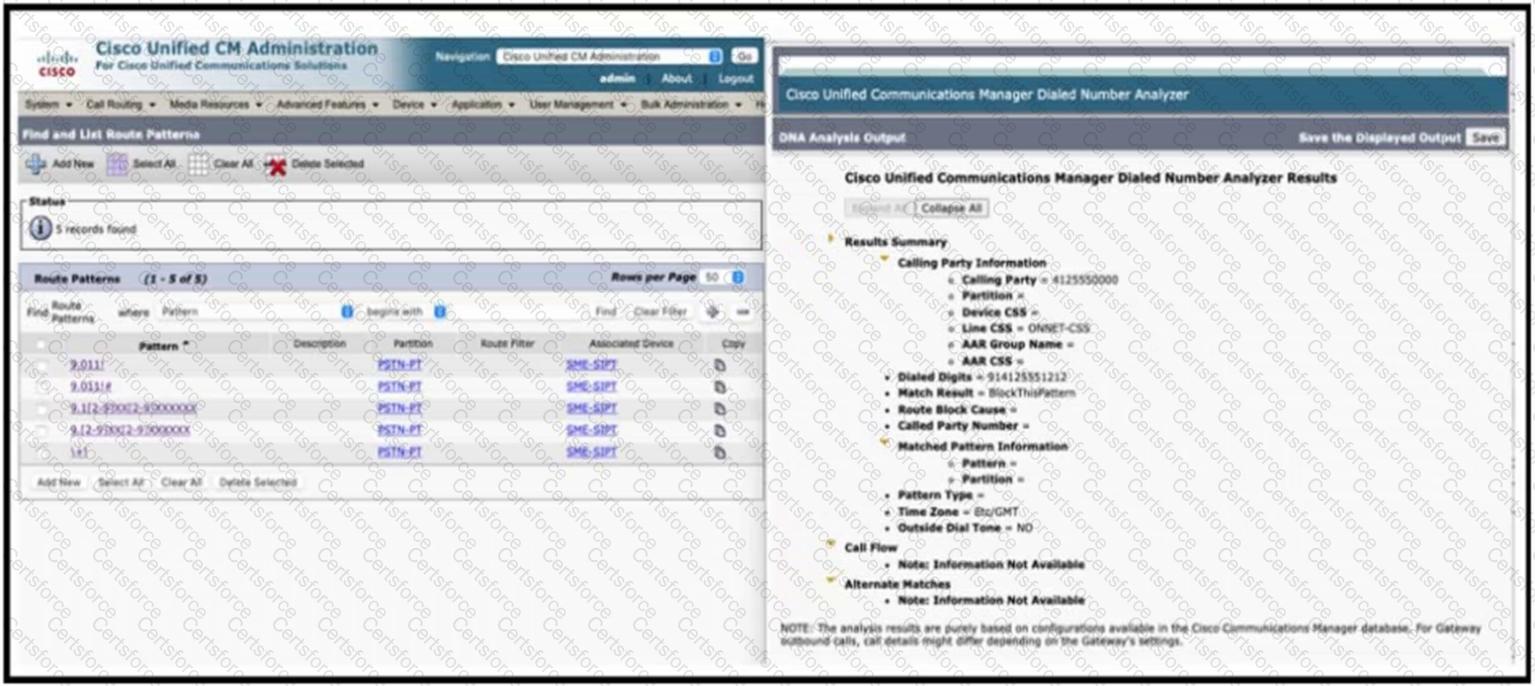

Refer to the exhibit. A collaboration engineer is troubleshooting an issue where a user of a Cisco UCM IP phone reports failed calls when trying to dial out to the PSTN. Which action resolves the issue?

Options:
A.

Assign a calling search space to the line or the device that has access to the route pattern.

B.

Deselect “Block this pattern” on the “Route Option” setting of the route pattern.

C.

Select the “Urgent Priority” setting on the route pattern.

D.

Instruct the user to not dial a “1” before their local area code.

Questions # 10:

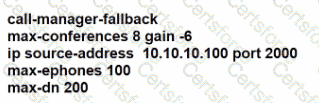

An engineer is configuring a Cisco Collaboration system for SIP endpoints and must enable Survivable Remote Site Telephony for these endpoints. Which code completes this configuration on the SRST gateway?

A)

Question # 10

B)

Question # 10

C)

Question # 10

D)

Question # 10

Options:
A.

Option A

B.

Option B

C.

Option C

D.

Option D

Viewing page 1 out of 7 pages
Viewing questions 1-10 out of questions
