Comprehensive and Detailed Explanation From Exact Extract from my knowledge of Designing and Implementing Cisco Service Provider Cloud Network Infrastructure Outlines without Any External URL or Links:

Cisco+ Hybrid Cloud is Cisco’s as-a-service consumption model that offers pay-as-you-go infrastructure. For ahybrid workplace, the focus is on giving users secure desktop environments from anywhere, with the ability torapidly deployandscale up or downbased on the number of users or partners.

Cisco+Hybrid Cloud for Virtual Desktop Infrastructure (VDI)specifically delivers desktop and app workspaces as an on-demand service. It allows partners to consume desktops elastically, paying for capacity as needed and scaling the underlying compute, storage, and networking without rebuilding the environment.

Bare Metal Compute and Virtualization offers flexible infrastructure but are aimed at app/workload hosting rather than user desktop workspaces.

Service Provider Networking addresses network services, not end-user hybrid workplace desktops.Therefore, for a pay-as-you-go, rapidly deployable, elastic solution in a hybrid workplace,Cisco+ Hybrid Cloud for Virtual Desktop Infrastructureis the correct choice.

In a BGP EVPN VXLAN multi-homing design, Ethernet Segment Identifiers (ESIs) are used to represent a set of links from one or more leaf switches to the same downstream device (such as a CE, firewall, or aggregation switch). By default, when multiple leafs share the same ESI, the EVPN design supportsall-activeredundancy, where all participating leafs can forward traffic for that Ethernet segment simultaneously.

However, some use cases—like connecting to devices that do not support multipath forwarding or for strict active/standby redundancy—requiresingle-activemulti-homing. In single-active mode, only one leaf in the Ethernet segment forwards traffic at any time; the other leaf(s) act as standby and only take over if the active node fails. This behavior is explicitly controlled in the EVPN Ethernet-segment configuration.

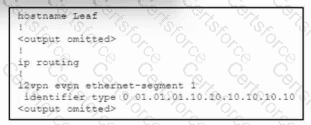

On Cisco platforms for EVPN VXLAN fabrics, this is configured under thel2vpn evpn ethernet-segmentstanza using the command:

l2vpn evpn ethernet-segment 1

identifier type 0 01.01.01.10.10.10.10.10.10.10

redundancy single-active

identifier type 0 ... defines the ESI for the multi-homed connection.

redundancy single-active specifies that only one leaf in that ESI is allowed to be active at a time, thus enablingdual-homing with single-active redundancy.

The other options do not relate to Ethernet-segment redundancy mode:

B. default-gateway advertiseis used in EVPN anycast gateway configurations to advertise the default gateway MAC/IP, not for ESI redundancy.

C. replication-type staticis associated with multicast or ingress replication behavior for VXLAN VTEPs, not Ethernet-segment redundancy.

D. vlan configuration 101is a VLAN configuration context command and has no effect on EVPN ESI redundancy.

In a cloud-scale or data center–scale environment,Virtual Extensible LAN (VXLAN)is used as anoverlay technologyto transportLayer 2 segments over a Layer 3 underlay network. VXLAN encapsulates Layer 2 Ethernet frames inside UDP/IP packets, allowing broadcast, unknown unicast, and multicast (BUM) traffic and tenant Layer 2 domains to be extended across a routed IP fabric.

Key points aligned with Cisco Service Provider Cloud Infrastructure design principles:

VXLAN creates aLayer 2 overlay on top of a Layer 3 underlay.

TheVXLAN Network Identifier (VNI)provides a much larger segmentation space than traditional VLANs, enabling multi-tenancy at cloud scale.

Because the underlay is pure Layer 3 (IP routed fabric), VXLAN allows you tointerconnect Layer 2 segments between leaf switches or data centers over an IP/MPLS backbonewithout relying on large Layer 2 domains in the physical network.

Why the options evaluate as follows:

Option A: extends Layer 2 segments across the underlying Layer 3 infrastructure✅This is the core benefit of VXLAN in cloud-scale designs. VXLAN encapsulates Layer 2 frames intoIP/UDP headers, allowing isolated Layer 2 segments (per VNI) to be stretched across a routed IP network. This enables:

Multi-tenant Layer 2 connectivity across a distributed cloud fabric

Mobility of virtual machines or containers while keeping same IP/MAC addressing

Use of an IP-based leaf–spine or service provider underlay for scalability and resiliency

Option B: extends Layer 3 segments across the underlying Layer 2 infrastructure❌This is the opposite of what VXLAN does. VXLAN is explicitlyL2-over-L3, not L3-over-L2. Extending pure Layer 3 segments over Layer 2 is not the VXLAN use case.

Option C: reduces spanning-tree complexity across the Layer 2 infrastructure⚠️(Partially related but not the primary or direct benefit)In modern designs, the underlay isLayer 3 routed, and VXLAN overlays provide logical Layer 2 segments. This designavoids dependence on spanning tree in the fabric, whichindirectlyreduces STP complexity. However, the fundamental, exam-relevant benefit isL2 extension over L3, so C is not the best or most accurate answer compared to A.

Option D: eliminates the need for a Layer 3 underlay in the service provider infrastructure❌VXLAN absolutelyrequiresan IP (Layer 3) underlay for transport. VXLAN tunnels are built over a routed infrastructure (leaf–spine, MPLS/IP core, etc.). It does not remove the need for Layer 3; it depends on it.

Comprehensive and Detailed Explanation

In Cisco NFVI security architecture, the primary defense againstlateral movement(an attacker moving from one compromised node to another) isnetwork segmentation.

Segmentation:

Separates workloads (compute, storage, management, tenant networks)

Prevents attackers from pivoting inside the NFVI

Reduces blast radius during breaches

Enforces micro-segmented virtual network boundaries

WPA protects Wi-Fi, not NFVI.

WAF protects web apps, not internal movement.

Data encryption protects confidentiality, not lateral movement control.

Thus,network segmentationis the correct solution.

Comprehensive and Detailed Explanation

SNMP traps in Cisco NFVIS (and in SNMP generally):

Areunsolicited notifications

Sent from the NFVIS deviceto the SNMP manager

Indicate alarms, changes, or significant operational events

Donotrequire polling

Examples:

Disk failures

VM crashes

Host status changes

Resource alarms

Why the others are wrong:

Adescribes SNMP monitoring (done by the manager with GET requests)

BSNMP cannotcontrolhost activities

DSNMP GET retrieves a variable, but traps sendunsolicitednotifications

Thus, the correct answer isC.

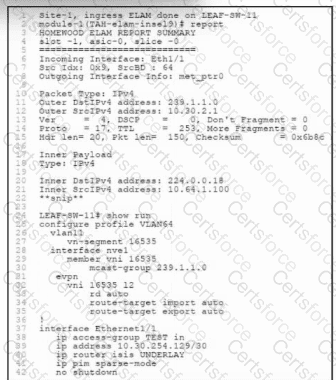

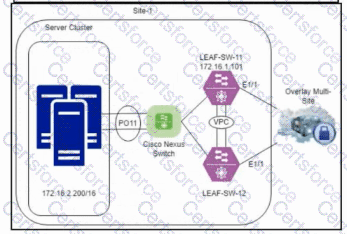

In a VXLAN BGP EVPNMulti-Siteenvironment:

DCI trackingmonitors the health of the DCI links. If all DCI-tracking interfaces go down, the leaf can incorrectly keep advertising or learning remote MAC/IP reachability, leading to packet loss and sub-optimal forwarding for servers in that VLAN/L2VNI.

For proper operation, eachDCI-facing interfacemust be enabled with evpn multisite dci-tracking so that the Multi-Site border leaf tracks reachability over that link.

When using EVPN Multi-Site, BUM (broadcast, unknown unicast, multicast) traffic toward remote sites is typically handled viaingress replication, not multicast groups, for each L2VNI participating in Multi-Site. The configuration snippet shows an L2VNI (vn-segment 16535) still mapped to mcast-group 239.1.1.0, which is inconsistent with Multi-Site recommendations and contributes to packet loss.

Therefore, to fix the problem:

Enable DCI tracking on the uplink:

interface Ethernet1/1

evpn multisite dci-tracking

This restores proper DCI-link state monitoring for Multi-Site. →Option C

Change the L2VNI behavior from multicast to Multi-Site ingress replication:

Under the VNI for VLAN 11, configure:

evpn

vni 16535 l2

multisite ingress-replication

or the equivalent command for the specific NX-OS release, thereby aligning the L2VNI with EVPN Multi-Site design and eliminating packet loss. →Option D

Options A and B are ELAM (embedded logic analyzer) filters used only for packet capture and do not resolve the forwarding issue.

Option E is an ACL line unrelated to EVPN VXLAN or DCI tracking and does not address the underlying problem.

InCisco Enterprise NFVIS, time synchronization is configured using thesystem time ntpcommand structure. NFVIS requires a primary and optionally a backup NTP server to maintain accurate system time for the hypervisor and guest VMs.

Correct NFVIS command syntax for NTP configuration:

system time ntp preferred_server This command configures thepreferred (primary)NTP server used for system clock synchronization.

system time ntp backup_server This command configures thebackupNTP server, which the system uses if the primary becomes unreachable.

These two commands match Cisco NFVIS time-configuration behavior described in NFV infrastructure design and implementation guidelines.

Why the Correct Answers Are A and E

Option A: system time ntp preferred_server 192.168.1.1

This properly configures the primary NTP server in NFVIS. The preferred server is always the first choice for time synchronization.

Option E: system time ntp backup_server 192.168.2.1

This correctly configures the backup NTP server. If the preferred server fails, NFVIS automatically falls back to the backup server.

Both commands directly match NFVIS’s NTP command hierarchy and are the only ones that correctly apply to NFVIS.

Why the Other Options Are Not Correct

Option Buses utils ntp, which is not an NFVIS command.

Option Csets manual time and does not configure NTP servers.

Option Dalso uses the utils ntp syntax, which applies to other Cisco platforms but not NFVIS.

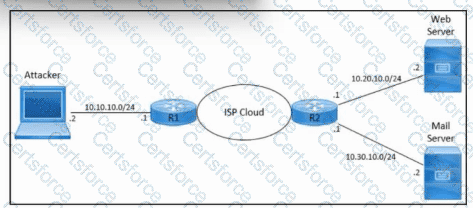

The attacker’s IP is:

10.10.10.2

The servers under attack are:

Web Server:10.20.10.2

Mail Server:10.30.10.2

We must denytraffic from attacker → servers.

Correct ACL format useshost wildcards (0.0.0.0):

deny ip 10.10.10.2 0.0.0.0 10.20.10.2 0.0.0.0

deny ip 10.10.10.2 0.0.0.0 10.30.10.2 0.0.0.0

These matchD and E.
