Questions # 51:

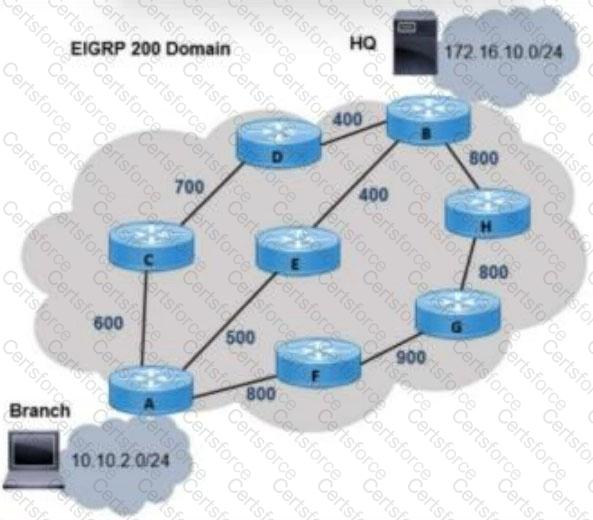

Refer to the exhibit.

Question # 51

An architect is designing an EIGRP solution based on these requirements:

* Traffic forwarding should use the best two paths while all links are available

* Single path failure must not impact traffic between branch and HQ

Which solution must the architect select?

Options:
A.

Maximum-paths 2

B.

Add-paths 2

C.

Metric weights 010100

D.

Variance 2

Expert Solution
Questions # 52:

What is the purpose of a TLOC extension in a Cisco SD-WAN network fabric?

Options:
A.

to facilitate WAN Edge router redundancy within a site

B.

to identify the physical interface where a WAN Edge router connects to the WAN transport network

C.

to expand the number of colors that are potentially applied to a network transport interface

D.

to aggregate multiple physical interfaces into a single logical Interface

Expert Solution
Questions # 53:

Which consideration must be made when designing a Cisco SD-Access fabric underlay?

Options:
A.

Subnets must be reduced to decrease latency.

B.

Up to six control planes are supported.

C.

The default MTU should be increased.

D.

A unified policy must be used.

Expert Solution
Questions # 54:

Which two statements about VRRP advertisements are true? (Choose two.)

Options:
A.

    They are sent from the master router and standby routers.

B.

    They include VRRP timer information.

C.

    They are sent only from the master router.

D.

    They include priority information.

E.

    They are sent every three seconds by default.

Expert Solution
Questions # 55:

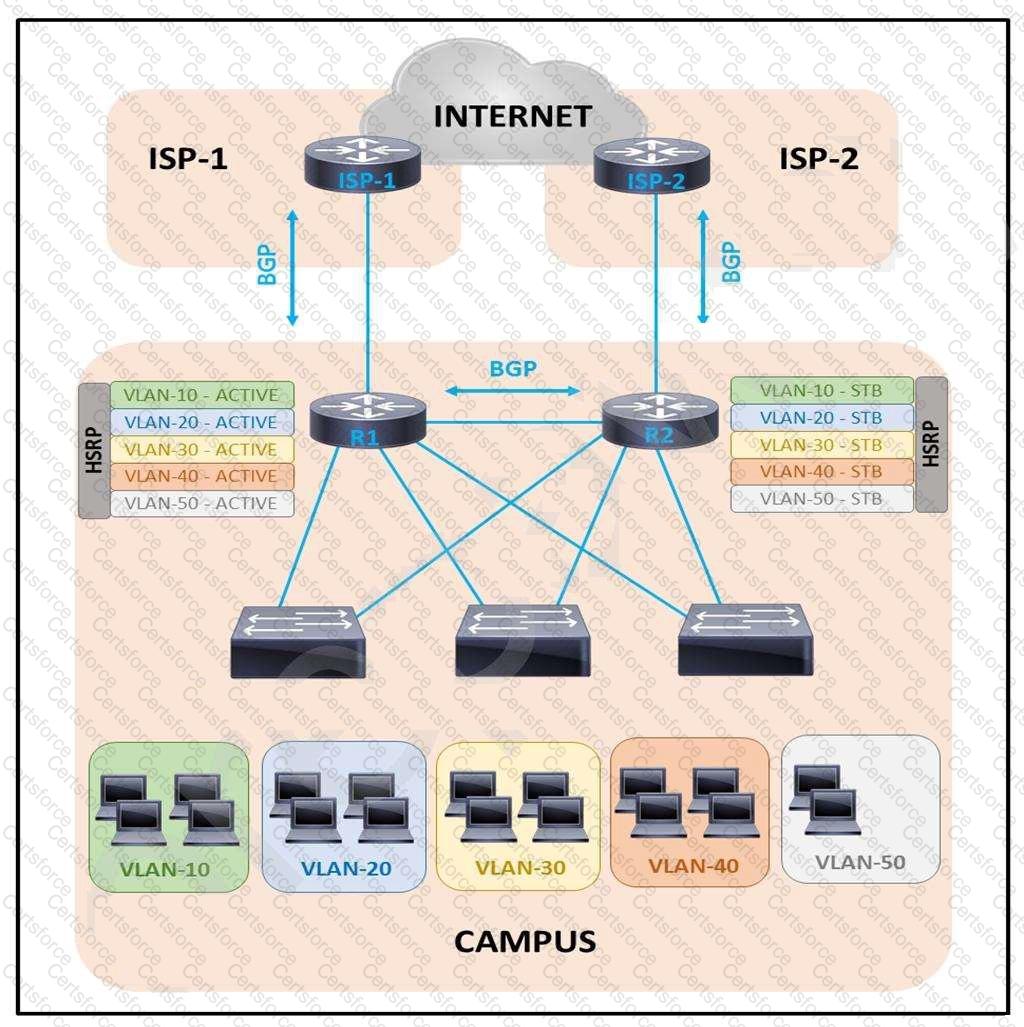

Refer to the exhibit.

Question # 55

A customer is running HSRP on the core routers. Over time the company has grown and requires more

network capacity. In the current environment, some of the downstream interfaces are almost fully utilized, but

others are not. Which solution improves the situation?

Options:
A.

Make router R2 active for half of the VLANs.

B.

Add more interfaces to R1 and R2.

C.

Configure port channel toward downstream switches.

D.

Enable RSTP on the downstream switches.

Expert Solution
Questions # 56:

An engineer must design a routing solution for a company that is single-homed to an ISP. The company's goal is to run BGP between the CE and the PE devices. To support running BGP, the company obtained a public AS number and IP subnet from ARIN. Which solution must the engineer select?

Options:
A.

• The customer announces the public IP subnet to the ISP

• The ISP announces the default route to the customer.

B.

• The customer announces the public IP subnet to the ISP

• The ISP announces the BGP table to the customer

C.

• The ISP announces the customer public IP subnet.

• The ISP announces the partial BGP table to the customer.

D.

• The customer announces the default route to the ISP

• The ISP announces the default route to the customer

Expert Solution
Questions # 57:

Question # 57

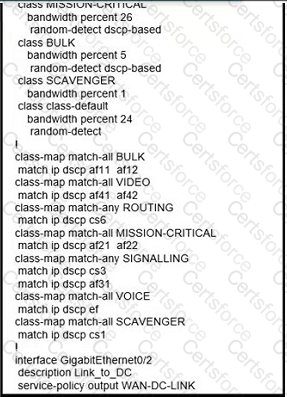

Refer to the exhibit. A customer needs to apply QoS to the network management traffic passing through the GigabitEthernet0/2 interface. All eight queuing classes are in use, so the new requirement must be integrated into the existing policy. Which solution must the customer choose?

Options:
A.

Mark traffic to DSCP CS5 and assign it to the SIGNALLING class. Then, baseline existing queue sizes to determine if additional bandwidth can be provisioned to the SIGNALLING class.

B.

Mark the traffic to DSCP CS4 and assign it to the SIGNALLING class. Then, prioritize traffic within the class.

C.

Mark the traffic to DSCP CS6 and assign it to the ROUTING class Then, prioritize traffic within the class.

D.

Mark the traffic to DSCP CS2 and assign it to the ROUTING class Then, baseline existing queue sizes to determine if additional bandwidth can be provisioned to the ROUTING class

Expert Solution
Questions # 58:

In a cisco SD-Access brownfield deployment scenario, which configuration deployment must be taken with Cisco DNA center?

Options:
A.

Subnet stretching

B.

LAN automation

C.

Automated UNDERLAY

D.

Manual underlay

Expert Solution
Questions # 59:

Question # 59

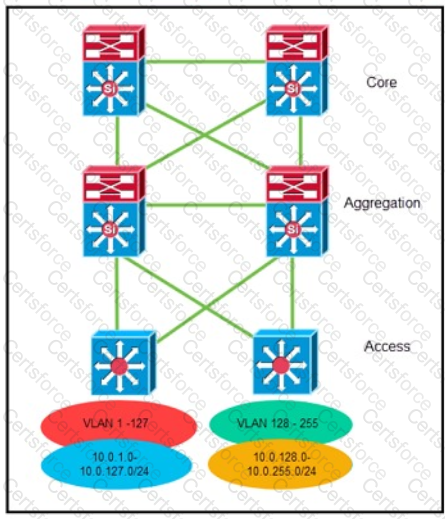

Refer to the exhibit. An architect is designing a Layer 3 campus network The design must hide network instability, reduce network overhead, and conserve critical device memory Which route summarization solution must the architect select?

Options:
A.

• The core layer must advertise a default route toward the aggregation layer

• The VLAN subnets must be summarized into 10 0 0 0.'16 at the aggregation layer and advertised to the core layer

B.

• The core layer must advertise a default route toward the aggregation layer

• The VLAN subnets must be summarized into 10 0 0 0/16 at the access layer and advertised to the aggregation layer

C.

• The aggregation layer must advertise a default route toward the access layer.

• The VLAN subnets must be summarized into 10 0.0 0/16 at the aggregation layer and advertised to the core layer

D.

• The aggregation layer must advertise a default route toward the core layer

• The VLAN subnets must be summarized into 10 0 0 0.116 at the aggregation layer and advertised to the access layer

Expert Solution
Questions # 60:

Which two options can you use to configure an EIGRP stub router? (Choose two)

Options:
A.

    summary-only

B.

    receive-only

C.

    external

D.

    summary

E.

    totally-stubby

F.

    not-so-stubby

Expert Solution
