Refer to the exhibit. A company has some offices that are connected via dark fiber in New York. A network architect must optimize the network design based on the EIGRP routing protocol. The network has hierarchical addressing between 10 and 12 routers in each office. Routing convergence time must be at the minimum. What must the network architect do to reduce the query range?

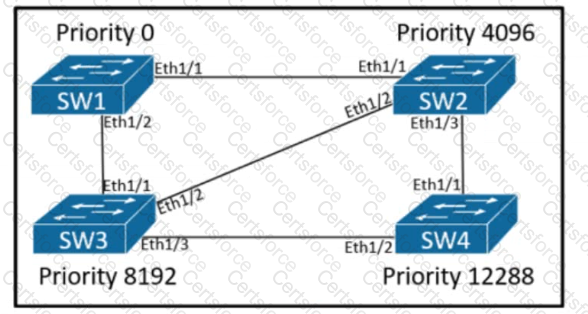

Refer to the exhibit. An engineer proposed this solution for a company that requires a loop-free. Layer 2 network design. The network will run 802.1W, and all links will be 1 Gbps. If all interfaces are up as point- to-point adjacencies, what are the expected port end states based on the design?
Which method will filter routes between EIGRP neighbors within the same autonomous system?

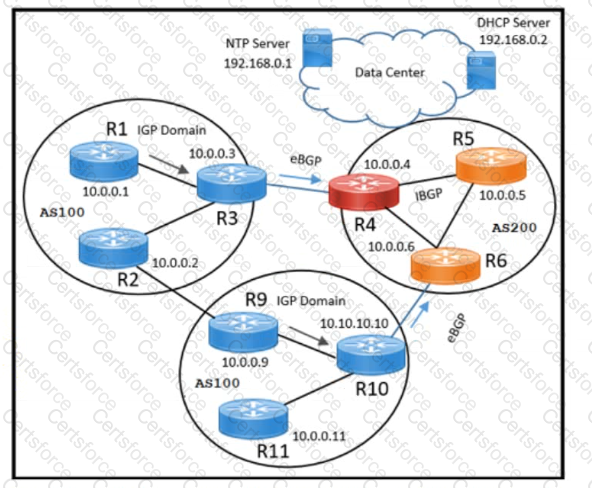

Refer to the exhibit. A network engineer working for a private service provider with an employee ID: 4670:71:451 must design a BGP solution based on:
All traffic originating from AS100 must pass through AS200 to reach the NTP and DHCP server
When a link failure occurs between R3 and R4, traffic must follow the R2-R9 link to reach the NTP and DHCP server.
Which solution must the design include?
An architect is creating a migration strategy for a large organization in which the choice made by the application between IPv6 and IPv4 is based on the DNS request. Which migration strategy does the architect choose?

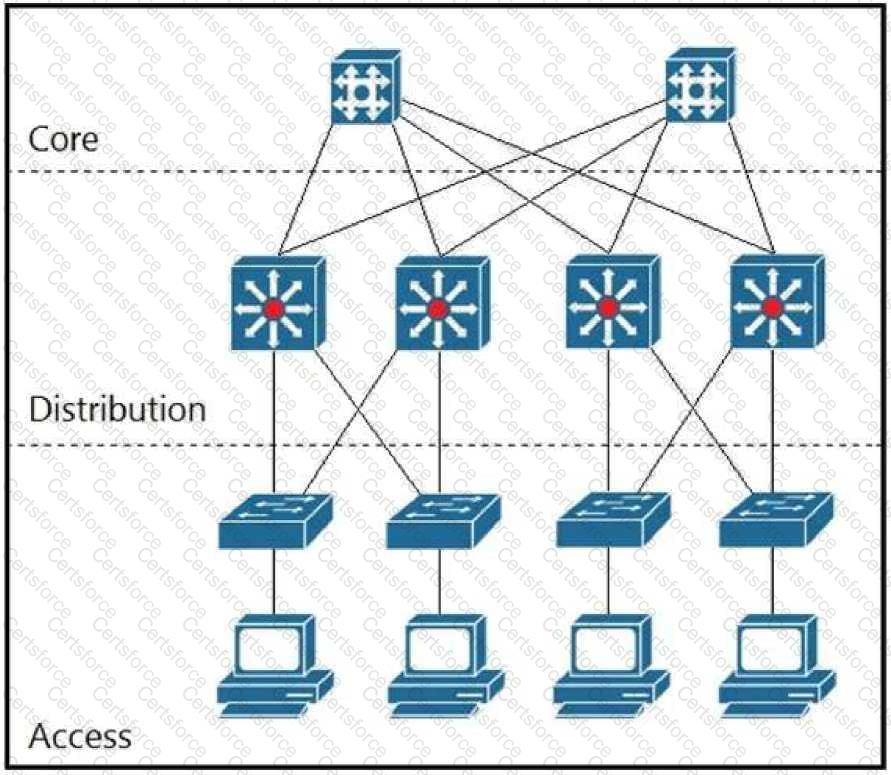

Refer to the exhibit. Which two solutions maximize the use of the links between the core and distribution layers? (Choose two.)
Which routes does the overlay management protocol advertise in an SD-WAN overlay?
What is the purpose of a control plane node in a Cisco SD-Access network fabric?

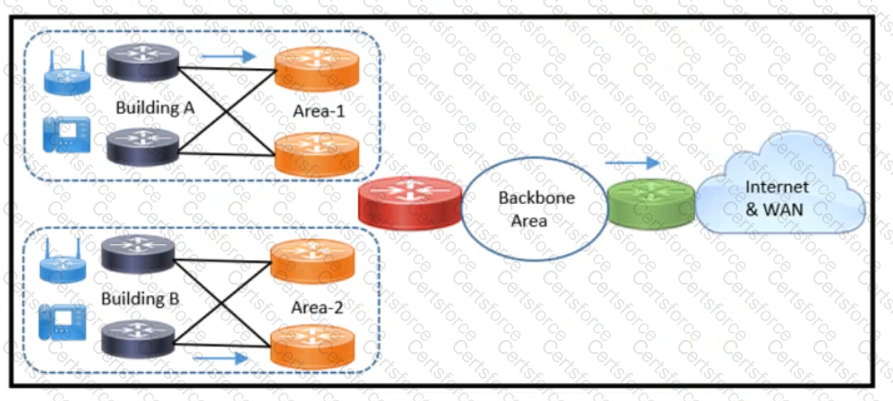

Refer to the exhibit. An architect must design an OSPF solution for an enterprise customer. The design must meet these requirements:
·Limit the link flap impact to Area-1 and Area-2.
·Any link failure must have minimal impact on voice and video traffic.
·Which two OSPF solutions must the architect include in the design? (Choose two.)
What is the purpose of the fabric control plane in a Cisco SD-Access architecture?
