The following are the official definitions from the Tableau documentation for the various file types:

1) .tds (Tableau Data Source) - To not contain the actual data but rather the information necessary to connect to the actual data as well as any modifications you've made on top of the actual data such as changing default properties, creating calculated fields etc. (CORRECT ANSWER)

2) .twbx ( Tableau packaged workbook) - To create a single zip file that contains a workbook along with any supporting local file data and background images. This is great for sharing your work with others who don’t have access to the original data.

3) Extract (.hyper or .tde) – To create a local copy of a subset or entire data set that you can use to share data with others, when you need to work offline, and improve performance.

3) (.twb) Workbooks – To hold one or more worksheets, plus zero or more dashboards and stories.

Layout containers let you group related dashboard items together so you can quickly position them. As you change the size and placement of items inside a container, other container items automatically adjust

By default, all filters that you set in Tableau are computed independently. That is, each filter accesses all rows in your data source without regard to other filters. However, you can set one or more categorical filters as context filters for the view. You can think of a context filter as being an independent filter (Option stating - To create a dependent filter eliminated here). Any other filters that you set are defined as dependent filters because they process only the data that passes through the context filter.

You may create a context filter to:

1) Improve performance – If you set a lot of filters or have a large data source, the queries can be slow. You can set one or more context filters to improve performance.

2) Create a dependent numerical or top N filter – You can set a context filter to include only the data of interest, and then set a numerical or a top N filter.

For example, suppose you’re in charge of breakfast products for a large grocery chain. Your task is to find the top 10 breakfast products by profitability for all stores. If the data source is very large, you can set a context filter to include only breakfast products. Then you can create a top 10 filter by profit as a dependent filter, which would process only the data that passes through the context filter.

Explanation

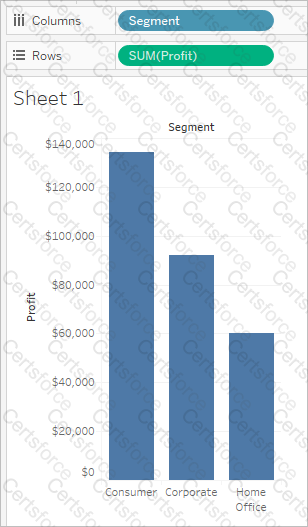

We can drag fields from the Data pane to create the structure for your visualizations.

The Columns shelf creates the columns of a table, while the Rows shelf creates the rows of a table. You can place any number of fields on these shelves.

These FIELDS are also referred to as PILLS. See below:

THIS IS A VERY IMPORTANT QUESTION

Aggregation is an important concept to consider when creating calculated fields. A calculated field for SUM([Profit]) / SUM([Sales]) will give you a very different answer than [Profit] / [Sales], even though both formulas are valid.

If you do not provide the aggregation within the calculated field, Tableau will calculate the equation for every record ( row ) in your analysis, then aggregate the answers for all of the rows together when the calculated field is added to the view.

In simple terms, if specify the aggregation such as SUM, what Tableau will do is that it will first calculate the sum of the Profit column ( say x ), then calculate the sum of the Sales column ( say y ), and then simply apply x/y ---> This is what we expect! Perfect!

BUT, if you don't specify the aggregation, it will go to every single ROW, perform Profit / Sales, and then aggregate the answers calculated for each row. This is simply NOT what we wan't!

An example:

The following options are available when an image is Exported:

NOTE: When we Copy an image rather than exporting it, then the image is copied to the clipboard in the TIFF file format! However, it is not available when EXPORTING an image.

To create a trend line, we need:

According to the Tableau Desktop Specialist Exam Guide, one of the exam objectives is to “Sort data in a visualization”. The guide also states that “You can sort data in a visualization from three locations: the Worksheet menu, an axis, or a field label” (page 15).

The following showcase how you can show mark labels. Using the Sample Superstore dataset:

1) Let's create a Bar chart showing the sales for each sub-category:

2) Now you can show labels by:

2.1) Click on Show Mark Labels Icon in the Toolbar ( easiest )

2.2) Drag Sales to the Text icon in the Marks Card:

2.3) Click on Analysis -> Show mark labels from the Tableau menu bar:

Explanation

According to the official Tableau documentation, there are 5 types of trend lines which we can work with in Tableau :

1) Linear Trend Line

2) Logarithmic Trend Line

3) Exponential Trend Line

4) Polynomial Trend Line

5) Power Model

Hence, the correct answer is BINOMIAL trend line which is not present in Tableau.

See the following image:

For more information, refer to: https://help.tableau.com/current/pro/desktop/en-us/trendlines_add.htm
