In ServiceNow Discovery, the reconciliation process is governed by precedence rules. These rules determine which data source’s information will be retained if there are conflicts when multiple sources discover the same CI. In this case, Altiris has a higher order of precedence (300) compared to ServiceNow (100), as seen in the “Data Source Precedents” section of the image. Therefore, if Altiris discovers ‘Windows2’ for the name attribute on the same CI after ServiceNow sets it to ‘Windows1’, the name will change to ‘Windows2’ due to Altiris’s higher precedence.

A horizontal pattern must have a TCP entry point type or an ALL entry point type to execute from a process classifier. A process classifier is a rule that matches a process running on a host and triggers a horizontal pattern to discover the application associated with that process1. The entry point type determines the type of connection that the pattern uses to access the target host. A TCP entry point type means that the pattern uses a TCP port to connect to the host, while an ALL entry point type means that the pattern can use any available connection method2.

Discovery uses the ping method to determine if a host IP is active or alive. Ping is a network utility that sends an ICMP echo request packet to a target IP address and waits for an ICMP echo reply packet. If the target IP address responds, it means that the host is active or alive12.

The ECC Queue tab displays the input and output messages from and to MID Servers. The default fields that are displayed on this tab are:

Topic: The topic of the message, such as Discovery, Orchestration, or MID Server.

Queue: The queue name of the message, such as input, output, or error.

Source: The source of the message, such as the MID Server name, the instance name, or the probe name.

State: The state of the message, such as ready, processed, or ignored.

Created: The date and time when the message was created.

Updated: The date and time when the message was last updated.

Some other fields that can be added to the ECC Queue tab are:

Details: The details of the message, such as the payload, the response, or the error message.

Pattern log link: The link to the pattern log file, if the message is related to a pattern execution.

CMDB CI: The configuration item that is associated with the message, if any.

Discovery schedule name: The name of the discovery schedule that triggered the message, if any.

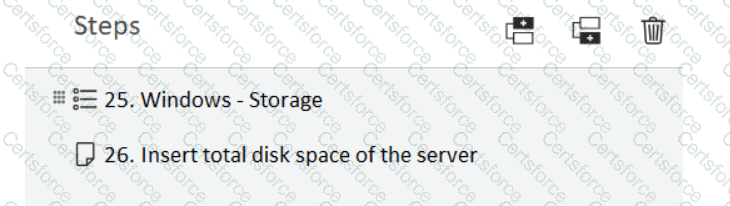

Step 25 uses a shared library called Windows - Storage, which is a reusable component that can be invoked by multiple patterns to discover the storage information of Windows servers. A shared library is a collection of steps that can be referenced by a pattern name and can accept input parameters and return output values. Shared libraries help to avoid duplication of code and simplify the maintenance of patterns.

ServiceNow Discovery can be extended in three main ways: Classifiers, Probes & Sensors, and Discovery Patterns. Classifiers are used to identify the type of device or application that is being discovered, based on the information returned by a probe. Probes are commands or scripts that are executed on the target device or application to collect data. Sensors are scripts that process the data collected by probes and create or update configuration items (CIs) in the CMDB. Discovery Patterns are graphical representations of the discovery process that can be customized or created to discover specific types of devices or applications, using classifiers, probes, and sensors as building blocks.

CMDB Health measures the quality of the data in the CMDB by testing it against predefined rules and metrics. One of the categories of these rules is Correctness, which tests the data against data integrity rules such as identification rules, orphan CI rules, and stale CI rules1. These rules help identify and flag the existing CMDB relationships that are not compliant with the suggested relationships2.

Duplicate relationships are those that have more than one relationship of the same type between the same two CIs3. For example, if a server CI has two relationships of type “Depends on” with the same network CI, it is a duplicate relationship.

Stale relationships are those that have not been updated for a specified period of time3. For example, if a server CI has a relationship of type “Runs on” with a virtual machine CI that has not been discovered for more than 60 days, it is a stale relationship.

Orphan relationships are those that are missing a defined relationship within the CMDB3. For example, if a server CI has no relationship of type “Depends on” with any network CI, it is an orphan relationship.
