Pass the Nokia SRC Certification 4A0-C01 Questions and answers with CertsForce

 Nokia Exams      Go to Exam Detail      Get Premium Access
Viewing page 9 out of 13 pages
Viewing questions 161-180 out of questions
Questions # 161:

What are the types of networks supported on an Alcatel-Lucent 7750 SR for OSPF? (Choose 2)

Options:
A.

Broadcast

B.

Non-Broadcast Multi-Access

C.

Point-to-Point

D.

Point-to-Multipoint

Questions # 162:

Which of the following statements regarding the IS-IS CSNP is false?

Options:
A.

CSNPs are used to maintain consistency in the link state database.

B.

CSNPs are advertised before an adjacency is formed with another router.

C.

There are two types of CSNPs: Level 1 and Level 2.

D.

CSNPs are advertised after an adjacency is formed with another router.

Questions # 163:

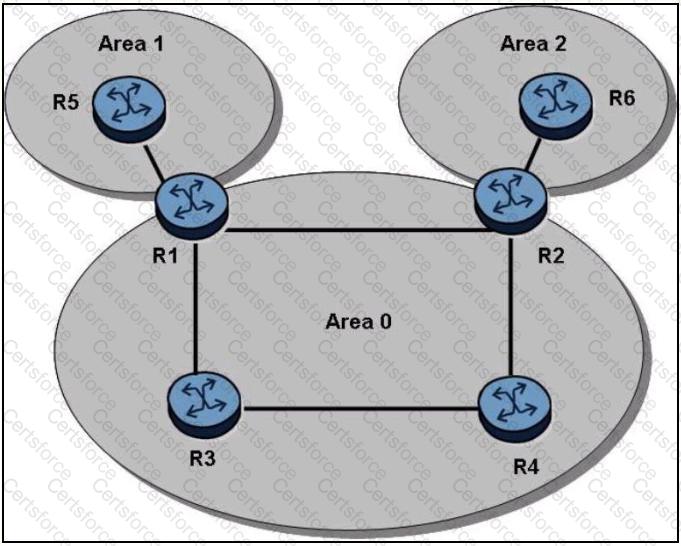

Refer to the exhibit.

Question # 163

Assume that OSPFv3 is properly configured on all routers and that R4 advertises its system prefix into Area 0. Which of the following statements best describes how R5 learns R4's IPv6 system prefix?

Options:
A.

With a Router LSA originated by R1

B.

With a Router LSA originated by R5

C.

With a Router LSA originated by R4

D.

With an Inter-Area Prefix LSA originated by R1

E.

With an Inter-Area Prefix LSA originated by R5

F.

With an Inter-Area Prefix LSA originated by R4

Questions # 164:

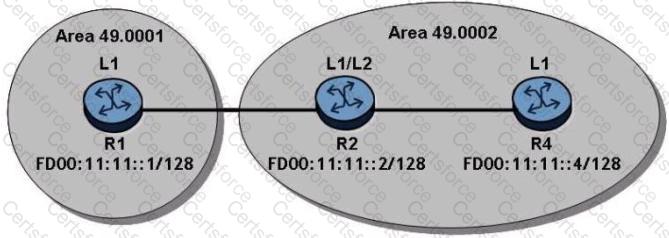

Refer to the exhibit below.

Question # 164

R1 distributes its loopbacks into IS-IS and globally routed addresses are configured as shown. How many routes will R4 have in its IPv6 route table?

Options:
A.

1

B.

2

C.

3

D.

4

E.

6

F.

7

Questions # 165:

What are the default Hello and Dead timer intervals for OSPF on the Alcatel-Lucent 7750 SR?

Options:
A.

5 and 15 seconds

B.

10 and 30 seconds

C.

5 and 20 seconds

D.

10 and 40 seconds

Questions # 166:

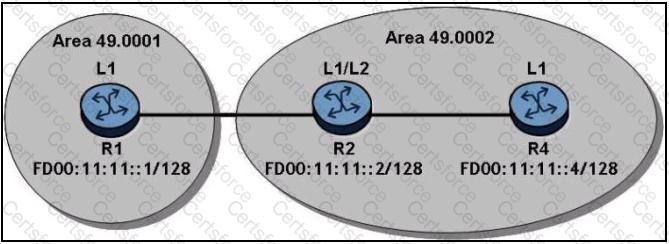

Refer to the exhibit below. IS-IS IPv6 routing is configured in the network with globally routed addresses as shown. How many routes will R4 have in its IPv6 route table?

Question # 166

Options:
A.

1

B.

2

C.

3

D.

4

E.

6

F.

7

Questions # 167:

From the list below identify two matching criteria supported for IP filters on the Alcatel-Lucent 7750 SR: (Choose two)

Options:
A.

DSCP marking

B.

Class of Service Marking

C.

DSAP marking

D.

ICMP type

Questions # 168:

Which of the following statements regarding IS-IS Hello packets are true? Choose two answers.

Options:
A.

Different types of Hello packets are exchanged on point-to-point networks than on broadcast networks.

B.

L1/L2 Hello packets are exchanged on broadcast links.

C.

Different L1 and L2 Hello packets are exchanged on broadcast links.

D.

By default, Hello packets are sent every 5 seconds, and the timeout to declare a neighbor down is 15 seconds.

Questions # 169:

When are virtual links used in OSPF?

Options:
A.

When two areas need to communicate and there is no area 0.

B.

When an area needs to traverse another area to reach area 0.

C.

When two areas are connected to area 0, but there is no direct path between them.

D.

When an area needs to connect directly to another area without using area 0.

Questions # 170:

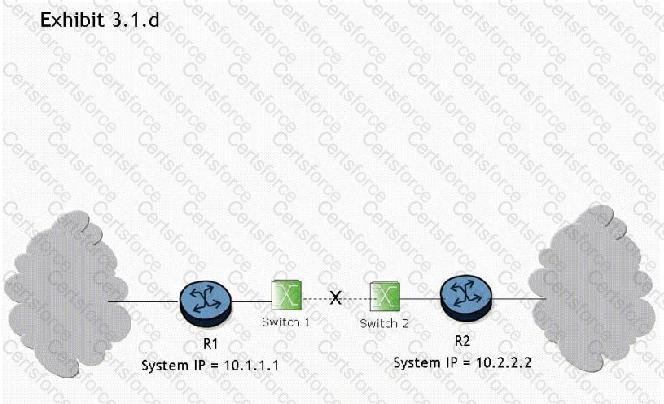

Click the exhibit button.

Question # 170

What triggers convergence of the routing protocol when the link between switch 1 and switch 2 goes down?

Options:
A.

Convergence is triggered when the adjacency between routers R1 and R2 drops as a result of Hello timeouts. At this point, both routers R1 and R2 re-compute their link state database and send updates to their adjacent routers. Once the process is complete for all routers, the networks have converged.

B.

Convergence is triggered when the physical interfaces between routers R1 and R2 go down. At this point, both routers R1 and R2 re-compute their link state database and send updates to their adjacent routers. Once the process is complete for all routers, the networks have converged.

C.

Convergence will not be triggered because switches cannot run routing protocols between them.

D.

Convergence is triggered when the switches notify the routers about the link state information. At this point, both routers R1 and R2 re-compute their link state database and send updates to their adjacent routers. Once the process is complete for all routers, the networks have converged

E.

Convergence is triggered when an LSA is sent from router R1 to router R2 to indicate that the link is down. At this point, both routers R1 and R2 re-compute their link state database and send updates to their adjacent routers. Once the process is complete for all routers, the networks have converged.

Questions # 171:

What is another term to describe the default route for a client?

Options:
A.

Black hole

B.

Default gateway

C.

Gateway path

D.

Proxy ARP

Questions # 172:

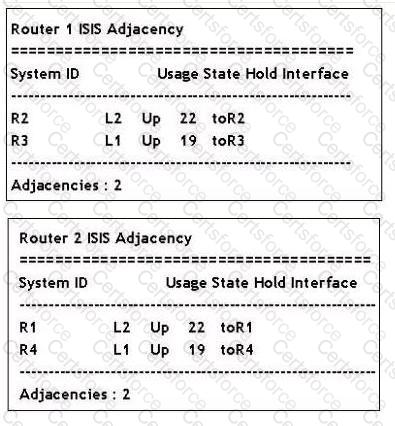

Click the exhibit button. Assuming point-to-point links, which of the following statements is true?

Question # 172

Options:
A.

Routers R1 and R2 are L2 routers. Routers R3 and R4 are L1/L2 routers

B.

Routers R1, R2, and R4 are L1/L2 routers. Router R3 is an L1 router,

C.

Routers R1, R2, and R3 are L2 routers. Router R4 is an L1 router,

D.

Routers R1 and R2 are L1/L2 routers. Routers R3 and R4 are L1 routers

Questions # 173:

What command will show the OSPF neighbors, and their status on the Alcatel-Lucent 7750 SR?

Options:
A.

Show ospf neighbors

B.

Show router ospf neighbors

C.

Show router ospf adjacency

D.

Show ospf adjacency

Questions # 174:

Which of the following LSA types stay within an OSPF area, and are not flooded outside of the area? Choose two answers.

Options:
A.

Router LSA

B.

Network LSA

C Summary network LSA

C.

Summary router LSA

D.

Type 5 (AS external) LSAs

Questions # 175:

Which of the following describes the method used to resolve an IPv6 address to a MAC address?

Options:
A.

IPv6 uses the Address Resolution Protocol to resolve the address to a MAC address.

B.

A Neighbor Discovery message is sent to the broadcast MAC address. The host with the IPv6 address responds with a Neighbor Advertisement message.

C.

A Neighbor Discovery message is sent to the solicited-node multicast address. The host with the IPv6 address responds with a Neighbor Advertisement message.

D.

A Neighbor Discovery message is sent to the anycast address for the LAN. The host with the IPv6 address responds with a Neighbor Advertisement message.

E.

IPv6 addresses do not need to be resolved to a MAC address.

Questions # 176:

What command allows analysis of the Dijkstra calculation on the Alcatel-Lucent 7750 SR?

Options:
A.

There is no such calculation in IS-IS

B.

Show router isis database

C.

Show router isis dijykstra

D.

Show router isis spf

Questions # 177:

Which of the following is an optional parameter when configuring IS-IS protocol on a router?

Options:
A.

Configure IS-IS interfaces

B.

Enable IS-IS

C.

Configure level capabilities

D.

Specify an area address

Questions # 178:

What is the default preference value for a static route in the Alcatel-Lucent 7750 SR?

Options:
A.

0

B.

5

C.

10

D.

15

Questions # 179:

Which of the following statements regarding area border routers in an OSPF network is true?

Options:
A.

The term backbone router has the same definition as the term area border router.

B.

An OSPF network needs at least one area border router to function.

C.

Area border routers connect the backbone area to other areas in an OSPF network.

D.

By definition, an area border router must perform route summarization between areas.

Questions # 180:

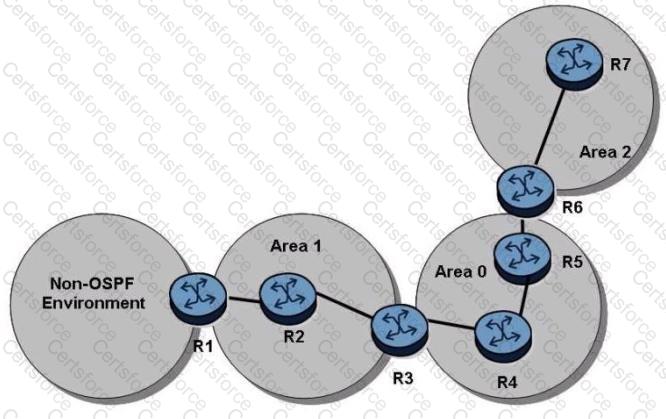

Click the exhibit button.

Question # 180

In the topology shown, router R1 is an ASBR configured to export external routes to OSPF. Assuming that there are no stub networks, which of the following statements regarding Type 4 LSA generation is true?

Options:
A.

Router R1 generates a Type 4 LSA that is flooded to areas 0, 1, and 2.

B.

Router R3 generates a Type 4 LSA that is flooded to areas 0, 1, and 2.

C.

Router R3 generates a Type 4 LSA that is flooded to areas 0 and 2.

D.

Router R3 generates a Type 4 LSA that is flooded to area 0, and router R6 generates a Type 4 LSA that is flooded to area 2.
