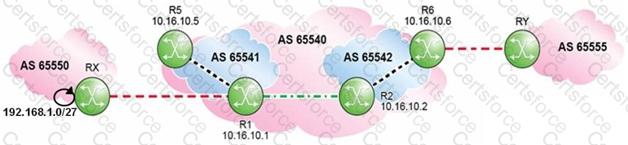

Click the exhibit.

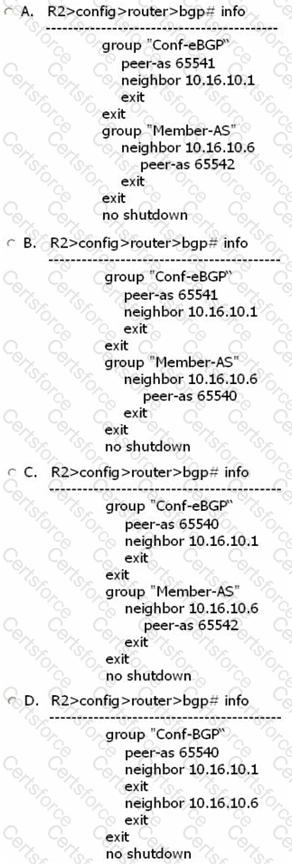

Which of the following is a valid BGP configuration for router R2?

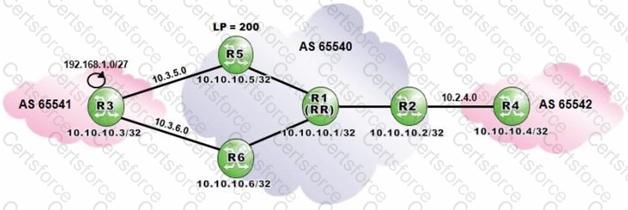

Click the exhibit.
Router R1 is a route reflector with clients R2, R5 and R6. Prefixes advertised by router R5have a local preference of 200. Router R3 advertises the prefix 192.168.1.0/27 to routers R5 and R6.

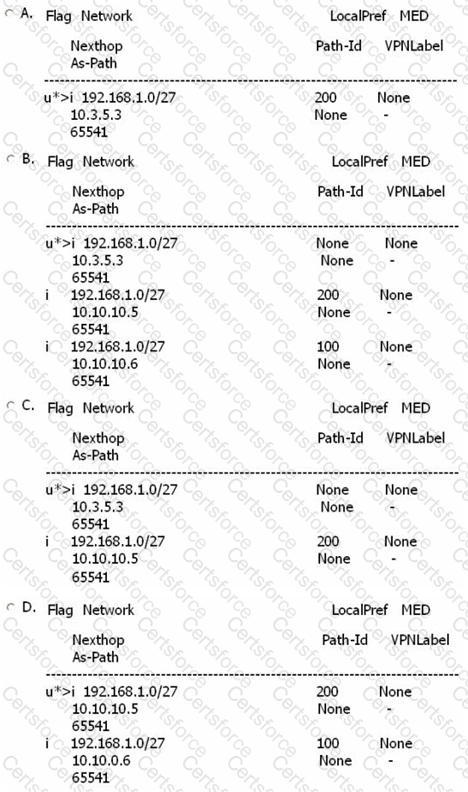

Assuming that none of the routers in AS 65540 is configured with "advertise-external", what is the expected output of "show router bgp routes on router R1?
Which of the followingregarding the atomic aggregate attribute is TRUE?

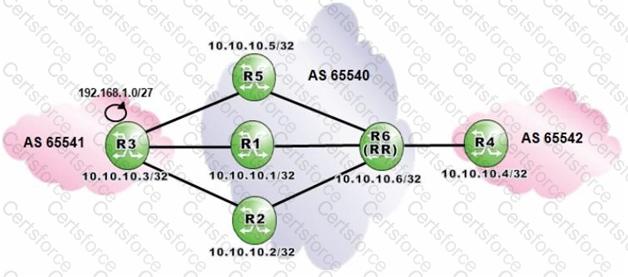

Click the exhibit.
Router R6 is a route reflector with clients R1, R2 and R5. Router R3 advertises the prefix 192.168.1.0/27 to routers R1, R2 and R5. How many routes forprefix 192.168.1.0/27 will router R6 receive?
TwoNokia7750 SRs are established BGP peers with the following add-paths configuration:
R1: configure router bgp add-paths ipv4 send 4 receive
R2:configure router bgp add-paths ipv4 send 2
If router R1 advertises three routes for a given prefix X, how many routes is router R2 expected to have for prefix X?
Click the exhibit.
When router A receives the BGP update for the 192.168.0.1/27 prefix, it propagates it to routers B and C. What action is taken byrouter B when it receives the update?
BGP is configured on two peers, routers A and B. Router A is configured with a Hold Time timer of 60 seconds and a Keepalive timer of 25 seconds. Router B is configured with a Hold Time timer of 90 seconds and a Keepalive timer of 70 seconds. What will the active Keepalive timer be on router B?
Which of thefollowing is NOT a BGP message type?
Which of the following is TRUE if a BGP session state is Connect?
Click the exhibit.

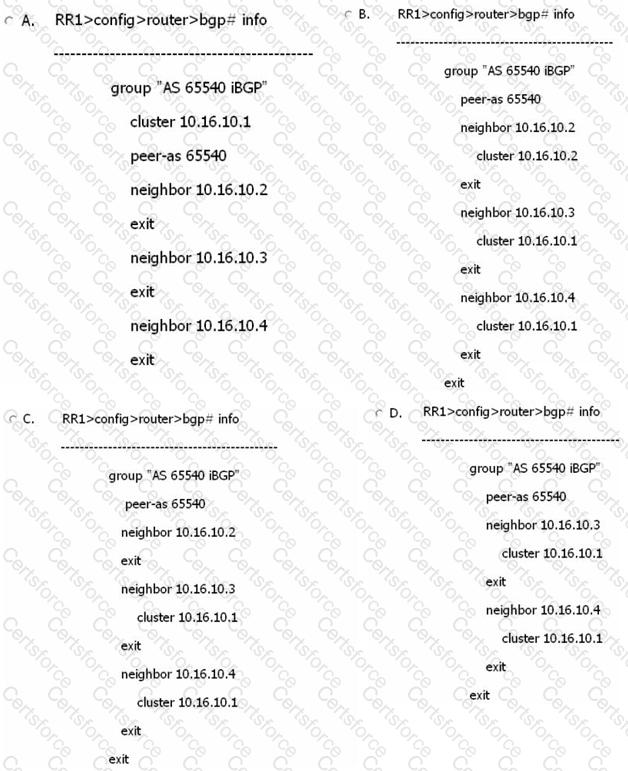

Routers RR1 are RR2 are redundant route reflectors for clients R3 and R4. Which of the following is a valid configuration on router RR1?
