Which of the following is FALSE regarding the 16-bit public autonomous system numbers?
What class of attribute is Originator_ID?

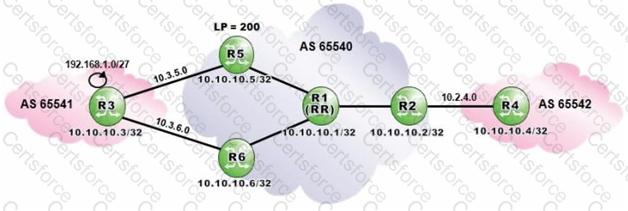

Click the exhibit.
Router R1 is a route reflector withclients R2, R5 and R6. Prefixes advertised by router R5 have a local preference of 200. Router R3 advertises the prefix 192.168.1.0/27 to routers R5 and R6.

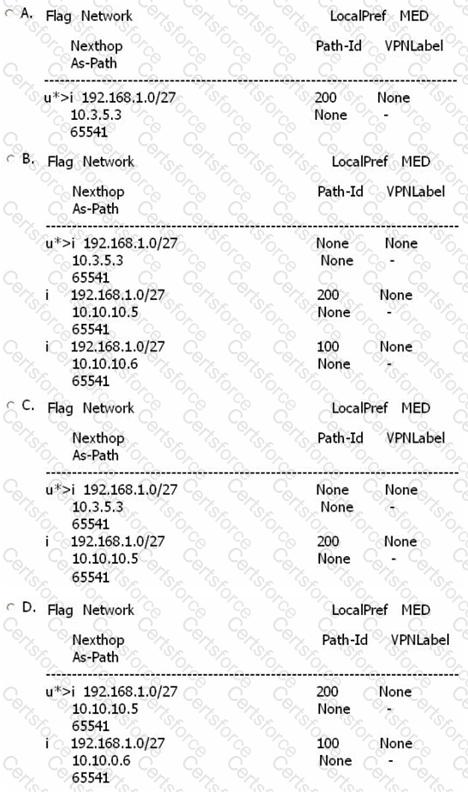

Assuming that router R6 is configured with "advertise-external", what is the expected output of "show router bgp routes" when executed on router R1?
AnNokia7750 SR receives two updates for the same route with local preferences 200 and 300, respectively. What local preference is sent to eBGP peers?
A router in AS 65100 receives two BGP routes. The first route is for138.1.1.0/24 with an AS Path of 65200 65300, Local Preference of 100, MED of 100, and router ID 10.10.10.10. The second route is for 138.1.0.0/16 with an AS Path of 65500 65300, Local Preference of 150, MED of 100, and router ID 10.1.1.1. Assuming all other attributes are equal, which route would be used to forward an IP packet with destination IP address 138.1.1.1?
Click the exhibit.
Router R1 is a route reflector with clients R2, R5 and R6. Prefixes advertised by router R5 have a local preference of 200. Router R3 advertises the prefix 192.168.1.0/27 to routers R5 and R6.
Assuming that none of the routers in AS 65540 is configured with "advertise-external", what is the expected output of "showrouter bgp routes" on router R5?
Which of the following statements regarding BGP Fast Reroute is FALSE?
When implementing a BGP policy on anNokia7750 SR, which of the following types of address space would a typical address plan need to cover?

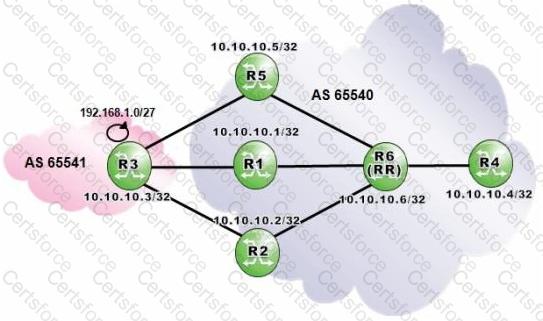

Click the exhibit.

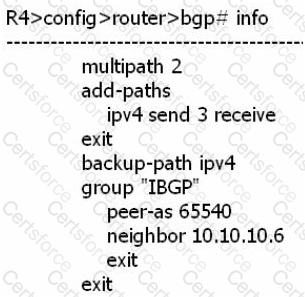

Router R6 is a route reflector with clients R1, R2, R4 and R5. Router R4 receives three routes from router R6 and is configured with ECMP 3. Given the following BGPconfiguration on routerR4, how many primary and backup paths will be present in router R4's BGP routing table?

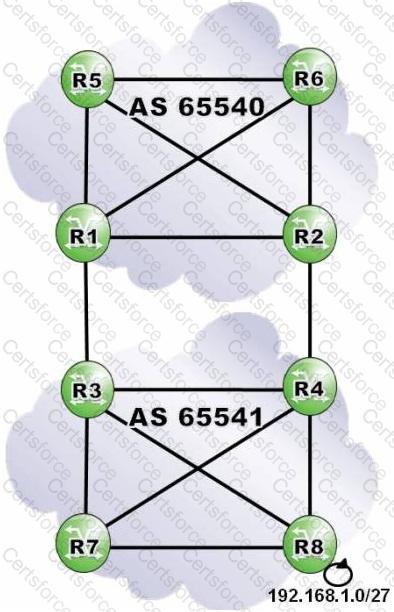

Click the exhibit.
Router R2 receives a route to 192.168.1.0/27 from router R4, and sets the local preference to 110. Router R1 receives a route to 192.168.1.0/27 from router R3, and sets the local preference to 80. Both ASs have a full iBGP mesh. What path does traffic destined to 192.168.1.0/27 take from router R1?
