The exhibit shows the configuration of BFD liveness detection for BGP at the global level, which applies to all BGP neighbors by default1. However, this configuration does not specify the session mode, which determines whether BFD uses single-hop or multihop mode to communicate with a neighbor2.

For single-hop BGP neighbors, which are directly connected on the same subnet, the session mode can be either automatic or single-hop. For multihop BGPneighbors, which are not directly connected and require multiple hops to reach, the session mode must be multihop2.

Since your BGP neighbors are in different countries, they are likely to be multihop neighbors. Therefore, you need to configure the session mode as multihop for each neighbor individually at the [edit protocols bgp group group-name neighbor address bfd-liveness-detection] hierarchy level2. For example:

protocols { bgp { group usa { neighbor 192.0.2.1 { bfd-liveness-detection { session-mode multihop; } } } group france { neighbor 198.51.100.1 { bfd-liveness-detection { session-mode multihop; } } } } }

If you do not configure the session mode for multihop neighbors, BFD will use the default mode of automatic, which will try to use single-hop mode and fail to establish a BFD session with the remote neighbor2. This will prevent BGP from using BFD to detect liveliness and failover.

Therefore, the answer B is correct, as you need to configure the BFD liveness detection on the BGP neighbor level with the appropriate session mode for multihop neighbors.

BGP (Border Gateway Protocol) is a protocol designed to exchange routing and reachability information among autonomous systems (AS) on the internet1.

Option A is correct. When an EBGP router advertises routes to its neighbors, it appends its AS number to the AS_PATH attribute1. This is a key mechanism in BGP to prevent routing loops1.

Option C is correct. BGP has a built-in loop prevention mechanism whereby if a BGP router detects its own AS in the AS_PATH attribute, it will drop the prefix and will not continue to advertise it2. This helps to prevent routing loops2.

Option B is incorrect. EBGP routers do not accept routes that contain their own AS number in the AS_PATH2. Instead, they drop such routes as part of the loop prevention mechanism2.

Option D is incorrect. While it’s true that EBGP routers append their AS number when advertising routes, they do not prepend their AS number1. The term “prepend” in BGP usually refers to a technique used to influence path selection by artificially lengthening the AS_PATH3.

A broadcast storm is a network condition where a large number of broadcast packets are sent and received by multiple devices, causing congestion and performance degradation1. A broadcast storm can occur when there are loops in the network topology, meaning that there are multiple paths between two devices2.

A spanning tree protocol is a network protocol that prevents loops from being formed when switches or bridges are interconnected via multiple paths. It does this by creating a logical tree structure that spans all the devices in the network, and disabling or blocking the links that are not part of the tree, leaving a single active path between any two devices3.

By eliminating loops, a spanning tree protocol also eliminates broadcast storms, as broadcast packets will not be forwarded endlessly along the looped paths. Instead, broadcast packets will be sent only along the tree structure, reaching each device once and avoiding congestion3.

In Rapid Spanning Tree Protocol (RSTP), there are several port roles that determine the behavior of the port in the spanning tree1.

Option A suggests that the designated port forwards data to the downstream network segment or device. This is correct because the designated port is the port on a network segment that has the best path to the root bridge1. It’s responsible for forwarding frames towards the root bridge and sending configuration messages into its segment1.

Option D suggests that the root port is responsible for forwarding data to the root bridge. This is also correct because the root port is always the link directly connected to the root bridge, or the shortest path to the root bridge1. It’s used to forward traffic towards the root bridge1.

Therefore, options A and D are correct.

BGP attributes are properties that BGP uses for route advertisement, path selection, and loop prevention1. There are four categories of BGP attributes123:

Well-known mandatory: Must be recognized by all BGP routers, present in all BGP updates, and passed on to other BGP routers123.

Well-known discretionary: Supported by all BGP implementations, and are optionally included in BGP updates1.

Optional transitive: May not be supported by all implementations of BGP1.

Optional non-transitive: May not be supported by all implementations of BGP1.

The well-known mandatory attributes must be supported by all BGP implementations and must be included in every update123. These include the AS path and next hop attributes23. Therefore, options A and C are correct.

A firewall filter is a configuration that defines the rules that determine whether to forward or discard packets at specific processing points in the packet flow. A firewall filter can also modify the attributes of the packets, such as priority, marking, or logging. A firewall filter can be applied to various interfaces, protocols, or routing instances on a Juniper device1.

A firewall filter has a family attribute, which specifies the type of traffic that the filter can evaluate. The family attribute can be one of the following: inet, inet6, mpls, vpls, iso, or ethernet-switching2. The family inet firewall filter is used to evaluate IPv4 traffic, which is the most common type of Layer 3 traffic on a network.

To create a family inet firewall filter, you need to specify the appropriate match criteria and actions for each term in the filter. The match criteria can include various fields in the IPv4 header, such as source address, destination address, protocol, port number, or DSCP value. The actions can include accept, discard, reject, count, log, policer, or next term3.

To apply a firewall filter to Layer 3 traffic that is being sent between VLANs, you need to apply the filter to the appropriate IRB interface. An IRB interface is an integrated routing and bridging interface that provides Layer 3 functionality for a VLAN on a Juniper device. An IRB interface has an IP address that acts as the default gateway for the hosts in the VLAN. An IRB interface can also participate in routing protocols and forward packets to other VLANs or networks4.

Therefore, option C is correct, because you should create a family inet firewall filter with the appropriate match criteria and actions. Option D is correct, because you should apply the firewall filter to the appropriate IRB interface.

Option A is incorrect, because you should not create a family ethernet-switching firewall filter with the appropriate match criteria and actions. A family ethernet-switching firewall filter is used to evaluate Layer 2 traffic on a Juniper device. A family ethernet-switching firewall filter can only match on MAC addresses or VLAN IDs, not on IP addresses or protocols5.

Option B is incorrect, because you should not apply the firewall filter to the appropriate VLAN. A VLAN is a logical grouping of hosts that share the same broadcast domain on a Layer 2 network. A VLAN does not have an IP address or routing capability. A firewall filter cannot be applied directly to a VLAN; it must be applied to an interface that belongs to or connects to the VLAN6.

References:

1: Firewall Filters Overview 2: Configuring Firewall Filters 3: Configuring Firewall Filter Match Conditions and Actions 4: Understanding Integrated Routing and Bridging Interfaces 5: Configuring Ethernet-Switching Firewall Filters 6: Understanding VLANs

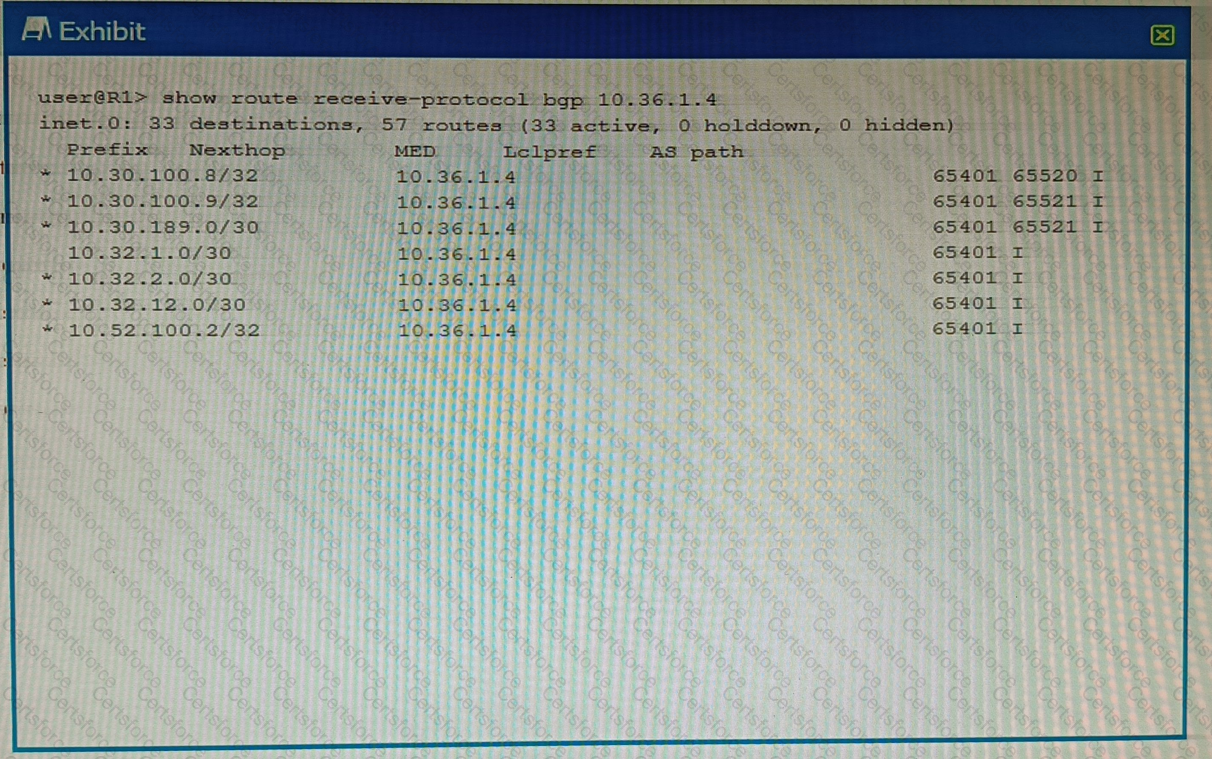

The output shown in the exhibit is the result of the command “show ip bgp neighbor 10.36.1.4 received-routes”, which displays all received routes (both accepted and rejected) from the specified neighbor.

Option A is correct, because the routes displayed have traversed one or more autonomous systems. This can be seen from the AS_PATH attribute, which shows the sequence of AS numbers that the route has passed through. For example, the route 10.0.0.0/8 has an AS_PATH of 65001 65002, which means that it has traversed AS 65001 and AS 65002 before reaching the local router.

Option B is correct, because the output shows routes that were received prior to the application of any BGP import policies. This can be seen from the fact that some routes have a status code of “r”, which means that they are rejected by an import policy. The“received-routes” keyword shows the routes coming from a given neighbor before the inbound policy has been applied. To see the routes after the inbound policy has been applied, the “routes” keyword should be used instead.

Option C is incorrect, because the output does not show routes that are active and rejected by an import policy. The status code of “r” means that the route is rejected by an import policy, but it does not mean that it is active. The status code of “>” means that the route is active and selected as the best path. None of the routes in the output have both “>” and “r” status codes.

Option D is incorrect, because the routes displayed are not being learned from an IBGP peer. An IBGP peer is a BGP neighbor that belongs to the same AS as the local router. The output shows that the neighbor 10.36.1.4 has a remote AS of 65001, which is different from the local AS of 65002. Therefore, the neighbor is an EBGP peer, not an IBGP peer.

Option B suggests that the BGP session is not established. This is correct because in the output, the state of the BGP session is shown as “Idle”. In BGP, an “Idle” state means that the BGP session is not currently established1.

Option C suggests that R1 is configured for AS 65400. This is also correct because in the output, it’s shown that the local AS number is 654001. The local AS number represents the Autonomous System (AS) number of the router on which you’re checking the BGP session1.

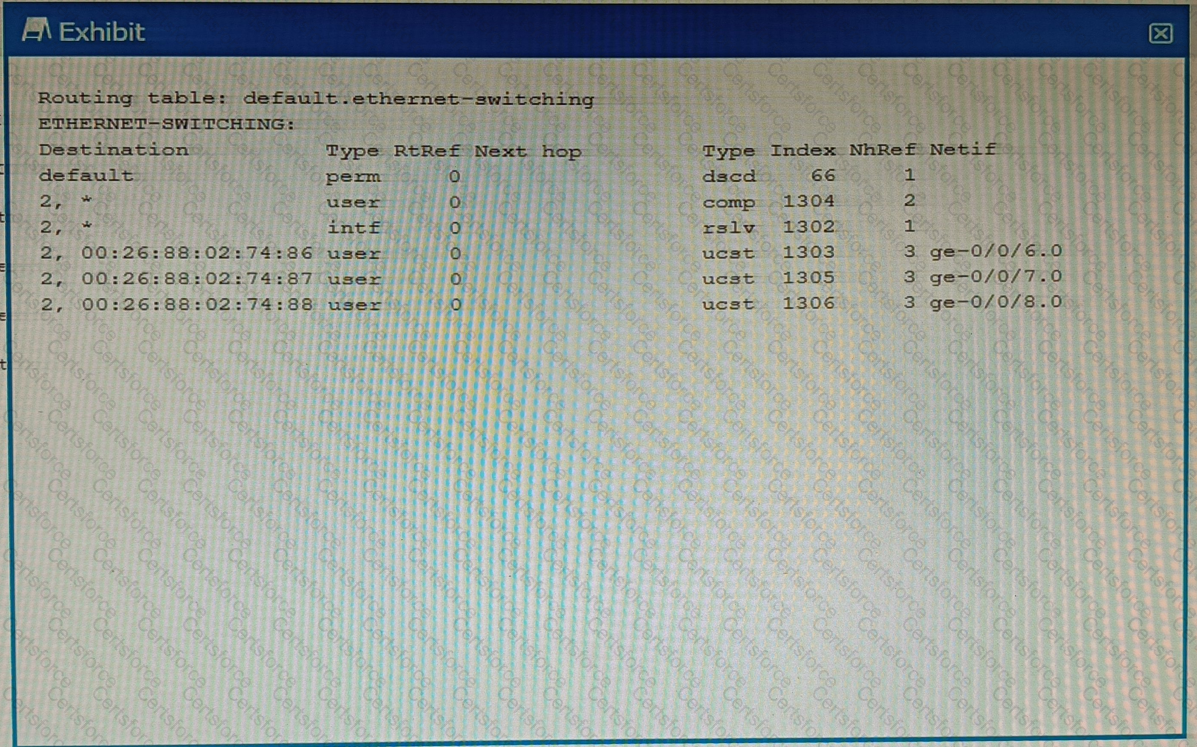

The output shown in the exhibit is a brief display of the Ethernet switching table, which shows the learned Layer 2 MAC addresses for each VLAN and interface1.

The command show ethernet-switching table displays the Ethernet switching table with brief information, such as the destination MAC address, the VLAN name, the forwarding state, and the interface name1.

The command show route forwarding-table displays the routing table information for each protocol family, such as inet, inet6, mpls, iso, and so on2. It does not show the Ethernet switching table or the MAC addresses.

The command show ethernet-switching table extensive displays the Ethernet switching table with extensive information, such as the destination MAC address, the VLAN name, the forwarding state, the interface name, the VLAN index, and the tag type1. It shows more details than the brief output shown in the exhibit.

The command show route forwarding-table family ethernet-switching displays the routing table information for the ethernet-switching protocol family, whichshows the destination MAC address, the next-hop MAC address, and the interface name3. It does not show the VLAN name or the forwarding state.
