Pass the Juniper JNCIA JN0-105 Questions and answers with CertsForce

In Junos OS, a policer is a feature used to limit the rate of traffic flow in the network, including exception traffic sent from the Packet Forwarding Engine (PFE) to the Routing Engine (RE). Exception traffic consists of packets that cannot be processed by the PFE alone and require intervention by the RE, such as control packets or packets destined for the device itself. A policer can be configured to enforce bandwidth limits and drop or mark packets that exceed specified rate limits, thus protecting the RE from being overwhelmed by excessive exception traffic.

In Juniper Networks devices, firewall filters are used to control packet flow through the device. The default action for packets that do not match any of the specified criteria in the firewall filter is to discard them, enhancing network security by ensuring that only explicitly allowed traffic can pass through. Furthermore, it is possible to configure multiple firewall filters on a device, allowing for granular control over traffic based on various criteria such as source, destination, and protocol type.

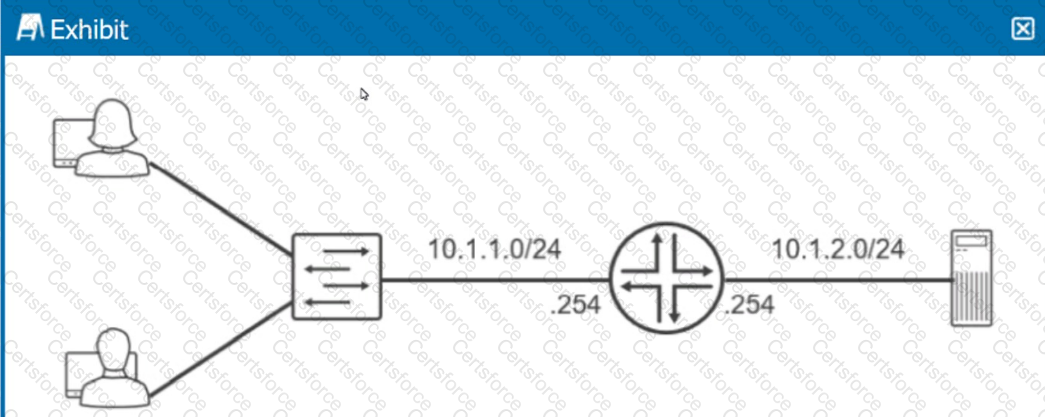

For the users in the 10.1.1.0/24 subnet and the server in the 10.1.2.0/24 subnet to communicate with each other, they need to route packets through the router that connects these two subnets. Each user and the server need to have their default gateway set to the IP address of the router interface on their respective subnet (.254). This ensures that packets destined for other subnets are sent to the router, which then routes them to the correct destination subnet.

References:

Juniper official documentation: Configuring Basic Routing.

General networking principles.

In Junos OS, the archival configuration under [edit system] allows for the automatic backup of configuration files to designated locations upon commit. When multiple archive-sites are specified, as shown in the exhibit with both SCP and FTP sites listed, the device does not choose between them or use them in a round-robin manner. Instead, it attempts to transfer the configuration backup files to all specified sites simultaneously upon each commit. This ensures redundancy and increases the likelihood that a backup will be successfully stored even if one of the transfer methods or destinations fails.

In the given telnet command, "telnet 10.10.10.1 source 192.168.100.1," the destination address of the telnet session is 10.10.10.1, and the source address of the session is specified as 192.168.100.1, making C and D the correct answers. This command instructs the telnet client to use the specified source IP address when establishing the connection to the destination.

Exception traffic includes traffic that is not simply forwarded by the router but requires special handling, such as routing updates (B) and log messages (C). These types of traffic are processed by the router's control plane rather than just being forwarded through the data plane.

In the scenario where the system authentication order is set to "tacplus radius password," the correct statement is (B). If the TACACS+ and RADIUS servers are unreachable or fail to respond, the system will fall back to using password authentication. This ensures that users can still authenticate using locally stored passwords if external authentication servers are unavailable.

At the operational mode prompt on a Junos device, you can use various commands to view the device's status and request system operations. The show interface ge-0/0/0 command is used to display information about a specific interface, while the request system shutdown command is used to properly shut down the device. The set command is used in configuration mode, not operational mode, and the run command is used to execute operational mode commands from configuration mode.

The transport layer in the OSI model is responsible for end-to-end communication and error recovery. In a transport header, such as TCP or UDP, the key components include the source port number and the destination port number. These port numbers are used to identify sending and receiving applications. The source port number indicates the port of the sending application, and the destination port number refers to the port of the receiving application. MAC addresses, on the other hand, are part of the data link layer (Layer 2) and would be included in an Ethernet header, not a transport header.

In Junos OS, to navigate from operational mode to configuration mode, you can use either the edit or configure command. Both commands move the CLI from operational mode, where you can view the state of the device, to configuration mode, where you can make changes to the device's configuration.
