Detailed Explanation:In this scenario, the MAC address 00e0-fc99-9999 is associated with multiple IP addresses through dynamic ARP learning, indicating that the host’s IP has changed several times. The ARP table on the switch shows multiple entries with different IPs mapped to the same MAC address, which is common when a device frequently updates its IP. As ARP is a dynamic protocol, these entries reflect the device's current and past IP associations. (Reference: HCIA-Datacom Training Material, ARP Operation and IP-MAC Mapping)

1. Understanding the ACL Rule

The rule:

rule 5 deny source 100.0.12.0 0.0.0.255

Blocks traffic originating from 100.0.12.0/24 (Host B’s network).

This means any packet sent from Host B to Host A will be blocked.

2. Applying the ACL to the Correct Interfaces

Option A: Applied inbound on GE0/0/1 → Blocks packets from Host B before reaching Host A. ✅

Option B: Applied inbound on GE0/0/2 → Blocks packets from Host A before reaching Host B. ✅

3. Why Other Options Are Incorrect

Option C (GigabitEthernet0/0/3):

Interface GE0/0/3 is not connected to Host A or Host B, so applying ACL here is meaningless.

Option D (Outbound on GE0/0/1):

Outbound filtering is less efficient than inbound filtering because it blocks traffic after routing.

4. Correct Approach to Prevent Communication

To completely block communication between Host A and Host B, we must:✅ Block inbound traffic on GE0/0/1 (Host A’s interface)✅ Block inbound traffic on GE0/0/2 (Host B’s interface)

Conclusion:

The correct choices are A and B because they block inbound traffic at the correct interfaces.

Options C and D are incorrect because they apply ACL rules to the wrong interfaces or use inefficient filtering.

References:✅ HCIA-Datacom V1.0 Certification Guide, Chapter 5: ACL Configuration

Comprehensive Explanation: In STP (Spanning Tree Protocol), the Bridge ID (BID) is used to uniquely identify a switch in the network. It consists of a bridge priority and a MAC address. A BID with a bridge priority of 0 and a MAC address starting with 00-01 is reserved for special purposes and cannot be used in a configuration BPDU (Bridge Protocol Data Unit) sent by a regular switch. This prevents conflicts with reserved MAC addresses.

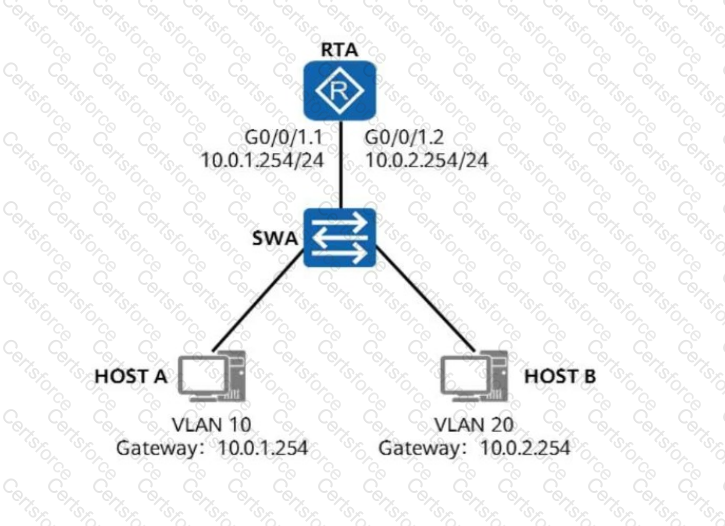

Understanding the Network Diagram

Host A is in VLAN 10 with a gateway of 10.0.1.254.

Host B is in VLAN 20 with a gateway of 10.0.2.254.

The router (RTA) has two sub-interfaces:

G0/0/1.1 (10.0.1.254/24) for VLAN 10

G0/0/1.2 (10.0.2.254/24) for VLAN 20

The switch (SWA) is using VLAN trunking to forward packets to the router, requiring 802.1Q encapsulation.

One-Armed Routing (Router-on-a-Stick) is being used, meaning a single physical interface (G0/0/1) handles multiple VLANs using sub-interfaces.

Analyzing the Answer Choices

Option A (dot1q termination vid 20) → Incorrect

This command would be configured on G0/0/1.2, not G0/0/1.1.

Option B (dot1q termination vid 30) → Incorrect

VLAN 30 is not part of this topology.

Option C (dot1q termination vid 10) → Correct

Since G0/0/1.1 corresponds to VLAN 10, the correct command is dot1q termination vid 10.

Option D (dot1q termination vid 1) → Incorrect

VLAN 1 is usually the default VLAN, which is not relevant here.

Thus, the correct answer is C (dot1q termination vid 10).

VLAN Assignment Overview:VLAN (Virtual Local Area Network) assignment is a critical step in campus network planning. It involves logically segmenting a network to improve manageability, security, and performance. Huawei recommends various approaches based on specific needs.

Analysis of Options:

Option A: "VLAN assignment by service type"This method groups devices based on the type of service they require (e.g., voice, video, data). It helps in isolating traffic for different service types, improving QoS and security. This is a common practice in network planning​​.

Option B: "VLAN assignment by logical area"Logical area-based assignment groups devices based on their logical function in the network (e.g., core, access, distribution). It ensures proper segmentation and alignment with network topology​.

Option C: "VLAN assignment by geographic area"Assigning VLANs based on geographic areas (e.g., floors in a building, departments) helps localize traffic within a region, reducing unnecessary cross-network traffic​​.

Option D: "VLAN assignment by personnel structure"While this option suggests assigning VLANs based on organizational structure (e.g., employees, managers), it is not a typical practice in VLAN assignment. It lacks scalability and alignment with network topology, making it an inefficient approach​.

Correct Answers:The valid VLAN assignment methods in campus network planning are:

A. By service type

B. By logical area

C. By geographic area

OSPF Network Types Overview:OSPF (Open Shortest Path First) supports different network types based on the underlying physical or logical topology:

A. Broadcast: OSPF assumes a fully meshed network, like Ethernet. DR/BDR elections occur.

B. Point-to-Point: A simple two-node network where no DR/BDR elections occur.

C. NBMA: OSPF operates over WAN technologies like Frame Relay. DR/BDR elections occur.

D. Point-to-Multipoint: OSPF operates on logically defined topologies where broadcast or multicast is not supported.

OSPF Flexibility:OSPF accommodates all these network types to ensure compatibility with a variety of link-layer technologies.

References: HCIA-Datacom V1.0 Certification Guide, Chapter 6: OSPF Fundamentals.

Detailed Explanation:With a /30 subnet mask, the valid IP range is 192.168.1.0 - 192.168.1.3:

192.168.1.3 is the broadcast address, so it can be a destination.

192.168.1.1 and 192.168.1.2 are host addresses.

255.255.255.255 is the limited broadcast address, which any device can use to reach all hosts on the local network.

(Reference: HCIA-Datacom Training Material, IP Addressing and Subnetting)

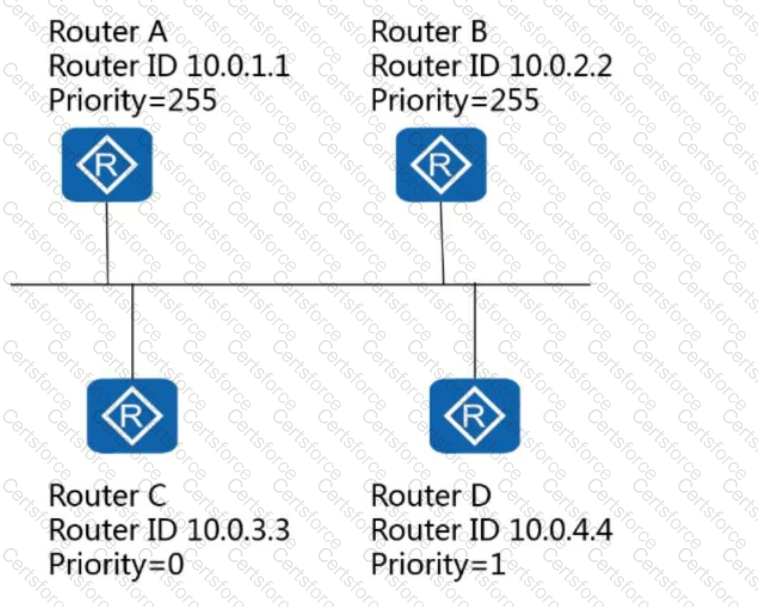

In OSPF, the Backup Designated Router (BDR) is selected based on the highest priority and, in case of a tie, the highest router ID. Given that Router D has the appropriate settings, it is designated as the BDR, providing backup for the DR (Designated Router) in this network configuration​.

The basic IPv6 header has a fixed length of 40 bytes. Unlike IPv4, the IPv6 header is streamlined, omitting some fields (like header checksum) and standardizing the header size. This simplification reduces processing overhead, enhancing routing efficiency and scalability for modern networks​.
