In the provided routing table, the router’s next hop for each destination indicates whether the destination is reachable directly or indirectly. For entries where the next hop is specified, the router forwards packets accordingly through the designated interface, as confirmed in the table output. This information is used to verify the forwarding behavior for each destination​.

To determine which types of traffic can be filtered by an advanced Access Control List (ACL) on a Huawei device, we need to understand the capabilities of advanced ACLs as defined in HCIA Datacom documentation and Huawei networking standards. Let’s analyze each option step by step:

Understanding Huawei ACL Types:

Huawei devices support different types of ACLs, including Basic ACLs, Advanced ACLs, and Layer 2 ACLs (MAC-based). Each type has specific filtering capabilities:

Basic ACLs (2000–2999): Filter traffic based on source IP addresses only.

Advanced ACLs (3000–3999): Provide more granular filtering, including source IP addresses, destination IP addresses, protocols, port numbers, and other Layer 3 and Layer 4 parameters. They are more flexible than Basic ACLs but do not filter based on Layer 2 information like MAC addresses.

Layer 2 ACLs (4000–4999): Filter traffic based on source and destination MAC addresses, VLAN IDs, and other Layer 2 parameters.

The question specifically asks about advanced ACLs, so we focus on their capabilities, which are limited to Layer 3 and Layer 4 traffic (IP-based and protocol-specific filtering).

Evaluating Each Option:

A. Network traffic based on a specific source IP address

Advanced ACLs on Huawei devices can filter traffic based on source IP addresses. This is a standard feature of advanced ACLs, which support matching rules for source IP addresses using wildcard masks or specific IP ranges.

This statement is true.

B. Network traffic based on a specific source MAC address

Advanced ACLs operate at Layer 3 and Layer 4 (IP and TCP/UDP) and do not have the capability to filter traffic based on Layer 2 information, such as MAC addresses. Filtering based on MAC addresses requires Layer 2 ACLs (e.g., ACLs in the 4000–4999 range), not advanced ACLs.

This statement is false.

C. Network traffic based on a specific user name

Advanced ACLs do not have the capability to filter traffic based on user names. User-based filtering typically requires authentication mechanisms (e.g., 802.1X, AAA, or RADIUS) combined with dynamic ACLs or policies, not standard advanced ACLs. Advanced ACLs are limited to IP addresses, protocols, and port numbers, not user-specific attributes.

This statement is false.

D. Network traffic based on a specific port number

Advanced ACLs can filter traffic based on transport layer port numbers (e.g., TCP/UDP ports), such as HTTP (port 80), FTP (port 21), etc. This is a key feature of advanced ACLs, allowing granular control over application-layer traffic.

This statement is true.

E. Network traffic based on a specific destination IP address

Advanced ACLs can filter traffic based on destination IP addresses, similar to source IP addresses. This is another standard capability, allowing matching rules for destination IP addresses using wildcard masks or specific IP ranges.

This statement is true.

Conclusion:

Advanced ACLs on Huawei devices can filter traffic based on:

Source IP addresses (Option A).

Destination IP addresses (Option E).

Port numbers (Option D).

They cannot filter traffic based on source MAC addresses (Option B) or user names (Option C), as these require Layer 2 ACLs or authentication-based policies, respectively.

Therefore, the correct answers are A, D, and E.

Comprehensive Explanation: The user-interface maximum-vty command is used on Huawei devices to configure the maximum number of simultaneous VTY (Virtual Terminal Line) users who can log in via Telnet. By limiting the number of VTY sessions, the administrator can control how many users are able to access the device at the same time, preventing excessive connections that may overwhelm the device or reduce security.

Detailed Explanation:A device running Standard Spanning Tree Protocol (STP) is not compatible with Rapid Spanning Tree Protocol (RSTP) BPDUs and will discard them upon receipt. STP devices cannot interpret the additional RSTP fields, leading to discarded BPDUs. (Reference: HCIA-Datacom Training Material, STP and RSTP Compatibility)

Network Communication Types:

A: Downloading emails is an example of client-server communication.

B: Accessing a website involves HTTP/HTTPS communication.

C: Chatting via instant messaging involves real-time data exchange using protocols like XMPP or WebSockets.

D: Watching online videos involves streaming protocols like HTTP Live Streaming (HLS).

Conclusion:

All options represent common types of network communication between devices.

References: HCIA-Datacom V1.0 Certification Guide, Chapter 7: Network Applications.

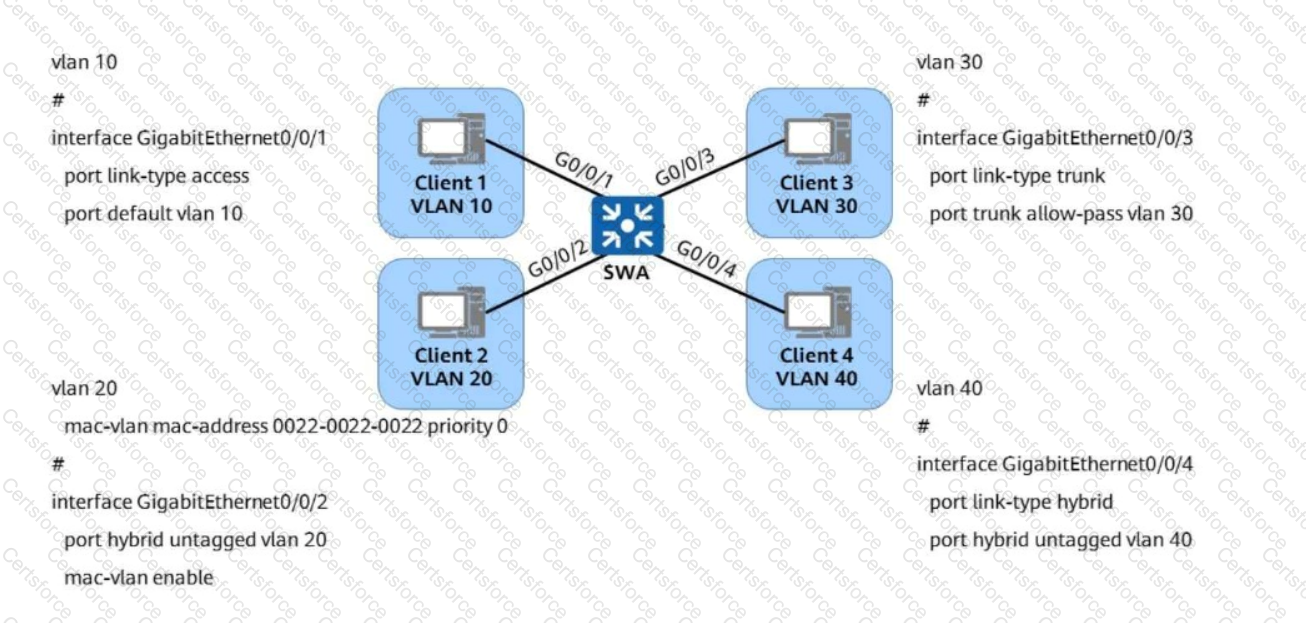

To determine which statements are true, we need to analyze the VLAN configurations on the Huawei switch (SWA) as shown in the diagram and configuration details. We’ll evaluate each client’s VLAN membership and verify the correctness of the VLAN assignment commands based on Huawei switch configuration principles, as outlined in HCIA Datacom documentation. Let’s break it down step by step:

Understanding VLAN Assignment Types on Huawei Switches:

Huawei switches support different port link types for VLAN assignment:

Access Port: Carries traffic for a single VLAN (untagged). Typically used for end devices like PCs.

Trunk Port: Carries traffic for multiple VLANs (tagged, except for the native VLAN, which is untagged). Typically used for interconnecting switches.

Hybrid Port: Similar to a trunk port but can carry untagged traffic for specific VLANs, often used for both end devices and inter-switch links. It can tag or untag traffic based on configuration.

Additionally, Huawei supports MAC address-based VLAN assignment (using the mac-vlan command), which assigns VLAN membership based on a device’s MAC address, overriding port-based VLAN settings.

Analyzing the Configuration for Each Client:Let’s examine the configuration details for each interface connected to the clients and verify the VLAN assignments:

Client 1 (connected to GigabitEthernet0/0/1):

Configuration:

text

WrapCopy

vlan 10

#

interface GigabitEthernet0/0/1

port link-type access

port default vlan 10

The port is configured as an access port with port link-type access and assigned to VLAN 10 using port default vlan 10.

Access ports carry untagged traffic for a single VLAN, so Client 1 belongs to VLAN 10.

The commands are correct for an access port assignment to VLAN 10.

Statement C (“Client 1 belongs to VLAN 10, and the commands for VLAN assignment on the switch are correct”) is true.

Client 2 (connected to GigabitEthernet0/0/2):

Configuration:

text

WrapCopy

vlan 20

mac-vlan mac-address 0022-0022-0022 priority 0

#

interface GigabitEthernet0/0/2

port hybrid untagged vlan 20

mac-vlan enable

The port is configured as a hybrid port with port link-type hybrid and set to carry untagged traffic for VLAN 20 using port hybrid untagged vlan 20.

Additionally, mac-vlan mac-address 0022-0022-0022 priority 0 and mac-vlan enable are configured, indicating MAC address-based VLAN assignment for a device with MAC address 0022-0022-0022.

However, the diagram does not specify the MAC address of Client 2. If Client 2’s MAC address is not 0022-0022-0022, the MAC-VLAN assignment does not apply, and the port’s default VLAN (VLAN 20, untagged) determines its membership.

If Client 2 has MAC address 0022-0022-0022, it would belong to the VLAN specified by the mac-vlan command (VLAN 20, as no specific VLAN is mentioned in the mac-vlan command, implying it uses the port’s default VLAN or another configured VLAN). But since the MAC address is not provided, we assume the port-based VLAN assignment (VLAN 20) applies.

The commands appear correct for a hybrid port with untagged VLAN 20 and MAC-VLAN enabled, but the effectiveness of the MAC-VLAN depends on Client 2’s MAC address.

Statement B (“Client 2 belongs to VLAN 20, and the commands for MAC address-based VLAN assignment on the switch are correct”) is potentially true if Client 2’s MAC is 0022-0022-0022, but without confirmation, we must consider the port’s default VLAN 20. However, the MAC-VLAN priority is set to 0, which is unusual (priority 0 typically indicates the lowest priority, and Huawei recommends non-zero values for MAC-VLAN). This suggests a potential configuration error or ambiguity.

Given the lack of MAC address confirmation and the unusual priority 0, Statement B is not definitively true, as the MAC-VLAN assignment may not function as intended or may conflict with port-based VLAN 20.

Client 3 (connected to GigabitEthernet0/0/3):

Configuration:

text

WrapCopy

vlan 30

#

interface GigabitEthernet0/0/3

port link-type trunk

port trunk allow-pass vlan 30

The port is configured as a trunk port with port link-type trunk and allows VLAN 30 traffic using port trunk allow-pass vlan 30.

Trunk ports carry tagged traffic for specified VLANs. For Client 3 (an end device, typically not a switch), the trunk port configuration is unusual because end devices usually connect via access ports, not trunk ports. However, if Client 3 is configured to send tagged frames for VLAN 30 (e.g., a VLAN-aware device like a phone or IP camera), it can belong to VLAN 30.

The commands are correct for a trunk port allowing VLAN 30, assuming Client 3 is configured to handle tagged VLAN 30 traffic.

Statement D (“Client 3 belongs to VLAN 30, and the commands for VLAN assignment on the switch are correct”) is true, assuming Client 3 supports VLAN tagging for VLAN 30.

Client 4 (connected to GigabitEthernet0/0/4):

Configuration:

text

WrapCopy

vlan 40

#

interface GigabitEthernet0/0/4

port link-type hybrid

port hybrid untagged vlan 40

The port is configured as a hybrid port with port link-type hybrid and set to carry untagged traffic for VLAN 40 using port hybrid untagged vlan 40.

Hybrid ports can carry untagged traffic for specific VLANs, so Client 4 belongs to VLAN 40 (untagged).

The commands are correct for a hybrid port assignment to VLAN 40.

Statement A (“Client 4 belongs to VLAN 40, and the commands for VLAN assignment on the switch are correct”) is true.

Evaluating Each Statement:

A: True – Client 4 belongs to VLAN 40 (untagged on a hybrid port), and the commands are correct.

B: Not definitively true – Client 2 belongs to VLAN 20 based on the port’s hybrid untagged VLAN 20, but the MAC-VLAN configuration with priority 0 is ambiguous without Client 2’s MAC address, and the priority 0 may indicate a configuration error. Thus, we cannot confirm the MAC address-based VLAN assignment is correct.

C: True – Client 1 belongs to VLAN 10 (access port), and the commands are correct.

D: True – Client 3 belongs to VLAN 30 (trunk port, assuming tagged traffic), and the commands are correct for a trunk port allowing VLAN 30.

Conclusion:

Statements A, C, and D are true based on the configuration and VLAN assignment rules. Statement B is not definitively true due to the ambiguity of Client 2’s MAC address and the unusual priority 0 in the MAC-VLAN configuration.

Answer: A, C, D

References from HCIA Datacom Documents:

HCIA Datacom V3.0, Chapter 4: VLAN Technologies – Access, Trunk, and Hybrid Port Configurations

HCIA Datacom V3.0, Chapter 4: MAC Address-Based VLAN Assignment – mac-vlan Command and Priority Settings

Huawei VLAN Configuration Guide (HCIA Datacom Certification Material) – Port Link Types and VLAN Assignment Rules

The Bridge ID, a combination of bridge priority and MAC address, is used to determine the root bridge in STP. The switch with the lowest Bridge ID becomes the root bridge. If bridge priorities are identical, the switch with the lowest MAC address is selected as the root bridge​.

Detailed Explanation:In NAPT, port numbers are dynamically assigned as traffic flows through the router. The port number range is automatically selected, and manual configuration of each mapping is not required. NAPT dynamically uses different ports for mapping private IP addresses to a single public IP address​​.
