Examine the output from an AOS-CX switch implementing a dynamic segmentation solution involving
downloadable user roles:
Switch# show port-access role clearpass
Role information:
Name : icxarubadur_employee-3044-2
Type : clearpass
Status: failed, parsing_failed
Reauthentication Period :
Authentication Mode :
Session Timeout :
The downloadable user roles are not being downloaded to the AOS-CX switch. Based on the above output,
what is the problem?
How should a network administrator add NAE scripts and implement NAE agents that will run on an AOS-CX switch?

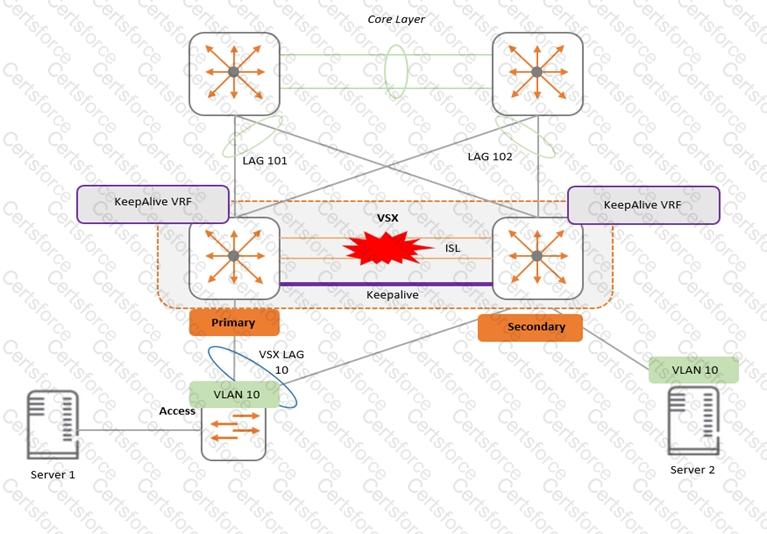

Examine the attached diagram
Two AOS-CX switches are configured for VSX at the access layer, where servers attached to them. An SVI interface is configured for VLAN 10 and serves as the default gateway for VLAN 10. The ISL link between the switches fails, but the keepalive interface functions. Active gateway has been configured on the switches.
What is correct about access from the servers to the Core?
Which protocol should be configured to allow NetEdit to discover third-party devices?
An administrator is concerned about the security of the control plane connection between an AOS-CX switch and an Aruba Mobility Controller (MC) when implementing user-based tunneling. How should the administrator protect this traffic?

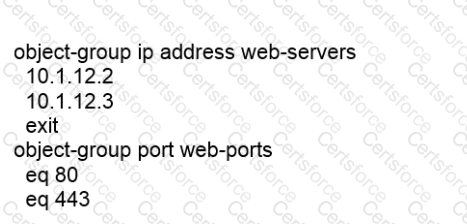

An administrator has configured the following on an AOS-CX switch:
What is the correct ACL rule configuration that would allow traffic from anywhere to reach the web ports on the
two specified servers?
An administrator wants to use an existing Aruba gateway's firewall policies to filter both wireless and wired traffic. Which AOS-CX switch feature should a customer implement to ensure the gateway applies the same or similar firewall policies to users' wired and wireless traffic?
An administrator is configuring BGP and has two connections to a service provider to two different local routers.
Which BGP metric should the administrator configure to influence which local router the service provider will use to reach certain routes?
When cutting and pasting configurations into NetEdit, which character is used to enter commands within the context of the previous command?
The network is configured for OSPF with the following attributes:
Core1 and Core2 and ABRs
Area 1 has 20 networks in the 10.1.0.0/16 range
Area 0 has 10 networks in the 10.0.0.0/16 range
Area 2 has 50 networks in the 10.2.0.0/16 range
The ASBR is importing a static route into Area 1
Core2 has a summary for Area 2: area 0.0.0.2 range 10.2.0.0/16 type inter-area

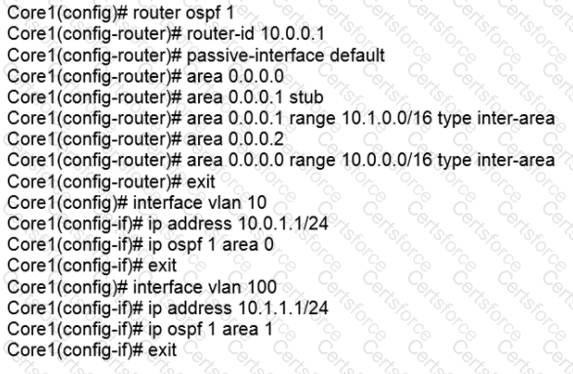

Here is the OSPF configuration performed on Core1:
Based on the above information, what is correct?
