Pass the Fortinet Fortinet Certified Professional Security Operations NSE7_SOC_AR-7.6 Questions and answers with CertsForce

Exact Extract: “This playbook also expects input from the user, specifically an IP address… you can manually type in an IP address. The trigger input is saved as ipAddress, which you can refer to later as a dynamic value.”

Exact Extract: “The connector must first be configured… The selected action is Get IP Reputation… The Get IP Reputation action requires input. In the trigger step, you defined the ipAddress parameter from the trigger input, which you can dynamically map to this step.”

Exact Extract: “After the Connector step is the Approval step. You can manually add a description, or you can use the Dynamic Values window to populate fields such as the Description field.”

The correct answer is A . The workflow requires analyst-supplied input, so it must begin with a Manual trigger where the IP address is entered. That IP address is passed directly into the FortiSIEM Get Device Information connector action. The output from that connector action is then shown to the SOC manager through an Approval step. If approved, the playbook proceeds to Create Record , creating the asset record from the FortiSIEM CMDB result.

Option B is bloated. Set Variable steps are not required because the manual trigger value and connector output can be referenced directly through Dynamic Values/Jinja. Option C is wrong because On Create is event-driven, not manual input, and Manual Task does not provide the same approve/reject workflow as an Approval step. Option D is wrong because it lacks the manual trigger and adds an unnecessary Update Record step.

Technical Deep Dive: The clean FortiSOAR pattern is Manual Input → External Lookup → Human Approval → Record Creation. In implementation, the manual trigger captures device_ip, the FortiSIEM connector action maps that value to Device IP, the Approval step displays key returned fields such as hostname, IP, organization, device type, and CMDB attributes, and the Create Record step maps the approved output into the Assets module. This is SOAR workflow orchestration; FortiGate NP/CP hardware offload is irrelevant because no traffic forwarding or ASIC inspection path is involved.

Understanding the Event Handler Configuration :

The event handler is set up to detect specific security incidents, such as spearphishing, based on logs forwarded from other Fortinet products like FortiSandbox.

An event handler includes rules that define the conditions under which an event should be triggered.

Analyzing the Current Configuration :

The current event handler is named " Spearphishing handler " with a rule titled " Spearphishing Rule 1 " .

The log viewer shows that logs are being forwarded by FortiSandbox but no events are generated by FortiAnalyzer.

Key Components of Event Handling :

Log Type : Determines which type of logs will trigger the event handler.

Data Selector : Specifies the criteria that logs must meet to trigger an event.

Automation Stitch : Optional actions that can be triggered when an event occurs.

Notifications : Defines how alerts are communicated when an event is detected.

Issue Identification :

Since FortiSandbox logs are correctly forwarded but no event is generated, the issue likely lies in the data selector configuration or log type matching.

The data selector must be configured to include logs forwarded by FortiSandbox.

Solution :

B. Configure a FortiSandbox data selector and add it to the event handler :

By configuring a data selector specifically for FortiSandbox logs and adding it to the event handler, FortiAnalyzer can accurately identify and trigger events based on the forwarded logs.

Steps to Implement the Solution :

Step 1 : Go to the Event Handler settings in FortiAnalyzer.

Step 2 : Add a new data selector that includes criteria matching the logs forwarded by FortiSandbox (e.g., log subtype, malware detection details).

Step 3 : Link this data selector to the existing spearphishing event handler.

Step 4 : Save the configuration and test to ensure events are now being generated.

Conclusion :

The correct configuration of a FortiSandbox data selector within the event handler ensures that FortiAnalyzer can generate events based on relevant logs.

According to the FortiAnalyzer 7.4 SOC Analyst official training material (Lesson 5: Automation) and supporting documentation for FortiSOAR 7.6 and FortiSIEM 7.3 integration, the following best practices are recommended for playbook portability:

Disable playbooks before exporting (A): When a playbook is exported, its current status (Enabled or Disabled) is preserved in the export file. If an Enabled playbook is imported into a destination ADOM where its trigger conditions are immediately met, it will start executing automatically. Disabling the playbook before export is a critical best practice to prevent unintended automated actions from occurring in the new environment before the analyst has had a chance to verify local configurations.

Include the associated connector settings (B): FortiAnalyzer allows you to include required connector configurations during the export process. By selecting this option, the exported file includes the necessary metadata and configurations for the connectors that the playbook relies on to execute its tasks. This ensures the playbook remains functional and portable across different FortiAnalyzer units or ADOMs without requiring the manual recreation of every connector.

Why other options are incorrect:

Move playbooks between ADOMs (C): There is no native " Move " function for automation playbooks between ADOMs in the same sense as moving a device. The standard supported workflow for transferring automation logic is the Export and Import process.

Ensure names do not exist in target (D): While maintaining unique names is good practice, it is not a required " best practice " for the export process itself because FortiAnalyzer automatically handles name conflicts. If an imported playbook shares a name with an existing one, the system automatically appends a timestamp to the new playbook ' s name to avoid a conflict.

Understanding FortiAnalyzer Data Policy and Disk Utilization:

FortiAnalyzer uses data policies to manage log storage, retention, and disk utilization.

The Data Policy section indicates how long logs are kept for analytics and archive purposes.

The Disk Utilization section specifies the allocated disk space and the proportions used for analytics and archive, as well as when alerts should be triggered based on disk usage.

Analyzing the Provided Exhibit:

Keep Logs for Analytics: 60 Days

Keep Logs for Archive: 120 Days

Disk Allocation: 300 GB (with a maximum of 441 GB available)

Analytics: Archive Ratio: 30% : 70%

Alert and Delete When Usage Reaches: 90%

Potential Problems Identification:

Disk Space Allocation: The allocated disk space is 300 GB out of a possible 441 GB, which might not be insufficient if the log volume is high, but it is not the primary concern based on the given data.

Analytics-to-Archive Ratio: The ratio of 30% for analytics and 70% for archive is unconventional. Typically, a higher percentage is allocated for analytics since real-time or recent data analysis is often prioritized. A common configuration might be a 70% analytics and 30% archive ratio. The misconfigured ratio can lead to insufficient space for analytics, causing issues with real-time monitoring and analysis.

Retention Periods: While the retention periods could be seen as lengthy, they are not necessarily indicative of a problem without knowing the specific log volume and compliance requirements. The length of these periods can vary based on organizational needs and legal requirements.

Conclusion:

Based on the analysis, the primary issue observed is the analytics-to-archive ratio being misconfigured. This misconfiguration can significantly impact the effectiveness of the FortiAnalyzer in real-time log analysis, potentially leading to delayed threat detection and response.

Understanding Incident Creation in FortiAnalyzer:

FortiAnalyzer allows for the creation of incidents to track and manage security events.

Incidents can be created both automatically and manually based on detected events and predefined rules.

Analyzing the Methods:

Option A: Using a connector action typically involves integrating with other systems or services and is not a direct method for creating incidents on FortiAnalyzer.

Option B: Incidents can be created manually on the Event Monitor page by selecting relevant events and creating incidents from those events.

Option C: While playbooks can automate responses and actions, the direct creation of incidents is usually managed through event handlers or manual processes.

Option D: Custom event handlers can be configured to trigger incident creation based on specific events or conditions, automating the process within FortiAnalyzer.

Conclusion:

The two valid methods for creating an incident on FortiAnalyzer are manually on the Event Monitor page and using a custom event handler.

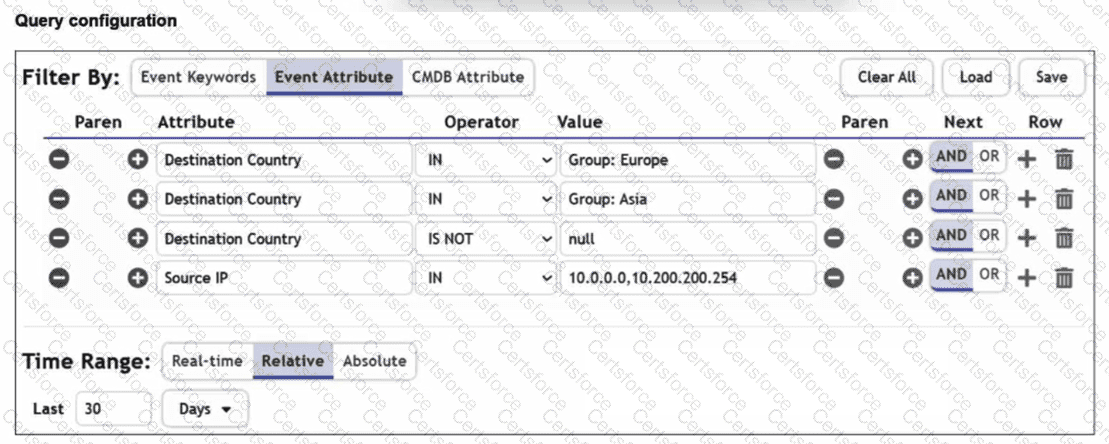

Analyzing the Query Configuration exhibit in the context of FortiSIEM 7.3 search logic reveals several syntax and logical errors that prevent the query from returning results:

Logical Operator Error (E): The user intends to find traffic to Europe OR Asia. In the exhibit, the first row (Group: Europe) is followed by a default AND operator. This forces the query to look for a single flow where the destination is simultaneously in Europe and Asia, which is logically impossible. It must be changed to OR .

Missing Parentheses (C): When combining OR and AND logic in FortiSIEM, parentheses are required to define the order of operations. Without them, the query might evaluate " Asia AND Destination Country IS NOT null AND Source IP IN... " first. To correctly find (Europe OR Asia) that also matches the LAN segment, parentheses must group the first two rows.

Incorrect Operator for IP Range (D): The exhibit uses the IN operator for the value 10.0.0.0, 10.200.200.254. In FortiSIEM, the IN operator is used for a comma-separated list of specific values or CMDB groups. To specify a continuous range of IP addresses (the " LAN segment " ), the BETWEEN operator must be used.

Why other options are incorrect:

IS NOT null (A): In FortiSIEM, " IS NOT null " is a valid operator/value combination used to ensure a specific attribute has been successfully parsed and populated in the event record.

Time Range (B): There is no requirement for a time range to be " Absolute " when using CMDB groups; " Relative " time ranges (like the " Last 30 Days " shown) are commonly used and fully supported for such queries.

SOC Concepts and Frameworks

Understanding FortiAnalyzer Fabric Topology:

The FortiAnalyzer Fabric topology is designed to centralize logging and analysis across multiple devices in a network.

It involves a hierarchy where the supervisor node manages and coordinates with other Fabric members.

Analyzing the Options:

Option A: Downstream collectors forwarding logs to Fabric members is not a typical configuration. Instead, logs are usually centralized to the supervisor.

Option B: For effective management and log centralization, logging devices must be registered to the supervisor. This ensures proper log collection and coordination.

Option C: The supervisor does not primarily use an API to store logs, incidents, and events locally. Logs are stored directly in the FortiAnalyzer database.

Option D: For the Fabric topology to function correctly, all Fabric members need to be in analyzer mode. This mode allows them to collect, analyze, and forward logs appropriately within the topology.

Conclusion:

The correct statements regarding the FortiAnalyzer Fabric topology are that logging devices must be registered to the supervisor and that Fabric members must be in analyzer mode.

Exact Extract: “Take baselines of traffic: Understanding what normal traffic looks like in your environment is critical. By taking accurate baselines and distinguishing them from abnormal activity, you can create more true positives and reduce false positives.”

Exact Extract: “Incident: An incident in FortiSIEM is created when a correlation rule is triggered. These rules analyze incoming events and group them into incidents when a pattern or threat condition is met within a specific time period.”

The correct answer is A . The giveaway is the presence of Avg Recv Interface Discard , Avg Sent Interface Discard , and other average interface values. Those fields indicate the incident is comparing current interface behavior against a learned or stored baseline. A standard correlation rule can trigger incidents, but the more precise conclusion from this output is that the rule is baseline-profile driven. B is wrong because nothing in the output indicates FortiAI or machine-learning generated detection. D is wrong because a lookup table would enrich or match values; it would not explain baseline-average performance metrics.

Technical Deep Dive: This is a performance/anomaly style FortiSIEM incident. The current receive discard count and percentage are being evaluated against average baseline behavior for the same interface. That is materially different from a simple fixed threshold rule. In production, you would validate whether the baseline was trained during normal traffic conditions; otherwise, bad baselines create noisy incidents. FortiGate NP/CP offloading is not the deciding factor here because the detection is based on FortiSIEM telemetry and baseline analytics, not firewall packet acceleration.

Exact Extract: “FortiSIEM uses the analytics search filter conditions to create the rule subpattern Filter conditions and the search display conditions to create the rule Group by conditions. When creating rules from analytics searches, FortiSIEM always sets the Aggregate condition to COUNT(Matched Events) > = 1.”

Exact Extract: “Note that the General and Define Action tabs need manual configuration. Only the Define Condition tab, with the subpattern, is configured for you using the search results. If your search parameters contain multiple rows, all of them will be included in one subpattern.”

The correct answers are C and D . When you create a rule from a FortiSIEM analytics search, FortiSIEM converts the analytics filter rows into the rule’s Define Condition logic. If the analytics search contains multiple filter rows, FortiSIEM places them into one subpattern , not multiple independent subpatterns. FortiSIEM also automatically sets the default aggregate to COUNT(Matched Events) > = 1 , which means at least one matching event is enough unless you manually adjust the threshold.

Option A is wrong because analytics searches are based on event data, and those search conditions can be used to build a rule. Option B is wrong because the guide is explicit: General and Define Action still require manual configuration. The event type does not automatically configure the incident action.

Technical Deep Dive: Creating a rule from analytics is a shortcut, not a complete rule-design process. FortiSIEM helps by translating search filters into a subpattern filter and display fields into Group By attributes. However, an architect still must validate the aggregate threshold, define the rule metadata, and configure the incident action. In real SOC design, you rarely leave COUNT(Matched Events) > = 1 unchanged for noisy detections; you tune it based on baseline frequency, event criticality, and time window. This is SIEM correlation logic only; FortiGate NP/CP offloading is irrelevant because no packet forwarding or ASIC inspection is involved.

Slot 1: vars.artifacts

Slot 2: json_query

Slot 3: ( " data.results[?type== ' FileHash-MD5 ' ]

Slot 4: value

Exact Extract: “You can assign specific fields from your connector action output to their own variables and further manipulate the data using Jinja filters. This approach allows you to efficiently extract, clean, and prepare information for use in later steps of your automation.”

Exact Extract: The guide shows the same Jinja pattern:

{{ vars.steps.Advanced_Search_Query.data.events | json_query( ' [].attributes.srcIpAddr ' ) | unique }}

and explains that similar Jinja logic applies to extracting other variables from structured output.

The correct expression is {{ vars.artifacts | json_query( " data.results[?type== ' FileHash-MD5 ' ].value " ) }} because the JSON object stores artifact records under vars.artifacts.data.results. Each object in results has a type and a value. The filter condition [?type== ' FileHash-MD5 ' ] selects only records whose type is FileHash-MD5 , and .value returns only the MD5 hash strings, not the full objects.

tojson is unnecessary because the data is already structured and queryable. results, data, and value alone are incomplete because they do not filter by artifact type. The key operation is json_query , which uses a JMESPath-style expression to filter a list and project only the required field.

Technical Deep Dive: This is a classic FortiSOAR playbook parsing pattern. Use json_query when the object is already JSON-like and you know the path. The expression returns a list such as:

[ " 6aad63bcc3dd4e148f3724808955f912 " , " 9fd2b1c0e4a37658bca9d0f1e2c34567 " ]

This is automation-layer data extraction. FortiGate NP/CP offloading is irrelevant because no packet inspection or firewall data-plane forwarding is involved.
