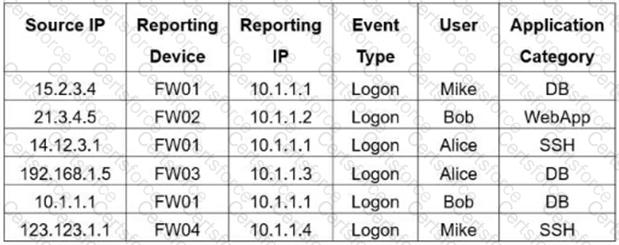

FortiSIEM grouping works by combining events that have the same values for all selected Group By attributes. The Study Guide’s rule and subpattern example states that when multiple events have the same Group By values, “they are grouped together in one row, and the count column tracks the number of events for each of those rows.” In the exhibit, the selected grouping fields are Reporting Device, Reporting IP, and Application Category. The table contains six raw rows, but two rows share the same grouped combination: FW01 / 10.1.1.1 / DB . Those two rows are collapsed into one grouped result. The other combinations are unique: FW02 / 10.1.1.2 / WebApp, FW01 / 10.1.1.1 / SSH, FW03 / 10.1.1.3 / DB, and FW04 / 10.1.1.4 / SSH. That creates five grouped rows in total. FortiSIEM does not display six because grouping removes duplicate combinations, and it does not display four because only one duplicate combination exists.

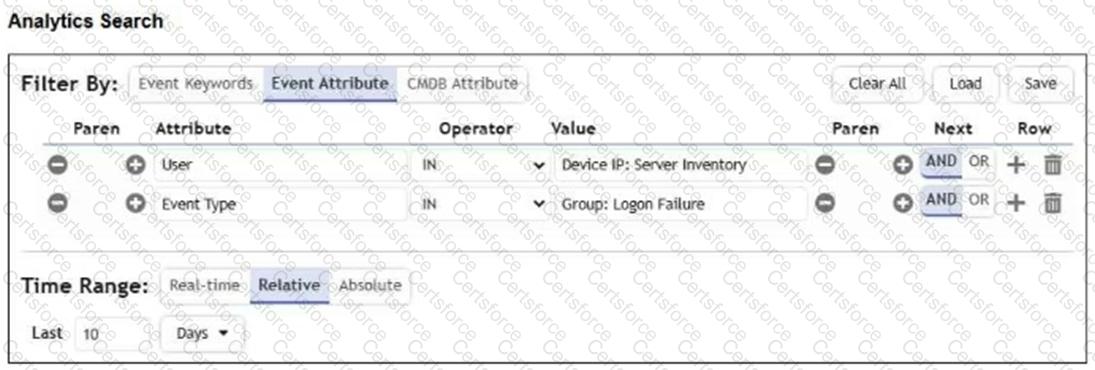

The search fails because nested analytics queries require the outer query attribute type to match the inner query display-column data type. The FortiSIEM Study Guide explicitly explains this rule in the Nested Query section: “Another important aspect to understand is that the data value types must match.” It further explains that each inner query display column has a data value type, such as IP, string, or integer, and the outer query attribute must match that type. The FortiSIEM 7.4 User Guide states the same operational requirement: for a nested query to work correctly, “the data type of the filter attribute in the outer query must match up with the data type of one certain display column in the inner query.” Therefore, if the inner query returns a string attribute but the outer query compares it against an IP-type attribute, FortiSIEM cannot produce a valid match. The issue is not the time range, not the use of User and Event Type together, and not the Boolean operator. It is an attribute type mismatch between the query and subquery.

FortiSIEM applies tags to FortiClient EMS-managed hosts through FortiEMS integration. The FortiSIEM 7.4 User Guide states that FortiSIEM supports discovery of FortiEMS servers using the FortiEMS Management Server API with username/password authentication. That supports option A: FortiEMS API credentials must be configured on FortiSIEM. The same guide explains that after FortiEMS discovery, “FortiSIEM can tag or untag a host, using classification tags on FortiEMS server.” It further explains the ZTNA workflow: in ZTNA, these tags are imported by Fortinet devices, especially FortiGate firewalls, and referenced in ZTNA firewall rules. That supports option C: the tag value used for ZTNA classification must be available/defined for the FortiEMS tagging workflow. Option B is not the best required configuration in the question because a remediation script is an execution method, not one of the two foundational settings being asked for. Option D reverses the API relationship; FortiSIEM connects to FortiEMS using FortiEMS credentials, not FortiSIEM API credentials stored on EMS.

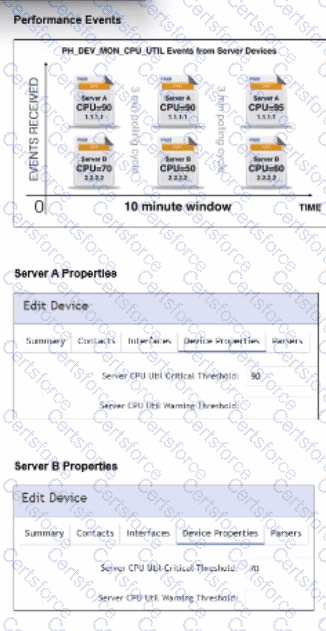

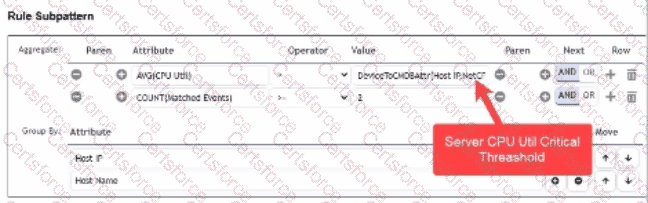

The correct answer is D because Server A satisfies the rule’s threshold and count requirements, while Server B does not. The Study Guide explains that a FortiSIEM subpattern consists of Filter , Aggregate , and Group By components. It also states that the Aggregate function defines how many or what metric values must match during the time window, while Group By controls how the matching events are grouped into rows. The performance metrics lesson explains that FortiSIEM collects performance and availability data, converts polling results into logs, and uses those metrics for performance, availability, resource utilization, and baselining. In the exhibit, the aggregate evaluates CPU utilization against the device’s CPU critical threshold and also requires a matched-event count of at least two within the 10-minute window. Server A has CPU values above its critical threshold enough times in the window, so it generates one incident. Server B has a lower configured threshold but its collected CPU values do not satisfy the required aggregate condition for the grouped server. Therefore, only Server A generates an incident.
