The QSFP28 ports on an S5248F switch support multiple modes, including 1x100G, 1x40G, 2x50G, and 4x25G. These modes provide flexibility in network design and enable the switch to support different types of network connections and bandwidth requirements.

References:

Dell S5248F Switch Data Sheet

Dell Technologies InfoHub

When installing Enterprise SONIC from an HTTP server using the Open Network Install Environment (ONIE), the management interface typically used for network installations is eth0. This is the default interface ONIE uses for network connectivity to retrieve installation images and other configuration files.

References:

Dell Technologies SONiC documentation

ONIE User Guide

Each port-group on the S5200 series switches consists of 4 ports. This grouping allows for efficient management and configuration of the switch ports in sets.

References:

Dell S5200 Series Switches Documentation

Dell Technologies InfoHub

According to the Dell SONiC documentation, a single physical port can be a member of only one port channel at a time. This restriction ensures the consistency and integrity of link aggregation configurations.

References:

Dell Networking SONiC: How to Configure Port Channels

Dell Technologies InfoHub

BGP EVPN (Border Gateway Protocol Ethernet VPN) is used in a VXLAN fabric to distribute MAC address reachability information between switches. In this scenario, Switch 1 uses BGP EVPN to advertise the locally learned MAC addresses to Switch 2. This distribution of MAC addresses enables the switches to build and maintain an efficient forwarding table, facilitating communication across the VXLAN fabric.

References:

Dell Technologies SONiC documentation

BGP EVPN Configuration Guide

ZTP (Zero Touch Provisioning) is used to automate the configuration of switches, especially useful in scenarios where a failed unit needs to be replaced. By using ZTP, the switch can automatically download and apply the necessary configuration scripts upon boot-up, reducing the need for manual intervention and speeding up the deployment process.

References:

Dell Technologies SONiC documentation

Zero Touch Provisioning Guide

An iBGP (Internal Border Gateway Protocol) neighbor relationship is established between two BGP routers within the same autonomous system (AS). This relationship allows for the exchange of routing information within the AS, ensuring that internal routes are propagated correctly.

References:

Dell Technologies SONiC Routing Guide

BGP Configuration Guide

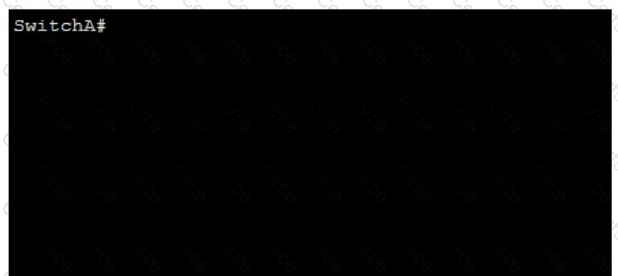

Here are the steps to create the VTEP and map the VNI to the VLAN:

Enter Configuration Mode:

SwitchA# configure terminal

Create VTEP Interface:

SwitchA(config)# interface vtep1

SwitchA(config-if-vtep1)# ip address 10.10.10.1/24

SwitchA(config-if-vtep1)# exit

Map VNI 400 to VLAN 40:

SwitchA(config)# vlan 40

SwitchA(config-vlan)# vn-segment 400

SwitchA(config-vlan)# exit

Enable ARP Neighbor Suppression:

SwitchA(config)# interface Vlan40

SwitchA(config-if-Vlan40)# ip address 192.168.40.254/24

SwitchA(config-if-Vlan40)# vxlan arp-suppression

SwitchA(config-if-Vlan40)# exit

Save Configuration:

SwitchA# write memory

Enter Configuration Mode:

Begin by entering the global configuration mode to make changes to the switch configuration.

Create VTEP Interface:

Enter the interface configuration mode for the VTEP interface named vtep1 using interface vtep1.

Assign the IP address 10.10.10.1/24 to the VTEP interface using the ip address command.

Exit the interface configuration mode.

Map VNI 400 to VLAN 40:

Enter the VLAN configuration mode for VLAN 40 using vlan 40.

Map the VNI 400 to VLAN 40 using the vn-segment 400 command.

Exit the VLAN configuration mode.

Enable ARP Neighbor Suppression:

Enter the interface configuration mode for VLAN 40 using interface Vlan40.

Assign the anycast IP address 192.168.40.254/24 to the VLAN interface using the ip address command.

Enable ARP neighbor suppression using the vxlan arp-suppression command.

Exit the interface configuration mode.

Save Configuration:

Save the configuration to ensure the changes persist after a reboot using the write memory command.

References:

Dell Technologies Networking - SONiC

Dell Enterprise SONiC Deployment Guide

These steps provide a comprehensive guide to configure a VTEP and map the VNI to VLAN 40 on Switch A, ensuring the specific requirements for IP addressing and ARP neighbor suppression are met.

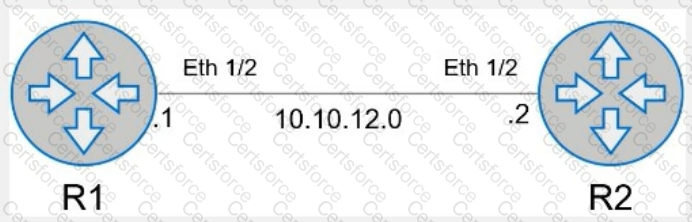

Here is the step-by-step configuration for R1:

Enter BGP Configuration Mode:

R1# configure terminal

R1(config)# router bgp 1

Configure the BGP Neighbor:

R1(config-router)# neighbor 10.10.12.2 remote-as 2

Redistribute Connected Routes into BGP:

R1(config-router)# redistribute connected

Exit BGP Configuration Mode and Save the Configuration:

R1(config-router)# end

R1# write memory

Comprehensive Detailed Step by Step Explanation with References:

Enter BGP Configuration Mode:

To configure BGP on R1, you need to enter global configuration mode and then enter BGP configuration mode with the AS number. Since R1 is in AS 1, you use the command router bgp 1.

Configure the BGP Neighbor:

BGP neighbors must be manually specified. In this case, R1's neighbor is R2, which has an IP address of 10.10.12.2 and resides in AS 2. The command neighbor 10.10.12.2 remote-as 2 establishes this relationship.

Redistribute Connected Routes into BGP:

To ensure that all connected routes on R1 are advertised via BGP, you use the redistribute connected command. This ensures that any connected IPv4 routes are redistributed into BGP, meeting the requirement to advertise current and future connected routes.

Exit BGP Configuration Mode and Save the Configuration:

Once the configuration is complete, you exit BGP configuration mode by typing end and then save the configuration with the write memory command. This ensures that the changes persist after a reboot.

References:

Cisco BGP Configuration Guide

Dell Technologies Networking - SONiC

Dell Enterprise SONiC Deployment Guide

These steps provide a comprehensive guide to configure R1 to meet the specified requirements for BGP peering and route redistribution.

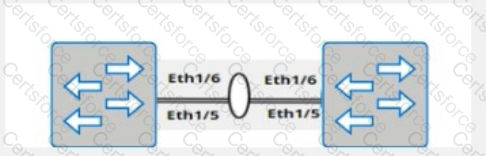

Here are the steps to configure the peer link on SwitchA:

Enter Configuration Mode:

SwitchA# configure terminal

Create VLAN 101:

SwitchA(config)# vlan 101

Create Port-Channel 100:

SwitchA(config)# interface port-channel 100

SwitchA(config-if-po100)# switchport mode trunk

SwitchA(config-if-po100)# switchport trunk allowed vlan 101

SwitchA(config-if-po100)# exit

Assign Physical Interfaces to Port-Channel 100:

SwitchA(config)# interface ethernet 1/5

SwitchA(config-if-eth1/5)# channel-group 100 mode active

SwitchA(config-if-eth1/5)# exit

SwitchA(config)# interface ethernet 1/6

SwitchA(config-if-eth1/6)# channel-group 100 mode active

SwitchA(config-if-eth1/6)# exit

Configure MC-LAG Domain 1:

SwitchA(config)# mclag domain 1

SwitchA(config-mclag-domain)# peer-link port-channel 100

SwitchA(config-mclag-domain)# local-ip 192.168.1.1

SwitchA(config-mclag-domain)# peer-ip 192.168.1.2

SwitchA(config-mclag-domain)# system-mac 00:00:00:11:11:11

SwitchA(config-mclag-domain)# exit

Save Configuration:

SwitchA# write memory

Comprehensive Detailed Step by Step Explanation with References:

Enter Configuration Mode:

Begin by entering the global configuration mode to make changes to the switch configuration.

Create VLAN 101:

Create VLAN 101 to be used for the MC-LAG peer link communication.

Create Port-Channel 100:

Enter the port channel interface configuration mode using interface port-channel 100.

Set the port channel to trunk mode with switchport mode trunk.

Allow VLAN 101 on the trunk with switchport trunk allowed vlan 101.

Exit the port channel interface configuration mode.

Assign Physical Interfaces to Port-Channel 100:

Enter interface configuration mode for ethernet 1/5 and assign it to port channel 100 using the channel-group 100 mode active command.

Exit the interface configuration mode.

Repeat the same steps for ethernet 1/6.

Configure MC-LAG Domain 1:

Enter the MC-LAG domain configuration mode using mclag domain 1.

Specify the peer link port channel with peer-link port-channel 100.

Configure the local IP address as 192.168.1.1 using local-ip 192.168.1.1.

Configure the peer IP address as 192.168.1.2 using peer-ip 192.168.1.2.

Set the MC-LAG system MAC address using system-mac 00:00:00:11:11:11.

Exit the MC-LAG domain configuration mode.

Save Configuration:

Save the configuration to ensure the changes persist after a reboot using the write memory command.

References:

Dell Technologies Networking - SONiC

Dell Enterprise SONiC Deployment Guide
