Pass the EMC Storage Administrator D-PST-MN-A-24 Questions and answers with CertsForce

The component that can be replaced while the Dell EMC PowerStore is up and running isSFP(Small Form-factor Pluggable).

SFP modules are hot-swappable, meaning they can be replaced without powering down the system.

These modules are used for network connections and can be found in the network ports of the PowerStore appliance.

When replacing an SFP, it is important to ensure that the replacement is of the same type and speed as the one being replaced.

The process typically involves:

Removing the network cable from the SFP.

Unlocking the SFP from its socket.

Pulling the SFP out of the socket.

Inserting the new SFP into the socket until it clicks into place.

Reconnecting the network cable1.

For more detailed procedures on replacing SFP modules or other components, refer to the Dell PowerStore Installation and Service Guide or contact Dell Support for assistance.

To return a node from service mode to normal mode in a Dell EMC PowerStore system, the svc_rescue_state clear command should be used.This command clears the service mode state of the node and prepares it to return to normal operational mode1.

Here are the steps to perform this action:

Log in to the appliance from an SSH client.

Run the svc_rescue_state clear command to clear the boot mode.

Then, run the svc_node reboot command to reboot the node and return it to normal mode.

After the reboot, you can verify that the node has returned to normal mode by running the svc_rescue_state list command again.

It is important to follow these steps carefully to ensure that the node transitions back to normal mode without any issues.For more detailed instructions or if you encounter any problemsduring this process, refer to the Dell EMC PowerStore Service Scripts Guide or contact Dell EMC Support for assistance1.

The Dell EMC PowerStore equipment in the rack requires additional stabilitywhen shipping the system.

When preparing Dell EMC PowerStore equipment for shipping, it is crucial to ensure that the system is stable and secure to prevent any damage during transit.

Additional stability measures might include securing the equipment within the rack using appropriate brackets, using pallets designed for shipping heavy equipment, and ensuring that the rack is properly balanced.

The need for additional stability is not typically associated with environmental conditions such as humidity or temperature but is a standard precaution during the physical movement of the system to safeguard against vibrations, shocks, and impacts that can occur during shipping1.

For detailed procedures and best practices regarding the shipping and handling of Dell EMC PowerStore equipment, it is recommended to consult the official Dell EMC PowerStore documentation or contact Dell EMC support.

The base enclosure is a component that is typically only replaceable by qualified personnel. This is because the base enclosure of a Dell PowerStore system contains critical components and connections that require specialized knowledge and tools to handle properly. Replacing a base enclosure involves understanding the system’s architecture, safely disconnecting and reconnecting various components, and ensuring that the system is not compromised during the process.

The memory module, embedded I/O module, and power supply are designed to be more accessible for replacement and may fall under the category of customer-replaceable units (CRUs) or field-replaceable units (FRUs), depending on the specific model and configuration of the PowerStore system1.

For detailed procedures on replacing the base enclosure or any other components, it is recommended to refer to the official Dell PowerStore Installation and Service Guide.This guide provides step-by-step instructions and safety precautions for qualified personnel to follow when performing hardware replacements1. It is crucial to adhere to these guidelines to maintain system integrity and ensure that the storage system continues to operate effectively after the replacement.

To maximize the base enclosure capacity of a Dell EMC PowerStore 3000X system, the best configuration would be to add the largest available NVMe SSD drives.According to the Dell PowerStore Technical Primer, before attaching an NVMe expansion enclosure, all drive slots 0 to 21 in the base enclosure must be populated1. Therefore, adding 13 15360-GB NVMe SSD drives in slots 10-22 would maximize the base enclosure capacity.

Here are the steps for this configuration:

Verify that the PowerStore 3000X system supports 15360-GB NVMe SSD drives.

Ensure that there are no existing drive compatibility issues with mixing different types and sizes of drives.

Populate slots 10 through 22 with 15360-GB NVMe SSD drives.

Follow the Dell PowerStore documentation for proper drive installation procedures to ensure system compatibility and performance1.

This configuration leverages the maximum capacity drives available for the remaining slots in the base enclosure, thus providing the greatest amount of storage space within the existing hardware constraints. It is important to consult the latest Dell PowerStore documentation to confirm compatibility and any potential firmware or software requirements for this configuration.

When the error “-bash: pstcli: command not found” appears after running a PSTCLI command on a Linux host, it typically means that the shell cannot locate the pstcli executable in the directories listed in the PATH environment variable. To resolve this issue, the installation directory of pstcli needs to be added to the PATH variable. This can be done by editing the shell initialization file (such as .bashrc or .bash_profile for Bash shell) and appending the installation directory to the PATH variable.

Here are the steps to resolve the problem:

Locate the installation directory of PSTCLI. If you followed the default installation, it should be in /opt/dellemc/pstcli-version/bin/.

Open the shell initialization file in a text editor. For example, if using Bash, you might edit ~/.bashrc or ~/.bash_profile.

Add the following line to the file: export PATH=$PATH:/opt/dellemc/pstcli-version/bin/. Replace /opt/dellemc/pstcli-version/bin/ with the actual installation directory if it is different.

Save the file and reload the shell configuration by running source ~/.bashrc or source ~/.bash_profile, or simply close and reopen the terminal.

Verify that pstcli can be found by running echo $PATH and ensuring the directory is listed.

Try running the pstcli command again to confirm that the issue is resolved.

By adding the PSTCLI installation directory to the PATH variable, the shell will be able to locate the pstcli executable when the command is run1. It is important to ensure that the PATH variable is correctly set to include all necessary directories for command-line tools to function properly.If the issue persists, it may be necessary to check the installation of PSTCLI or consult the Dell EMC PowerStore documentation for further troubleshooting steps1.

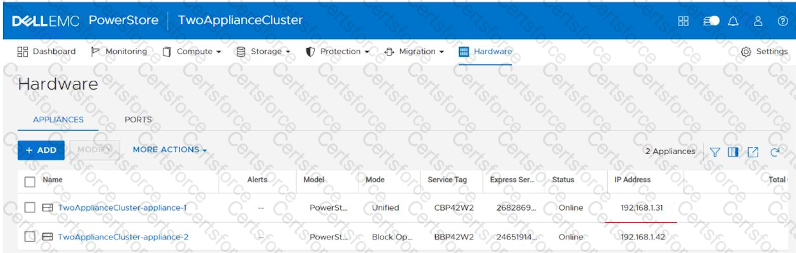

In the Dell EMC PowerStore system, the primary appliance is typically indicated by the ‘Mode’ column within the system’s user interface. The ‘Mode’ column shows the operational mode of the appliance, which can include states such as ‘Primary’, ‘Secondary’, or ‘Standby’.The primary appliance is the one that is actively servicing workloads and managing operations within the PowerStore cluster1.

The ‘Service Tag’ column represents the unique identifier for each physical appliance, the ‘Model’ column indicates the specific model of the appliance, and the ‘IP Address’ column shows the network address assigned to the appliance. While these columns provide important information, they do not indicate the role of the appliance within the cluster.

For more detailed information on identifying the primary appliance and understanding the role of each appliance in a PowerStore cluster, users can refer to the Dell PowerStore Clustering and High Availability documentation1. This documentation provides insights into the clustering architecture of PowerStore and how the primary appliance is determined during the initial configuration process.

For intra-cluster management within Dell EMC PowerStore systems, theinternal networkis used. This network is specifically named the Intra-Cluster Management (ICM) and Intra-Cluster Data (ICD) networks.Each node in a PowerStore cluster communicates with other nodes through bonded ports that are part of this internal network12.

The ICM and ICD networks are crucial for the cluster’s operation as they allow for the management and coordination of data across the cluster. In multi-appliance PowerStore clusters, these networks communicate through the top-of-rack switch network with untagged VLAN network packets that have auto-generated IPv6 addresses.For single-appliance clusters, starting in PowerStoreOS 1.0.2, the ICM network communicates through the backplane within the appliance instead of through the top-of-rack switch2.

In summary, the internal network is essential for the functioning of a PowerStore cluster as it facilitates the necessary communication between nodes for management and data operations. This design ensures high availability and efficient management of the storage system.

In Dell PowerStore systems, IPsec is used to encrypt traffic for the management network. IPsec (Internet Protocol Security) is a suite of protocols designed to ensure the integrity, confidentiality, and authentication of data communications over an IP network.Encrypting the management network traffic with IPsec is a best practice to secure communication between the management console and the storage system, protecting against potential eavesdropping and unauthorized access1.

The management network is responsible for the overall administration and operation of the storage system, including configuration management, performance monitoring, and system updates. By encrypting this traffic, Dell PowerStore ensures that sensitive management operations are secured.

For detailed information on configuring IPsec for the management network and other best practices for network security within Dell PowerStore environments, users should refer to the official Dell PowerStore documentation, such as the Deployment KB: PowerStore: User Network Firewall Rules Tool and the Dell PowerStore Best Practices Guide12. These documents provide comprehensive guidelines on network configurations, including firewall rules and encryption settings, to maintain the highest levels of security and system integrity.

The account credentials needed to run diagnostic commands on Dell PowerStore Maintenance are for theserviceaccount.

The service account is specifically designed for performing specialized service functions, including running diagnostic commands1.

To run service commands, you would typically:

Enable SSH in PowerStore Manager under Settings.

Use an SSH client to connect to the management IP.

Log in using the username and password for the service account2.

The service account has the necessary permissions to execute service scripts and commands that are used for diagnostics and troubleshooting3.

It is important to note that the service account password should be changed from the default during the initial configuration of the appliance for security purposes1.

For more detailed information on using the service account for diagnostics and other service tasks, refer to the Dell PowerStore Service Scripts Guide or contact Dell Support.
