To ensure a Dell PowerScale cluster can handle many active client connections, the company shouldinclude a Leaf-Spine backend networkin their system design.

Understanding Network Topologies:

Leaf-Spine Architecture:

A high-performance network topology designed to handle large amounts of east-west (node-to-node) traffic.

Consists of two network layers: leaf switches (access layer) and spine switches (aggregation layer).

Every leaf switch connects to every spine switch, providing multiple pathways and reducing bottlenecks.

Benefits for PowerScale Clusters:

Scalability:

Supports a large number of nodes and client connections without significant degradation in performance.

Low Latency:

Reduces hop count between any two endpoints, minimizing latency.

High Throughput:

Provides increased bandwidth to accommodate many active connections.

Redundancy:

Multiple pathways between nodes enhance fault tolerance.

Handling Many Active Client Connections:

Network Bandwidth:

A Leaf-Spine network ensures sufficient bandwidth is available for client connections and data movement.

Load Balancing:

Distributes client connections evenly across the network to prevent overloading any single path.

Reduced Contention:

Minimizes network congestion, leading to improved client experience.

Why Other Options Are Less Suitable:

Option B (Use the P100 node):

P100 nodes are accelerator nodes that enhance performance but do not specifically address handling many client connections.

Option C (Add maximum RAM in each node):

While increasing RAM can improve performance, it does not directly impact the cluster's ability to handle numerous client connections.

Option D (Add L3 cache to the nodes):

Adding L3 cache improves data retrieval speeds but does not significantly affect network capacity for client connections.

Dell PowerScale References:

Dell EMC PowerScale Network Design Considerations:

Discusses network topologies and their impact on cluster performance.

Dell EMC PowerScale Network Design Considerations

Dell EMC PowerScale Best Practices Guide:

Recommends network architectures for optimal performance.

Dell EMC PowerScale Best Practices

Knowledge Base Articles:

Article ID 000123002:"Implementing Leaf-Spine Architecture for PowerScale Clusters"

Article ID 000123003:"Scaling Client Connections in Dell PowerScale Environments"

When Dell Technical Support requests a part to be sent back for analysis, aDefective Material Return (DMR)process must be completed. The DMR process involves several key steps:

Receive DMR Authorization:

Dell Technical Support provides a DMR number and return instructions.

Complete Required Documentation:

Fill out any forms detailing the part's serial number, failure symptoms, and troubleshooting steps taken.

Prepare the Part for Shipment:

Properly package the defective part using anti-static materials and cushioning to prevent further damage.

Include DMR Documentation:

Attach the DMR paperwork with the shipment to ensure correct processing.

Ship the Part:

Send the package to the designated Dell Logistics center.

Completing the DMR process allows Dell to study the defective part, which can lead to product improvements and enhanced support services.

References:

Dell PowerScale Field Replacement Unit (FRU) Procedures– DMR Process

Dell Logistics Return Guidelines– Shipping and Documentation Requirements

Dell Technical Support Policies– Defective Material Return Instructions

For Dell EMC PowerScale F600 nodes, back-end connectivity is essential for node communication and cluster operations. The F600 uses Ethernet for back-end networking.

Cabling Instructions:

PCIe Slot 1 Usage:

PCIe slot 1 is designated for back-end Ethernet connections in F600 nodes.

This slot houses the network interface card (NIC) responsible for internal cluster communication.

Connecting to Back-End Ethernet Switch:

Cables from PCIe slot 1 should be connected to the back-end Ethernet switch.

Ensures that nodes can communicate over the internal network.

Key Points:

Avoiding InfiniBand References:

F600 nodes use Ethernet, not InfiniBand, for back-end networking.

Options mentioning InfiniBand switches are incorrect.

Slot Selection:

PCIe slot 3 is not used for back-end connections in F600 nodes.

Correct slot usage is critical for network functionality.

Dell PowerScale References:

Dell EMC PowerScale Hardware Installation Guide:

Cabling Diagrams for F600 Nodesillustrate the correct connections from PCIe slot 1.

Back-End Network Setupsection provides detailed instructions.

Networking Best Practices:

Use recommended cables and connectors for Ethernet connections.

Label cables and ports to prevent misconfiguration.

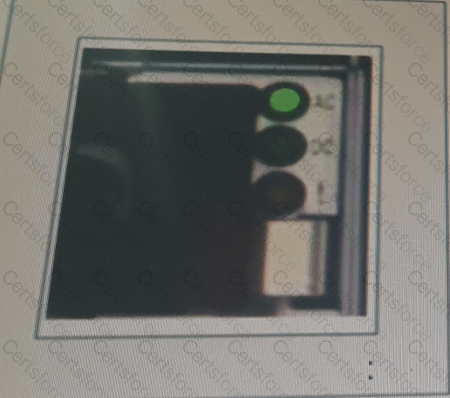

In the exhibit, the status indicators show:

AC (Alternating Current):A green light indicating the PowerScale system is receiving power from the AC input, which means it is powered on.

DC (Direct Current):The absence of a lit DC indicator means that the system is not currently converting AC power to DC power, but this does not indicate an issue with functionality based on this view.

Given that the AC light is green, the system is powered and functioning as expected. Therefore, the system is "On and healthy" based on the AC input, makingB. On and healthythe correct answer.

For installing Dell PowerScale A3000 nodes, the appropriate rack to use is theTitan-HD(High Density) rack. The Titan-HD rack is specifically designed to accommodate high-density nodes like the A3000, which are part of Dell's archive storage solutions.

Understanding the A3000 Node:

Role in PowerScale Family:

The A3000 is an archive node designed for high-capacity, cost-effective storage.

Physical Characteristics:

It has a high-density form factor to maximize storage capacity within a minimal rack space.

Titan Rack Options:

Titan-HD (High Density):

Designed for high-density nodes with deep chassis.

Supports higher weight loads due to the dense storage components.

Provides enhanced cooling and power distribution suitable for A3000 nodes.

Titan-D and Titan-P:

Titan-D is typically used for general-purpose nodes.

Titan-P may cater to performance-oriented nodes but is not specifically designed for high-density archive nodes like the A3000.

Reasons for Choosing Titan-HD:

Structural Support:

Can handle the weight and depth of A3000 nodes.

Cooling Capabilities:

Optimized airflow to cool densely packed components.

Power Management:

Equipped with power distribution units (PDUs) suitable for high-capacity nodes.

Installation Considerations:

Rack Compatibility:

Using the recommended rack ensures that mounting rails and hardware align properly.

Warranty and Support:

Compliance with Dell's installation guidelines maintains warranty and support agreements.

Dell PowerScale References:

Dell EMC PowerScale A3000 Installation Guide:

Specifies the recommended rack types for installing A3000 nodes.

Dell EMC PowerScale Site Preparation Guide:

Provides details on rack specifications, including dimensions and weight capacities.

Hardware Specifications Documentation:

Lists compatibility information for various PowerScale nodes and rack options.

In Dell EMC PowerScale Gen 6 systems, components are categorized as either Customer Replaceable Units (CRUs) or Field Replaceable Units (FRUs). CRUs are parts that customers are authorized to replace themselves without the need for a Dell EMC service technician. Understanding which components are CRUs is essential for efficient maintenance and minimal downtime.

CRUs in PowerScale Gen 6:

SSD (Solid-State Drive) and Disk Drive:

Both SSDs and HDDs are considered CRUs.

They can be hot-swapped without powering down the node.

Customers can replace failed drives to restore full functionality.

Power Supply:

Power supplies are hot-swappable and designated as CRUs.

Nodes typically have redundant power supplies; replacing one does not require shutting down the node.

Bezel:

The front bezel is considered a CRU.

It can be removed and replaced without tools.

Serves both aesthetic and airflow management purposes.

Why Option C is Correct:

SSD:As a storage component, the SSD is a CRU.

Power Supply:Designated as a CRU for quick replacement.

Disk Drive:Refers to HDDs, also CRUs.

Bezel:Easily removable by the customer.

Why Other Options are Incorrect:

Option A:Includesfan, which is not typically a CRU in Gen 6 nodes; fans are usually considered FRUs due to the complexity of replacement and potential risks.

Option B:Listsback-end switch, which is a complex component requiring a service technician (FRU).

Option D:Includesmemory card(DIMM), which is generally not a CRU because replacing memory modules requires technical expertise and poses risks if not done correctly.

Dell PowerScale References:

Dell EMC PowerScale Hardware Replacement Guide:

Chapter on Customer Replaceable Units (CRUs):

Lists the components that customers can replace.

SSDs, HDDs, power supplies, and bezels are specified as CRUs.

Safety Instructions:

Provides guidelines on how to safely replace CRUs.

Emphasizes the use of ESD (Electrostatic Discharge) precautions.

Dell EMC PowerScale OneFS Administration Guide:

Disk Management Section:

Explains how to handle drive replacements.

Details the hot-swapping procedure for drives.

Best Practices:

Before Replacing a CRU:

Verify the component has indeed failed.

Ensure you have the correct replacement part.

During Replacement:

Follow proper shutdown procedures if required (though CRUs are typically hot-swappable).

Use appropriate ESD protection.

After Replacement:

Confirm that the system recognizes the new component.

Monitor the system for any errors or warnings.

When a client plans to reconnect to a cluster automatically without interruption, they can useParallel upgradesandRolling upgradesto complete the upgrade while file services remain available.

Rolling Upgrades:

Definition:

A rolling upgrade updates one node at a time while the rest of the cluster continues to serve data.

Minimizes service disruption by ensuring that clients can continue accessing data during the upgrade.

Process:

Nodes are sequentially taken out of service, upgraded, and then returned to the cluster.

The OneFS operating system ensures data availability through redundant data paths.

Benefits:

Provides high availability.

Ideal for environments where uptime is critical.

The isi_upgrade_logs -s command is used to view thecurrent upgrade stateof a Dell PowerScale cluster during an upgrade process. This command provides real-time status information about the upgrade's progress.

Understanding isi_upgrade_logs:

A utility in OneFS that displays logs and status information related to cluster upgrades.

Helps administrators monitor and troubleshoot the upgrade process.

Using the -s Option:

The -s flag stands for "status."

When used with isi_upgrade_logs, it displays the current state of the upgrade, including which nodes have been upgraded, which are pending, and any ongoing activities.

Information Provided by the Command:

Upgrade Phases:

Shows which phase the upgrade is in (e.g., pre-checks, package installation, post-checks).

Node Status:

Indicates the status of each node (e.g., upgraded, in progress, pending).

Overall Progress:

Provides percentage completion and estimated time remaining.

Why Other Options Are Less Suitable:

A. Post upgrade errors:

While isi_upgrade_logs can display errors, the -s option specifically shows the current state, not post-upgrade errors.

C. Active upgrade errors:

Error logs can be viewed using different options, such as isi_upgrade_logs -e, but -s focuses on status, not errors.

D. Upgrade assessment results:

Upgrade assessments are performed prior to the upgrade using tools like isi upgrade cluster assess.

Results are not viewed with isi_upgrade_logs -s.

Monitoring Upgrade Progress:

Regular Checks:

Administrators should regularly run isi_upgrade_logs -s during an upgrade to monitor progress and identify any issues early.

Example Output:

The command outputs a table or list detailing the status of each node and the overall upgrade progress.

Dell PowerScale References:

Dell EMC PowerScale OneFS Upgrade Planning and Process Guide:

Provides detailed instructions on performing upgrades and monitoring their progress.

Dell EMC PowerScale OneFS Upgrade Guide

OneFS CLI Administration Guide:

Contains information on isi_upgrade_logs and other upgrade-related commands.

Dell EMC PowerScale OneFS CLI Guide

Knowledge Base Articles:

Article ID 000034567:"Monitoring Cluster Upgrades Using isi_upgrade_logs"

Article ID 000089012:"Interpreting Upgrade Status and Logs in OneFS"

For serial console connections to a Gen 5 node, specific terminal settings are required.

Required Settings:

Transfer Rate (Baud Rate):115,200 bps

Data Bits:8

Parity:None

Stop Bits:1

Flow Control:Hardware

Dell PowerScale References:

Dell EMC PowerScale Hardware Installation Guide:

Serial Connection Settings:

Provides the exact settings for terminal emulation software.

Recommends these settings for successful communication.

Best Practices:

Use reliable terminal software (e.g., PuTTY).

Verify cable connections and adapter compatibility.

The Pre-Engagement Questionnaire (PEQ) is a tool used by Dell EMC to gather essential information about a customer's environment before deployment.

PEQ Replaces Site Preparation and Planning Guide:

Purpose of PEQ:

Collects detailed information on site readiness, network configuration, and customer requirements.

Ensures that all necessary preparations are made for a smooth implementation.

Why It Replaced the Site Preparation and Planning Guide:

Streamlines the process by consolidating information gathering into a single document.

Provides a more interactive and customer-focused approach.

Why Other Options Are Incorrect:

Web Administration Guide (Option B):

Provides instructions on administering the system via the web interface.

Supportability and Compatibility Guide (Option C):

Details supported hardware and software configurations.

Configuration Guide (Option D):

Offers guidance on configuring the system post-installation.

Dell PowerScale References:

Dell EMC PowerScale Implementation Resources:

PEQ Documentation:

Describes the purpose and usage of the PEQ.

Highlights how it replaces the previous Site Preparation and Planning Guide.

Best Practices:

Complete the PEQ thoroughly and accurately.

Use the PEQ to facilitate communication between the implementation team and the customer.
