Pass the EMC Data Protection D-PDD-DY-23 Questions and answers with CertsForce

The SESSTIMEOUT setting controls the session timeout for CIFS (SMB) connections. Adjusting this value to 3600 seconds helps ensure that CIFS sessions stay active for a sufficient duration, preventing premature disconnections when the PowerProtect DD system interacts with the Windows machine. This can enhance the reliability and stability of CIFS-based backups and restores.

Explanation: When configuring a chain with ES40 SAS shelves and DS60 shelves in a PowerProtect DD environment, the maximum allowable number of shelves on that chain is three. This limitation is due to compatibility and bandwidth requirements for maintaining optimal performance and reliability across the SAS chain. Mixing different shelf models (ES40 and DS60) in a single chain affects the maximum supported configuration, and following this limitation ensures that the data transfer speeds and stability are not compromised.

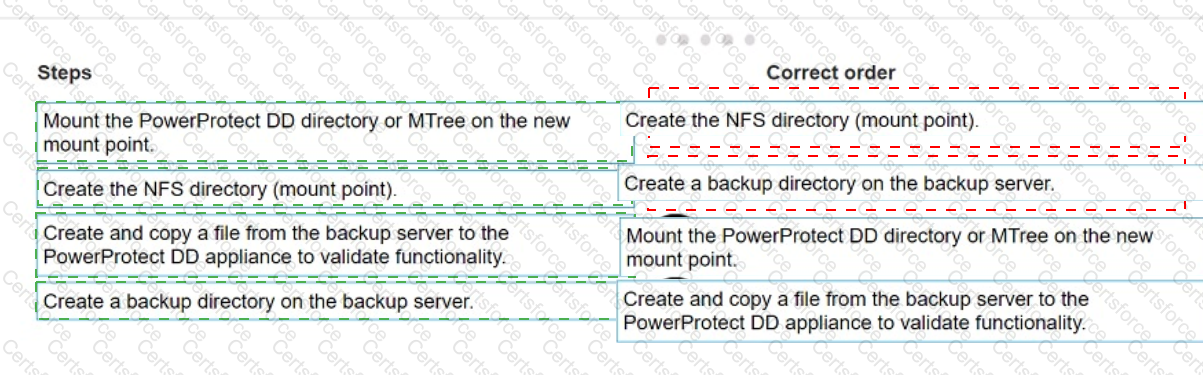

The correct order of steps to create a mount on a backup server and copy a test file to a PowerProtect DD appliance over NFS is as follows:

Create the NFS directory (mount point).

Create a backup directory on the backup server.

Mount the PowerProtect DD directory or MTree on the new mount point.

Create and copy a file from the backup server to the PowerProtect DD appliance to validate functionality.

Create the NFS Directory (Mount Point): The first step is to set up the NFS directory or mount point on the backup server. This directory will serve as the destination where the PowerProtect DD appliance will be mounted.

Create a Backup Directory on the Backup Server: Once the mount point is ready, create a dedicated directory on the backup server to store backups. This directory structure helps organize data and ensures backups are written to the correct location.

Mount the PowerProtect DD Directory or MTree on the New Mount Point: Use the NFS protocol to mount the specified PowerProtect DD directory (or MTree) onto the created mount point. This step establishes the connection between the backup server and the PowerProtect DD appliance.

Create and Copy a File from the Backup Server to the PowerProtect DD Appliance to Validate Functionality: Finally, to confirm that the mount is correctly configured and functional, create a test file on the backup server and copy it to the PowerProtect DD appliance. This test ensures that the server can write data to the appliance over the NFS mount.

This ordered sequence ensures a successful setup of the mount and verifies the connectivity and functionality of the NFS configuration on the PowerProtect DD system.

Explanation:

In the DD System Manager of PowerProtect DD, authentication methods available for configuration include RADIUS, Active Directory (AD), and Single Sign-On (SSO). Here’s a breakdown of each method:

RADIUS: Remote Authentication Dial-In User Service (RADIUS) is a networking protocol that provides centralized Authentication, Authorization, and Accounting (AAA) management for users. It enables secure user authentication across the network, especially useful for managing access in large environments.

Active Directory (AD): Integrating with AD allows administrators to manage user access through Microsoft’s directory service, leveraging existing credentials and policies. This is beneficial for organizations with established AD environments as it provides seamless integration and centralized management.

Single Sign-On (SSO): SSO allows users to authenticate once and gain access to multiple applications or systems without being prompted to log in again. This is particularly useful in environments where users need frequent access to different resources, reducing the need for repeated logins and enhancing user convenience.

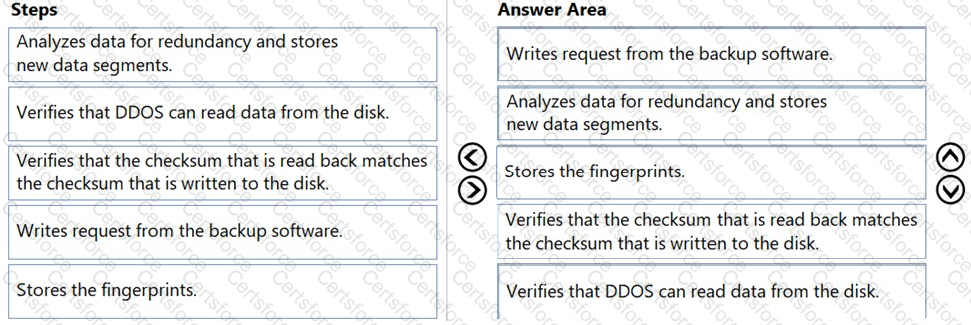

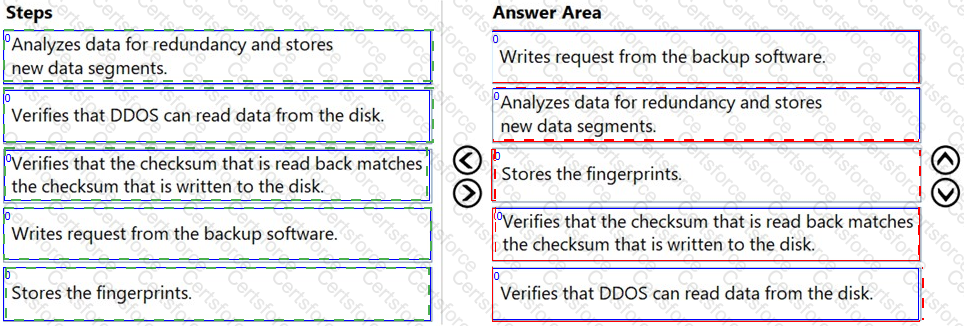

A screenshot of a computer Description automatically generated

1. Writes request from the backup software

First, the backup software sends a write request to the DD system.

2. Analyzes data for redundancy and stores new data segments

Next, DDOS analyzes the incoming data for redundancy and stores only the unique data segments to optimize storage.

3. Stores the fingerprints

After deduplication, the system stores the unique fingerprints of the data.

4. Verifies that the checksum that is read back matches the checksum that is written to the disk

This step involves verifying the data integrity by matching the written checksum with the read checksum.

5. Verifies that DDOS can read data from the disk

Finally, the system verifies that the data can be read back correctly from the disk, ensuring the write was successful.

Explanation: Expiring snapshots and initiating file system cleaning are effective ways to free up space on a full PowerProtect DD system. These actions help reclaim storage by removing old, unneeded data without impacting active backups. When a PowerProtect DD system is full and no further data can be written or deleted, the following actions can be taken to free up space:

Expire Existing Snapshots: This process involves removing old or expired snapshots that are no longer needed, which helps in reclaiming space within the system.

Start File System Cleaning: File system cleaning is a maintenance operation that reclaims unused space by consolidating and removing data that is no longer needed, such as expired or deleted data segments. This process is essential in freeing up capacity when the system is near or at full utilization.

These steps allow administrators to make space available on the system without immediately adding new storage or altering the configuration.

The command scsitarget show initiator list is used to display a list of initiators (such as the backup server HBAs) that are connected to the PowerProtect DD system. This allows the storage administrator to confirm that the zoning was successfully configured and that the HBAs from the NetWorker backup server are visible and recognized by the system.

Explanation: Enabling the security-officer authorization policy activates the dual authorization process, adding a layer of security by requiring approvals for certain actions. This feature is critical for environments with strict compliance and data governance requirements.

Explanation: The File System Settings in PowerProtect DD include data movement settings such as Throttle and Schedule to control the rate and timing of data transfers, optimizing resource utilization based on operational requirements.

In the PowerProtect DD File System Settings, the data movement system settings available include Throttle and Schedule. These settings allow administrators to control the flow of data between different storage tiers or destinations.

Throttle: This setting regulates the rate of data transfer, which helps in managing network load and ensures that data movement does not overwhelm the system resources or impact other network activities.

Schedule: Administrators can define specific times for data movement operations, which helps in optimizing resource utilization by scheduling intensive tasks during off-peak hours, thereby minimizing impact on performance during critical operational periods.

These options provide flexibility and control over how and when data is transferred, enhancing the overall efficiency and performance of data management tasks on PowerProtect DD systems.

Explanation: PowerProtect DD appliances allow direct data writing from backup clients, which improves efficiency and data transfer rates, leveraging DD Boost and other protocols for optimized backup performance without intermediate processing. In a PowerProtect DD backup infrastructure, backup clients are designed to write data directly to the appliance. This direct write capability is supported by protocols like DD Boost, which enhances the backup performance by offloading deduplication to the client side, reducing network bandwidth usage and speeding up backups. PowerProtect DD systems are optimized to handle direct data ingestion from backup clients, streamlining the data protection process without requiring intermediate storage or decompression steps. This feature simplifies the backup architecture and improves data protection efficiency.
