An engineer is designing a disaster recovery solution. In the event of a node failure, the solution should either direct all of the traffic to another node, or load-balance the traffic across the remaining nodes. Which solution should be implemented in the design?
A network consultant proposes that the configuration of the Cisco UCS servers be based on service templates to facilitate the UCS infrastructure operation. The service profiles must remain connected to the template and be modified when the template settings are changed.
Which configuration meets these requirements?

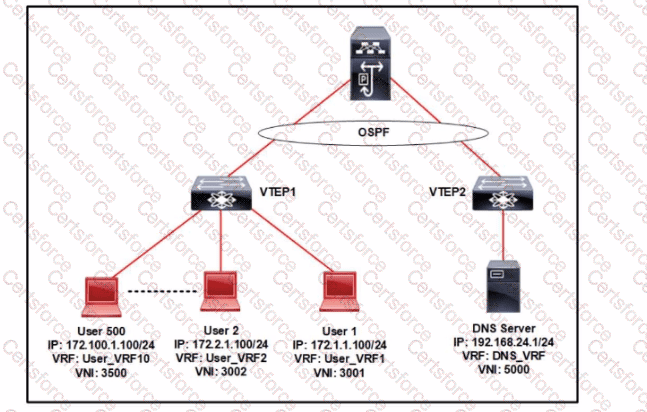

Refer to the exhibit. A customer requires a VXLAN fabric deployment with these requirements:
• DNS must be a shared service.
• Users will not require direct sharing of resources with other users.
• The deployment must use the least configuration intensive approach to achieve route leaking.
Which action must the customer take to meet these criteria?
An engineer must integrate Layer 4 to Layer 7 services within Cisco ACI Fabric. The main requirement is to have a single point of configuration for network elements and firewall policies.
Which action meets these requirements?

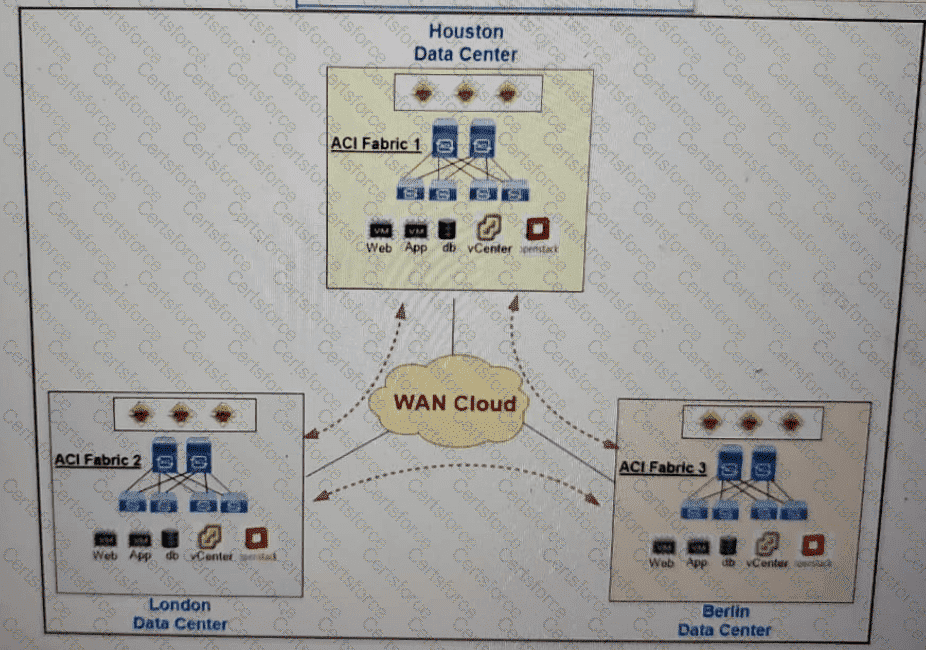

Refer to the exhibit.
A cloud provider service provider deployed three geographically separated Cisco ACI data centers. One of the customers needs to host a clustered application that is spread across the three data centers. The cluster nodes that host the application need a layer 2 topology to communicate with each other. Which Cisco ACI topology design meets these requirements?
An engineer enables the HSRP feature on a Cisco Nexus 7000 Series Switch. It must be ensured that the switch manages packets that are sent to the local vPC MAC address, remote vPC MAC address, and HSRP virtual MAC address.
Which command accomplishes this goal?
Where does Cisco UCS handle Fibre Channel traffic failover?
Which orchestration tool provides a graphical interface to manage LAN and SAN fabrics?

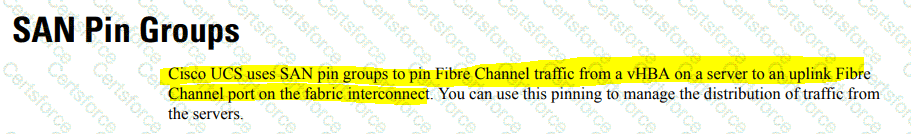

A network architect proposes a distinct Fibre Channel fabric to be used for a Cisco UCS blade server that hosts critical applications. Which action should be implemented for the fibre Channel traffic from the vHBA of this service to pass through the I/O module in the Cisco chassis to a specified uplink Fibre Channel port?
A network engineer designs a virtual network in a Cisco UCS Manager. The traffic must be explicitly forwarded from the vNIC on the server to a specific uplink Ethernet port on the Cisco fabric interconnect. Also, the server vNIC must use the same uplink Ethernet port after reboot. Finally, the design requires a OoS policy for remote direct memory access over converged Ethernet (RoCE v2). Which set of design features meets these requirements?
