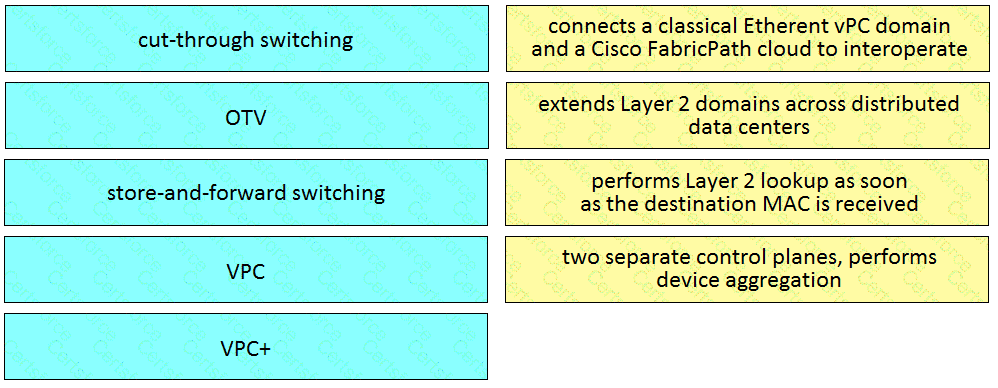

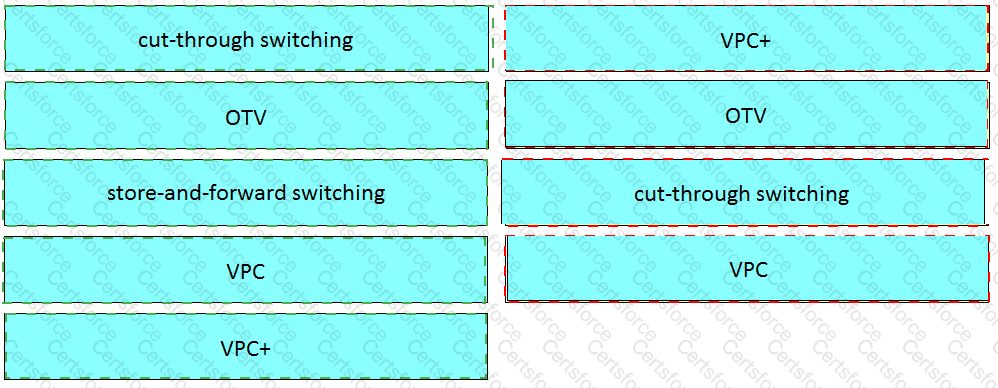

Drag and drop the data center technologies from the left onto the correct descriptions on the right. Not all technologies are used.
An engineer must design a VXLAN EVPN network. The solution should optimize broadcast, unknown unicast, and multicast (BUM) and short BUM replication, and use PIM anycast RP. Which solution should be included in the design?
A network engineer must design a data center network with four Cisco Nexus 7706 switches. The switches will be installed in primary and secondary data centers in vPC domains. The two data centers must be connected via Layer 2 links and provide the maximum throughput, redundancy, and avoid port-blocking spanning-tree design.
Which deployment model meets these requirements?
An engineer must design a Cisco HyperFlex solution to support a virtualized environment in a single data center location. The design must consider these customer requirements:
a large-scale cluster with eight or more nodes
distributed high-performance file system for virtualized servers
high fault tolerance to multiple node failures
Which action meets these objectives?
An engineer is designing a disaster recovery solution. In the event of a node failure, the solution should either direct all of the traffic to another node, or load-balance the traffic across the remaining nodes. Which solution should be implemented in the design?
Which orchestration tool must be used to manage VXLAN fabrics and includes a built-in dashboard and real-time network health summary for managed devices?
An engineer needs to design a network environment in a data center that uses Cisco Nexus 9000 Series Switches The solution must meet these requirements
• interoperate with 802 1D devices
• load-balance spanning-tree traffic
• interoperate with third-party devices
Which spanning-tree protocol meets these requirements?

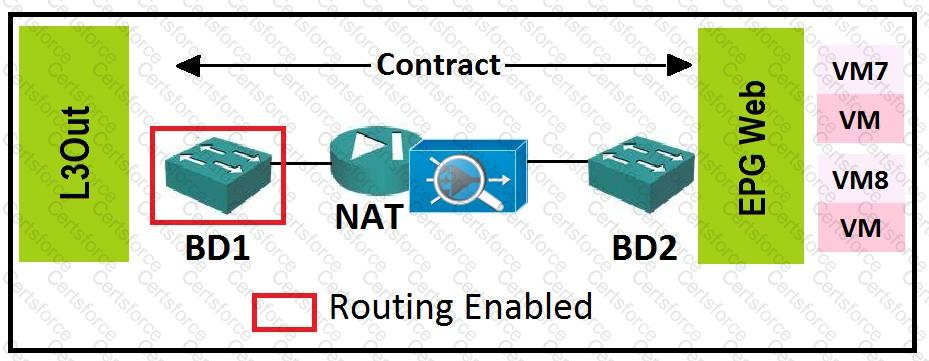

Refer to the exhibit.
What must be the default gateway of the servers in EPG Web?
A network engineer must design a Cisco HyperFlex solution based on these requirements:
• two clusters in the main data center consisting of five HyperFlex nodes
• one edge node tor the remote branch
• cluster nodes that use one rack unit of space
Which two devices should be used in the remote branch cluster for this design? (Choose two.)
An engineer working for a private telecommunication company with an employee id 4298 53 420 must evaluate connectivity to the new data centre location based on Cisco Nexus 7000 Series Switches. The IP connectivity is already supplied by the service provider. The solution must provide a Layer 2 extension and optimize the traffic localization Which technology supports these requirements?
