Pass the Cisco CCNP Enterprise 300-430 Questions and answers with CertsForce

 To resolve the issue of changing the Cisco Hyperlocation detection threshold, the engineer should shut down all radios on the controller, change the Cisco Hyperlocation detection range, and then enable the radios again. This process ensures that the new threshold settings are applied correctly across the network.

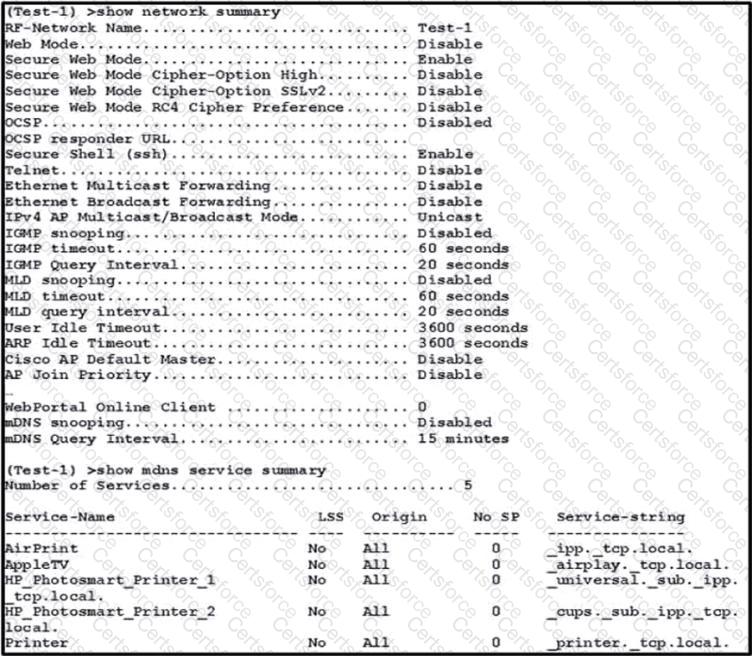

For printing services using Bonjour in a WLAN environment where mDNS services are utilized, especially with WLC firmware version 8.x, it’s essential that:

Enable mDNS and IGMP snooping (Option A): Multicast DNS or mDNS needs to be enabled for Bonjour services to function correctly as they rely on this protocol for service discovery within local networks. IGMP snooping improves network efficiency by ensuring multicast traffic is only forwarded to nodes that have explicitly requested it.

References := ( CCNP Enterprise Wireless Design ENWLSD 300-425 and Implementation ENWLSI 300-430 Official Cert Guide )

The issue with duplicate client entries from iOS clients with the private MAC address feature enabled can be resolved by breaking the high availability using the cmxha config disable command and upgrading the primary and secondary individually. This approach allows for each appliance to be upgraded without affecting the high availability pair’s synchronization and operation. References: The solution is supported by best practices for upgrading Cisco appliances in a high availability configuration, as outlined in the CCNP Enterprise Wireless Design ENWLSD 300-425 and Implementation ENWLSI 300-430 Official Cert Guide.

For a network with 3000 APs and 7000 IPS licenses, scaling to a high-end server is appropriate. This will provide the necessary resources and capabilities to support the large number of APs and the extensive licensing requirements for the Intrusion Prevention System.

 In passive fallback mode for RADIUS, when the primary RADIUS server fails, the controller will start using the secondary RADIUS server. The default timer settings include an inactive timer, which, upon expiration, prompts the controller to attempt to send RADIUS requests back to the primary server. If the primary server is responsive, the controller will resume sending requests to it. References: CCNP Enterprise Wireless Design ENWLSD 300-425 and Implementation ENWLSI 300-430 Official Cert Guide

Allowing access to the Local Area Network (LAN) without implementing a Mobile Device Management (MDM) solution poses a significant security risk to a Bring Your Own Device (BYOD) policy. Without MDM, the organization lacks control over the personal devices that connect to its network, which could lead to unauthorized access to sensitive data, potential data breaches, and the inability to enforce security policies.

To ensure reliable streaming of multicast video over a wireless link, it’s essential to optimize the multicast settings on the controller. Option B, implementing video-stream for the multicast video on the controller, is a feature that optimizes the delivery of multicast streams by converting them into unicast streams for specific clients, thus improving reliability. Option C, allowing multicast-direct to work correctly, involves enabling multicast-direct globally, which allows multicast packets to be sent directly to clients without the need for them to subscribe to a specific multicast group, enhancing efficiency and reliability. References: CCNP Enterprise Wireless Design ENWLSD 300-425 and Implementation ENWLSI 300-430 Official Cert Guide

The correct command set for configuring a Cisco Catalyst 9800 Series Wireless Controller so that the client traffic enters the network at the AP switch port is Option C:

config terminal

wireless profile policy [policy name]

no central switching

end

This configuration disables central switching, which means that client traffic will be locally switched at the access point level rather than being sent through the controller. This is useful in scenarios where local switching is preferred due to reasons such as reducing latency or conserving bandwidth on WAN links. References := ( CCNP Enterprise Wireless Design ENWLSD 300-425 and Implementation ENWLSI 300-430 Official Cert Guide )

To change the NTP server on the Cisco CMX server, the administrator should log in to the Cisco CMX CLI and issue the command set ntp server NTP_IP, where NTP_IP is the IP address of the new NTP server. This method is straightforward and does not require manual editing of configuration files or restarting the entire server. References: The process for changing the NTP server on a Cisco CMX server is detailed in the official certification guide, which provides step-by-step instructions for using the CLI.

 The customizable security report in Cisco Prime Infrastructure that shows rogue access points (APs) detected since a point in time is the “New Rogue APs” report. This report is specifically designed to track and list all newly detected rogue APs within the network from a specified time, allowing network administrators to quickly identify unauthorized devices. References := ( CCNP Enterprise Wireless Design ENWLSD 300-425 and Implementation ENWLSI 300-430 Official Cert Guide )
