VLAN Select is a feature that allows for the dynamic assignment of clients to different VLANs from a pool based on various criteria, such as load balancing or location. In a centralized wireless deployment with N+1 high availability, if clients are receiving IP addresses from a different subnet after failover despite the WLANs being configured with the same dynamic interfaces, the issue is that the second controller ' s WLAN interface mapping resolves to a different VLAN or DHCP scope. VLAN Select ensures that client VLAN assignment is consistent regardless of which controller the client connects to, preventing the subnet change behavior observed during failover. Without VLAN Select, even identically named dynamic interfaces on two WLCs may map to different VLANs if the underlying switch configuration differs. RF Protocol (Option A) controls radio parameters. AP Groups (Option B) control SSID and VLAN assignments per AP cluster. AAA Override (Option D) allows RADIUS servers to assign per-user VLANs, which requires authentication — but these SSIDs use open authentication. Reference: WLSD Study Guide — N+1 High Availability Design, VLAN Select Feature, Consistent Client VLAN Assignment Across Controllers.

Cisco ' s Embedded Wireless Controller (EWC) architecture is the ideal solution for small deployments with strict budget constraints where only the access points can be replaced. EWC is a controller function that runs directly within the Cisco Catalyst 9100 Series access point itself — eliminating the need for a dedicated physical or virtual WLC appliance. The APs serve dual roles as both the wireless radio infrastructure and the controller platform. The unified model (Option B) requires a dedicated hardware WLC such as the 9800 series, exceeding the customer ' s budget. Fabric (Option C) requires Cisco DNA Center and SD-Access infrastructure, making it cost-prohibitive for a small deployment. Cloud (Option D) requires ongoing subscription fees that may not fit a fixed one-time budget. EWC provides enterprise-grade features including centralized SSID management, RRM, and client mobility within the AP cluster — all without additional controller hardware investment. This makes it the canonical solution for SMB migrations from autonomous deployments. Reference: WLSD Study Guide — Controller Deployment Models, Embedded Wireless Controller Architecture, SMB and Branch Wireless Design.

An oil terminal presents specific wireless design constraints: the requirement is pervasive coverage (maximum geographic coverage) for low-bandwidth applications (casual web and email). These requirements prioritize coverage reach over throughput optimization. The correct approach is to keep all data rates enabled, including lower rates such as 6, 9, 12, and 18 Mbps — because in an industrial environment with challenging RF propagation paths, reflective surfaces, and potential obstructions, lower data rates extend the functional coverage range of each AP. Web and email traffic does not require high data rates; even 1-6 Mbps is sufficient for these applications. Disabling rates below 54 Mbps (Option A) would dramatically shrink each AP ' s effective coverage area, requiring many more APs for pervasive coverage and failing the primary design objective. Assigning static maximum power without RRM auto-adjustment creates excessive co-channel interference. Disabling rates below 24 Mbps (Option C) still reduces coverage reach unnecessarily. Disabling 802.11n and 802.11ac MCS rates (Option D) prevents the AP from using high-efficiency modulation for nearby clients without coverage benefit. Auto power assignment combined with all rates enabled provides the optimal balance for pervasive industrial deployment. Reference: WLSD Study Guide — Industrial WLAN Design, Coverage vs. Capacity Trade-offs, Data Rate Configuration for Pervasive Coverage.

In Ekahau Site Survey, when planning a warehouse deployment using patch (directional) antennas, the antenna downtilt setting is the critical adjustment made when placing simulated APs on the floor plan map. Patch antennas have a defined radiation pattern with a main lobe that must be aimed precisely at the intended coverage zone. In a warehouse environment, APs with patch antennas are typically wall-mounted and aimed down aisles. The downtilt angle determines the vertical component of the antenna ' s aim — adjusting the downtilt in Ekahau tilts the simulated antenna ' s main radiation lobe downward toward the warehouse floor and the working zone of RF scanner devices, rather than projecting RF energy horizontally at an ineffective angle. Ekahau allows engineers to specify the horizontal and vertical orientation of the antenna in three dimensions, and the downtilt value directly controls how the software models the antenna ' s coverage pattern in the vertical plane. AP channel (Option A) is set during channel planning, not during AP placement. Wi-Fi technology (Option B) determines the modulation and protocol standard but is set as an AP property. AP transmission power (Option D) controls cell radius but is set separately from antenna orientation. Reference: WLSD Study Guide — Ekahau Predictive Survey, Directional Antenna Configuration, Warehouse RF Design and Antenna Orientation.

When conducting a Layer 2 site survey, it is recommended to match the survey to the worst client available. This ensures that the wireless network is designed to provide adequate coverage and performance even for clients with the poorest RF capabilities, thereby providing a consistent user experience for all devices. The worst client typically has fewer antennas, lower receiver sensitivity, and less sophisticated chipsets. By designing to its limitations, the engineer guarantees that every device in the environment meets the minimum performance threshold. Using the best client (Option A) or an average client (Option C) would result in coverage gaps for less capable devices. A phone client (Option B) may have unique characteristics but is not a universally applicable standard for general survey purposes. Reference: WLSD Study Guide — Site Survey Methodology, Client Selection for Survey, Layer 2 Pre-Deployment Survey.

Raising the minimum data rate to 24 Mbps reduces the effective coverage range of each AP because clients at the cell edge operating at low data rates are effectively excluded from the cell. This shrinks cell size, reducing channel overlap between neighboring APs on the same channel. Using directional antennas limits the coverage area of some APs by focusing RF energy in specific directions rather than radiating omnidirectionally, which directly reduces the lateral overlap between adjacent APs. Increasing AP transmit power (Option B) would worsen overlap, not reduce it. Allowing UNII-2e channels (Option C) provides more channel options but does not reduce the physical cell overlap — it only provides more channels to avoid co-channel interference. Power saving mode (Option E) is a client-side power management feature unrelated to AP cell sizing during a survey. Reference: WLSD Study Guide — Channel Overlap Mitigation, Data Rate Configuration, Directional Antenna Use Cases.

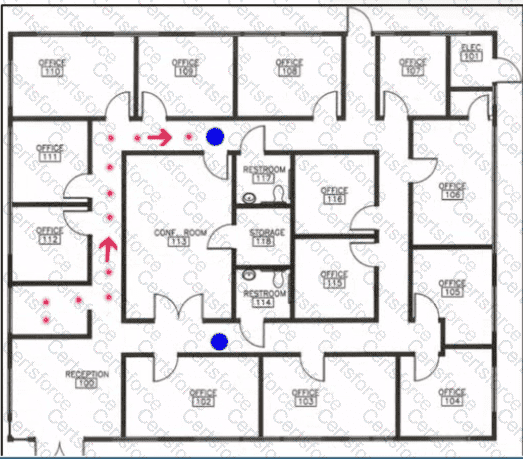

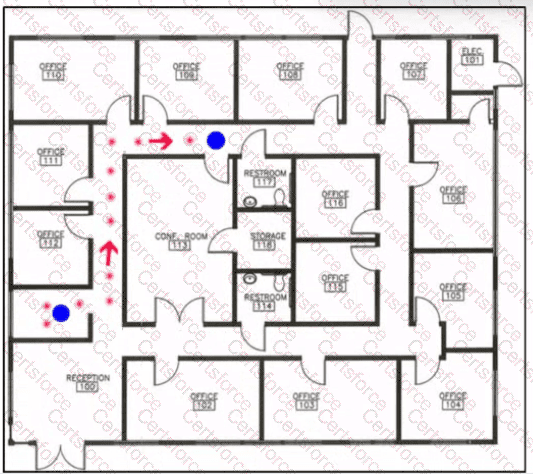

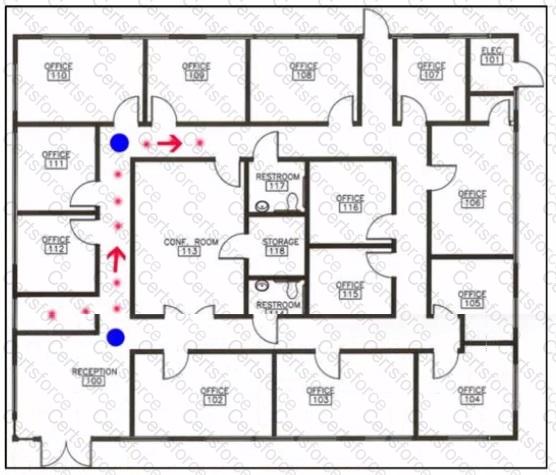

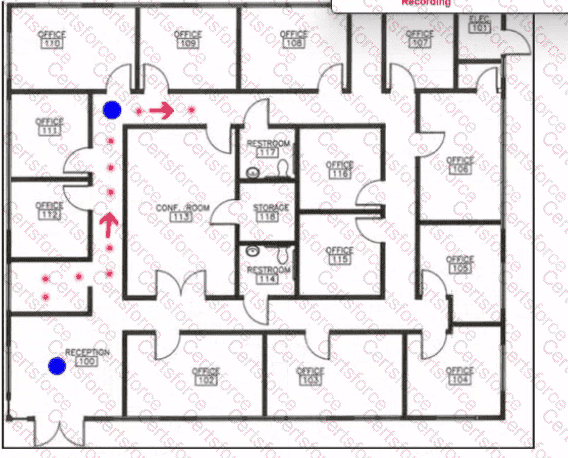

VoWLAN handoff quality is fundamentally determined by the AP placement strategy relative to the direction of user movement. When a user is in motion carrying an active voice call, the roaming event must occur before signal quality degrades below the minimum acceptable VoWLAN threshold (typically -67 dBm for voice, with a minimum SNR of 25 dB). This requires the user to encounter increasing signal strength from a neighboring AP before the current AP ' s signal drops below the threshold. The optimal AP placement follows the principle of overlapping coverage along the predicted path of travel — APs must be positioned so that as a user moves, they progressively enter the coverage zone of the next AP while still within adequate range of the current one. Floor plan B represents the correct design where APs are positioned along the travel path with sufficient cell overlap (typically 15-20%) to ensure seamless 802.11r fast BSS transitions. Incorrect floor plans place APs perpendicular to travel direction, at path endpoints only, or with insufficient overlap zones — all of which create roaming dead zones where the handoff occurs too late, causing voice call disruption. Reference: WLSD Study Guide — VoWLAN AP Placement, Roaming Design for Moving Users, Cell Overlap and Fast Transition Planning.

In an N+1 redundancy deployment, an AP ' s ability to return to its designated primary WLC after that controller recovers depends on two distinct configuration requirements working in concert. First, the AP Fallback feature (Option C) must be enabled on the WLC. AP Fallback instructs APs to monitor the availability of their configured primary controller and automatically reconnect to it when it becomes available again, rather than remaining permanently joined to the N+1 backup controller. Without AP Fallback enabled, APs stay connected to whichever controller they most recently joined. Second, the APs must have their primary WLC information correctly configured (Option D). If an AP does not have the primary controller ' s name, IP address, or FQDN correctly set, it cannot identify when its designated primary has recovered and therefore cannot initiate a return fallback. DHCP Option 43 (Option A) is used for initial AP discovery only. Secondary WLC configuration (Option B) addresses failover direction but not the return path. AP failover priority (Option E) controls which APs are moved first during a failover event, not whether fallback occurs. Reference: WLSD Study Guide — N+1 Redundancy Design, AP Fallback Configuration, Controller Primary, Secondary and Tertiary Assignment.
