 Identify the Data Link: Select the table cell that shows the chain link with a padlock icon. This indicates it is linked to an external data source.

 Locate the Data Link: Right-click the table and choose Data Links. Note the file path of the linked data file.

 Open the Data Link File: Open the linked data file (e.g., an Excel spreadsheet) in its respective application.

 Edit the Cell: Make the necessary changes to the cell in the external data file and save the changes.

 Update in AutoCAD: Return to AutoCAD and the table should automatically update to reflect the changes made in the external file.

References:

AutoCAD Help Documentation on Data Linking in Tables

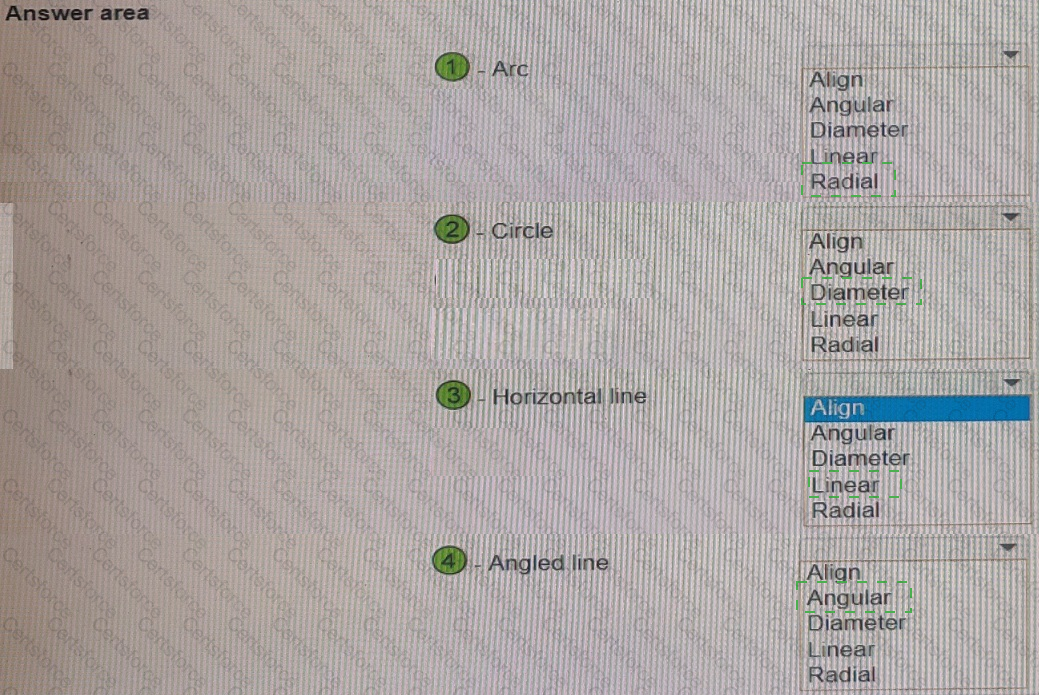

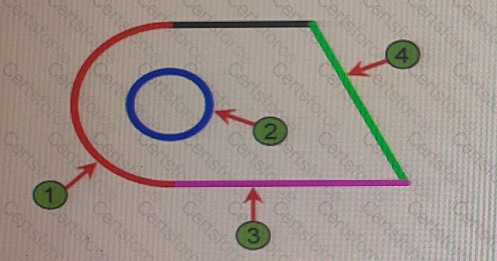

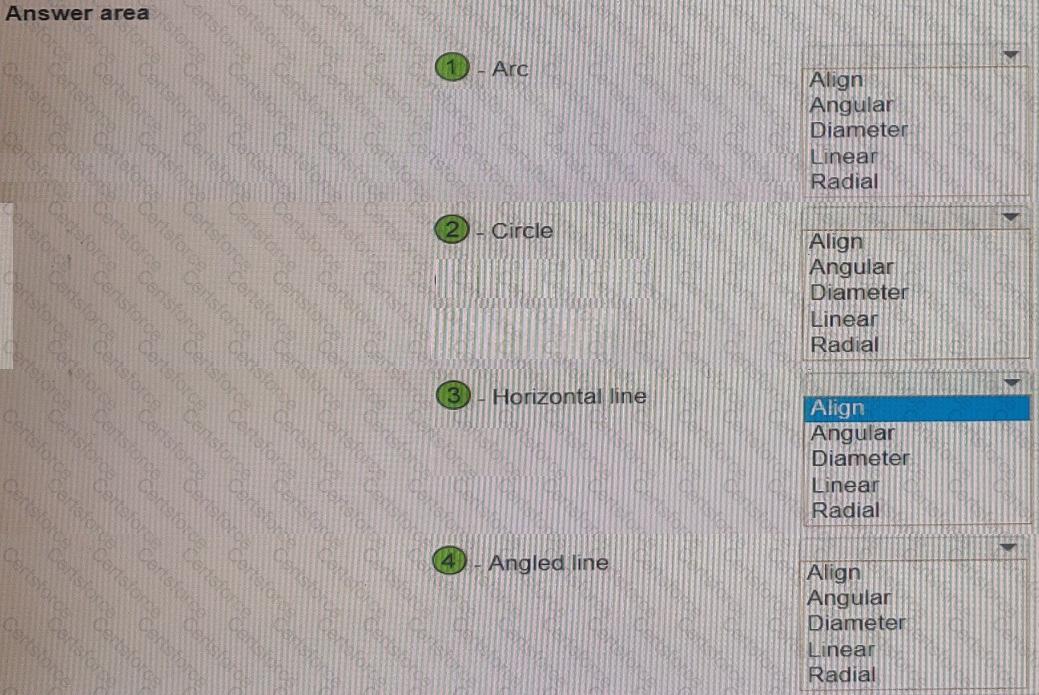

When you hover over the arc (1), you will see a radius dimension type preview.

When you hover over the circle (2), you will see a diameter dimension type preview.

When you hover over the horizontal line (3), you will see a horizontal linear dimension type preview.

When you hover over the angled line (4), you will see an angular dimension type preview.

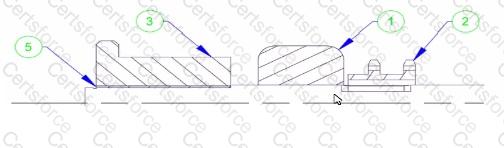

Understanding Multileader Components:

Multileader annotations consist of a leader line and a block (circle in this case).

The display of these components is influenced by their layer and color settings.

Layer and Color Settings:

The leader portion appears blue because it is on the LEADERS layer which is set to blue.

The circle block appears green because its content is on Layer 0 and set to ByBlock. This means the block takes on the properties of the layer it is inserted on unless overridden.

Combination of Color Settings:

Option D: ByLayer for the leader and Green for the block results in the leader being blue (from the LEADERS layer) and the block being green (explicitly set to green).

Option B: ByLayer for both the leader and block means the leader is blue (from the LEADERS layer) and the block inherits the green color set in its definition.

Conclusion:

The two correct combinations to achieve the described color settings are ByLayer Green and ByLayer ByLayer.

References:

AutoCAD Help Documentation on Multileaders.

AutoCAD User Guide on Layer and Color Management.

Understanding Traces:

Traces in AutoCAD allow multiple users to collaborate on a drawing by adding comments and updates.

Each Trace keeps a history of contributions and modifications made by different users.

Adding Information to Existing Trace:

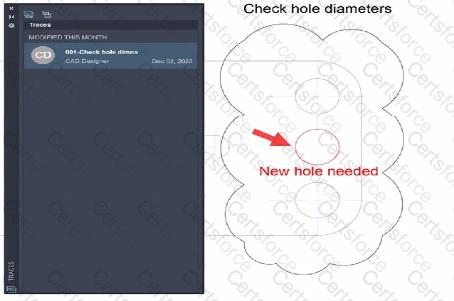

When a CAD designer updates a drawing by adding a new hole, this action is recorded in the existing Trace.

The Trace palette will show contributors and modifications, maintaining a detailed record.

Expected Result:

After adding the new hole, the existing Trace will be updated to show another contributor.

This helps in tracking changes and identifying who made specific updates.

Conclusion:

The Traces palette will display another contributor in the existing Trace after the update.

References:

AutoCAD User Guide on Using Traces.

AutoCAD Help Documentation on Collaboration Tools.

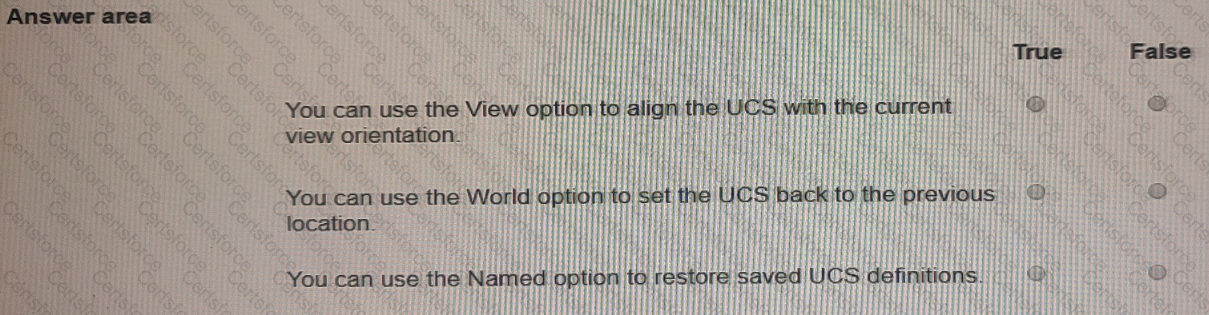

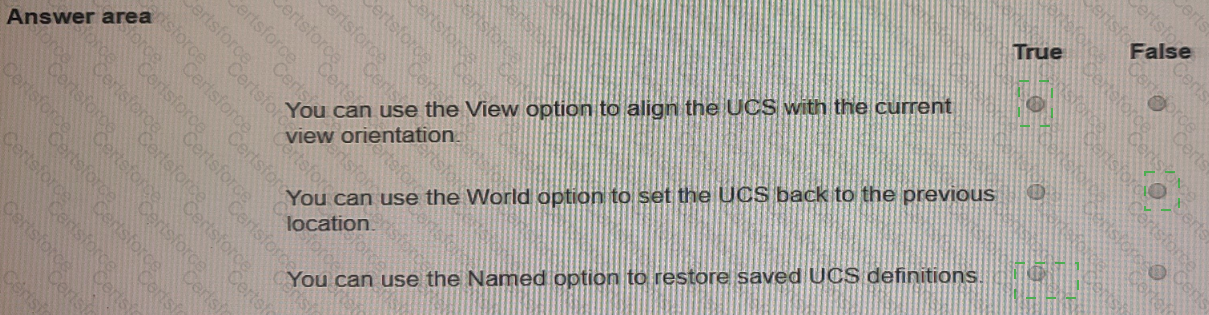

TrueAccording to 1 and 2, UCS is a command that sets the user coordinate system (UCS) which establishes the XY work plane and Z-axis direction for drawing and modeling.

Based on 1, you can use the View option to align the UCS with the current view orientation. This option rotates the UCS so that it matches your current view of a 3D model. https://knowledge.autodesk.com/support/autocad/learn-explore/caas/CloudHelp/cloudhelp/2016/ENU/AutoCAD-Core/files/GUID-0BE49DA1-B323-4758-B49B-4C497D194C7A-htm.html

Falseccording to 1 and 2, UCS is a command that sets the user coordinate system (UCS) which establishes the XY work plane and Z-axis direction for drawing and modeling.

Based on 1, you can use the World option to set the UCS back to its default orientation. This option resets the UCS so that it matches the WCS (world coordinate system).

https://knowledge.autodesk.com/support/autocad/learn-explore/caas/CloudHelp/cloudhelp/2016/ENU/AutoCAD-Core/files/GUID-0BE49DA1-B323-4758-B49B-4C497D194C7A-htm.html

TrueAccording to 1 and 2, UCS is a command that sets the user coordinate system (UCS) which establishes the XY work plane and Z-axis direction for drawing and modeling.

Based on 1, you can use the Named option to save or restore named UCS definitions. This option allows you to create custom UCSs and switch between them easily.

https://knowledge.autodesk.com/support/autocad/learn-explore/caas/CloudHelp/cloudhelp/2016/ENU/AutoCAD-Core/files/GUID-0BE49DA1-B323-4758-B49B-4C497D194C7A-htm.html

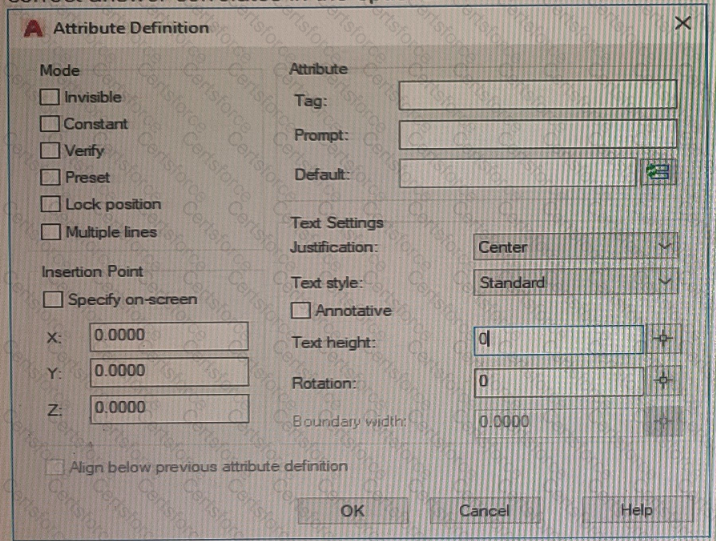

the mode that should be used if you want the default value of the attribute assigned upon insertion where the attribute value cannot be changed is Constant. This option sets the attribute value as constant and prevents it from being modified during a block insertion or later.

https://knowledge.autodesk.com/support/autocad/learn-explore/caas/CloudHelp/cloudhelp/2015/ENU/AutoCAD-Core/files/GUID-92A7CE9D-2E1C-415E-A1BF-5CB35D5E2D38-htm.html

To ensure that all drawing information is visible when plotting from an ISO A3 layout to an ISO A4 sheet size, the correct plot settings need to be applied.

Open the Plot Dialog:

Type PLOT in the command line and press Enter.

Set Plot Area:

In the Plot dialog, set the "Plot Area" to Extents. This ensures that everything within the drawing extents will be included in the plot.

Adjust Plot Scale:

Set the "Plot Scale" to Fit to paper. This option will automatically scale the drawing to fit within the ISO A4 sheet size (297 mm x 210 mm).

Other Settings:

Ensure that the correct printer/plotter and paper size (ISO A4) are selected.

Optionally, check the "Center the plot" option to ensure the drawing is centered on the sheet.

Save Changes:

Click on the "Preview" button to check the output. If everything looks correct, click "OK" to plot the drawing.

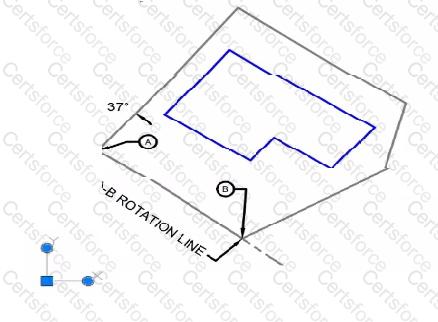

Set DVIEW Twist Angle:

Type DVIEW in the command line and press Enter.

Select the object (or type TW for Twist).

Enter 37 for the twist angle.

Set SNAPANG Value:

Type SNAPANG in the command line and press Enter.

Enter 37 for the snap angle.

Verify UCS Alignment:

Ensure the UCS icon is aligned parallel to the A-B rotation line.

Draw the building relative to the aligned UCS.

References:

AutoCAD Documentation on DVIEW and SNAPANG

Autodesk Knowledge Network: Setting Up the UCS in AutoCAD

Open your drawing in AutoCAD that includes the data links to the Excel files.

Access ETRANSMIT:

Type ETRANSMIT in the command line and press Enter.

Set Up the ETRANSMIT Package:

In the Create Transmittal dialog box, click the "Transmittal Setups" button to create or modify a setup.

Ensure that "Include all files associated with the drawing" is checked. This includes all external references, images, and data links.

Choose the desired file format for the transmittal (e.g., ZIP file).

Include Data Link Files:

Make sure that the "Bind" option for external references is set to the required type (e.g., "Bind" or "Insert").

Click "OK" to close the Transmittal Setups dialog box.

Create Transmittal:

In the Create Transmittal dialog box, review the list of files to be included in the transmittal package.

Click "OK" to create the package.

Save the Transmittal:

Choose a location to save the transmittal package and provide a file name.

Click "Save".

References:

AutoCAD Documentation on ETRANSMIT

Autodesk Knowledge Network: Using ETRANSMIT in AutoCAD
