Comprehensive and Detailed In-Depth Explanation:

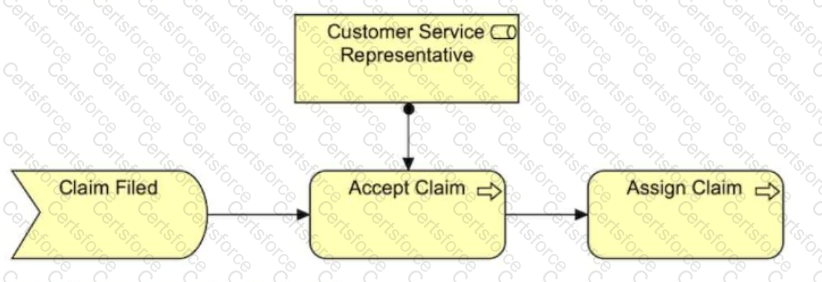

ThisArchiMate Business Layer diagramrepresentsa sequence of business processes triggered by a business event.

"Claim Filed" is a Business Event, which means it represents anexternal occurrence that initiates a process.

"Accept Claim" is a Business Process, meaning it is a structured activity that follows the event.

"Assign Claim" is another Business Process, which follows after the "Accept Claim" process.

A Customer Service Representative role is assigned to the "Accept Claim" process, but the focus of the diagram is the event-driven flow of processes.

Analysis of Answer Choices:

✅A. The Claim Filed event assigns the Customer Service Representative to participate in the Accept Claim and Assign Claim processing.→❌Incorrect

TheCustomer Service Representative role is involved only in the "Accept Claim" process, but the diagram does not indicate their role in "Assign Claim."

ArchiMate 3.2 Specification, Section 6.3.2, states thatBusiness Events trigger processes but do not assign roles.

✅B. The event Claim Filed triggers the Accept Claim process which is serviced by the Customer Service Representative role before the Assign Claim process.→❌Incorrect

WhileClaim Filed triggers Accept Claim, thefocus of the diagram is on process flow, not role assignments.

The key relationship is between the business processes, not the role.

✅C. The information that flows from Claim Filed to Accept Claim and then to Assign Claim is reviewed by the Customer Service Representative role.→❌Incorrect

TheCustomer Service Representative role is assigned to "Accept Claim," but there is no indication they review information across all steps.

The diagramshows process flow, not an explicit review process.

✅D. Business event Claim Filed triggers a business process Accept Claim which in turn triggers an Assign Claim process.→✅Correct Answer

"Claim Filed" (Business Event) triggers "Accept Claim" (Business Process), which then triggers "Assign Claim" (Business Process).

ArchiMate 3.2 Specification, Section 6.3.1, states thatBusiness Events initiate Business Processes, and processes can trigger subsequent processes.

This matches the flow depicted in the diagram.

Final Answer:✅D. Business event Claim Filed triggers a business process Accept Claim which in turn triggers an Assign Claim process.

References:

ArchiMate 3.2 Specification: Sections 6.3.1 (Business Processes) and 6.3.2 (Business Events).

Archi User Guide: Modeling event-driven process flows in business architecture.

Comprehensive and Detailed in Depth Explanation:TheActive Structureaspect of theArchiMate Core Frameworkrepresents elements thatperform behavior, such asbusiness roles(e.g., employees, partners) andsystem software(e.g., databases, middleware).

Active structure elements areresponsible for actionsin an enterprise. TheArchiMate 3.2 Specificationstates thatbusiness roles and system software are part of the Active Structure aspect.

References:

Archi User Guide​

ArchiMate 3.2 Specification

Comprehensive and Detailed In-Depth Explanation:

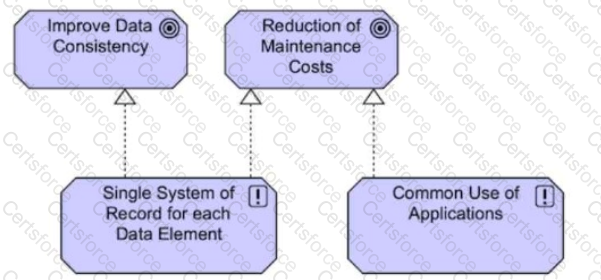

The diagram presentsPrinciples and Goals, which are core elements inArchiMate’s Motivation Layer. InArchiMate 3.2, principles represent fundamentalguidelines or constraints that influence architecture, whilegoals represent intended outcomesof an enterprise transformation.

Understanding the Diagram:

Improve Data ConsistencyandReduction of Maintenance Costsaregoals—they describedesirable future statesof the enterprise.

Single System of Record for each Data ElementandCommon Use of Applicationsareprinciples—theyguide decision-making and architecture choicesto help achieve the goals.

Therelationships between these elements indicate that the principles contribute to realizing the goals.

Analysis of Answer Choices:

✅A. Principles and the goals they realize.→✅Correct Answer

Principlesdefine fundamental rules that guide decision-making (e.g.,Single System of Record for each Data Element).

Goalsrepresent desired business outcomes (e.g.,Improve Data Consistency).

ArchiMate 3.2 Specification, Section 6.2.2, defines how principles guide enterprise architecture to realize goals.

✅B. Requirements and the meanings assigned.→❌Incorrect

Requirements describe what needs to be implemented, whereasthis diagram represents high-level principles and goals, not specific implementation needs.

ArchiMate 3.2 Specification, Section 6.2.3, differentiatesrequirements from principles and goals.

✅C. Goals and the assigned values.→❌Incorrect

While the diagram includesgoals, thelower elements are not values but principlesthat help achieve the goals.

Values in ArchiMate typically represent high-level business benefits rather than architectural guidelines.

✅D. Drivers and the associated outcomes.→❌Incorrect

Drivers represent external forces or motivations(e.g., market trends, customer demands).

This diagramdoes not include external drivers; it focuses on principles guiding internal changes.

Final Answer:✅A. Principles and the goals they realize.

References:

ArchiMate 3.2 Specification: Sections 6.2.2 (Principles) and 6.2.1 (Goals).

Archi User Guide: Understanding the relationship between principles and goals in enterprise architecture.
