The correct answer is C. 401 (UNAUTHORIZED).

According to the web search results, a 401 (UNAUTHORIZED) error message is indicative that there is a misconfigured realm or access token when installing OpenTelemetry Collector1. A 401 (UNAUTHORIZED) error message means that the request was not authorized by the server due to invalid credentials. A realm is a parameter that specifies the scope of protection for a resource, such as a Splunk Observability Cloud endpoint. An access token is a credential that grants access to a resource, such as a Splunk Observability Cloud API. If the realm or the access token is misconfigured, the request to install OpenTelemetry Collector will be rejected by the server with a 401 (UNAUTHORIZED) error message.

Option A is incorrect because a 403 (NOT ALLOWED) error message is not indicative that there is a misconfigured realm or access token when installing OpenTelemetry Collector. A 403 (NOT ALLOWED) error message means that the request was authorized by the server but not allowed due to insufficient permissions. Option B is incorrect because a 404 (NOT FOUND) error message is not indicative that there is a misconfigured realm or access token when installing OpenTelemetry Collector. A 404 (NOT FOUND) error message means that the request was not found by the server due to an invalid URL or resource. Option D is incorrect because a 503 (SERVICE UNREACHABLE) error message is not indicative that there is a misconfigured realm or access token when installing OpenTelemetry Collector. A 503 (SERVICE UNREACHABLE) error message means that the server was unable to handle the request due to temporary overload or maintenance.

The correct answer is A. Max Delay.

Max Delay is a parameter that specifies the maximum amount of time that the analytics engine can wait for data to arrive for a specific detector. For example, if Max Delay is set to 10 minutes, the detector will wait for only a maximum of 10 minutes even if some data points have not arrived. By default, Max Delay is set to Auto, allowing the analytics engine to determine the appropriate amount of time to wait for data points1

In this case, since the customer knows that the data from the over-utilized machine can be delayed by up to 10 minutes, they can modify the Max Delay setting for the detector to 10 minutes. This will prevent the detector from firing alerts before the data points arrive, and avoid false positives or missing data1

To learn more about how to use Max Delay in Splunk Observability Cloud, you can refer to this documentation1.

1: https://docs.splunk.com/observability/alerts-detectors-notifications/detector-options.html#Max-Delay

The correct answer is A. Dimensions.

Dimensions are metadata in the form of key-value pairs that are sent along with the metrics at the time of ingest. They provide additional information about the metric, such as the name of the host that sent the metric, or the location of the server. Along with the metric name, they uniquely identify a metric time series (MTS)1

Changes to dimensions result in a new MTS, because they create a different combination of metric name and dimensions. For example, if you change the hostname dimension from host1 to host2, you will create a new MTS for the same metric name1

Properties, sources, and tags are other types of metadata that can be applied to existing MTSes after ingest. They do not contribute to uniquely identify an MTS, and they do not create a new MTS when changed2

To learn more about how to use metadata in Splunk Observability Cloud, you can refer to this documentation2.

1: https://docs.splunk.com/Observability/metrics-and-metadata/metrics.html#Dimensions 2: https://docs.splunk.com/Observability/metrics-and-metadata/metrics-dimensions-mts.html

The correct answer is D. The detector is automatically linked to the chart.

When you create a detector from a chart on a custom dashboard, the detector is automatically linked to the chart. This means that you can see the detector status and alerts on the chart, and you can access the detector settings from the chart menu. You can also unlink the detector from the chart if you want to1

Changes made to the chart do not affect the detector, and changes made to the detector do not affect the chart. The detector and the chart are independent entities that have their own settings and parameters. However, if you change the metric or dimension of the chart, you might lose the link to the detector1

The alerts generated by the detector will show up in the Alerts page, where you can view, manage, and acknowledge them. You can also see them on the team landing page if you assign the detector to a team2

To learn more about how to create and link detectors from charts on custom dashboards, you can refer to this documentation1.

1: https://docs.splunk.com/observability/alerts-detectors-notifications/link-detectors-to-charts.html 2: https://docs.splunk.com/observability/alerts-detectors-notifications/view-manage-alerts.html

According to the Splunk O11y Cloud Certified Metrics User Track document1, trigger sensitivity is a setting that determines how long a signal must remain above or below a threshold before an alert is triggered. By default, trigger sensitivity is set to Immediate, which means that an alert is triggered as soon as the signal crosses the threshold. This can result in a lot of alerts, especially if the signal fluctuates frequently around the threshold value. To reduce the number of alerts, you can adjust the trigger sensitivity to a longer duration, such as 1 minute, 5 minutes, or 15 minutes. This means that an alert is only triggered if the signal stays above or below the threshold for the specified duration. This can help filter out noise and focus on more persistent issues.

According to the web search results, clicking a metric name from the results in metric finder displays the metric in Chart Builder1. Chart Builder is a tool that allows you to create and customize charts using metrics, dimensions, and analytics functions2. To save the chart created in the UI, you need to do the following steps:

Click the Save button on the top right corner of the Chart Builder. This will open a dialog box where you can enter the chart name and description, and choose the dashboard where you want to save the chart.

Enter a name and a description for your chart. The name should be descriptive and unique, and the description should explain the purpose and meaning of the chart.

Choose an existing dashboard from the drop-down menu, or create a new dashboard by clicking the + icon. A dashboard is a collection of charts that display metrics and events for your services or hosts3. You can organize and share dashboards with other users in your organization using dashboard groups3.

Click Save. This will save your chart to the selected dashboard and redirect you to the dashboard view. You can also access your saved chart from the Dashboards menu on the left navigation bar.

According to the web search results, dashboard groups are a feature of Splunk Observability Cloud that allows you to organize and share dashboards with other users in your organization1. You can create dashboard groups based on different criteria, such as service, team, role, or topic. You can also set permissions for each dashboard group, such as who can view, edit, or manage the dashboards in the group. Dashboard groups make it possible to share a collection of charts with your entire SRE organization, or any other group of users that you want to collaborate with.

The component of the OpenTelemetry Collector that allows for the modification of metadata is A. Processors.

Processors are components that can modify the telemetry data before sending it to exporters or other components. Processors can perform various transformations on metrics, traces, and logs, such as filtering, adding, deleting, or updating attributes, labels, or resources. Processors can also enrich the telemetry data with additional metadata from various sources, such as Kubernetes, environment variables, or system information1

For example, one of the processors that can modify metadata is the attributes processor. This processor can update, insert, delete, or replace existing attributes on metrics or traces. Attributes are key-value pairs that provide additional information about the telemetry data, such as the service name, the host name, or the span kind2

Another example is the resource processor. This processor can modify resource attributes on metrics or traces. Resource attributes are key-value pairs that describe the entity that produced the telemetry data, such as the cloud provider, the region, or the instance type3

To learn more about how to use processors in the OpenTelemetry Collector, you can refer to this documentation1.

1: https://opentelemetry.io/docs/collector/configuration/#processors 2: https://github.com/open-telemetry/opentelemetry-collector-contrib/tree/main/processor/attributesprocessor 3: https://github.com/open-telemetry/opentelemetry-collector-contrib/tree/main/processor/resourceprocessor

According to the Splunk Observability Cloud documentation1, to create a detector, you need the following information:

Alert Signal: This is the metric or dimension that you want to monitor and alert on. You can select a signal from a chart or a dashboard, or enter a SignalFlow query to define the signal.

Alert Condition: This is the criteria that determines when an alert is triggered or cleared. You can choose from various built-in alert conditions, such as static threshold, dynamic threshold, outlier, missing data, and so on. You can also specify the severity level and the trigger sensitivity for each alert condition.

Alert Settings: This is the configuration that determines how the detector behaves and interacts with other detectors. You can set the detector name, description, resolution, run lag, max delay, and detector rules. You can also enable or disable the detector, and mute or unmute the alerts.

Alert Message: This is the text that appears in the alert notification and event feed. You can customize the alert message with variables, such as signal name, value, condition, severity, and so on. You can also use markdown formatting to enhance the message appearance.

Alert Recipients: This is the list of destinations where you want to send the alert notifications. You can choose from various channels, such as email, Slack, PagerDuty, webhook, and so on. You can also specify the notification frequency and suppression settings.

The correct answer is D. Each data marker represents the sum of API calls in the hour leading up to the data marker.

The metric demo.trans.count is a cumulative counter metric, which means that it represents the total number of API calls since the start of the measurement. A cumulative counter metric can be used to measure the rate of change or the sum of events over a time period1

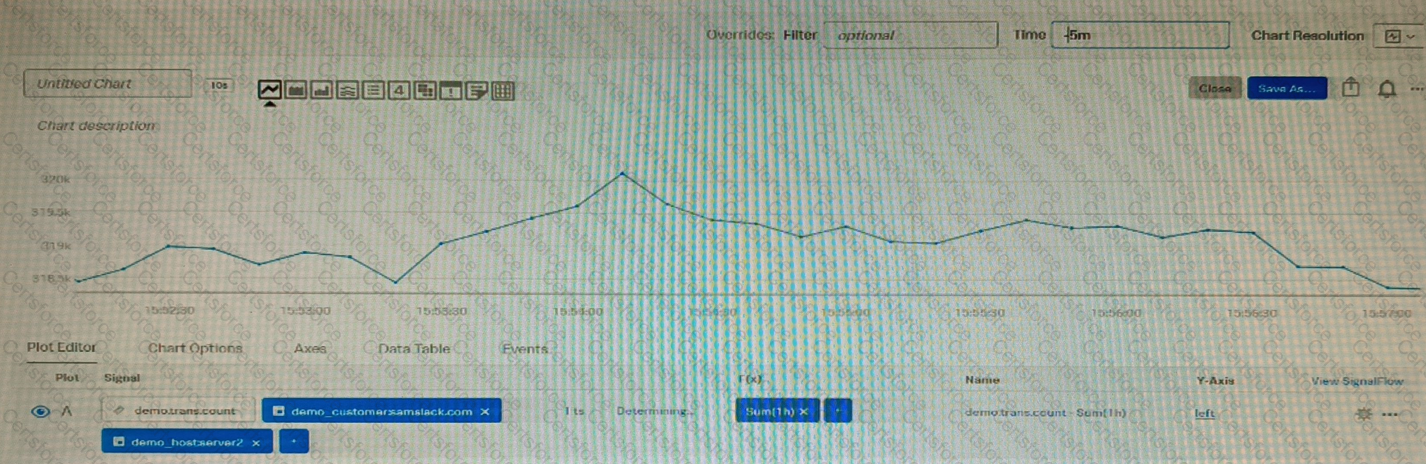

The chart below shows the metric demo.trans.count with a one-hour rollup and a line chart type. A rollup is a way to aggregate data points over a specified time interval, such as one hour, to reduce the number of data points displayed on a chart. A line chart type connects the data points with a line to show the trend of the metric over time2

Each data marker on the chart represents the sum of API calls in the hour leading up to the data marker. This is because the rollup function for cumulative counter metrics is sum by default, which means that it adds up all the data points in each time interval. For example, the data marker at 10:00 AM shows the sum of API calls from 9:00 AM to 10:00 AM3

To learn more about how to use metrics and charts in Splunk Observability Cloud, you can refer to these documentations123.

1: https://docs.splunk.com/Observability/gdi/metrics/metrics.html#Metric-types 2: https://docs.splunk.com/Observability/gdi/metrics/charts.html#Data-resolution-and-rollups-in-charts 3: https://docs.splunk.com/Observability/gdi/metrics/charts.html#Rollup-functions-for-metric-types
