The search string below returns events from the data model named Application_State.

| datamodel Application_State All_Application_State search

The search string does the following:

It uses the datamodel command to access a data model in Splunk. The datamodel command takes two arguments: the name of the data model and the name of the dataset within the data model.

It specifies the name of the data model as Application_State. This is a predefined data model in Splunk that contains information about web applications.

It specifies the name of the dataset as All_Application_State. This is a root dataset in the data model that contains all events from all child datasets.

It uses the search command to filter and transform the events from the dataset. The search command can use any search criteria or command to modify the results.

Therefore, the search string returns events from the data model named Application_State.

A chart is a graphical representation of your search results that shows the relationship between two or more fields2. You can display a chart in stack mode by changing the Stack Mode option in the Format menu2. Stack mode allows you to stack multiple series on top of each other in a chart to show the cumulative values of each series2. Therefore, option C is correct, while options A, B and D are incorrect because they are not ways to display a chart in stack mode.

The correct answer is B. The value for the productName field because it appears first.

The coalesce function is an eval function that takes an arbitrary number of arguments and returns the first value that is not null. A null value means that the field has no value at all, while an empty value means that the field has a value, but it is “” or zero-length1.

The coalesce function can be used to combine fields that have different names but represent the same data, such as IP address or user name. The coalesce function can also be used to rename fields for clarity or convenience2.

The syntax for the coalesce function is:

coalesce(,,…)

The coalesce function will return the value of the first field that is not null in the argument list. If all fields are null, the coalesce function will return null.

For example, if you have a set of events where the IP address is extracted to either clientip or ipaddress, you can use the coalesce function to define a new field called ip, that takes the value of either clientip or ipaddress, depending on which is not null:

| eval ip=coalesce(clientip,ipaddress)

In your example, you have a set of events where the product name is extracted to either productName or productid, and you use the coalesce function to define a new field called productINFO, that takes the value of either productName or productid, depending on which is not null:

| eval productINFO=coalesce(productName,productid)

If both productName and productid fields have values for a given event, the coalesce function will return the value of the productName field because it appears first in the argument list. The productid field will be ignored by the coalesce function.

Therefore, the value for the productName field will be used to populate the productINFO field if both fields have values for a given event.

The explanation is as follows:

The transaction command is used to find transactions based on events that meet various constraints12.

Transactions are made up of the raw text (the _raw field) of each member, the time and date fields of the earliest member, as well as the union of all other fields of each member1.

The startswith option is used to define the first event in a transaction by specifying a search term or an expression that matches the event13.

For example, | transaction clientip JSESSIONID startswith="view" will create transactions based on the clientip and JSESSIONID fields, and the first event in each transaction will contain the term “view” in the _raw field2.

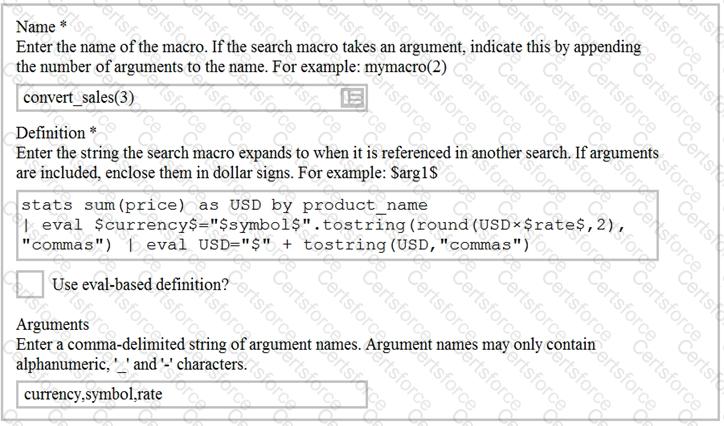

The correct answer is C. ‘weekly_sales (3.99, 10)’. This is because search macros accept arguments without quotation marks or dollar signs, and the number of arguments must match the number of parameters defined in the macro. The other options are incorrect because they either use quotation marks or dollar signs around the arguments, or they provide a different number of arguments than the macro expects. You can learn more about how to use search macros in searches from the Splunk documentation1.

This search string is not valid: index=web status=50* | chart count over host,status2. This search string uses an invalid syntax for the chart command. The chart command requires one field after the over clause and optionally one field after the by clause. However, this search string has two fields after the over clause separated by a comma. This will cause a syntax error and prevent the search from running. Therefore, option A is correct, while options B and C are incorrect because they are valid search strings that use the chart command correctly.

When you define a calculated field, you can specify the name of the field that the eval expression will create or modify. If the name of the calculated field matches the name of an existing extracted field, the calculated field will override the extracted field and replace its value with the result of the eval expression. This means that the original value of the extracted field will not be available for searching or analysis. To avoid this, you should use a unique name for your calculated field or use a different name for your extracted field2

1: Splunk Core Certified Power User Track, page 9. 2: Splunk Documentation, Configure calculated fields with props.conf.
