Pass the Netapp NAHSE NS0-093 Questions and answers with CertsForce

To determine whether an aggregate is WAFL (Write Anywhere File Layout) inconsistent, the following two commands can be used:

What it does:This command directly checks the WAFL consistency status of the specified aggregate. If an aggregate is WAFL inconsistent, it will report the inconsistency in the output.

How to use:

Run the command: wafiron show <aggregate> (replace <aggregate> with the name of the aggregate).

Look for indications of WAFL inconsistency in the output.

Why it's relevant:The wafiron utility is specifically designed to provide WAFL status and diagnostics. It is the most accurate and direct way to confirm whether an aggregate is inconsistent.

References:

"WAFL Troubleshooting Guide" from NetApp highlights the wafiron show command as a primary tool for checking aggregate consistency.

1. wafiron show <aggregate>

What it does:This command displays RAID information for all aggregates on the specified node. If an aggregate is WAFL inconsistent, it will be explicitly mentioned in the output.

How to use:

Run the command: node run –node sysconfig –r.

Check the output for the phrase "WAFL inconsistent" under the corresponding aggregate.

Why it's relevant:This command provides additional context, such as the RAID group details, which can help understand whether the inconsistency is isolated or part of a larger issue.

References:

"ONTAP CLI Commands Guide" specifies sysconfig –r as a method to verify aggregate status, including WAFL consistency.

2. node run –node sysconfig –r

C. storage aggregate show:

This command displays aggregate configuration and usage information but does not report WAFL inconsistency.

D. node run –node <node> sysconfig –a:

While this command shows detailed hardware configuration information, it does not include WAFL consistency status for aggregates.

Why Other Options Are Incorrect:

 Understanding "Container Type: Unknown" in Disk Show Output:

The "unknown" container type typically indicates that the disk is not properly configured or recognized by ONTAP.

This status often occurs when a disk does not have an owner assigned.

 Root Cause:

For a disk to be used in an ONTAP system, it must be owned by a member of the high-availability (HA) pair.

If no ownership is assigned, the disk will not be initialized, resulting in an "unknown" container type.

 Steps to Resolve:

Use the disk assign command to manually assign ownership of the disk.

Example: storage disk assign -disk -owner

 NetApp Reference Documentation:

"ONTAP Disk Management Guide" explicitly states that unowned disks report "unknown" container type until they are assigned to a node.

This is further detailed in the "ONTAP Troubleshooting Guide" under disk configuration issues.

To view information about installed Field Replaceable Units (FRUs) using the Service Processor, the following commands are used:

What it does:Displays a list of all installed FRUs, such as disks, power supplies, and fans.

Example Usage:

1. system fru listsystem fru list

What it does:Provides detailed information about specific FRUs, including serial numbers, statuses, and hardware details.

2. system fru showsystem fru show

C. system sensors show:

This command displays sensor data (e.g., temperature, voltage) but does not list FRUs.

D. system power status:

This command shows power supply status but does not provide FRU details.

Why Other Options Are Incorrect:

"Service Processor Commands Guide" from NetApp provides a comprehensive overview of system fru list and system fru show.

References:

When a WAFL inconsistency is detected, the first step is to stabilize the system before attempting any repairs or recovery.

Stabilize the System:

Ensure that the system is not experiencing ongoing hardware or software issues.

Avoid making changes to the affected aggregate or volume until the system is stable.

Assess the Impact:

Determine which aggregates or volumes are affected and the severity of the inconsistency.

Steps to Handle WAFL Inconsistency:

A. Run wafliron:

Running wafliron should only be done after stabilizing the system and under guidance from NetApp Support.

C. Force offline the affected aggregate:

Forcing an aggregate offline without proper assessment can lead to data loss.

D. Run a dump to null:

Dumping data is not relevant for resolving a WAFL inconsistency.

Why Other Options Are Incorrect:

"NetApp WAFL Troubleshooting Guide" specifies that stabilization is the first step after detecting inconsistencies.

NetApp Support documentation provides guidelines for handling WAFL inconsistencies safely.

References:

 What Is a Watchdog Timeout?

The watchdog is a software or hardware mechanism that monitors the system’s health and ensures it is operating correctly.

If the system fails to respond or update the watchdog timer within the specified time, the watchdog triggers a system panic to avoid further corruption or damage.

 Cause of Watchdog Timeout:

This usually occurs due to:

A hardware failure (e.g., CPU or memory issue).

A software bug causing a system hang or crash.

The panic ensures the system stops operation to preserve data integrity and aid in troubleshooting.

 NetApp Reference Documentation:

"ONTAP Troubleshooting Guide" and "Core Dump Analysis Guide" provide details on interpreting watchdog timeouts and recommended actions.

To collect shelf logs for a DS4246 shelf in an ONTAP 9.12.1 system, you must invoke a diagnostic AutoSupport specifically targeting the storage subsystem. This action ensures that detailed storage logs, including shelf logs, are included in the AutoSupport bundle.

Use the following command:

Steps to Collect Shelf Logs:bash

Copy code

system node autosupport invoke -node -type diagnostic -subsystem storage

Replace with the name of the node experiencing the issue.

This command generates an AutoSupport message that includes logs related to storage subsystems, such as disk shelves and adapters.

Provide the AutoSupport case number to NetApp Support for further analysis.

A. Provide the output of the nodeshell command rdfile /etc/log/shelflog:

While this command allows manual reading of shelf logs, it is not a recommended or comprehensive approach for collecting logs for NetApp Support cases.

B. Invoke an AutoSupport of type all using Active IQ Unified Manager:

This action generates a generic AutoSupport bundle, which may not include detailed shelf logs unless explicitly targeted.

D. Invoke a diagnostic AutoSupport with the subsystem log_files:

The log_files subsystem targets general system logs, not storage-specific logs like shelf logs.

Why Other Options Are Incorrect:

"ONTAP 9 AutoSupport and Diagnostics Guide" outlines the use of the subsystem storage option for collecting shelf logs.

The "Troubleshooting Storage Subsystems" documentation specifies diagnostic AutoSupport as the method for gathering shelf-related logs.

References:

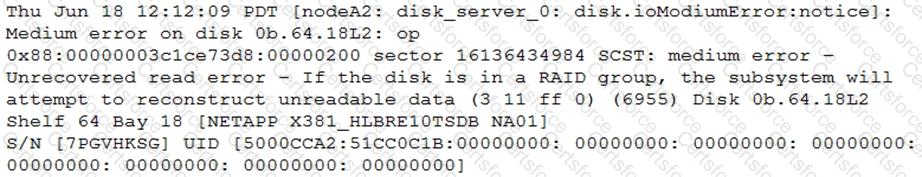

 Analyzing the Error in the Event Log:

The log entry indicates a medium error on a disk, suggesting an unrecoverable read issue.

While the RAID subsystem attempts to reconstruct unreadable data, this error might indicate a firmware issue or a compatibility problem with the disk.

 Why Reviewing Firmware and Known Issues Is Important:

Medium errors can sometimes result from outdated or incompatible firmware.

By reviewing firmware release notes and known issues for the disk model (NETAPP X381_HLBRE10TSDB in this case), you can identify if this is a known issue and resolve it by updating the firmware.

 Other Options:

Sanitize the disk (Option A): Not relevant here, as sanitization is used for secure data erasure.

Reseat the disk (Option B): Useful for addressing hardware seating issues, but not the first step here.

Diskcopy to a spare (Option D): This is a last-resort recovery step and not the primary action.

 NetApp Reference Documentation:

"ONTAP Disk Management Guide" and "Disk Firmware Release Notes" detail how to handle medium errors and update firmware.

When using wafliron to repair WAFL inconsistencies on an aggregate, the aggregate becomes available after Phase 4 of the wafliron process is complete.

Phase 1: Initial scan to identify inconsistencies.

Phase 2: Corrects directory and inode structure issues.

Phase 3: Repairs blocks and metadata.

Phase 4: Completes final repairs and verification, after which the aggregate can be made available.

Phases of wafliron:

A. when the administrator manually onlines the aggregate:

The aggregate cannot be manually brought online until wafliron completes Phase 4.

B. when wafliron is started:

Starting wafliron does not make the aggregate available; repairs need to be completed first.

D. after the mounting phase of wafliron is complete:

WAFLiron does not have a specific "mounting phase." Mounting happens after Phase 4 completes.

Why Other Options Are Incorrect:

"NetApp WAFLiron Troubleshooting Guide" explains the availability of the aggregate after Phase 4.

NetApp Support documentation outlines the phases of wafliron and aggregate recovery.

References:
