BGP attributes are categorized into four distinct types based on how they are handled by a BGP speaker:Well-known mandatory,Well-known discretionary,Optional transitive, andOptional non-transitive. Understanding these categories is essential for traffic engineering and ensuring consistent policy across an Autonomous System.

According to Juniper Networks technical documentation, theCommunityattribute is classified as anoptional transitiveattribute. The term "optional" implies that a BGP implementation is not required to support or recognize the attribute. However, because it is "transitive," if a Juniper router receives an update containing a community tag that it does not recognize or has no specific policy for, it must accept the attribute and pass it along to other BGP peers unchanged. This ensures that community-based policies can be signaled across intermediate ASes that may not be configured to act upon those specific tags.

In contrast:

Origin (Option A)andAS Path (Option B)arewell-known mandatoryattributes. Every BGP update must include these, and every BGP-compliant router must recognize them.

MED (Option D)(Multi-Exit Discriminator) is anoptional non-transitiveattribute. If a router receives a MED and advertises that route to an EBGP peer, the MED is typically stripped away (unless specific configurations like path-selection cisco-non-deterministic are used), as it is intended only to influence the immediate neighboring AS.

The Community attribute (defined in RFC 1997) is a powerful tool in Junos OS, often used for tagging routes to trigger specific routing policies, such as setting local preference or identifying the geographic origin of a prefix. By being transitive, it allows for sophisticated administrative control across complex multi-provider environments.

In the Junos OS architecture,route preference(often referred to as administrative distance in other vendor platforms) is the primary metric used by the Routing Engine to select the "best" path when multiple protocols provide a route to the same destination. Each routing protocol and route type is assigned a default numeric value; the lower the value, the more preferred the route.

According to Juniper Networks technical documentation, anaggregate routeis assigned a default preference of130. Aggregate routes are a form of static-like route used to group specific routes into a single, broader prefix to reduce the size of routing tables and limit the scope of routing updates. They are "protocol-independent" because they are not learned from a dynamic neighbor but are manually defined by the administrator.

To understand where130fits in the hierarchy, it is helpful to compare it with other common Junos preferences:

Directly connected interfaces:0

Static routes:5

OSPF Internal:10

IS-IS Level 1/2:15/18

Aggregate routes: 130

OSPF AS External:150

BGP (Internal and External):170

Generated routes:150

By setting the aggregate route preference to 130, Junos ensures that specific routes learned via IGPs (like OSPF or IS-IS) are preferred over the aggregate. This is essential because an aggregate route is often used as a "catch-all" or a discard route when more specific path information is missing. If the aggregate had a lower preference (like 5), it might override dynamic routing information, leading to suboptimal routing or black-holed traffic.

In theBorder Gateway Protocol (BGP)finite state machine (FSM), theEstablishedstate is the final and functional stage of a BGP peering session. According to Juniper Networks technical documentation, once a session reaches this state, the two peers have successfully exchanged Open messages and agreed upon session parameters (such as AS numbers, hold timers, and BGP identifiers). Only after the session is "Established" can the routers begin the actual exchange of network layer reachability information (NLRI).

The most frequent message type exchanged in the Established state is theUPDATEmessage. These messages are the heart of BGP operations; they are used to advertise new feasible routes to a peer or to withdraw routes that are no longer reachable. An UPDATE message contains path attributes (like AS-Path, Next-Hop, and Local Preference) and the associated prefixes. In a stable network, UPDATE messages are only sent when there is a change in the topology, adhering to BGP’s incremental update philosophy.

The second message type that can be exchanged in this state is theNOTIFICATIONmessage. While ideally, a session stays established, any detected error—such as a hold timer expiration, a malformed update, or a manual "clear" command—will trigger the transmission of a NOTIFICATION message. This message informs the peer of the specific error code and immediately causes the BGP session to transition back to the Idle state, tearing down the TCP connection.

It is important to note thatOPENmessages (Option A) are only used during the session initialization phase to transition from the OpenConfirm state to Established.REQUEST(Option B) is not a valid BGP message type defined in the standard (RFC 4271); the closest equivalent in functionality would be a Route-Refresh message, which is a separate extension. Therefore, in the context of standard BGP operations within the Established state, Updates and Notifications are the correct answers.

To supportdual VLAN tagging(often referred to as Q-in-Q or 802.1ad), a Juniper interface must be configured to process more than one 802.1Q header. In Junos OS, this is handled at the physical interface level ([edit interfaces ]).

According to Juniper Service Provider documents, two primary configuration statements enable this capability:

stacked-vlan-tagging (Option D):This is the traditional command used to enable an interface to accept frames with two VLAN tags. When this is enabled, the router expects an outer "service" tag and an inner "customer" tag. This is specifically used in provider edge scenarios where a service provider is tunneling multiple customer VLANs.

flexible-vlan-tagging (Option A):This is a more modern and versatile command. It allows the interface to support a mix of different encapsulation types across different logical units. For example, with flexible-vlan-tagging, you can have one logical unit (unit 10) doing standard single-tagging and another logical unit (unit 20) doing dual-tagging (vlan-tags outer X inner Y). This is the preferred method on newer hardware (like the MX Series) because it provides the highest level of configuration flexibility.

Vlan-tagging (Option C)only enables the interface to support a single 802.1Q tag, andgigether-options (Option B)contains physical-layer settings like auto-negotiation or flow control, which do not influence VLAN encapsulation. Therefore, A and D are the correct mechanisms for enabling dual-tag support.

In OSPF networks, when multiple routers are connected to a shared multi-access broadcast segment (like an Ethernet switch), they undergo an election process to select aDesignated Router (DR)and aBackup Designated Router (BDR). This mechanism is essential for reducing the number of adjacencies and limiting the volume of Link State Advertisement (LSA) flooding on the segment.

The OSPF election process follows a strict hierarchy based on the following criteria:

Interface Priority:The router with the highest OSPF interface priority is elected as the DR. The router with the second-highest priority becomes the BDR. In Junos, the default priority is 128, but it can be manually configured between 0 and 255.

Router ID:If there is a tie in priority, the router with the numerically highest Router ID (RID) wins the election.

Analyzing the configuration provided in the exhibit:

R1:Priority 200, Router-ID 192.168.1.1

R2:Priority 100, Router-ID 192.168.1.2

R3:Priority 50, Router-ID 192.168.1.3

R4:Priority 90, Router-ID 192.168.1.4

Comparing the priority values,R1 has the highest priority (200)and therefore becomes theDR. The next highest priority value among the remaining routers is100, which belongs to R2, making it theBDR. Although R4 has a higher Router ID than R2, the priority value is evaluated first and takes precedence.

Since all routers came online within a short window (one minute), they participate in the same election cycle, ensuring the configured priorities dictate the outcome rather than "first-come, first-served" preemption behavior common in OSPF once a DR is already established.

When transitioning to an IPv6 environment usingOSPFv3(the version of OSPF designed for IPv6), there are significant architectural differences compared to OSPFv2 (IPv4). According to Juniper Networks technical documentation, OSPFv3 was redesigned to be more protocol-agnostic.

Router ID (Option C):

Despite OSPFv3 routing IPv6 (which uses 128-bit addresses), the OSPFRouter IDremains a32-bit valueformatted like an IPv4 address (e.g., 1.1.1.1). This is a common point of confusion. In a pure IPv6 environment where no IPv4 addresses are configured on any interfaces, a Juniper router cannot automatically derive a Router ID. Therefore, the administrator must manually configure a 32-bit Router ID under [edit routing-options] for the OSPFv3 process to initialize.

Interface Configuration (Option D):

OSPFv3 runs directly over the IPv6 link-local scope. Unlike OSPFv2, it does not require an IPv4 address to function. Therefore, interfaces areonly required to be configured with family inet6(Option D). You do not need "dual-stack" (both IPv4 and IPv6) functionality just to run OSPFv3. The protocol uses the link-local address (fe80::/10) of the interface for neighbor adjacencies and as the next hop for routing updates. This separation allows OSPFv3 to carry multiple "address families" (both IPv4 and IPv6 unicast) if needed, but the base requirement for an IPv6-only network is simply the family inet6 configuration.

When designing High Availability (HA) for Juniper Service Provider routers, understanding the interaction between the control plane and data plane is vital. The user has already enabledGraceful Routing Engine Switchover (GRES), which synchronizes the interface and kernel state between the primary and backup Routing Engines (REs). However, GRES by itself does not preserve the routing protocol state (like OSPF adjacencies or BGP sessions).

To achieve the preservation of the routing protocol state without relying on external "helper" routers, you must implementNon-Stop Active Routing (NSR). According to Juniper Networks documentation, NSR uses the infrastructure provided by GRES to also synchronize the routing protocol process (rpd) information. Under NSR, the backup RE maintains a "hot" standby state of all routing protocols. If the primary RE fails, the backup RE takes over immediately. Because it already possesses the full routing table and peer session states, the peering neighbors are unaware that a switchover occurred. No protocol adjacency resets occur, and traffic continues to flow uninterrupted.

It is crucial to differentiate NSR fromGraceful Restart (Option C). While Graceful Restart also aims to maintain traffic flow during a switchover, itdoesrequire help from neighboring routers (known as "helper mode"). If the neighbors do not support or are not configured for Graceful Restart, the sessions will drop. Since the user explicitly stated they want to "avoid relying on helper routers," Graceful Restart is not the correct solution.

Non-stop Active Bridging (Option A)provides a similar "hitless" failover but specifically for Layer 2 environments (STP/VLANs) rather than Layer 3 routing protocols.BFD (Option B)is a failure detection protocol used to speed up convergence but does not preserve state during an RE failover; in fact, without NSR, BFD would likely trigger a faster teardown of the session during a switchover. Therefore,NSRis the only feature that meets the requirement for independent control-plane preservation.

To determine which traffic is being sent through a tunnel in a Junos OS environment, an administrator must analyze the routing table output for the exit interface associated with each destination prefix. The provided exhibit shows the results of the show route command on routerR2for two specific destination networks.

In the first output, the destination198.51.100.1/32is an active static route. The next-hop information specifies that traffic for this address is sent to the gateway 203.0.113.65 via the interfacege-0/0/3.0. According to Juniper Networks interface naming conventions, the prefixge-denotes aGigabit Ethernetinterface, which represents a standard physical connection. Therefore, this traffic does not traverse a tunnel.

In the second output, the destination172.20.110.0/24is also an active static route. However, the next-hop for this network is listed asvia gr-0/0/0.0. In the Junos operating system, thegr-prefix explicitly identifies aGeneric Routing Encapsulation (GRE) tunnel interface. GRE is a widely used protocol in service provider networks to encapsulate various network layer protocols over an IP backbone, effectively creating a virtual point-to-point link. Because the routing table has installed the route for 172.20.110.0/24 specifically via the gr- interface, all traffic destined for this network will be encapsulated and sent through the tunnel.

The other choices are incorrect for the following reasons:

203.0.113.65 (Option B):This is the next-hop IP address for the physical Gigabit Ethernet path; it is not a destination network directed to a tunnel.

0.0.0.0/0 (Option C):There is no information in the exhibit regarding a default route.

198.51.100.1/32 (Option D):As identified by thege-interface prefix in the exhibit, traffic for this destination is sent via a physical Ethernet link.

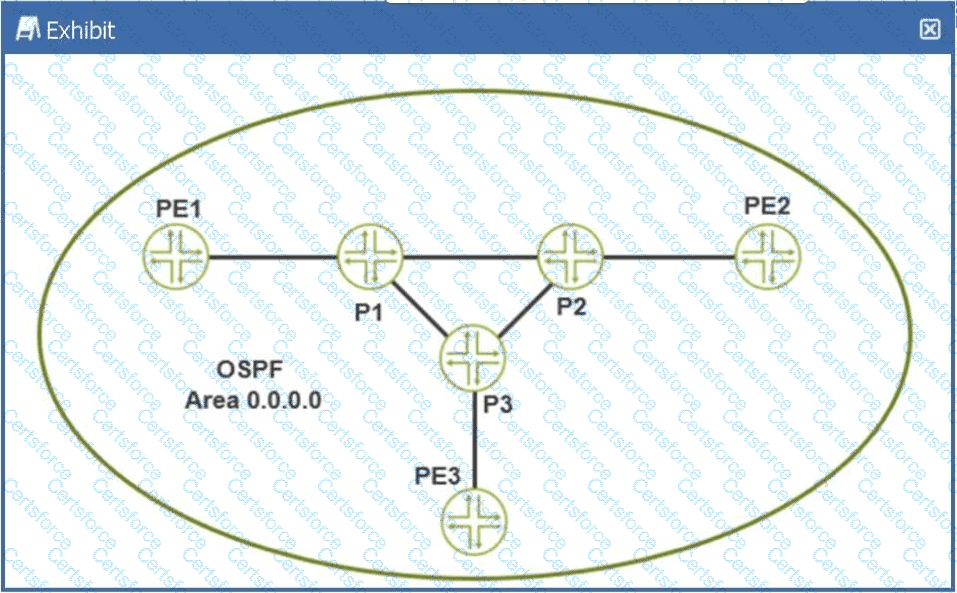

In Juniper Networks Junos OS, theLabel Distribution Protocol (LDP)is specifically designed to automate the creation of Label Switched Paths (LSPs) based on the information provided by the underlying Interior Gateway Protocol (IGP), such as OSPF or IS-IS. When LDP is enabled on a set of interfaces within an OSPF area (as shown in the exhibit with Area 0.0.0.0), it automatically discovers neighbors and exchanges label mappings for all known unicast routes in the routing table.

The defining characteristic of LDP in this context is its "topology-driven" nature. Unlike RSVP (Resource Reservation Protocol), which typically requires the manual configuration of each LSP ingress point and destination, LDP follows the IGP's shortest path tree to automatically build afull meshof LSPs between all participating routers. This means that every Provider Edge (PE) and Provider (P) router in the exhibit—PE1, PE2, PE3, P1, P2, and P3—will establish label-switched connectivity to every other router without the administrator having to define individual tunnels.

LDP accomplishes this through a downstream-unsolicited label distribution mode by default in Junos. Each router assigns a local label for its loopback address and other prefixes and advertises these to its neighbors. Because every router is performing this action for every reachable prefix in the OSPF domain, a complete fabric of label-switched paths is formed. While RSVP is more robust for traffic engineering and bandwidth reservation, LDP is the preferred protocol for creating a simple, scalable full mesh of LSPs for applications like Layer 3 VPNs or internal BGP tunneling where complex path manipulation is not required. BFD is a failure detection protocol, and BGP is used for service signaling, making LDP the only correct choice for automatic mesh creation.
