Pass the HP HPE Technical Certification HPE0-S59 Questions and answers with CertsForce

New HPE SimpliVity deployments offer customers the flexibility to choose between different hypervisors, such as VMware vSphere and Microsoft Hyper-V. This flexibility allows customers to select the hypervisor that best fits their existing infrastructure and operational preferences.

Port flap protection is a feature of the HPE Virtual Connect SE 100Gb F32 Module for HPE Synergy that can be configured to disable ports experiencing frequent up and down transitions. This feature helps to stabilize the network by preventing the disruptive effects of port flapping.

The HPE Compute Ops Management (COM) service is a cloud-native management platform delivered through HPE GreenLake . To manage a physical server directly from the cloud using the activation key method , the following architectural hierarchy must be followed:

HPE GreenLake Inventory: Before a server can be successfully " activated " or managed by a specific service like COM, the HPE GreenLake platform must first recognize the hardware. This is achieved by adding the server ' s Serial Number (SN) and Product ID (PID) to the workspace ' s Device Inventory . This step " claims " the device for that specific customer workspace and proves ownership.

Activation Key Generation: Once the workspace is established, an administrator generates an Activation Key from within the Compute Ops Management console. This key is often associated with specific settings like server groups, locations, or subscription tiers.

iLO Integration: The activation key is then entered into the server ' s iLO (HPE Integrated Lights-Out) web interface (specifically iLO 5 v3.09+, iLO 6 v1.64+, or iLO 7). When the iLO initiates an outbound connection to the HPE GreenLake cloud, it presents its unique hardware identity (SN/PID) and the activation key. If the SN/PID matches an entry in the GreenLake inventory for that workspace, the onboarding process is finalized, and the server appears as " Connected " in COM.

Network Flexibility: While iLO requires internet access to reach the cloud endpoints, it can use either the Dedicated iLO Network Port or the Shared Network Port (LOM/FlexibleLOM). There is no requirement to use only the dedicated port, making Option B incorrect.

OS Independence: One of the primary benefits of COM is that it operates at the " out-of-band " management level. It does not require an operating system to be installed or even for the server to be powered on (as long as auxiliary power is available to the iLO), making Option A incorrect.

Key Technical Takeaway:

The HPE GreenLake Inventory serves as the foundational " Source of Truth " for all cloud-managed hardware. Without the serial number and product ID being registered in the inventory, the cloud gateway will reject the activation attempt from the iLO for security and multi-tenancy reasons.

In the context of HPE OneView and Virtual Connect , a Private Network is a specific security configuration designed to restrict Layer 2 communication between server blades (downlinks) that are connected to the same internal network.

Traffic Isolation: When a network is marked as " Private, " communication between server ports assigned to that network is prohibited. This means that Server A cannot talk to Server B, even if they are in the same frame and on the same VLAN.

Uplink Only Communication: Traffic originating from a server port on a Private Network can only travel to the uplink ports . This ensures that all traffic must exit the Virtual Connect environment to a top-of-rack (ToR) switch or a firewall before it can potentially be routed back to another server.

Use Case - Security and Multi-Tenancy: This feature is primarily used to enhance network security . It prevents " lateral movement " between servers in a shared environment. For example, in a multi-tenant service provider environment, you may want to ensure that one customer ' s virtual machines or bare-metal servers cannot intercept or interfere with another customer ' s traffic, even if they accidentally end up on the same network segment.

Comparison to PVLANs: This is functionally equivalent to the concept of Private VLANs (PVLANs) in traditional networking, specifically the " Isolated " port type where the ports cannot communicate with each other but can communicate with the " Promiscuous " port (the uplink).

Why other options are incorrect:

Option A: Port speed (100 Gb/s) is determined by the hardware capabilities of the Interconnect Modules (such as the F32) and the transceivers used, not by the " Private " attribute of a logical network.

Option C: While a heartbeat network for a cluster requires low latency, it actually requires the nodes to talk to each other. Enabling a " Private Network " would break a heartbeat network because it prevents the nodes from communicating directly.

Option D: A dedicated network for a single node is achieved by creating a unique VLAN/Network and assigning it only to one Server Profile. The " Private " setting is specifically about how multiple nodes on the same network interact with each other.

The integration of NVIDIA AI Enterprise (NVAIE) into the HPE Private Cloud AI stack is designed to remove the operational complexity of managing high-performance GPU hardware in a containerized environment.

Automation via GPU Operator: One of the most significant features of NVAIE is the NVIDIA GPU Operator . In a standard Kubernetes environment, administrators would typically need to manually install GPU drivers, container runtimes, and monitoring tools on every node. The GPU Operator automates this entire lifecycle. It detects the presence of NVIDIA GPUs and automatically deploys the necessary drivers, the NVIDIA Container Toolkit , and the Kubernetes Device Plugin .

Infrastructure Readiness: By including NVAIE, HPE ensures that the " Infrastructure Layer " is fully optimized for AI workloads. This means that as soon as an AI worker node (like an HPE ProLiant DL380a) is provisioned, the software stack is ready to pass GPU instructions from a containerized application directly to the hardware without manual intervention.

Consistency and Support: NVAIE provides a validated and supported path for these drivers and operators. This ensures that the versions of the drivers are compatible with the AI frameworks (like PyTorch or TensorFlow) and the specific version of Kubernetes running on the HPE Private Cloud AI, reducing " version hell " and ensuring enterprise-grade stability.

Why other options are incorrect:

Option A: While resource scheduling and orchestration (via tools like NVIDIA Run:ai, now part of NVAIE) can manage workload placement, the " cleanup of idle workloads " is typically a function of the Kubernetes scheduler or specific policy engines (like Kyverno), not the primary defining benefit of NVAIE itself.

Option C: NVIDIA AI Enterprise is a software platform . It does not provide access to " unreleased " or " non-public " hardware models; rather, it provides the software stack to run on commercially available NVIDIA GPUs like the H100, L40S, or B200.

Option D: Secure communication between workloads is usually handled by the Service Mesh (such as Istio , which is part of the HPE AI Essentials software layer) or networking operators, rather than NVAIE ' s primary role of GPU enablement.

The HPE Superdome Flex 280 is the appropriate hardware platform for a customer requiring up to 24 TB of physical memory. This system is designed for high scalability and performance, supporting large memory configurations suitable for demanding applications and workloads.

When troubleshooting a server profile in HPE OneView that is in a critical state due to a Link Aggregation Group (LAG), it is important to check if both FlexNICs are configured with the same speed. Inconsistent speeds can cause issues with link aggregation, leading to network instability and performance degradation.

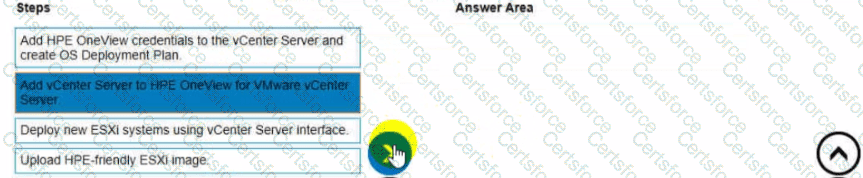

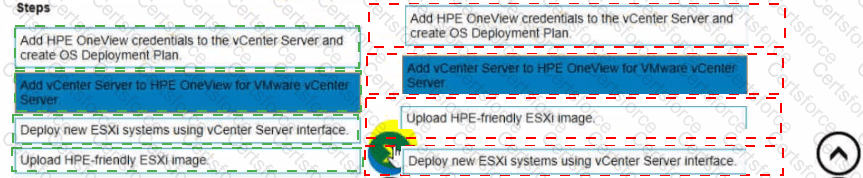

To configure HPE OneView for VMware vCenter Server to deploy ESXi systems, follow these steps in the correct order:

Add HPE OneView credentials to the vCenter Server and create OS Deployment Plan.

Add vCenter Server to HPE OneView for VMware vCenter Server.

Upload HPE-friendly ESXi image.

Deploy new ESXi systems using vCenter Server interface.

Add HPE OneView credentials to the vCenter Server and create OS Deployment Plan: Integrate HPE OneView with vCenter Server by adding the necessary credentials and setting up the OS Deployment Plan.

Add vCenter Server to HPE OneView for VMware vCenter Server: Ensure that vCenter Server is added to HPE OneView for VMware vCenter Server to enable communication and management.

Upload HPE-friendly ESXi image: Upload an ESXi image that is optimized for HPE hardware to the vCenter Server for use in the deployment process.

Deploy new ESXi systems using vCenter Server interface: Use the vCenter Server interface to deploy new ESXi systems based on the created server profile template and the uploaded ESXi image.

These steps ensure a seamless deployment and management of ESXi systems using HPE OneView integrated with VMware vCenter Server.

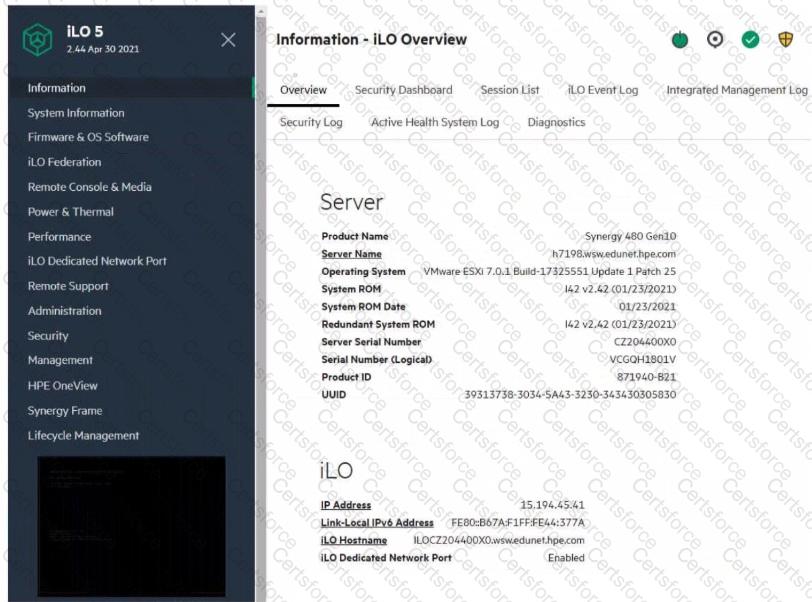

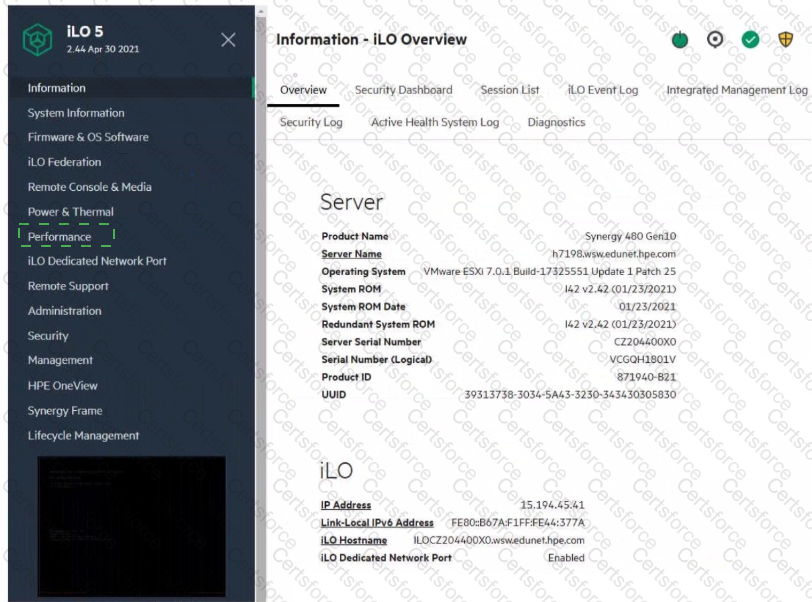

The Performance section within the iLO management interface provides access to the Workload Advisor. This feature offers insights and analytics regarding the server ' s performance, helping to optimize workloads and manage resources efficiently.
