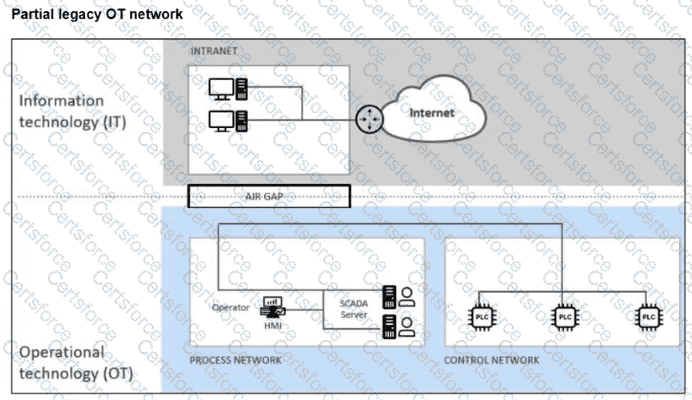

The correct answer is B . A historically flat OT network permits excessive east-west communication, allowing a compromised host to move laterally toward other controllers, HMIs, and critical systems. Fortinet recommends microsegmentation to control these communication paths. The study guide explains that microsegmentation controls intra-VLAN traffic through firewall policies , prevents hosts in the same segment from directly seeing or communicating with each other, and forces permitted communication through an enforcement point such as FortiGate. This provides granular host isolation and increased traffic visibility for monitoring and threat hunting. A normal hardware switch does not inherently impose the required security policies and therefore does not adequately restrict lateral movement. SD-WAN addresses WAN path selection and resilience, while two-factor authentication strengthens user authentication but does not control device-to-device traffic inside a flat process or control network. Therefore, firewall-based microsegmentation is the required architectural control.

================

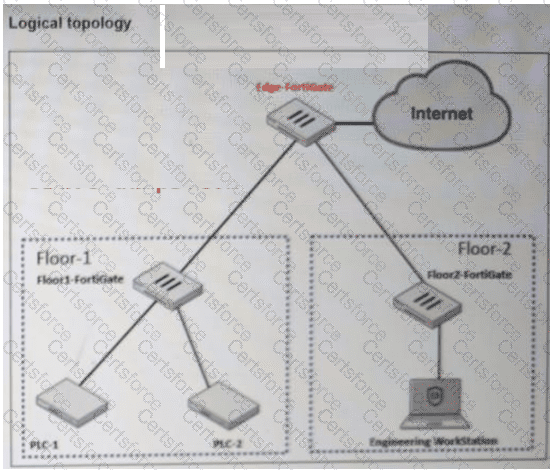

The correct answer is C. You can implement parallel redundancy protocol . The study guide explains that media redundancy involves creating a backup path that can be used when part of the network fails and specifically states that “Parallel Redundancy Protocol (PRP) can be used for a star topology.” Since the problem described is many disconnections in the links , the issue is link availability, which is a media redundancy problem rather than a firewall virtualization or policy separation problem. PRP is designed to provide a backup communication path with low recovery time when links fail.

The other options do not fit this scenario as well. HA clusters are described in the guide as a solution for network node redundancy , where a backup firewall or switch takes over when the primary device fails. SD-WAN is recommended for remote site access across multiple WAN links, not for the local floor links shown in this topology. VDOMs provide logical segmentation, not link redundancy or higher link availability. Because the question is specifically about repeated link disconnections , the best action is to implement PRP .

The correct answer is D. Automatically by an event handler . The study guide explicitly states that “Event handlers generate events on FortiAnalyzer” and “FortiAnalyzer uses event handlers to filter all incoming logs. If the logs received match the conditions set in the event handlers, FortiAnalyzer generates an event.” It also says “You can view all generated events on the Event Monitor page.” This directly matches the exhibit, which is showing entries on the Event Monitor page. Therefore, the attack shown there was detected automatically through an event handler .

The guide also explains the detection flow: “FortiAnalyzer receives logs,” “FortiAnalyzer parses logs,” and “FortiAnalyzer generates an event if a rule is matched in an event handler.” In addition, the Event Monitor view includes the Handler column, which identifies the event handler that generated the event. That is why the attack is not considered manually detected, and it is not primarily detected by a playbook or stitch. Playbooks and stitches are used for subsequent automation actions, but the event appearing in Event Monitor is created by the event handler mechanism.

The correct answers are A and C . The study guide explains that “You can use application control signatures to detect OT protocols” and that application control provides “granular message type identification.” In the exhibit, the Operational Technology application category is included in the Application Sensor profile, so OT application signatures are enabled in this profile.

Option C is also correct because the override table shows Modbus_Read.Holding.Registers = Allow and Modbus = Block . The study guide states that you can use specific granular application control signatures to allow a specific Modbus command and block all others , and it also shows that application control can identify read and write commands separately at message level. Therefore, Modbus write commands are blocked by this profile.

Option B is incorrect because the profile is not simply monitoring all OT protocols; it contains a Block action for Modbus. Option D is incorrect because the study guide links OT protocol visibility specifically to the monitor status , while in the exhibit Modbus_Read.Holding.Registers is set to Allow , not Monitor .

The correct answers are C. Vendor OUI and D. Network traffic .

The study guide explicitly separates active/direct profiling methods from passive/non-direct methods and states that “In OT environments, passive methods are preferred over active methods.” It then lists the methods that do not require FortiNAC to interact directly with the device being profiled. Among those methods are “Network traffic: gathered from the infrastructure” and “Vendor OUI: determined by the MAC address gathered from the infrastructure.” That directly matches options C and D .

Options A and B are incorrect because SSH and SNMP are shown in the guide under the direct/active profiling methods. The guide’s point is that passive detection avoids directly scanning or interacting with OT endpoints, since that can negatively affect performance in industrial environments. Because the question specifically asks for passive detection methods, the correct pair is Vendor OUI and Network traffic .

The correct answer is D. You must configure a layer 3 switch .

The study guide explains that “Layer 2 devices can add or remove tags” but “cannot modify them.” It then states that “A layer 3 device, such as a router or FortiGate, can modify the VLAN tag before routing the packet. This allows them to route traffic between VLANs.” It also explicitly describes “Router on a Stick” as “a way to allow routing between VLANs.” Since the exhibit shows a layer-2 switch and the Engineering Workstation and PLC are placed in different VLANs, inter-VLAN communication requires layer-3 routing.

The other options do not solve this requirement. intra-switch-policy explicit/implicit applies to a software switch , where member interfaces are in the same broadcast domain and same subnet, not to routing between separate VLANs. forward domain IDs are used in transparent mode to confine broadcasts to specific broadcast domains; they do not provide inter-VLAN access. Therefore, to let the Engineering Workstation in one VLAN reach the PLC in another VLAN, you need a layer 3 routing function , which matches option D .
