Option B is correct because each FortiGate in the Security Fabric can send logs to FortiAnalyzer for centralized logging and analysis12. This allows you to monitor and manage the entire Security Fabric from a single console and view aggregated reports and dashboards.

Option A is incorrect because the root FortiGate is not the only device that can send logs to FortiAnalyzer. The root FortiGate is the device that initiates the Security Fabric and acts as the central point of contact for other FortiGate devices3. However, it does not have to be the only log source for FortiAnalyzer.

Option C is incorrect because the FortiGate devices performing NAT or UTM are not the only devices that can send logs to FortiAnalyzer. These devices can perform additional security functions on the traffic that passes through them, such as firewall, antivirus, web filtering, etc4. However, they are not the only devices that generate logs in the Security Fabric.

Option D is incorrect because the last FortiGate that handled a session in the Security Fabric is not the only device that can send logs to FortiAnalyzer. The last FortiGate is the device that terminates the session and applies the final security policy5. However, it does not have to be the only device that reports the session information to FortiAnalyzer. References: =

1: Security Fabric - Fortinet Documentation1

2: FortiAnalyzer Demo6

3: Security Fabric topology

4: Security Fabric UTM features

5: Security Fabric session handling

In IKE version 2, not all packets are fragmentable. Only certain messages within the IKE negotiation process can be fragmented. Additionally, there is a limit to the number of fragments that IKE version 2 can handle, which is 128. This is specified in the Fortinet documentation and ensures that the IKE negotiation process can proceed even in networks that have issues with large packets. The reassembly timeout and the layer at which fragmentation occurs are not specified in this context within Fortinet documentation.

To use the VPN interfaces in a policy, you need to install the VPN community and gateway configuration on the FortiGate devices first. This will create the VPN interfaces on the FortiGate and sync them with FortiManager. References:

Creating IPsec VPN communities

VPN | FortiGate / FortiOS 7.2.0

For the ADVPN feature to function properly on the hub, the following phase 1 parameters must be configured:

A. set auto-discovery-forwarder enable: This enables the hub to forward shortcut information to the spokes, which is essential for them to establish direct tunnels.

C. set auto-discovery-receiver enable: This allows the hub to receive shortcut offers from the spokes.

This information is corroborated by the Fortinet documentation, which explains that in an ADVPN setup, the hub must be able to both forward and receive shortcut information for dynamic tunnel creation between spokes.

In an ADVPN scenario, when traffic is initiated from a client behind one spoke to another spoke, the hub sends a shortcut query to the initiating spoke. This query is used to determine if there is a more direct path for the traffic, which can then trigger the establishment of a dynamic tunnel between the spokes.

In the Security Fabric, only the root FortiGate sends logs to FortiAnalyzer (B). Additionally, only FortiGate devices with configuration-sync enabled receive and synchronize global Central Management Database (CMDB) objects that the root FortiGate sends (C). FortiGate uses the FortiTelemetry protocol to communicate with other FortiGates, not FortiAnalyzer (A). The last option (D) is incorrect as all FortiGates can collect and forward network topology information to FortiAnalyzer.

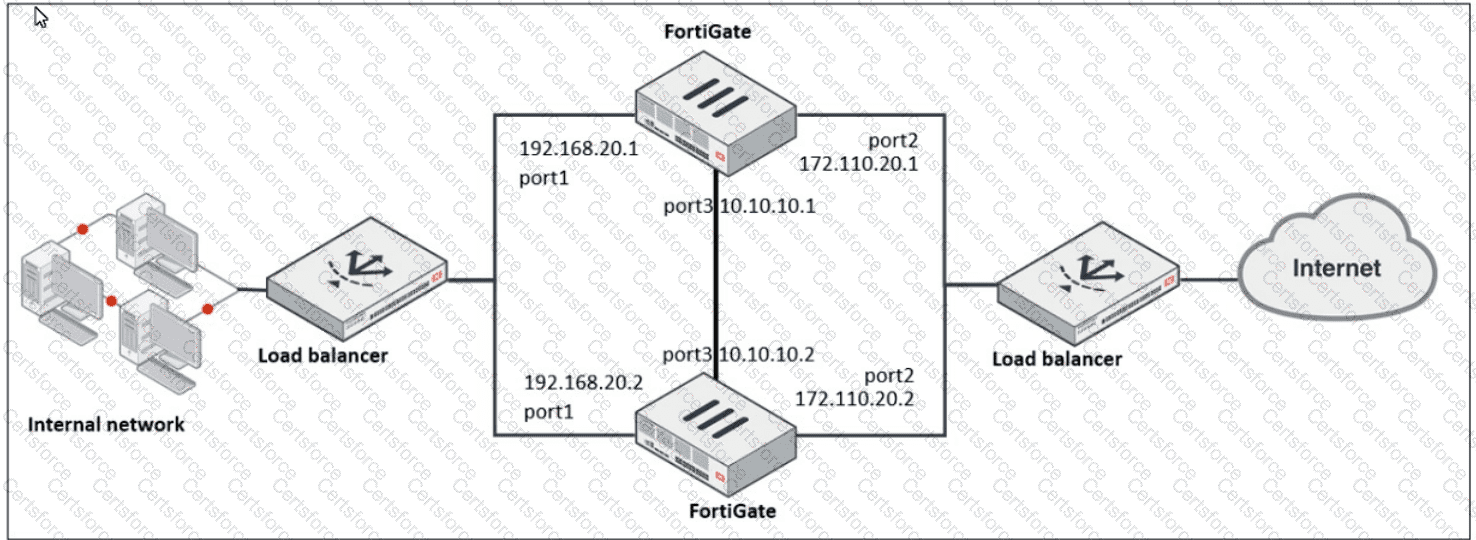

Given the network diagram and the presence of two FortiGate devices, the Fortinet Gate Clustering Protocol (FGCP) in active-passive mode is the most appropriate for setting up a FortiGate cluster. FGCP supports high availability configurations and is designed to allow one FortiGate to seamlessly take over if the other fails, providing continuous network availability. This is supported by Fortinet documentation for high availability configurations using FGCP.

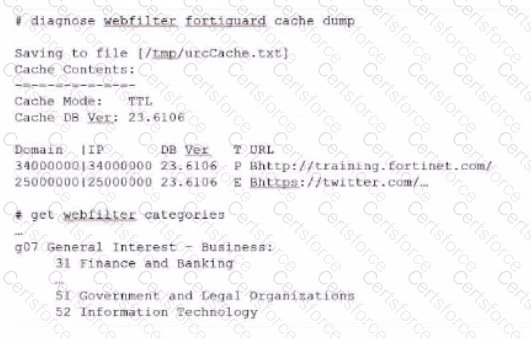

Option B is correct because the administrator can determine the category of the training.fortinet.com website by looking up the hex value of 34 in the second command output. This is because the first command output shows that the domain and the IP of the website are both in category (Hex) 34, which corresponds to Information Technology in the second command output1.

Option A is incorrect because the administrator does not need to convert the first three digits of the IP hex value to binary. The IP hex value is already in the same format as the category hex value, so the administrator can simply compare them without any conversion2.

Option C is incorrect because the administrator does not need to add both the Pima in and Iphex values of 34 to get the category number. The Pima in and Iphex values are not related to the category number, but to the cache TTL and the database version respectively3.

Option D is incorrect because the administrator does not need to convert the first two digits of the Domain hex value to a decimal value. The Domain hex value is already in the same format as the category hex value, so the administrator can simply compare them without any conversion2. References: =

1: Technical Tip: Verify the webfilter cache content4

2: Hexadecimal to Decimal Converter5

3: FortiGate - Fortinet Community6

: Web filter | FortiGate / FortiOS 7.2.0 - Fortinet Documentation7
